Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of diesel scissor lift in China. We warmly welcome you to buy discount diesel scissor lift for sale here from our factory. Quality products and reasonable price are available.

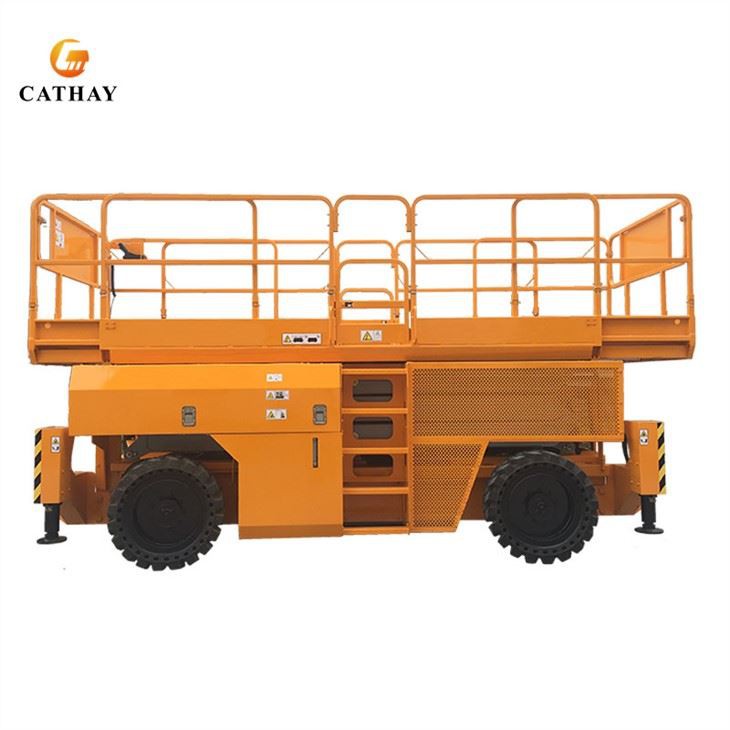

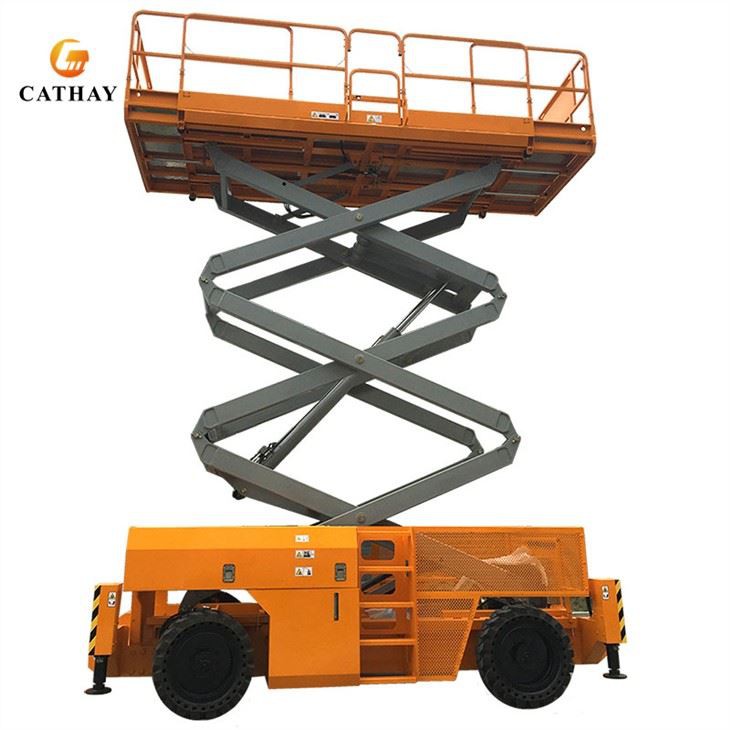

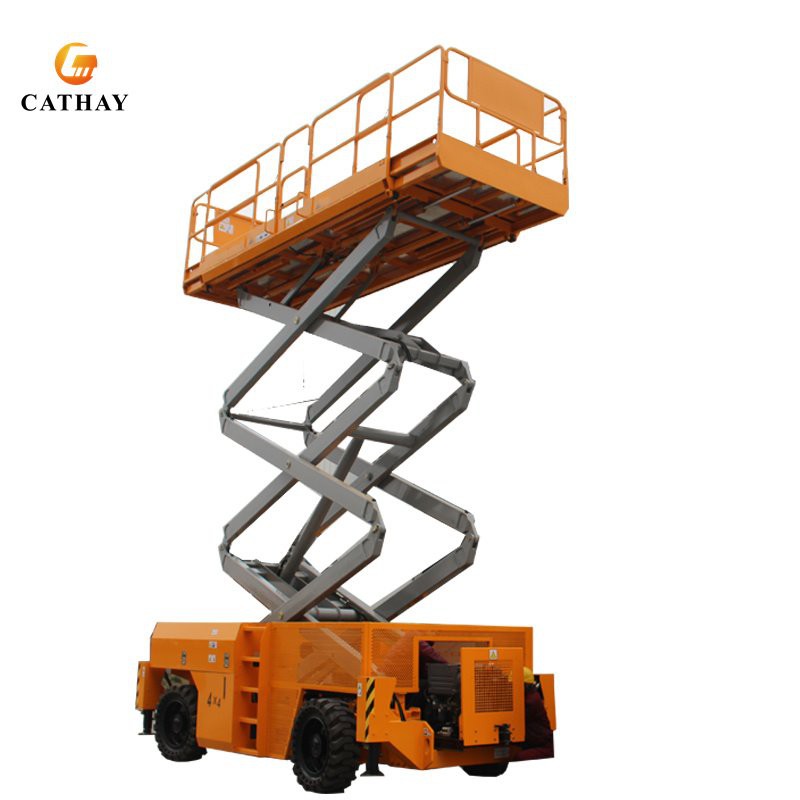

CATHAYLIFT Diesel scissor lift uses diesel as power and has a wide range of applications. Scissor lifts are widely used in construction sites, hotels, warehouses, airports, stations, docks, stadiums and other tall buildings. It is an ideal device to ensure safe operation and improve work efficiency, making aerial work more convenient and faster.
Model Type No. | CLS10D | CLS13D | CLS16D |
Working Height Maximum | 12 m | 15 m | 18 m |
Platform Height Maximum | 10 m | 13 m | 16 m |
Lift capacity | 1150 kg | 680kg | 680 kg |
Lift capacity (extension deck) | 230 kg | 230kg | 230 kg |
Length Ⓓ | 4.2/4.81m | 4.2m /4.81m | 4.2/4.81 m |
Width Ⓔ | 2.28 m | 2.28m | 2.28 m |
Height(stowed)Ⓒ | 2.81 m | 3.03m | 3.25 m |
Wheel baseF | 2.84m | 2.84m | 2.84 m |
Ground clearance-centerⒼ | 0.23 m | 0.23m | 0.23 m |
Platform measurement Ⓑ*Ⓐ | 3.95*1.83 m | 3.95×1.83 m | 3.95*1.83 m |
Extension deck measurement | 1.22m+1.52 m | 1.22m + 1.52 m | 1.22m+1.52 m |
Turning radius inside /outside | 2.78m /4.95 m | 2.78m / 4.95 m | 2.78m / 4.95 m |
Travel speed(stowed) | 6.3km/h | 6.3km/h | 6.3km/h |
Travel speed(raised ) | 1.1km/h | 1.1km/h | 1.1 km/h |
Grade ability | 50% | 50% | 0.45 |
Sold tire | 33×12-20 | 33×12-20 | 33×12-20 |
weight | 6850kg | 7350 kg | 8850kg |
Fuel tank volume | 115L | 115L | 115L |
Hydraulic tank volume | 170L | 170L | 170L |
Drive mode | 4*4*2 | 4*4*2 | 4*4*2 |
Engine | Yanmar | Yanmar | Yanmar |
Configurations:
● Main Parts Place of Origin Brand
● Diesel engine Japan Kubota
● Hydraulic pump Italy Salami
● Cartridge valve U.S.A Hydra Force
● Reducer U.S.A Omni
● Driving motor China Li Ke
● Throttle actuator U.S.A SUMJACK
● Inclination sensor Italy BPE
● Control handle and controller U.S.A Delta Tech
● Meter China Kang Bo
● Controller China Kais
Features&Advantages:
● Strong power: The diesel scissor lift has mighty power, and the four-wheel drive has a strong climbing capacity.
● The scissors lift can shift at high and low speeds.
● Draggable engine tray: The engine is installed on the tray that can be dragged out, facilitating maintenance and repair.
● Active Oscillation Axle: Active oscillation axle can perceive the terrain and guarantee that the machine can land on four-wheel even on uneven roads without reducing the driving force.
● Large working space: The maximum size of the platform extended by cylinder forward double direction can reach 6.65*1.83m.
● Outrigger: The hydraulic outriggers can be used to level vehicles in case of operation on uneven ground.
Real Order:
