Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of wheelchair lift for home in China. We warmly welcome you to buy discount wheelchair lift for home for sale here from our factory. Quality products and reasonable price are available.

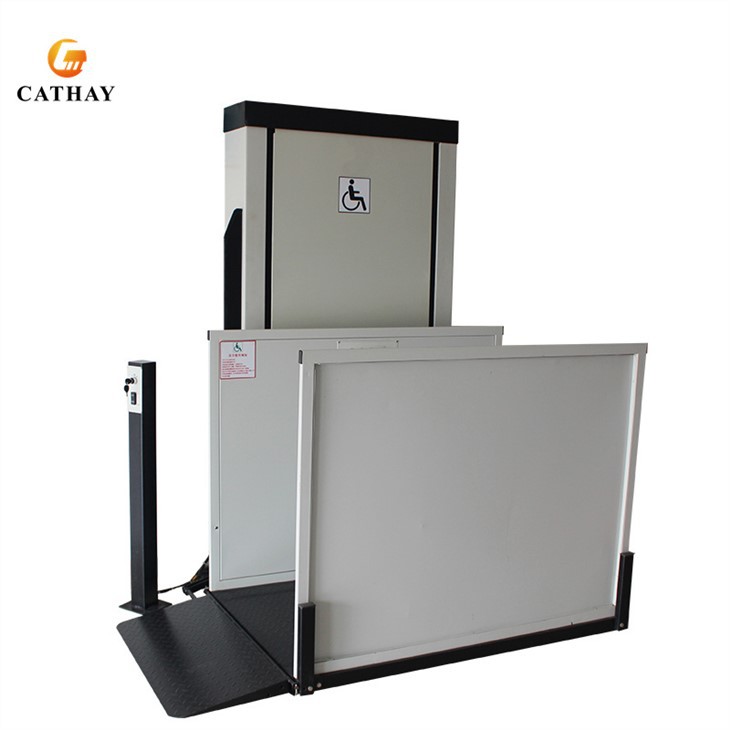

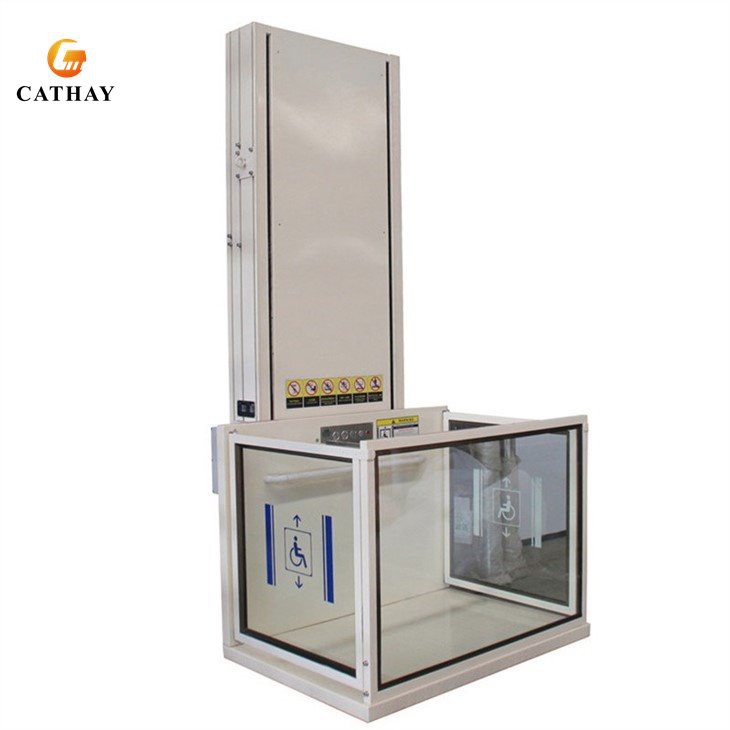

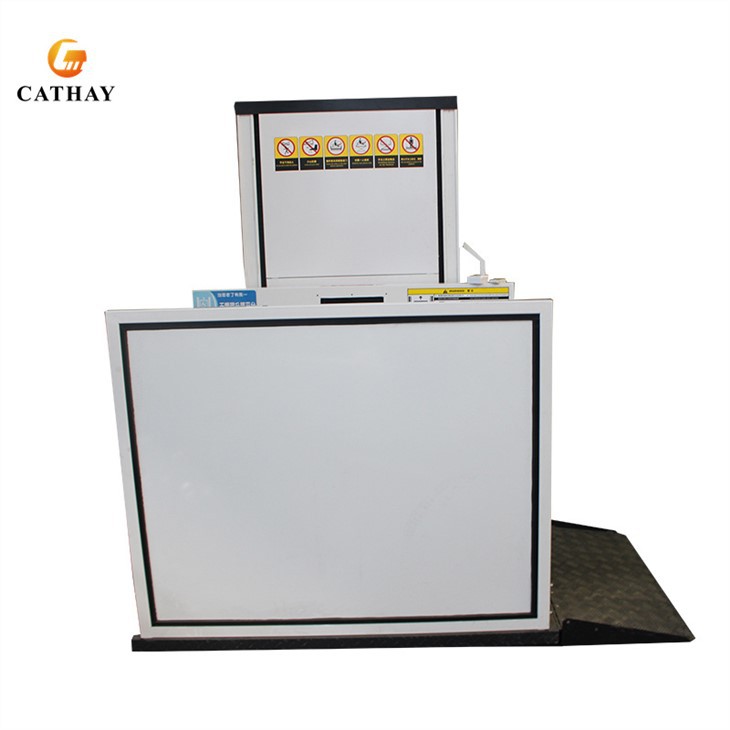

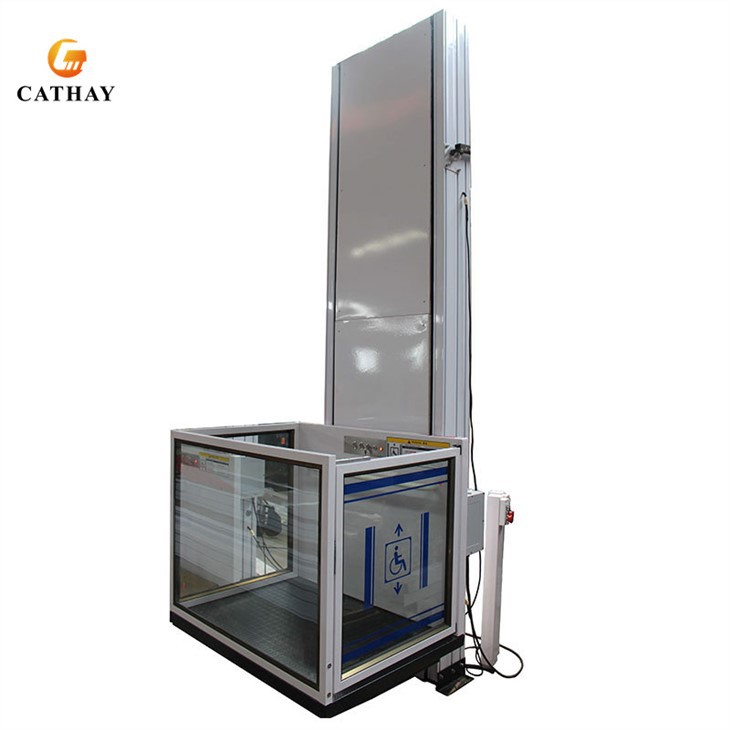

Wheelchair lift for home is specially designed for the disabled and the elderly with inconvenience to move easily and quickly between different floors. The product design is stable and safe, and strictly conforms to CE, ISO9001.
Model Type | HL10 | HL15 | HL20 | HL25 | HL30 | HL35 | HL40 | HL50 | HL60 |
Max. Platform Height | 1000mm | 1500mm | 2000mm | 2500mm | 3000mm | 3500mm | 4000mm | 5000mm | 6000mm |
Load Capacity | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg |
N.W/G.W(kg) | 350/450 | 450/550 | 550/700 | 700/850 | 780/900 | 850/1000 | 880/1050 | 1000/1200 | 1100/1300 |
Machine Size(mm) | 2000*1430*1300 | 2500*1430*1300 | 3000*1430*1000 | 3500*1430*1000 | 4000*1430*1000 | 4600*1430*1000 | 5100*1430*1000 | 6100*1430*1000 | 7100*1430*1000 |
Platform size | 1430*1000mm skid proof checkered steel | ||||||||
Working Condition | Both indoors and outdoors -20°~70°C | ||||||||
Entrance-Exit Way | It's customized 90°or 180° | ||||||||
Installation | No pit installing,easy to install and remove | ||||||||
Switches | 1.One control panel on the platform
| ||||||||
Product Details
Advantages:
● Low requirements for civil structures. The hydraulic elevator does not need a machine room, only one load-bearing wall, and the bottom pit can also be very shallow, with a minimum of 60mm.
● No speeding out of control. There will be no top-rushing or squatting. The mechanical structure is reasonably designed, the installation is reliable, and the safety factor is relatively high, and the backup battery can be used to realize the self-rescue function of the trapped person. When the elevator fails or the power fails, press the car. The internal emergency button, the hydraulic oil after the oil drain valve circuit is connected to the oil tank slowly returns to the oil tank, and the elevator slowly descends by its own weight.
● Save building space. Hydraulic elevators have no counterweight, only two tracks. So it saves building space and can be installed in more complicated and tricky areas.
● The silent pump station has its own frequency conversion and uses a low-noise hydraulic pump. The pump station is equipped with an emergency lowering valve, which can be manually lowered and automatically leveled when the power is cut off. The built-in relief valve can prevent the pressure from being too high during the upward movement, and has the function of overload protection.
Real Order
