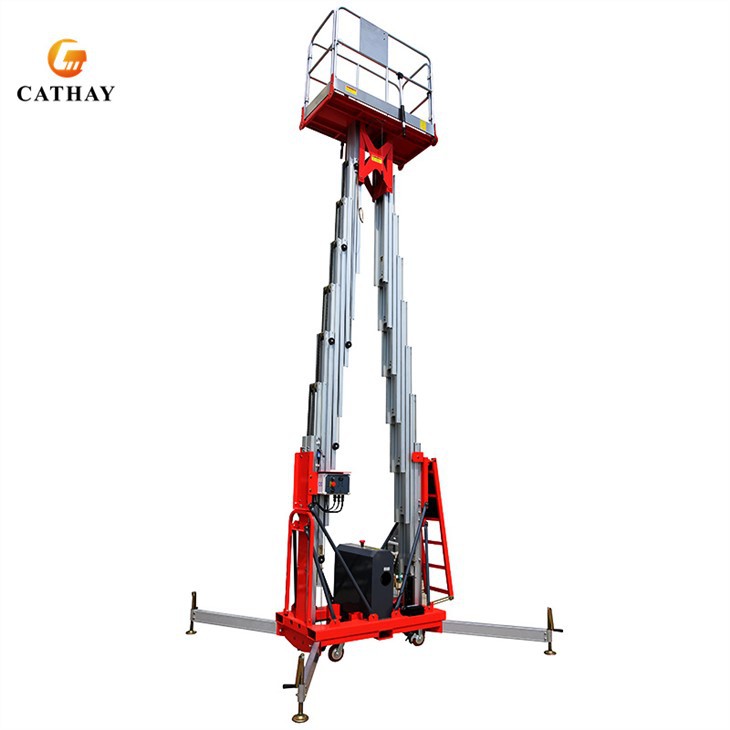

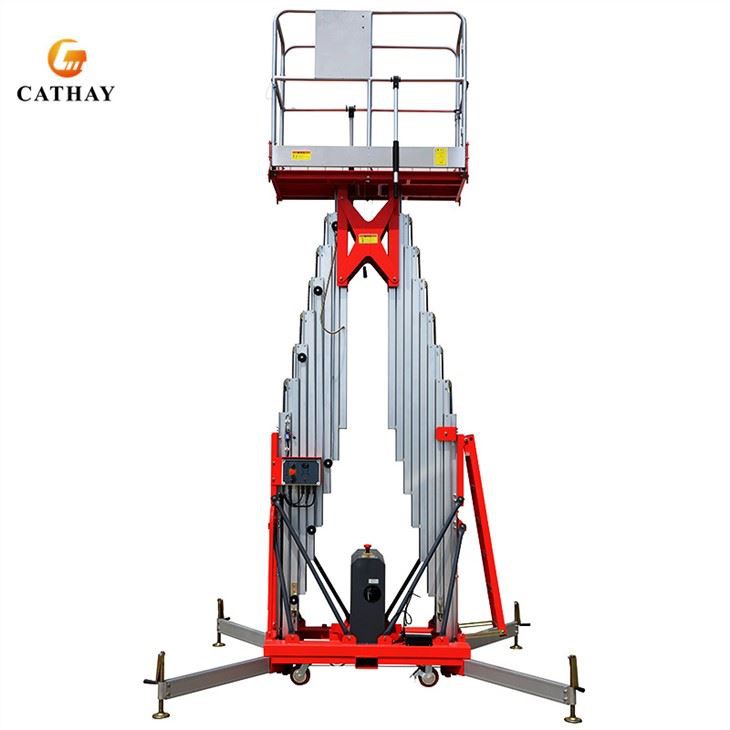

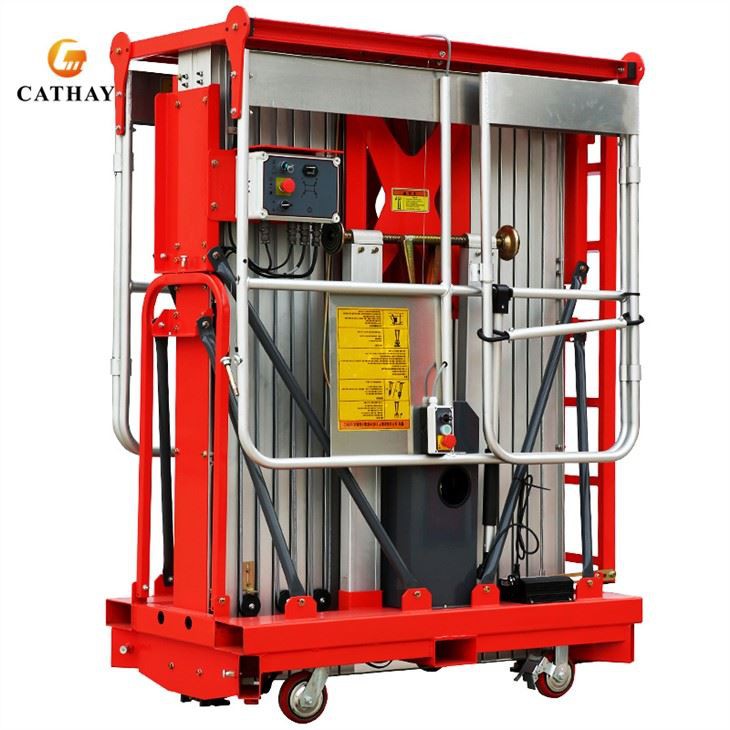

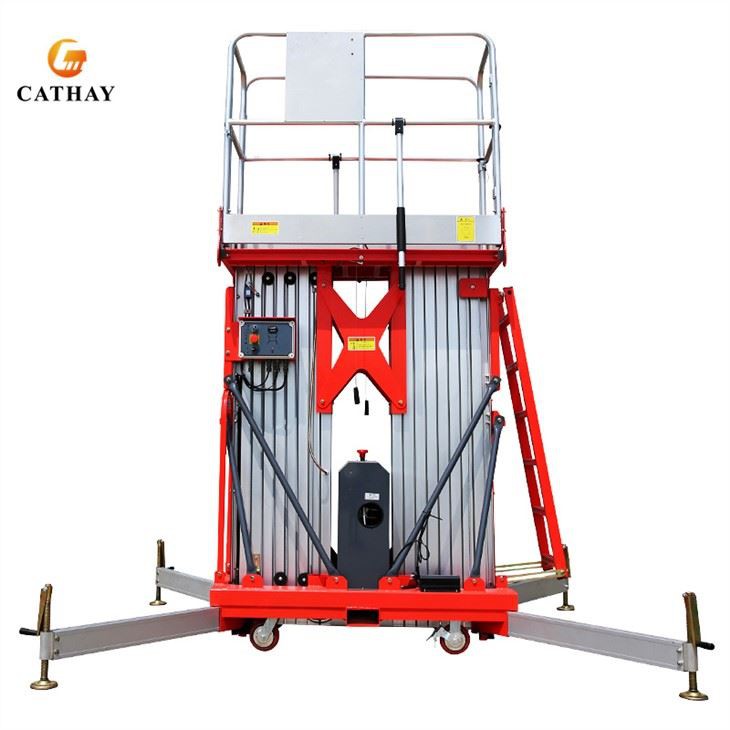

The Dual Mast Aerial Platform lift is a device specially designed for indoor and outdoor work at heights. According to different models, its working height is 6~18m. Thanks to its convenient and quick design, one person can install it in minutes and get to work quickly. Products strictly comply with CE Rohs, ISO9001 standards. Every product will be rigorously tested before delivery.
Model No. | CUP-6DH | CUP-8DH | CUP-9DH | CUP-10DH | CUP-12DH | CUP-14DH | CUP-16DH | |||||
Max.Platform Height | 6m | 8m | 9m | 10m | 12m | 14m | 16m | |||||
Max Working Height | 8m | 10m | 11m | 12m | 14m | 16m | 18m | |||||
Load Capacity | 300kg | 300kg | 250kg | 250kg | 200kg | 200kg | 150kg | |||||
Platform Size | 1.45*0.7m | 1.8*0.7m | ||||||||||
Occupants | Two people | |||||||||||
Outrigger Coverage | 2.45*1.75m | 2.7*1.8m | ||||||||||
Overall Size | 1.45*0.81*1.99m | 1.88*0.81*2.68m | ||||||||||
Net Weight | 610kg | 645kg | 680kg | 715kg | 750kg | 892kg | 996kg | |||||
Motor Power | 1.5kw | |||||||||||
Options | DC | 2x12v | ||||||||||
DC Motor | 2.2kw | |||||||||||
Charger | 12v15A | |||||||||||
Products Details
● Larger working range
● Two people work (Heavy load)
● Ground Control and Platform Control
● Easy to move it manually(4 wheels with handling)
● Easy maintenance and storage
● Durable design
● Multiple power options (AC, DC, AC+DC)
● More safety design
Details Images

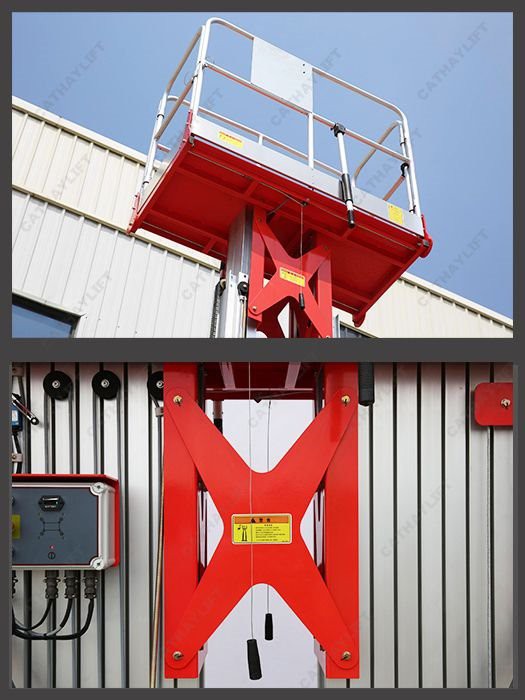

Aluminum Guardrails:
The aluminum alloy guardrail is made of 6063 industrial aluminum, after extrusion, aging, ironing, and high-temperature electrostatic spraying, it is made by a new technology of classical buckle combination. The aluminum alloy guardrail does not need welding, wire connection, and corner code connection. The joints are tight and seamless, safe and reliable, and are beautiful, fashionable, rust-free, green and environmentally friendly, and have a long service life.
Reinforced weighing board:
Reinforcing plates are designed in the middle of the mast to improve its stability, can greatly reduce the degree of shaking when fully lifted, and improve its load capacity.

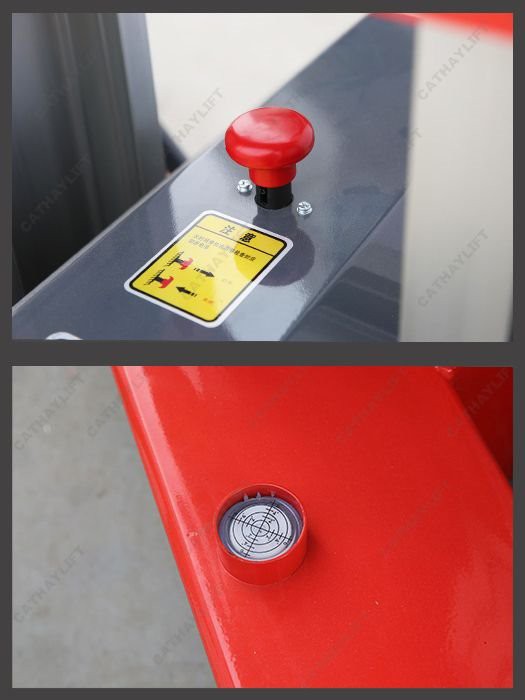

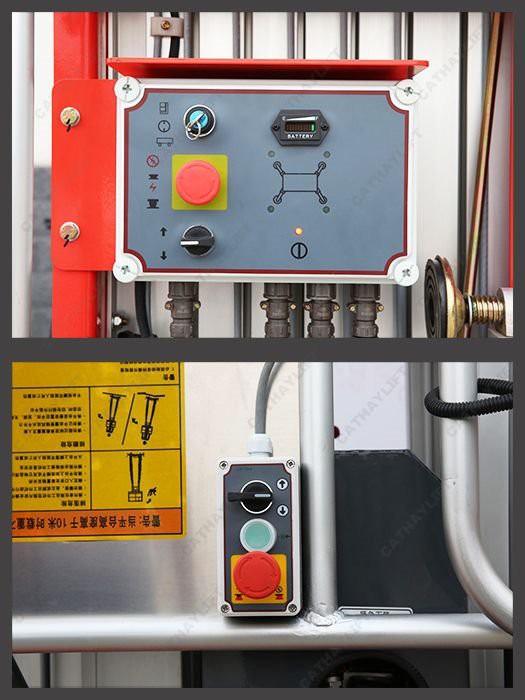

Ground control and Platform control:
The two control systems are all equipped with an emergency stop switch, ground control system, and anti-misoperation design(Prevent platform operators from unconsciously touching the platform caused by rising or falling)
Emergency relief valve:
In an emergency, this valve can be used to manually relieve pressure and lower the platform to the ground.
Leveling observation device:
Through this device, the angle and the level of the machine body can be clearly observed.

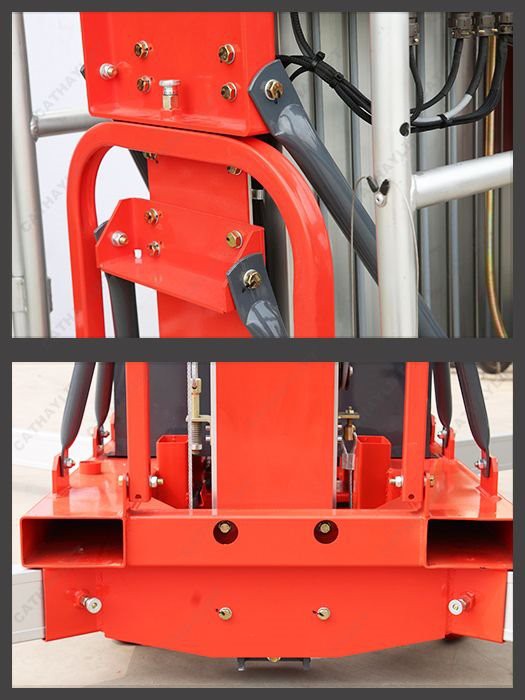

Towable handle:
One side of the machine is equipped with a towable handle, which is convenient for manpower to drag it to move.
Standard forklift hole:
When transporting over long distances, it is convenient for forklifts to load and unload them.

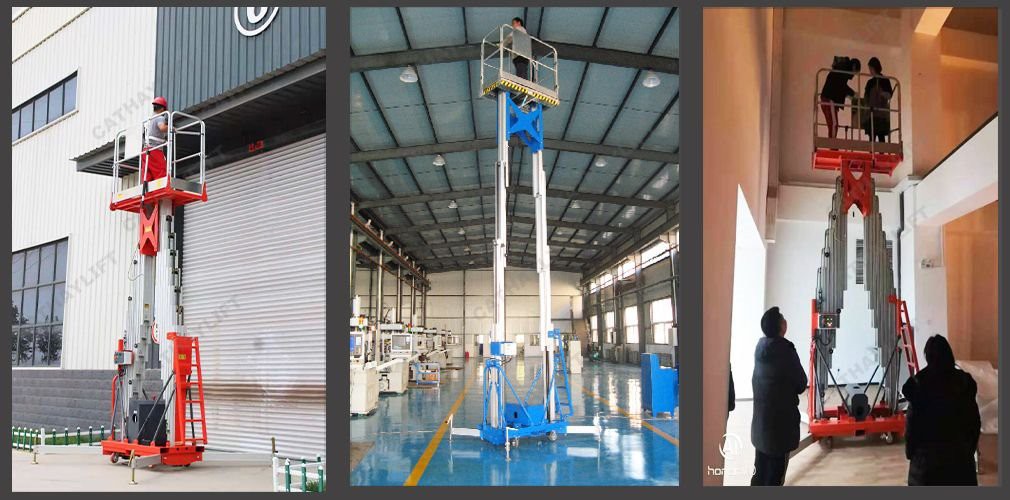

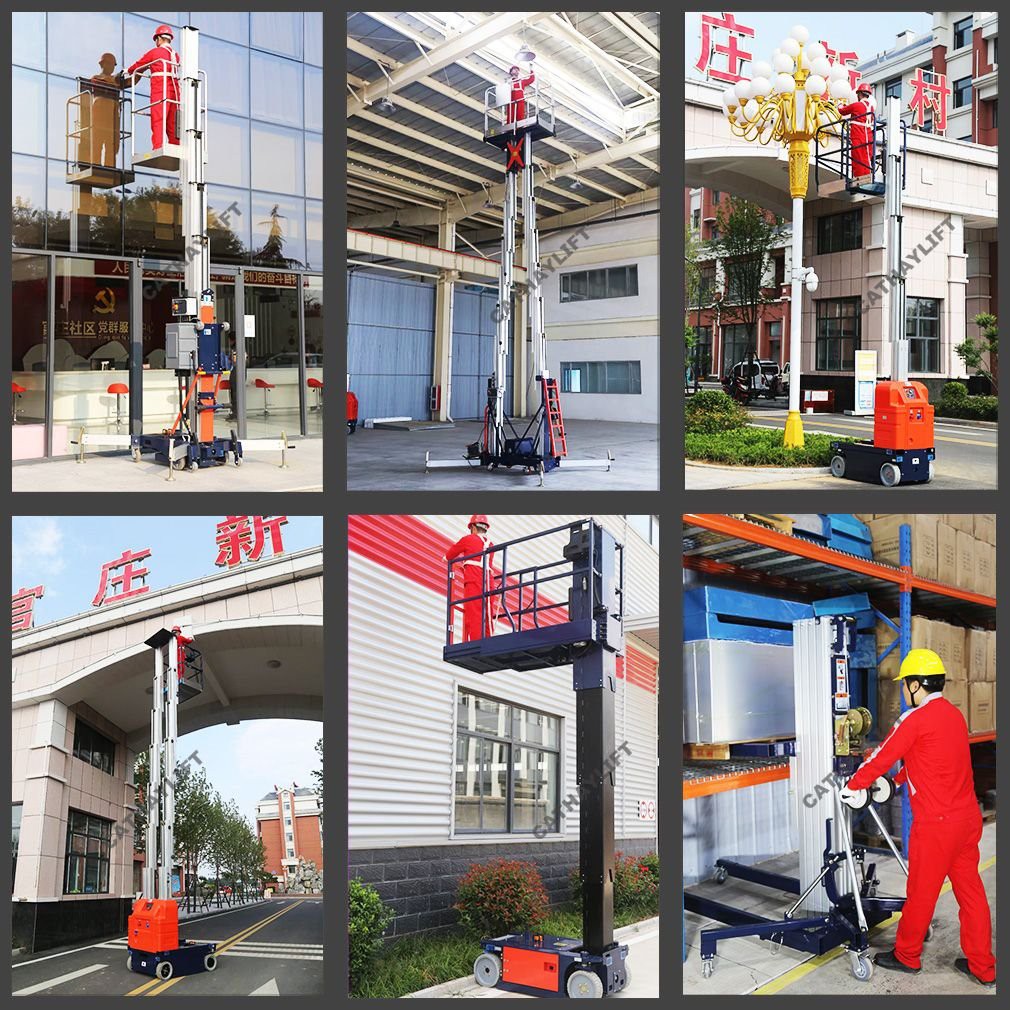

Application
It is mainly used for the installation and maintenance of star-rated hotels, modern workshops, business halls, hotels, lobbies, restaurants, stations, exhibition halls, shopping malls and other small spaces. It is the preferred auxiliary work machine for equipment maintenance and paint decoration.

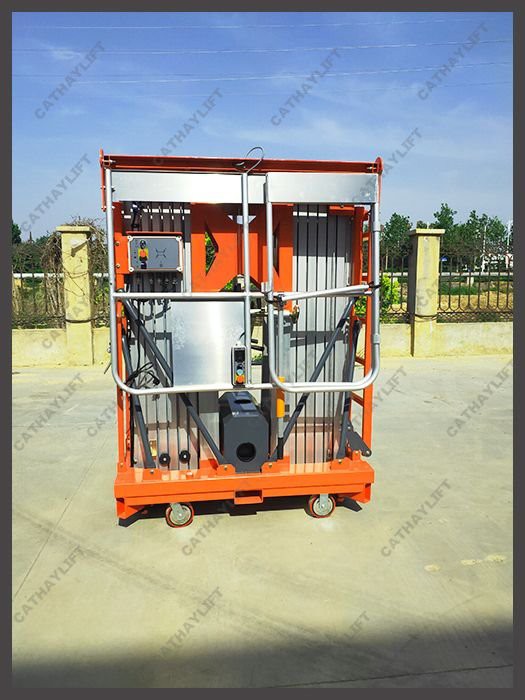

Real Order:
