Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of push around mast lift in China. We warmly welcome you to buy discount push around mast lift for sale here from our factory. Quality products and reasonable price are available.

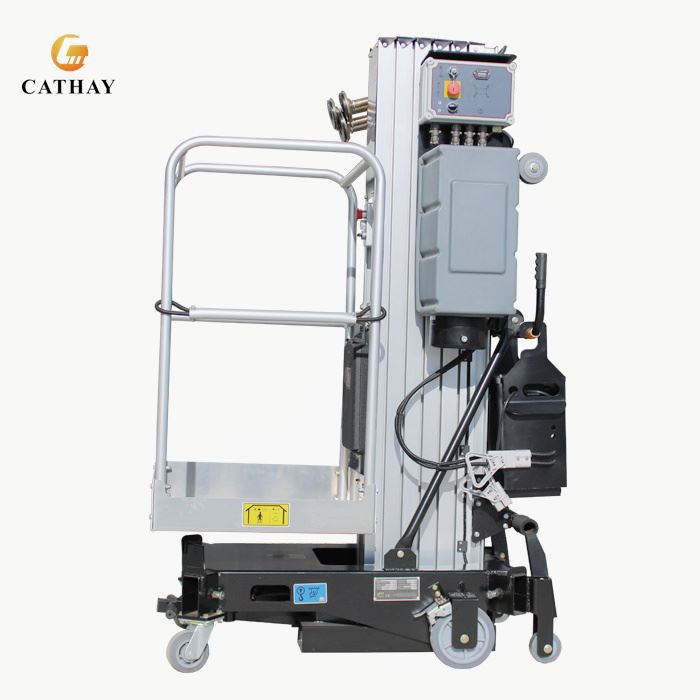

Single-mast Push Around Mast lifts are made of high-strength and high-quality aluminum alloy materials, which have the advantages of beautiful appearance, small size, light weight, balanced lifting, safety and reliability, and are widely used in factories, hotels, restaurants, stations, airport theaters, exhibition halls and other places, is the best machine choice for maintenance of equipment, paint decoration, replacement of lamps, electrical appliances, cleaning and maintenance, etc.
Model No. | CUP-5H | CUP-6H | CUP-8H | CUP-9H | CUP-10H | CUP-12H | |
Max.Platform Height | 5m | 6m | 8m | 9m | 10m | 12m | |
Max Working Height | 6m | 8m | 10m | 11m | 12m | 14m | |
Load Capacity | 150kg | 150kg | 150kg | 150kg | 136kg | 120kg | |
Platform Size | 0.67*0.66m | ||||||
Occupants | One person | ||||||
Outrigger Coverage | 1.7*1.7m | 1.7*1.7m | 1.6*1.6m | 1.7*1.7m | 1.9*1.7m | 2.3*1.9m | |
Overall Size | 1.24*0.74*1.99m | 1.24*0.74*1.99m | 1.36*0.74*1.99m | 1.4*0.74*1.99m | 1.42*0.74*1.99m | 1.46*0.81*2.68m | |
Net Weight | 300kg | 320kg | 345kg | 365kg | 385kg | 460kg | |
Motor Power | 0.75kw | ||||||
Options | DC | 12v | |||||
DC Motor | 1.5kw | ||||||
Charger | 12v15A | ||||||
Products Details
● Compact and lightweight
● Large working range
● AC power on the platform
● Anti-misoperation button(deadman switch)
● Outrigger interlocking and indicator
● Single-person loading device
● Competitive value for money
● Simple maintenance and installation
Details Images

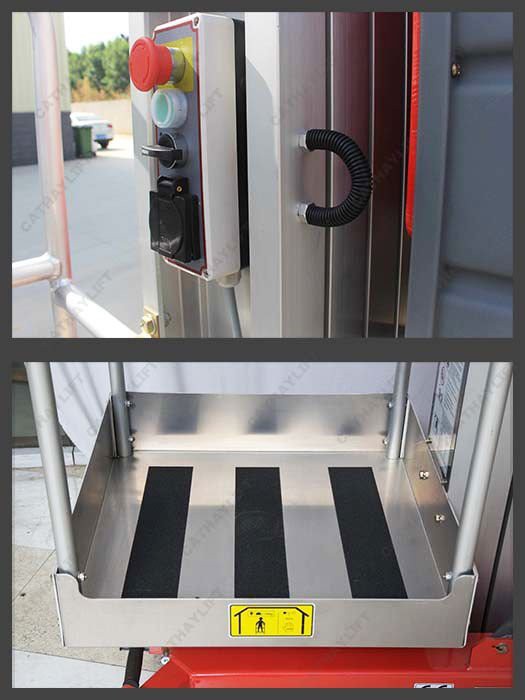

Seat belt buckles and non-slip pads:
Please buckle the seat belt hook to this position before operation. Three black anti-skid plates are pasted on the table to prevent accidents due to the smooth surface of the aluminum alloy.

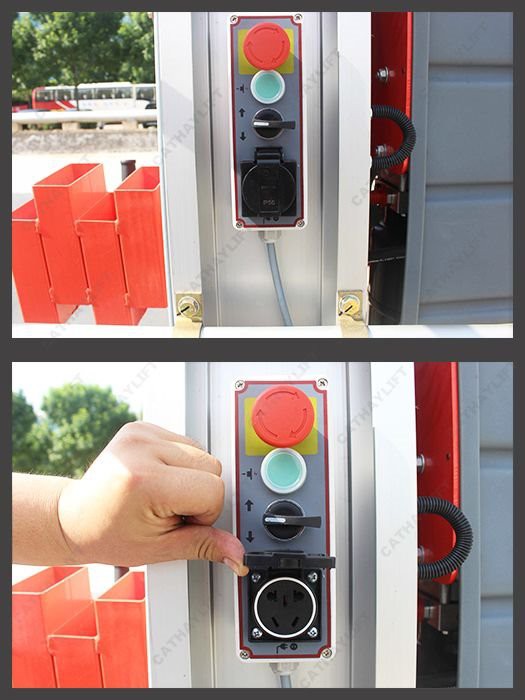

Upper control panel(Platform control):
The big red button is an emergency stop switch, which can stop the equipment immediately in an emergency. The green button in the middle is a public switch. When lifting or lowering, you need to hold the green button and rotate the black button before the machine is powered on to lift or lower. This prevents the operator from touching the operation switch unconsciously, which may cause danger. In order to facilitate the operator to work at heights, we have installed an AC power supply on the platform, which can carry common tools for working at heights.

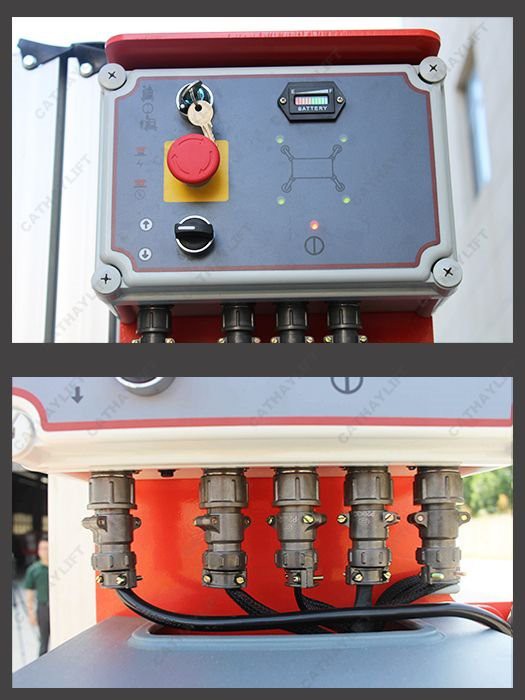

The ground control system, Safety Self-Check System Indicator:
The red button is the emergency stop switch, and the power switch is turned on with the key. Insert the four outriggers and rotate to fix them before working. Under the condition of full force and balance, the four outrigger indicators will light up, which means the machine will be powered on and work normally.
Aviation Plug:
Compared with ordinary plugs, it is more durable, have better protection, are easy to maintain, and are easy to replace electronic components.

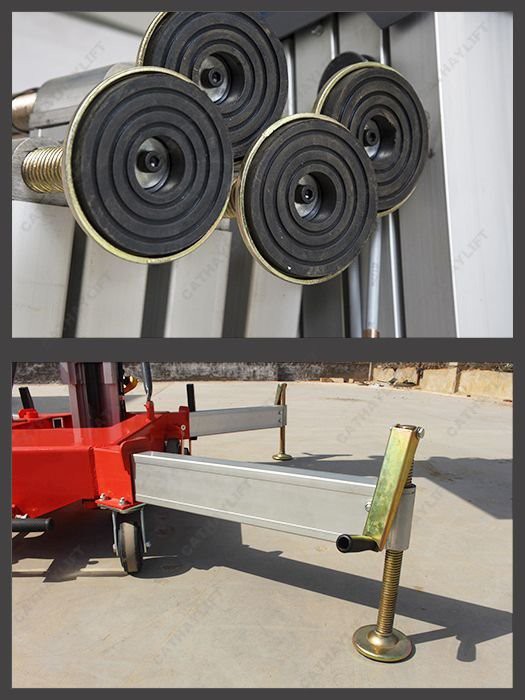

Insert-Aluminum outriggers and black rubber parts:
Compared with the supplier's rotating outriggers, the plug-in outrigger has a larger force-bearing area and a larger weighing capacity, which can effectively provide a higher safety guarantee, and in order to prevent damage to the fragile ground, the bottom of the outrigger has black rubber Protection pads. The lift can work on wooden floors and tiles.

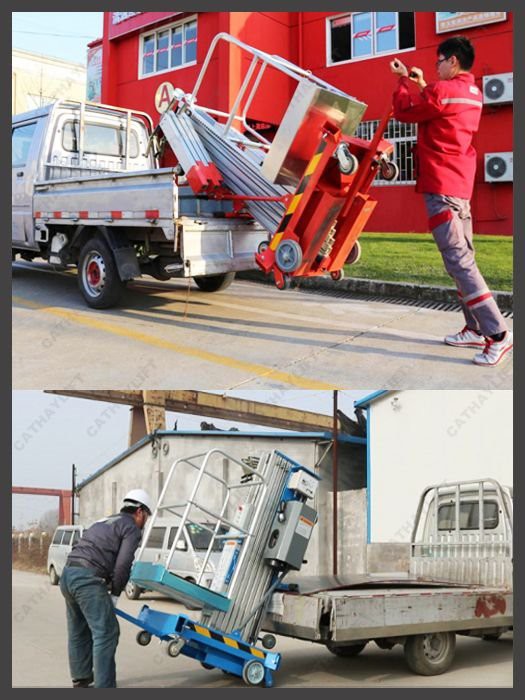

Single-person loading device:
The push-around mast lift can be carried by one person on a truck or a trailer, which greatly reduces labor costs and shipping costs. Because of its simple and fast operation, only one person can perform the operation alone, and it can be carried out from a long distance. transportation.
Application

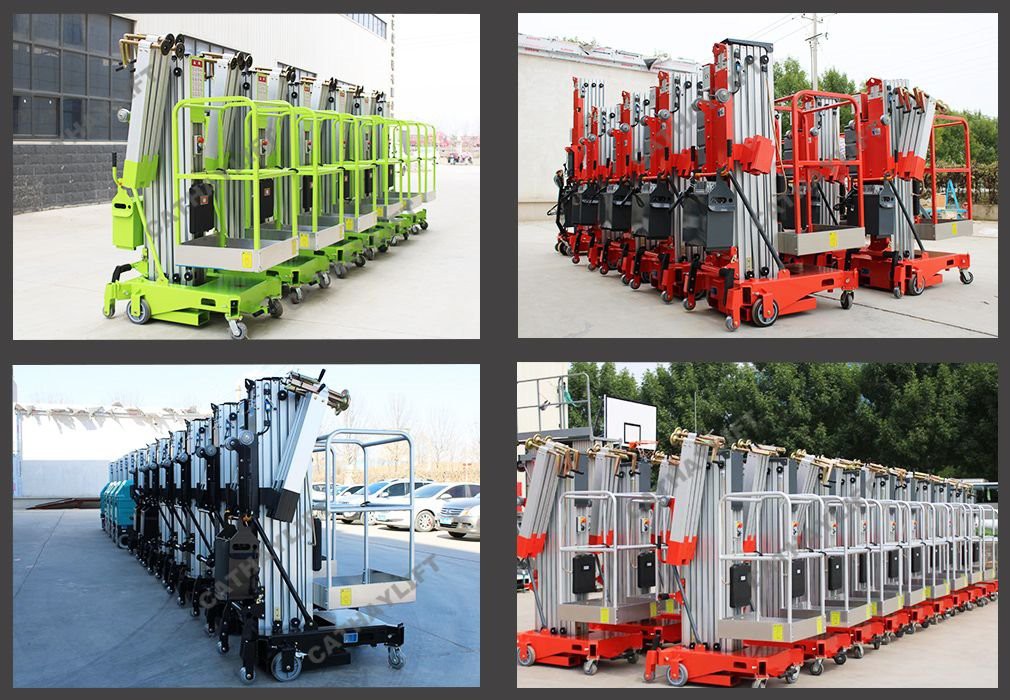

Real Order:
