Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of single person man lift in China. We warmly welcome you to buy discount single person man lift for sale here from our factory. Quality products and reasonable price are available.
The design concept of this product comes from world-class brands JLG, Genie, and Haulotte. The product is based on Deadman Switch, an anti-misoperation button, pluggable legs, a leg interlocking device, the ourtriggers indicator light, and a single loading device. It has been upgraded, such as installing two auxiliary wheels on the rear wheel to save effort, making it easier to move on sloping roads, lifting rings, anti-skid design in the basket, etc.
Model No. | CUP-5H | CUP-6H | CUP-8H | CUP-9H | CUP-10H | CUP-12H | |
Max.Platform Height | 5m | 6m | 8m | 9m | 10m | 12m | |
Max Working Height | 6m | 8m | 10m | 11m | 12m | 14m | |
Load Capacity | 150kg | 150kg | 150kg | 150kg | 136kg | 120kg | |
Platform Size | 0.67*0.66m | ||||||
Occupants | One person | ||||||
Outrigger Coverage | 1.7*1.7m | 1.7*1.7m | 1.6*1.6m | 1.7*1.7m | 1.9*1.7m | 2.3*1.9m | |
Overall Size | 1.24*0.74*1.99m | 1.24*0.74*1.99m | 1.36*0.74*1.99m | 1.4*0.74*1.99m | 1.42*0.74*1.99m | 1.46*0.81*2.68m | |
Net Weight | 300kg | 320kg | 345kg | 365kg | 385kg | 460kg | |
Motor Power | 0.75kw | ||||||
Options | DC | 12v | |||||
DC Motor | 1.5kw | ||||||
Charger | 12v15A | ||||||
Products Details
● Ground control with support leg indicator
● Aluminum alloy durable design
● Single-person loading device
● Standard forklift hole
● 4 wheels with extra backup 2 wheels
● non-marking silent solid PU wheels
● Cylinder holding valve, anti-explosion valve
● CE Rohs Tuv ISO9001 certifications
Details Images
Battery indicator, Ground control system:
Optional DC power, more convenient. The ground control system is divided into a power switch (started by turning the key), and the ground control system and the table control system can be selected for starting. The red button is the emergency stop, and the right side is the outrigger display light. When all four outriggers are stressed and in a balanced state, the indicator light is always on, and the product can work normally.
Aviation Plug:
Aviation plug is a relatively advanced electrical connector product, and its material and production methods are all advanced technologies at home and abroad. It is made of high-strength aluminum alloy material, and the bayonet-type outer groove connection has the advantages of small size, lightweight, convenient use, And easy replace electronic components.

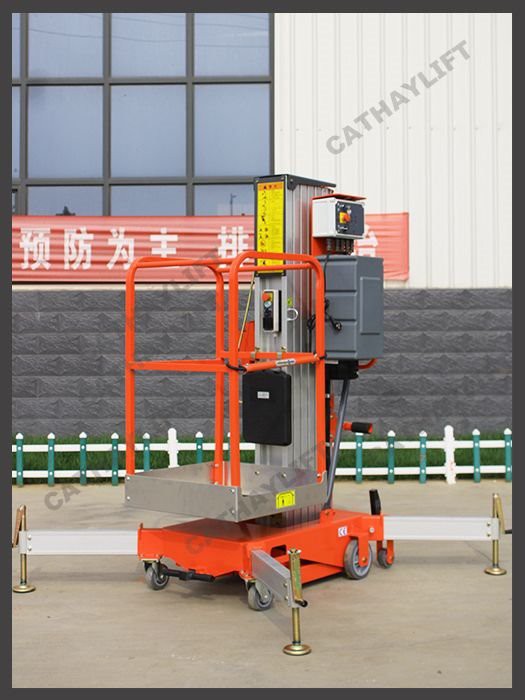

Aluminum alloy outriggers with the rubber protection pats:
In order to prevent the outriggers from causing damage to fragile ground, such as wooden floors, marble floors, ceramic tiles, etc., we designed rubber protection pats at the bottom of them. The outrigger adopts the all-aluminum alloy plug-in design, which greatly improves the force-bearing area and the stability.
Emergency relive valve and cylinder with anti-exposion valve:
In case of emergency, this valve can be used to quickly lower the platform to the ground.For the tubing burst test of the product, according to the CE standard, when the tubing bursts, it should momentarily stand still and wait for the arrival of rescuers. However, many low-end products will not immediately stop after the burst of the tubing, but will slowly decline. This is a very dangerous and unsafe factor. Because there is explosion-Proof in our cylinder, we can guarantee the safety and stability of our products.

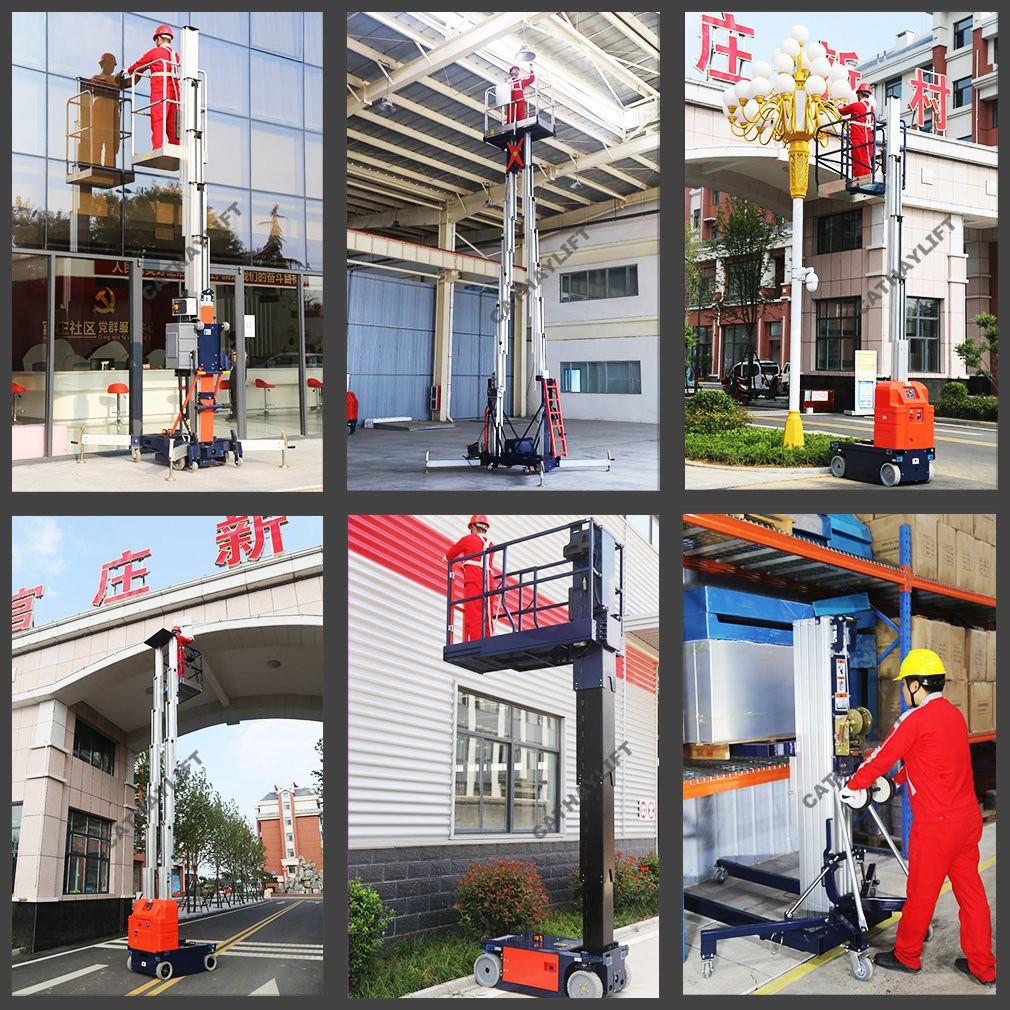

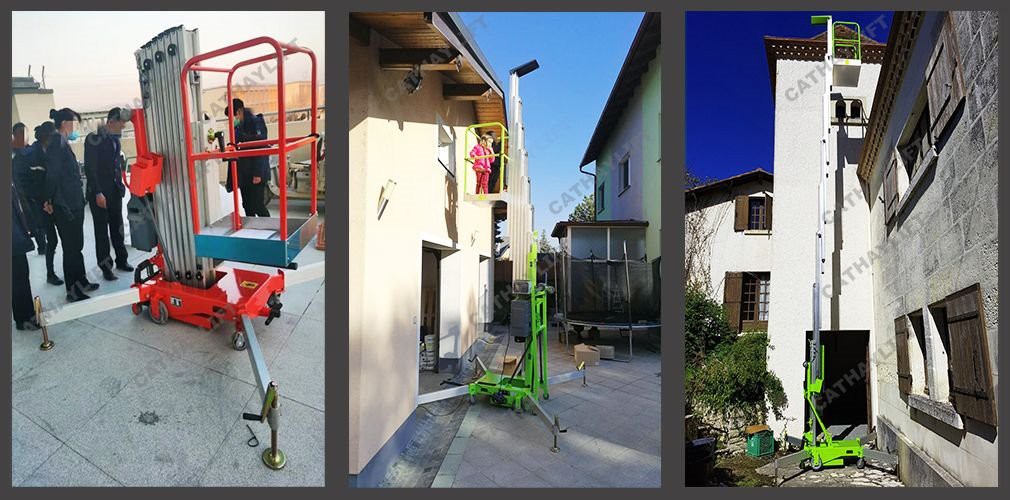

Application
Real Order:
