Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of portable man lift in China. We warmly welcome you to buy discount portable man lift for sale here from our factory. Quality products and reasonable price are available.

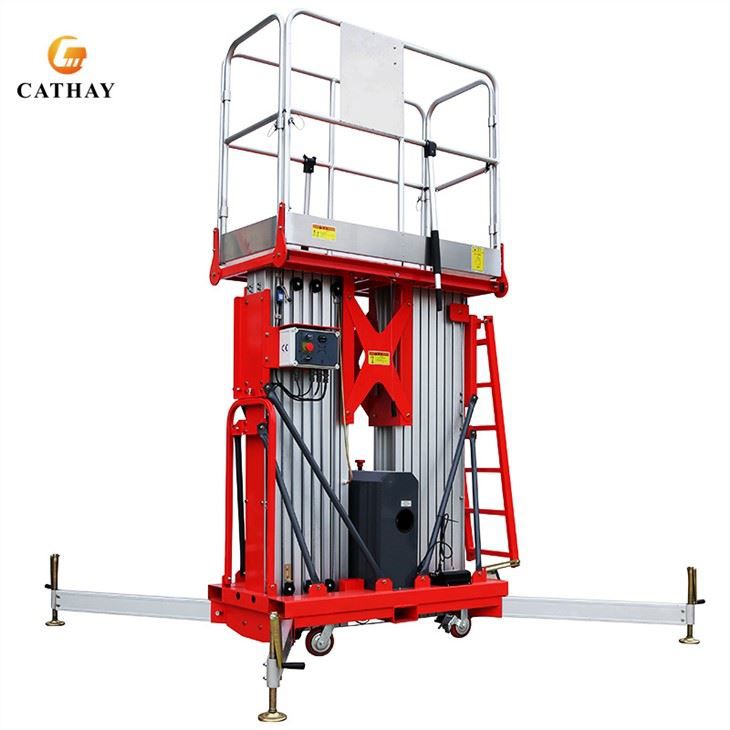

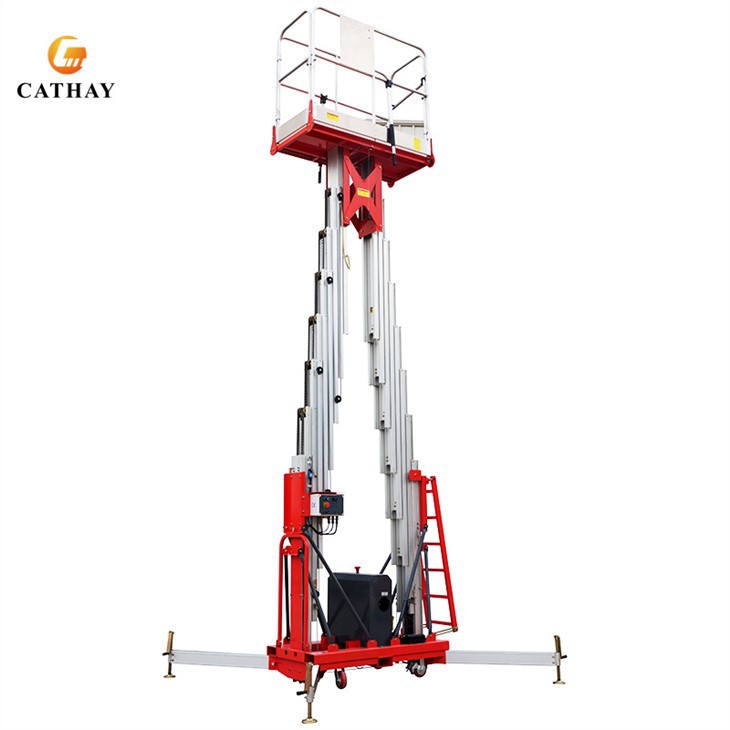

The double mast aluminum alloy lift is made of high-strength aviation aluminum alloy material, a selected hydraulic power cylinder, and an anti-skid and wear-resistant checkered plate, and is manufactured with advanced technical equipment. The double mast aluminum alloy lift adopts double mast and double oil cylinder support mode, the platform is more stable, the safety factor is higher, and the operation efficiency can be greatly improved. The bearing capacity of the double mast aluminum alloy lifting platform is 300 kg, which can meet the need for two people to work at the same time and provides convenience for work collaboration.
Model No. | CUP-6DH | CUP-8DH | CUP-9DH | CUP-10DH | CUP-12DH | CUP-14DH | CUP-16DH | ||
Max.Platform Height | 6m | 8m | 9m | 10m | 12m | 14m | 16m | ||
Max Working Height | 8m | 10m | 11m | 12m | 14m | 16m | 18m | ||
Load Capacity | 300kg | 300kg | 250kg | 250kg | 200kg | 200kg | 150kg | ||
Platform Size | 1.45*0.7m | 1.8*0.7m | |||||||
Occupants | Two people | ||||||||
Outrigger Coverage | 2.45*1.75m | 2.7*1.8m | |||||||
Overall size | 1.45*0.81*1.99m | 1.88*0.81*2.68m | |||||||
Net Weight | 610kg | 645kg | 680kg | 715kg | 750kg | 892kg | 996kg | ||
Motor Power | 1.5kw | ||||||||
Options | DC | 2x12v | |||||||
DC Motor | 2.2kw | ||||||||
Charger | 12v15A | ||||||||
Products Details
● 6~18m working height
● 2 operators perform aerial work(Higher load)
● Can pass through narrow areas(Compact)
● Easily moved by hand or transported over long distances
● Suitable for fragile ground(Humanized design)
● Minimal maintenance and storage costs
● Obtained CE Rohs ISO9001 certification
Details Images

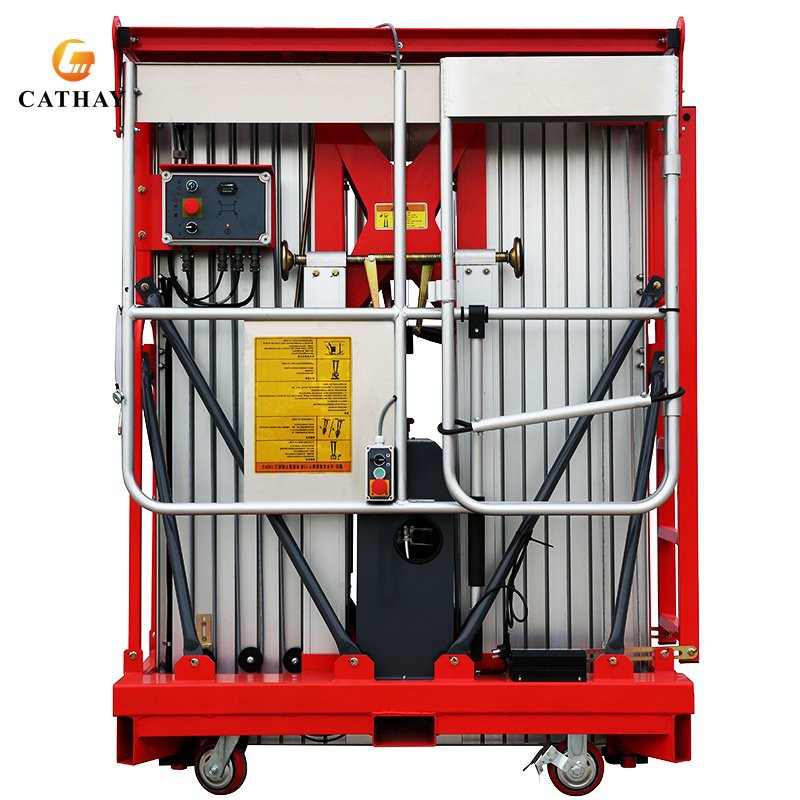

Foldable high-strength aluminum alloy guardrail:
The high-strength aviation aluminum alloy material ensures the corrosion resistance and safety of the product. The foldable guardrail design makes it easier for the product to pass through the narrow aisle and expands its working range.
Ground control system:
The ground control system is equipped with energy switch, emergency stop button and outrigger interlock indicator. When the four outriggers are not fully stressed and in a balanced state, the outriggers corresponding to the four indicators will not light up, and the product will not be powered up and lifted. This design avoids the danger of working at heights due to operator negligence without fully stressing and balancing the outriggers.
Aviation plug and Wear-resistant cable:
Easy to maintain, easy to upgrade, and quick to replace electronic components. High-strength wear-resistant cable, resistant to corrosion, heat, weather, water, extreme weather, and high-strength mechanical pressure.
Synchronizer device:
This design keeps the two masts in a balanced state at all times when they are lifted, keeping the work surface level, preventing danger and improving work stability. Other products on the market do not have this configuration.
Sound-absorbing solid rubber wheels:
Four wheels are convenient for its movement, and the moving noise is very small, which is suitable for operation in hotels and shopping malls.
Insertand outriggers with rubber protection pads:
The plug-in aluminum alloy outrigger is stronger than other swivel outriggers, and has a larger force area and is more stable.The rubber protective are installed on the bottom, which does not damage the fragile grounds.
Application
Real Order:
