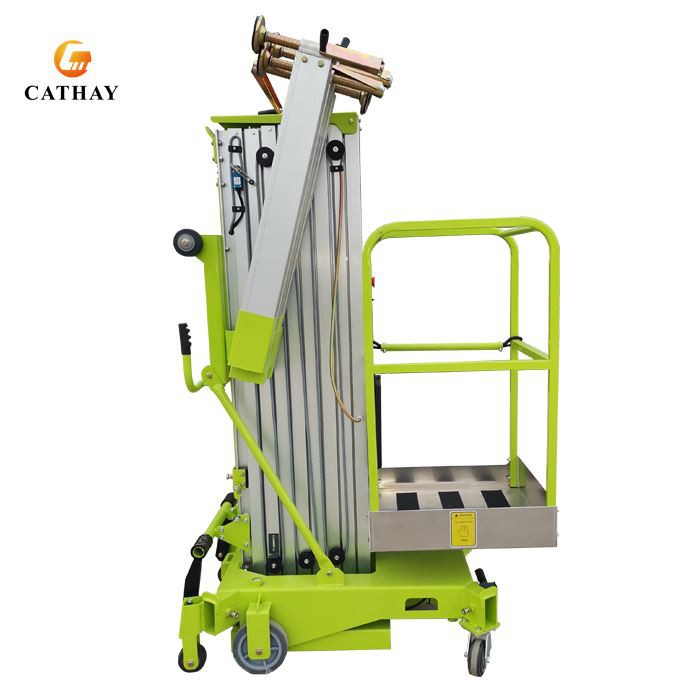

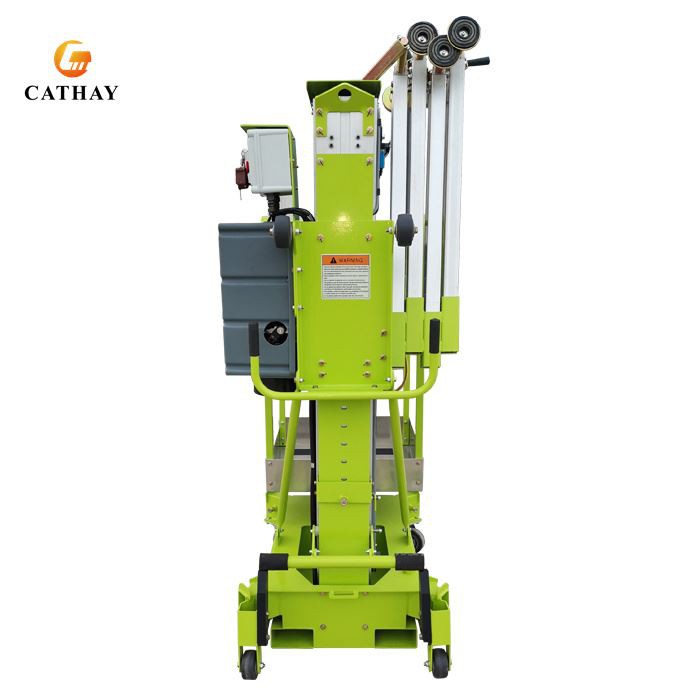

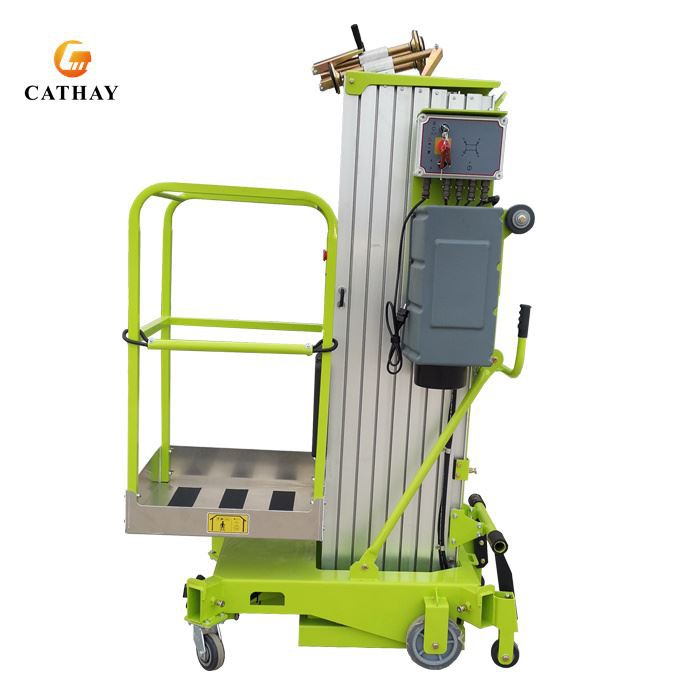

Push Around Vertical Lift

Push around vertical lift is efficient, convenient and the preferred aerial work platform for a wide range of applications. It can easily access elevators, doors, and narrow aisles, which greatly expands its work applications. With a large load of 120kg~150kg, the design of AC power allows workers to carry common tools for work. Outrigger self-locking and indicator light, oil cylinder lock valve, leveling indicator, emergency stop button, seat belt buckle, durable structure, ensure the safety of work. They are convenient, flexible, and cost-effective

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of push around vertical lift in China. We warmly welcome you to buy discount push around vertical lift for sale here from our factory. Quality products and reasonable price are available.

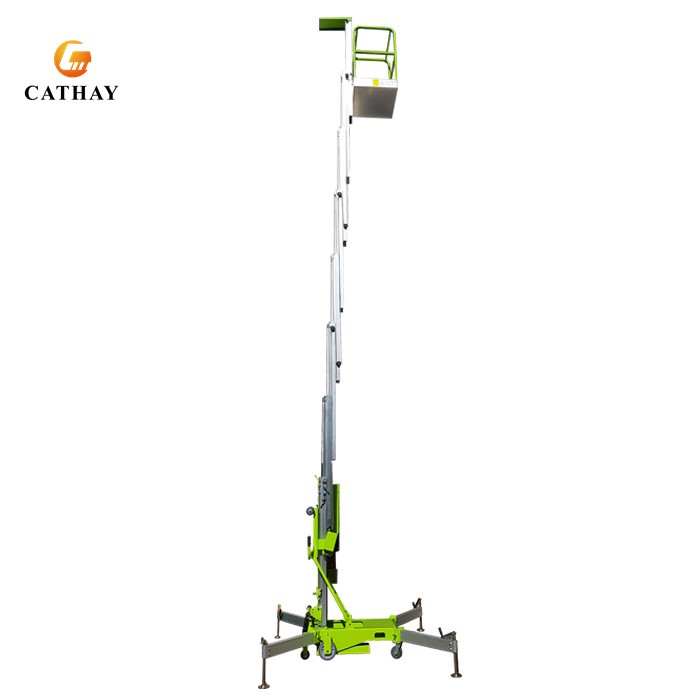

Push around vertical lift The maximum platform height is 5~12m. Because of its sturdy and durable design and maneuverability, it has high flexibility and convenience. All our products obtained CE, Rohs SGS ANSI certificated by TUV standard EN280, ISO9001 certification.

Model No.		CUP-5H	CUP-6H	CUP-8H	CUP-9H	CUP-10H	CUP-12H
Max.Platform Height		5m	6m	8m	9m	10m	12m
Max Working Height		6m	8m	10m	11m	12m	14m
Load Capacity		150kg	150kg	150kg	150kg	136kg	120kg
Platform Size		0.67*0.66m
Occupants		One person
Outrigger Coverage		1.7*1.7m	1.7*1.7m	1.6*1.6m	1.7*1.7m	1.9*1.7m	2.3*1.9m
Overall Size		1.240.741.99m	1.240.741.99m	1.360.741.99m	1.40.741.99m	1.420.741.99m	1.460.812.68m
Net Weight		300kg	320kg	345kg	365kg	385kg	460kg
Motor Power		0.75kw
Options	DC	12v
	DC Motor	1.5kw
	Charger	12v15A

Products Details

● Easy to transport

● Easy to handling

● Suitable for delicate flooring

● Quick installation

● Outrigger interlocking and indicator

● Intuitive controls

● Sturdy design

● Convenient storage

● Versatile

Details Images

Aluminum alloy outriggers, Black rubber protection pads:

In order to make the force bearing area larger and the mechanism more stable, we use aluminum alloy insert-type outriggers, which are maintenance-free for life. To prevent damage to the ground, we installed black rubber protection pads on the bottom to prevent damage to the delicate floor.

Lifting ring,standard forklift hole:

The product is designed with lifting rings and standard forklift holes, which can be used for loading and unloading machines or forklifts, which is convenient.

Emergency lowing valuve:

In emergencies, such as power failure, power outage, etc., this valve can be rotated to drop the platform to the ground.

Overload sensor:

Push around vertical lift is equipped with an overload sensor. After the weight exceeds 1.5 times the rated weight, the product cannot be lifted to prevent the occurrence of danger.

Support column/mast:

In order to minimize the shaking of the work when the lift is fully raised, we use 200mm ultra-wide high-strength aluminum alloy column. Many suppliers will use ordinary aluminum alloys with a width of 180mm or less, and the shaking degree of the products will cause hidden dangers to the psychology and safety of the staff.
