Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of one man lift in China. We warmly welcome you to buy discount one man lift for sale here from our factory. Quality products and reasonable price are available.

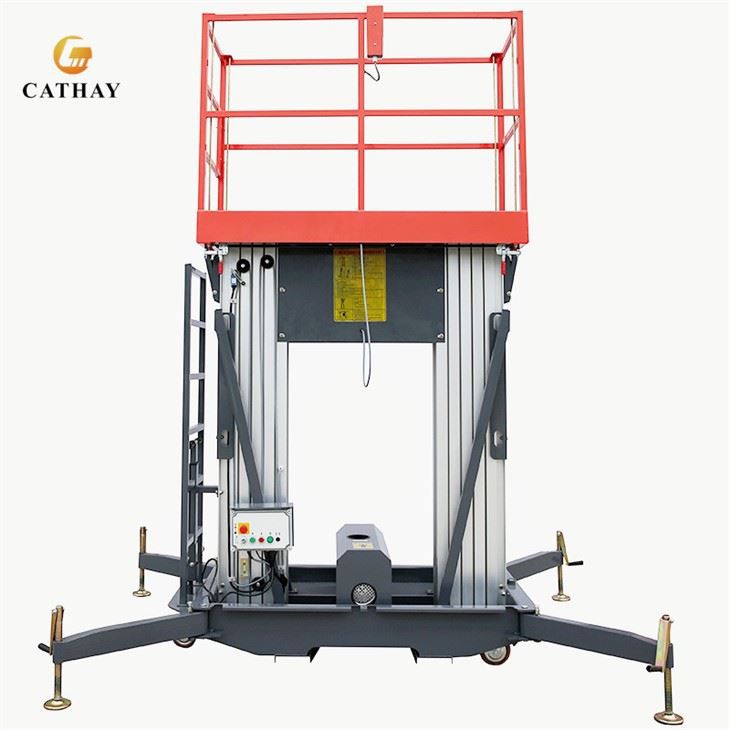

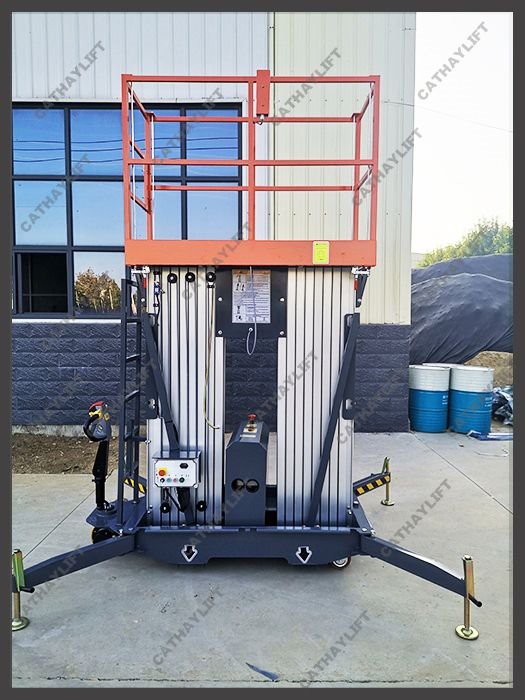

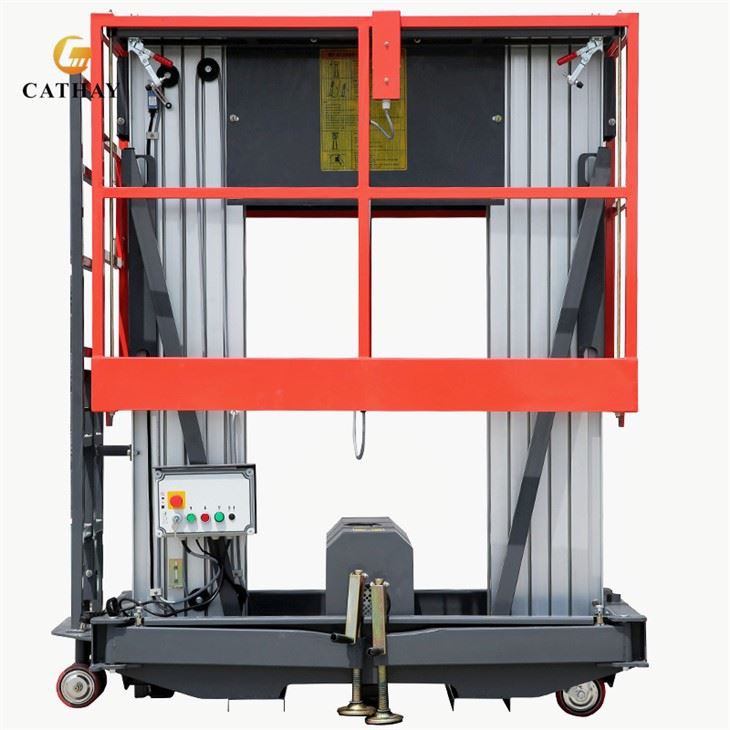

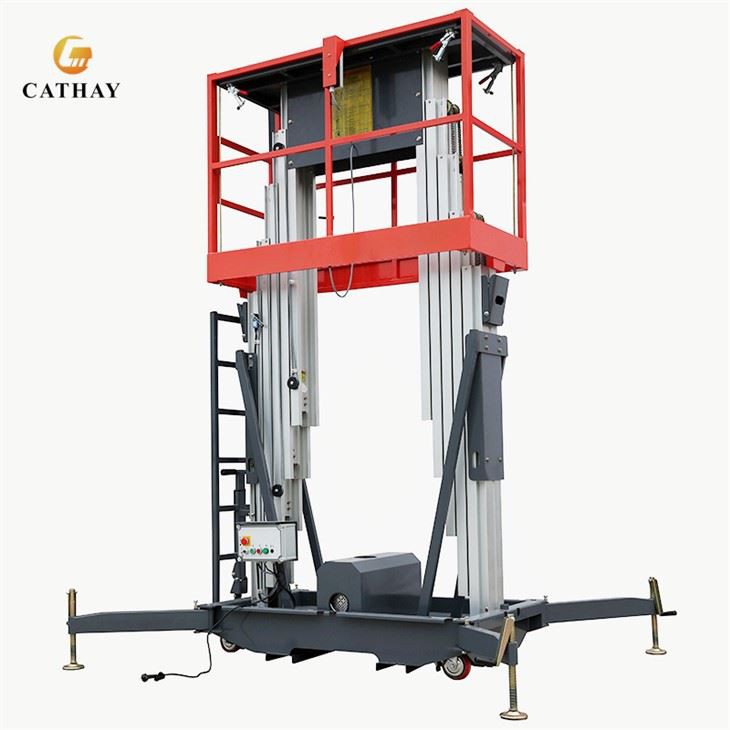

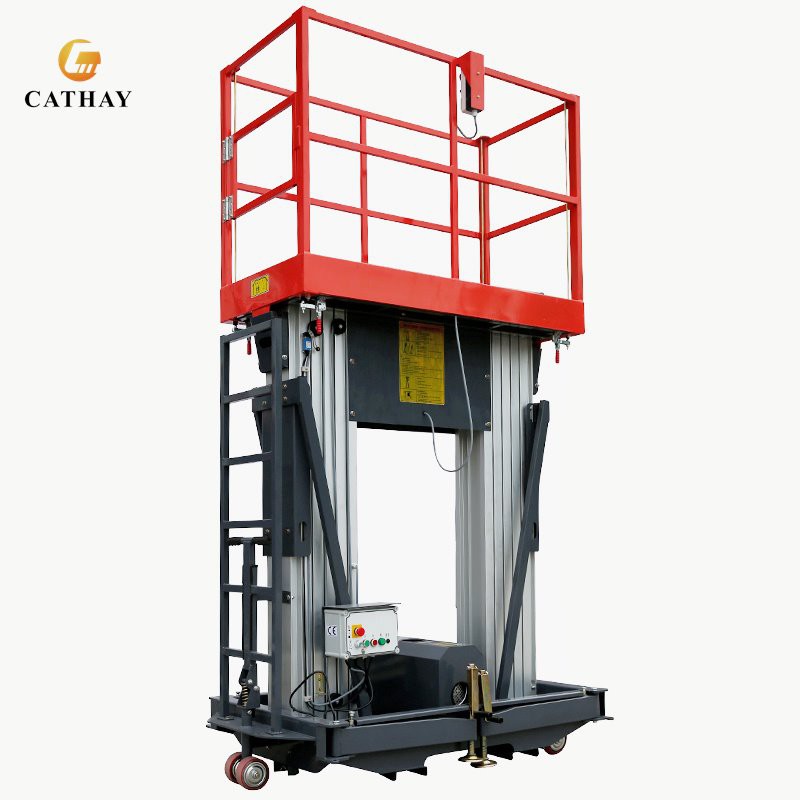

Economic dual mast one man lift is welcomed by customers all over the world due to its economical price, high efficiency and convenience. Due to its compact features, it can pass through narrow passages, greatly improving the working range and safety aspects. Equipped with anti-misoperation design, levelling indicator, rotating outriggers.
Model No. | CUP-6D | CUP-8D | CUP-9D | CUP-10D | CUP-12D | |
Max.Platform Height | 6m | 8m | 9m | 10m | 12m | |
Max Working Height | 8m | 10m | 11m | 12m | 14m | |
Load Capacity | 200kg | 200kg | 200kg | 200kg | 200kg | |
Platform Size | 1.3*0.62m | 1.3*0.62m | 1.3*0.62m | 1.5*0.62m | 1.5*0.62m | |
Occupants | One person | |||||
Outrigger Coverage | 1.77*1.82m | 1.77*1.82m | 1.77*1.82m | 2.1*2m | 2.1*2m | |
Overall size | 1.54*1*1.99m | 1.54*1*1.99m | 1.54*1*1.99m | 1.76*1*1.99m | 1.76*1*1.99m | |
Net Weight | 630kg | 680kg | 730kg | 800kg | 830kg | |
Motor Power | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw | |
Options | Battery | 2*12V/100AH | ||||
Motor | 2.2KW | |||||
Charger | 12V/15A | |||||
Products Details
● 6~14m working height
● 200kg load capacity
● Battery power optional
● Non-marking silent solid PU
● NOK seals (Oil tank)
● Economical
● Certificated by CE Rohs ISO9001
Details Images
Platform fixed self-locking, with support plate:
There are corresponding four fixing devices at the four corners below the platform, which can fix the table top, and there is a support plate on each side to support the entire table top.

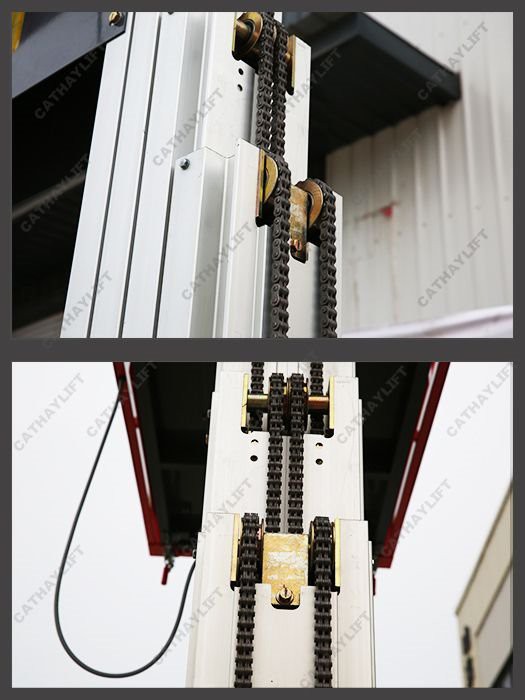

Lifting chains and aluminum alloy durable masts:
High-strength mechanical chain and aluminum alloy mast, resistant to corrosion, high temperature, cold, and to a certain degree of mechanical mechanical pressure.

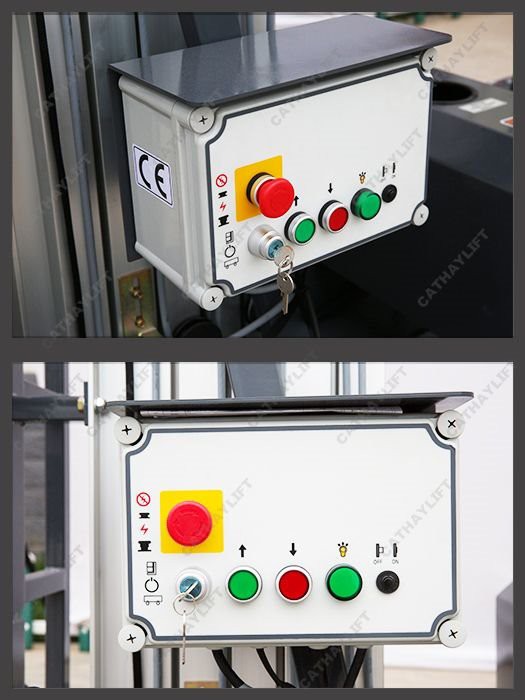

Ground control system:
The red button is the emergency stop switch. When the power is turned on, the green indicator light is on, and the machine can be used normally. The platform control system and the ground control system cannot be used at the same time to prevent the occurrence of danger.
Tow handle and silent non-marking solid wheel:
In order to facilitate manual movement, a drag handle is installed on the side of the product, which can be manually dragged, and the bottom wheel is a silent and non-marking solid wheel.

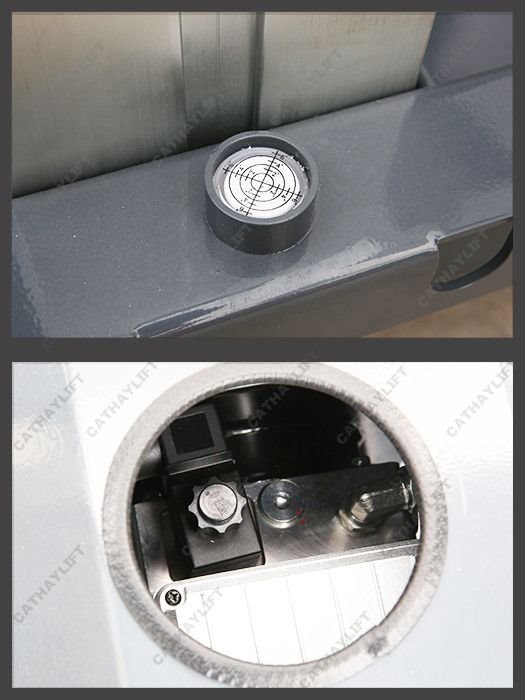

Leveling abservation device:
It is convenient to observe the level of the ground and avoid danger in advance.
Emergency relief valve:
In an emergency, manual pressure relief can be performed on the ground, and the platform can be lowered to the ground.
Foldable swivel legs:
Convenient and simple design for quick installation and operation.

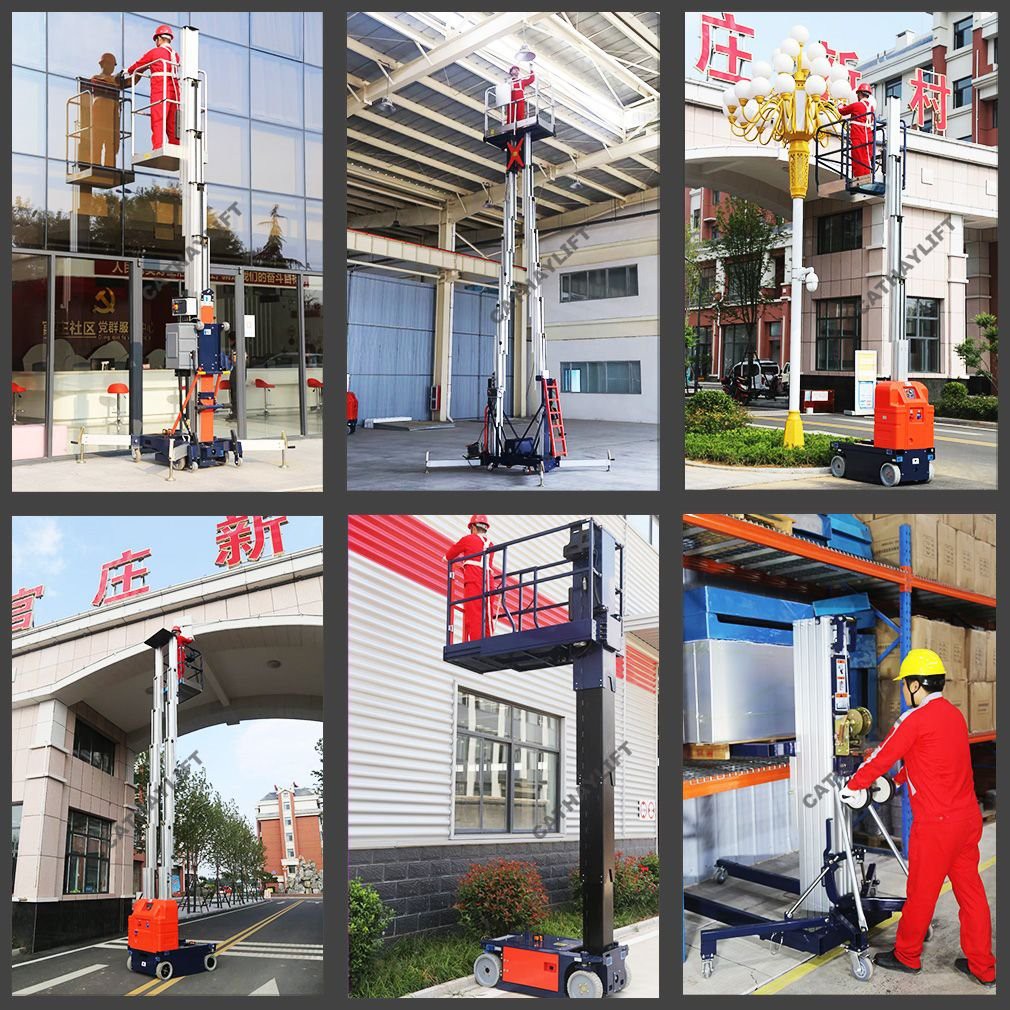

Application

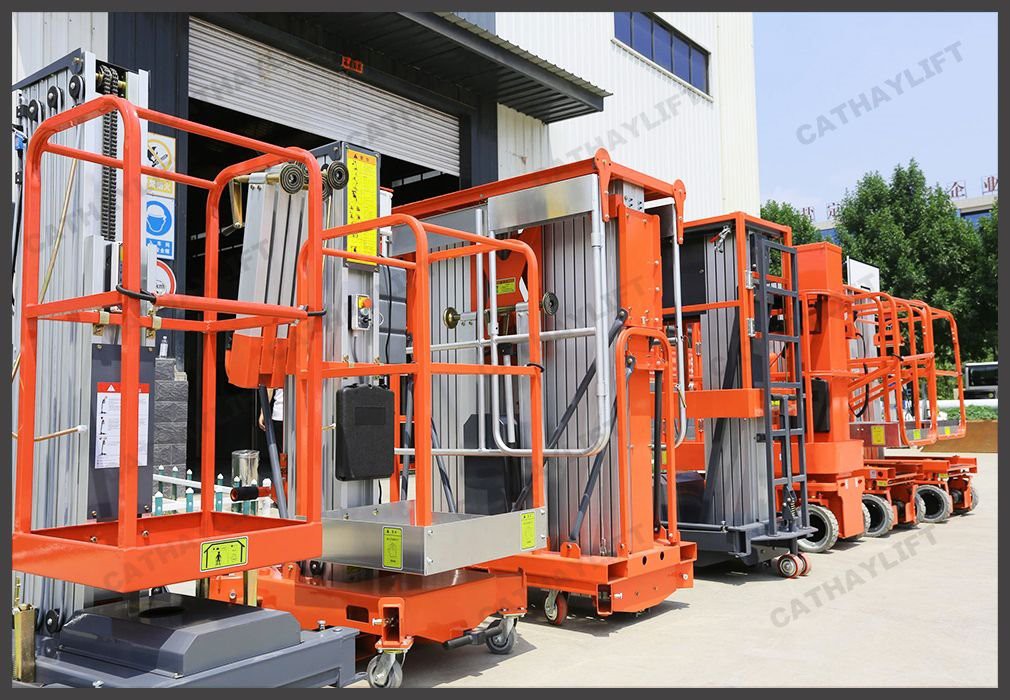

Real Order:
