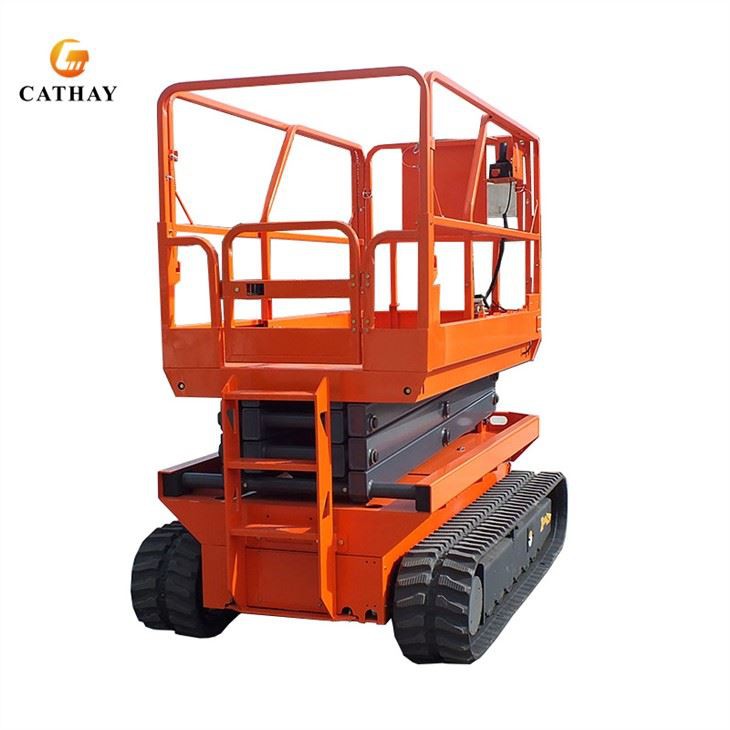

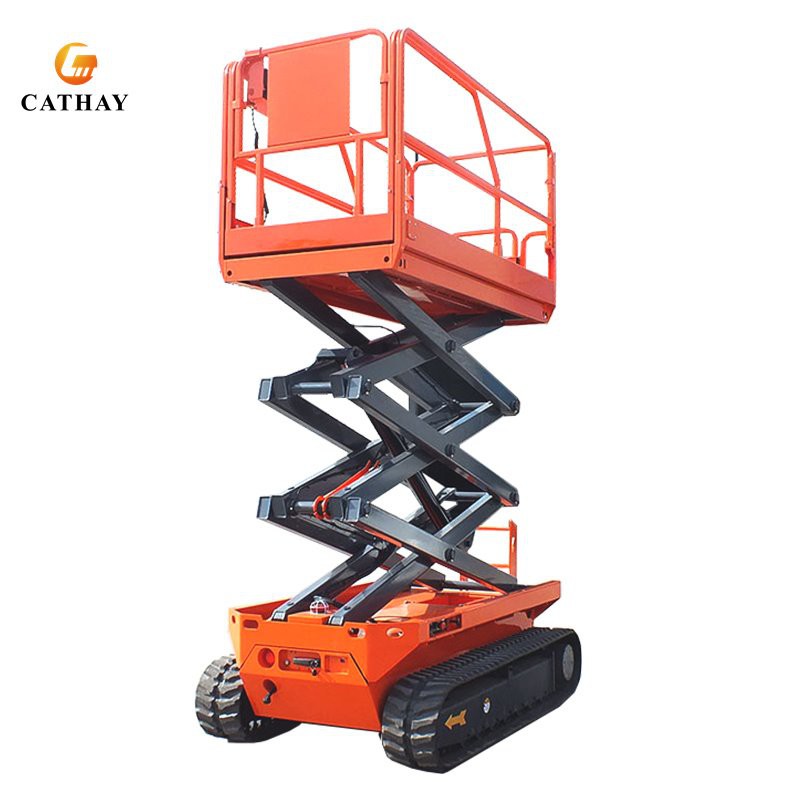

Rough Terrain Scissor Lift

The maximum working height is 14m, using industrial crawler, high-strength manganese steel, battery power (diesel power is optional), and the maximum load is 450kg. Rough terrain scissor lift has strong adaptability to the environment, crawler wheels, suitable for walking on muddy roads in the wild and high-altitude operations It is an ideal equipment for high-altitude operations such as outdoor installation and construction.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of rough terrain scissor lift in China. We warmly welcome you to buy discount rough terrain scissor lift for sale here from our factory. Quality products and reasonable price are available.

Rough Terrain Scissor Lift has a wide range of applications and is widely used in construction sites, hotels, warehouses, airports, stations, docks, stadiums and other tall buildings for high-altitude equipment installations, maintenance and cleaning, overhead pipelines for outdoor power equipment, etc. It is to ensure safe operation and improve work. Ideal equipment for efficiency, making aerial work more convenient and faster. The hydraulic system of scissor-type hydraulic lift products is generally equipped with safety maintenance installations such as anti-fall, overload and power failure. Other special fixed lifts are also equipped with explosion-proof electronic installations suitable for use in explosion-proof places. Guide wheel, rail-type external power unit, use of chains or crossbars for the entrance and exit of the table, guardrails and lift table operation warning lights or warning bells, safety switches that close the lift table circuit when the door is opened, and many other functions. It is very convenient for operators to control each working layer at multiple points, and operate in jog or safety mode.

Model Type	CL-TC04	CL-TC06	CL-TC06H	CL-TC08	CL-TC08H	CL-TC10	CL-TC10H	CL-TC12	CL-TC12H
Automatic Leveling Hydraulic Outriggers	None	None	Equipped	None	Equipped	None	Equipped	None	Equipped
Working height	6.5m	8m	8m	10m	10m	12m	12m	14m	14m
Max.lifting height	4.5m	6m	6m	8m	8m	9.75m	9.75m	11.75m	11.75m
Load Capacity	200Kg	450Kg	450Kg	450Kg	450Kg	320Kg	320Kg	320Kg	320Kg
Extendable Platform	100Kg	113Kg	113Kg	113Kg	113Kg	113Kg	113Kg	113Kg	113Kg
Workers on Platform	1	2	2	2	2	2	2	2	2
Overall Length	1.27	2.47	2.782	2.47	2.782	2.47	2.782	2.47	2.782
Overall Width	0.79	1.39	1.581	1.39	1.581	1.39	1.581	1.39	1.581
Overall Height (Guardrails unfolded)	1.82	2.28	2.28	2.7	2.4	2.53	2.53	2.67	2.67
Overall Height (Guardrails folded)）	/	1.745	1.745	1.865	1.865	1.995	1.955	2.13	2.13
Platform Size(m)	1.23*0.655	2.271.120.7	2.271.120.7	2.271.120.7	2.271.120.7	2.271.120.7	2.271.120.7	2.271.120.7	2.271.120.7
Extendable Platform(m)	0.55	0.9	0.9	0.9	0.9	0.9	0.9	0.9	0.9
Min Turning Radius(m)	0	0	0	0	0	0	0	0	0
Min Ground Clearance(m)	0.05	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15
Lifting Motor	24v/0.1.2Kw	48V/4Kw	48V/4Kw	48V/4Kw	48V/4Kw	48V/4Kw	48V/4Kw	48V/4Kw	48V/4Kw
Driving Motor	2X24v/1.5Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw
Driving Speed	1.7Km/h	2.4Km/h	2.4Km/h	2.4Km/h	2.4Km/h	2.4Km/h	2.4Km/h	2.4Km/h	2.4Km/h
Lifting up/down Speed	24/20sec	38/30sec	38/30sec	45/36sec	45/36sec	70/62sec	70/62sec	85/75sec	85/75sec
Charger	0.25	48V/25A	48V/25A	48V/25A	48V/25A	48V/25A	48V/25A	48V/25A	48V/25A
Machine Weight	790Kg	2400Kg	2800Kg	2550Kg	2950kg	2840Kg	3240kg	3000Kg	3480kg
Optional 1>	USA Trojan battery
Optional 2>	Manual outrigger: (only available for crawler type)
Optional 3>	Diesel power,please inquiry us
