Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of diesel telescopic boom lift in China. We warmly welcome you to buy discount diesel telescopic boom lift for sale here from our factory. Quality products and reasonable price are available.

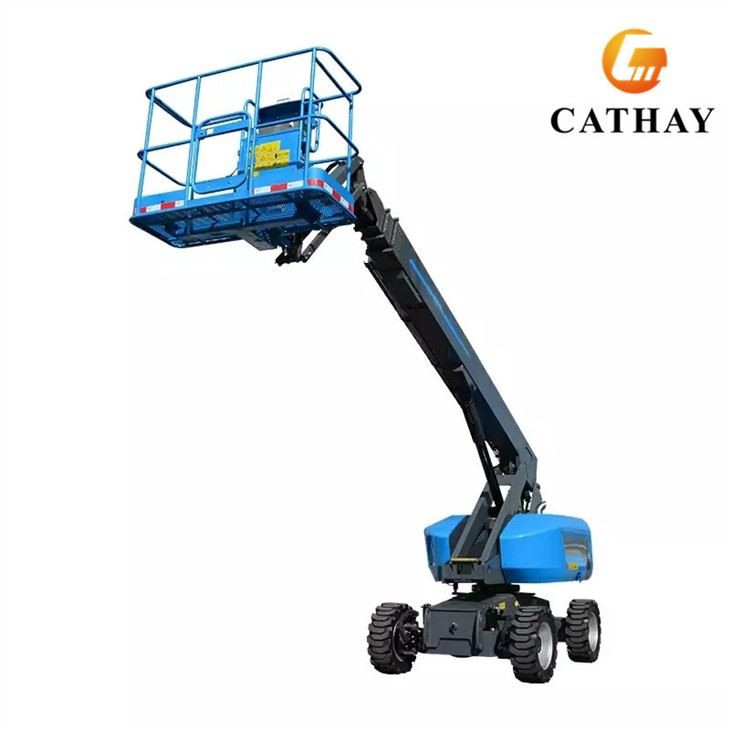

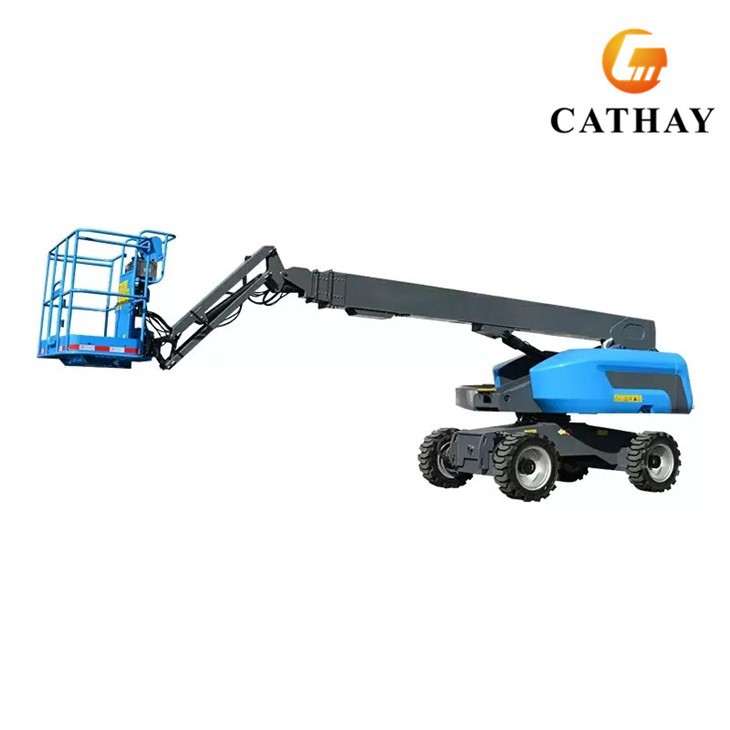

The maximum work height is 58m, the load is 480kg, the diesel power, the full -format, the upper and lower, left and right arm, ensure that the platform basket completes the leaps of various obstacles, rotate 360 degrees to the platform. , Boat, construction industry.

Model Type No.

CSTBL-12

CSTBL-16

CSTBL-20

CSTBL-22

CSTBL-26

CSTBL-28

CSTBL-30

CSTBL-32

CSTBL-36

CSTBL-38

CSTBL-42

CSTBL-56

Max Working Height

14.3m

18.2m

22.3m

24.1 m

28m

30m

32.4 m

34 m

38.64 m

40.4 m

44 m

58m

Max Platform Height

12.3m

16.2m

20.3m

22.1 m

26m

28m

30.4m

32 m

36.64 m

38.4 m

42 m

56m

Max Working Radius

10.5m

15m

18m

18 m

22m

21.4 m

23 m

26m

Lift Capacity(restricted)

480kg

480 kg

480kg

480 kg

480kg

Lift Capacity(non-restricted)

230kg

230 kg

230kg

340 kg

230 kg

340 kg

230 kg

230kg

Length( stowed) Ⓓ

7.54m

7.9m

9.3m

10.97 m

11.55m

13.5m

13 m

14.1 m

13 m

14.1 m

13.3 m

14.9m

Width (stowed) Ⓔ

2.29m

2.39m

2.49m

2.5m

2.5 m

2.5m

2.5 m

2.49 m

5.1m

Height(stowed) Ⓒ

2.39m

2.69m

2.75m

2.75 m

2.83m

3.08m

3.28m

3.6m

Wheel Base Ⓕ

2.45m

3m

3.66m

3.96m

5.6m

Ground Clearance Ⓖ

0.43m

0.43 m

0.43m

0.43 m

0.43m

0.43 m

Platform SizeⒷ*Ⓐ

1.83*0.76m

2.44*0.91m

Turning radius( inside)

2.2 m

2.66m

3m

3.59 m

2.74 m

3.13 m

3.13m

Turning Radius(outside)

5.2 m

5.66m

3m

3 m

5.59 m

4.14 m

7.6m

Travel Speed(stowed)

4.4 km/h

4.4km/h

4.4 km/h

4.4km/h

Travel Speed(raised )

1.1 km/h

1.1km/h

1.1 km/h

1.1km/h

Grade Ability

40%

Solid Tire

36×12-20

33×12-20

36×14-20

385/65-24

385/65-22.5

445/65-22.5

Platform Leveling

Automatic leveling

Swing Speed

0~1/3rpm

Turn Table Swing

360° Continuous

Platform Rotation

±80°

Fuel tank Capacity

151L

150L

151 L

151L

151 L

151L

200L

300L

Total Weight

7000kg

10000kg

12500kg

13000 kg

16500kg

17000kg

18500kg

18650kg

20120kg

23000 kg

23600kg

27500kg

Control Voltage

12 V DC

12V DC

12 V DC

24v

Engine

Yanmar

Cummins

Loading/Shipping

40GP

40FR

40FR OWOH

40FR OOG

Drive*Steering

4WD*2WS / 4WD*4WS (WD: wheel drive,WS: wheel steering)

Features & Advantages:

Product technical performance advantages:

● Strong bearing capacity;

● The scope of work is large;

● Strong climbing ability;

● The maximum driving speed is high;

● The hydraulic system is a closed system composed of a variable pump and a two-speed motor, which has the advantages of low energy consumption and small reversing impact;

● Bus control, simple and reliable, easy to maintain;

● The original imported military-grade PLC can be programmed and developed according to customer requirements to meet individual needs, and can also adapt to the harsh environment of the shipyard with dust, welding slag, high temperature and heavy corrosion.

● Unique selection fault diagnosis system to provide fault diagnosis information in time.

● Product operation performance advantages:

● Easy to operate, good stability, no impact, no shaking;

● Push-button switches are more reliable than touch switches

Product quality advantage:

● Valves, pumps, motors, travel reducers, PLCs and other key hydraulic parts, electrical parts, transmission parts, etc. are all selected from international top brands such as Europe and the United States (see the parts list for details), with high reliability;

● The safety factor and stability factor of the steel structure are better than those of similar manufacturers, which ensures the service life of the equipment;

● The surface of the parts is sandblasted to Sa2.5 level + inorganic zinc-rich primer + Nippon topcoat to ensure high anti-corrosion performance;

● All shaft pins are wear-resistant and electroplated, and most of the exposed parts are zinc-plated or plated to effectively resist corrosion;

● Adopt very strict dust-proof protection measures, so that the oil cylinder, boom, valve block, rubber hose, aluminum pipe and other parts that need to be dust-proof have corresponding dust-proof devices. For example, there is a steel cover under the operating platform to cover welding. Slag, splash, paint and other pollutants;

Product safety advantages:

● Optional anti-collision device is available on the operating platform to protect personal safety;

● The operating platform can be optionally equipped with a height-limiting device to protect personal safety;

● The cable box (length detector) is optional built-in type (installed in the boom), which is not easy to be damaged;

● The computer automatically detects and judges whether it is within the safe range. When approaching, the sound and light alarm, and when it reaches the dangerous point, it will cut off the action in the dangerous direction.

Product certification advantages:

The world's most authoritative EU CE certification, IPAF, etc.;

Warranty period and after-sales advantages:

The warranty period of CATHAYLIFT for the equipment is 12 months after the equipment is accepted. During the warranty period, if there is any damage to the parts due to the design and manufacturing quality, a response will be made within 24 hours after receiving the customer's notification and a free replacement will be given in the shortest possible time. After the warranty period ends, services such as lifetime maintenance, spare parts supply and technical support will still be provided.
