Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of single electric scissor lift in China. We warmly welcome you to buy discount single electric scissor lift for sale here from our factory. Quality products and reasonable price are available.

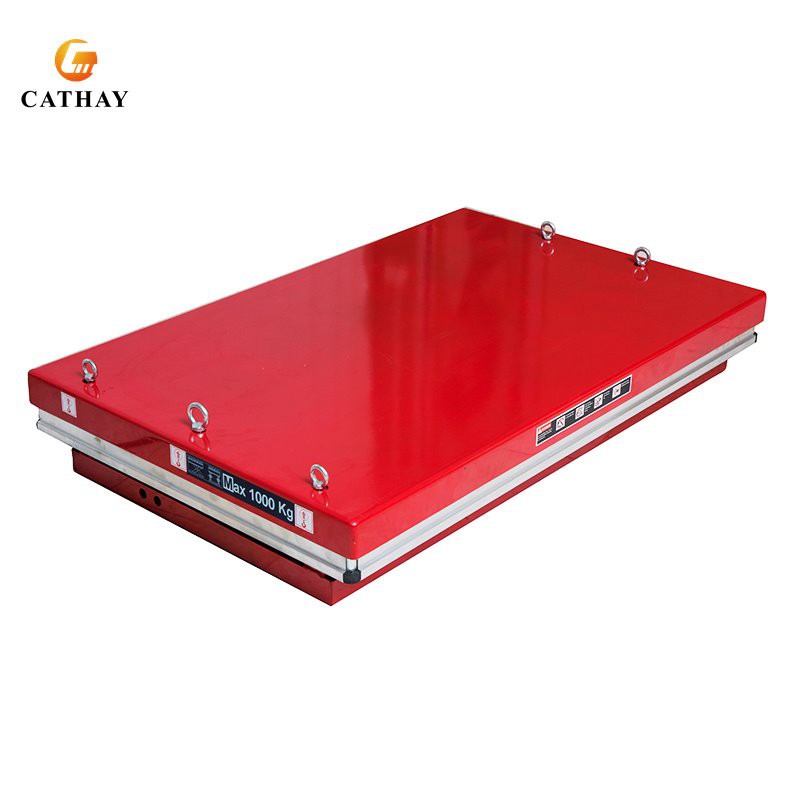

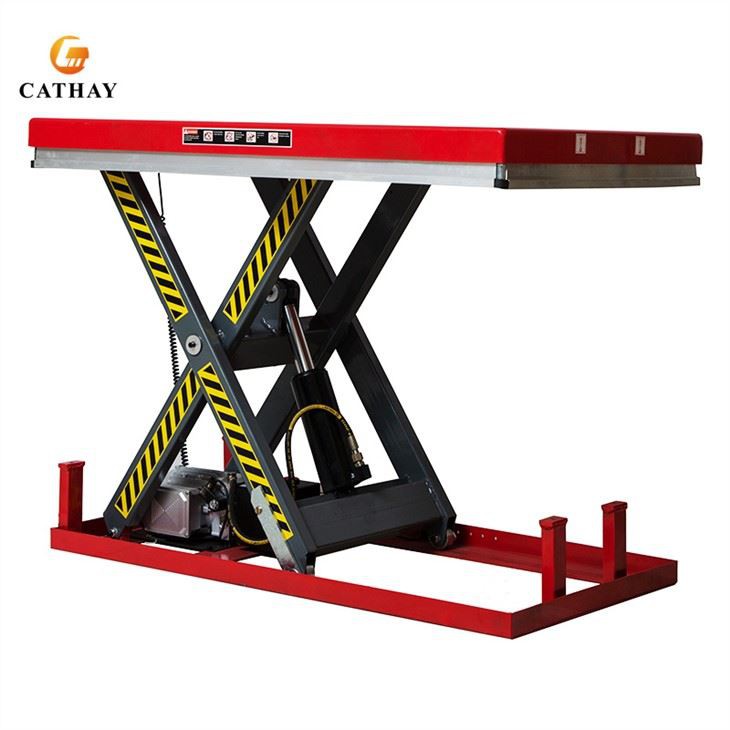

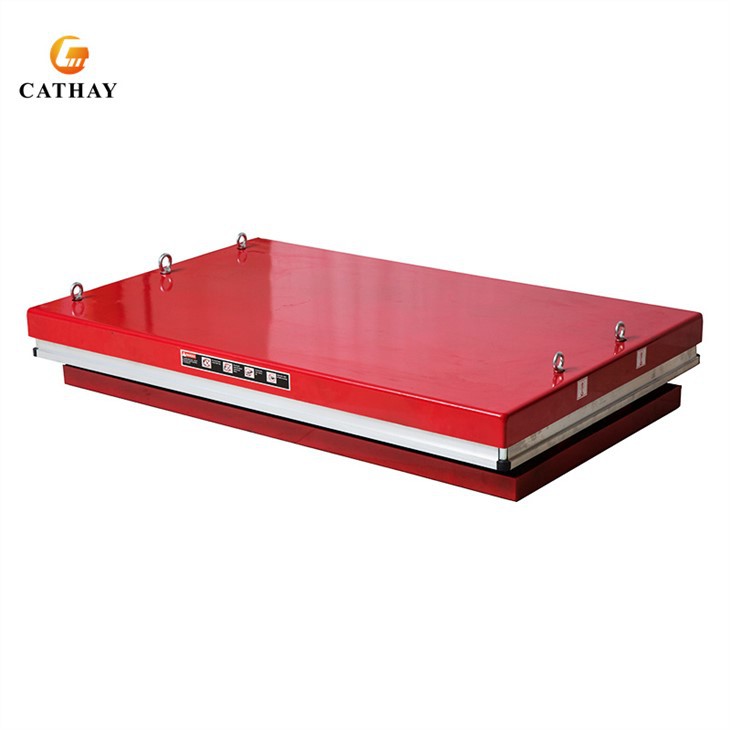

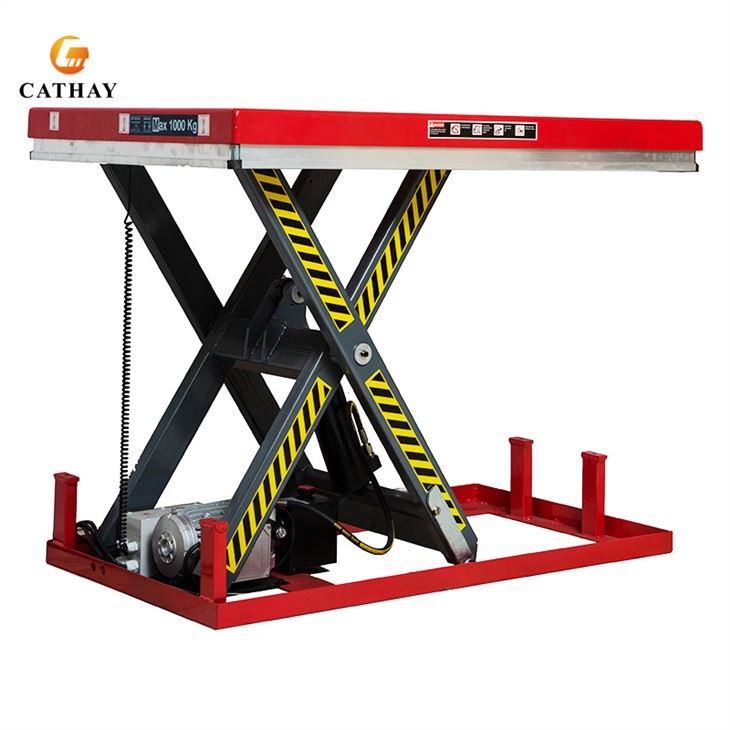

CATHAYLIFT Single Electric Scissor Lift, with stable structure, large bearing capacity, not easy to deform, long service life, stable lifting and simple operation, is an ideal cargo transportation equipment for practical lifting operations. Using high-strength precision oil cylinder, imported sealing ring, good sealing to avoid leakage and other drawbacks, improve the safety of the overall equipment. The countertop is made of high-quality paint, anti-rust and corrosion-resistant, and the layout steel is purchased for better load-bearing capacity. .The equipment is provided with power-off protection, and the lifting platform can stop rising and falling under the condition of pressing the emergency button.
Model | Load Capacity(KG) | Self Height (MM) | Max Platform Height(MM) | Platform Size(MM) | Lifting time (S) | Net weight (KG) |
500kg Load Capacity | ||||||
C0501 | 500 | 180 | 950 | 610*916 | 17~22 | 160 |
C0502 | 500 | 200 | 1000 | 1200*600 | 20~25 | 120 |
C0503 | 500 | 200 | 1000 | 1200*800 | 20~25 | 130 |
C0504 | 500 | 200 | 1000 | 2000*800 | 20~25 | 240 |
1000KG Load Capacity | ||||||
C1000 | 1000 | 180 | 770 | 610*916 | 15~20 | 115 |
C1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | 160 |
C1002 | 1000 | 205 | 1000 | 1600×1000 | 20~25 | 186 |
C1003 | 1000 | 190 | 1010 | 1300*800 | 20~25 | 160 |
C1004 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 |
C1005 | 1000 | 240 | 1300 | 1700×1000 | 30~35 | 210 |
C1006 | 1000 | 240 | 1300 | 2000×850 | 30~35 | 212 |
C1007 | 1000 | 240 | 1300 | 2000×1000 | 30~35 | 223 |
C1008 | 1000 | 240 | 1300 | 1700×1500 | 30~35 | 365 |
C1009 | 1000 | 240 | 1300 | 2000×1700 | 30~35 | 430 |
C1010 | 1000 | 305 | 1780 | 1300X820 | 35-45 | 210 |
C1011 | 1000 | 470 | 3000 | 1700x1000 | 35-45 | 450 |
2000KG Load Capacity | ||||||
C2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 |
C2002 | 2000 | 205 | 1000 | 2500*820 | 20~25 | 300 |
C2003 | 2000 | 230 | 1050 | 1600×1000 | 20~25 | 268 |
C2004 | 2000 | 250 | 1300 | 1700×850 | 25~35 | 289 |
C2005 | 2000 | 250 | 1300 | 1700×1000 | 25~35 | 300 |
C2006 | 2000 | 250 | 1300 | 2000×850 | 25~35 | 300 |
C2007 | 2000 | 250 | 1300 | 2000×1000 | 25~35 | 315 |
C2008 | 2000 | 250 | 1400 | 1700×1500 | 25~35 | 415 |
C2009 | 2000 | 250 | 1400 | 2000×1800 | 25~35 | 500 |
C2010 | 2000 | 190 | 1010 | 1300*800 | 20~25 | 235 |
C2011 | 2000 | 350 | 1780 | 1300X850 | 35-45 | 295 |
4000KG Load Capacity | ||||||
C4000 | 4000 | 230 | 1000 | 2500*850 | 20~25 | 320 |
C4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 |
C4002 | 4000 | 240 | 1050 | 2000×1200 | 30~40 | 405 |
C4003 | 4000 | 300 | 1400 | 2000×1000 | 35~40 | 470 |
C4004 | 4000 | 300 | 1400 | 2000×1200 | 35~40 | 490 |
C4005 | 4000 | 300 | 1400 | 2200×1000 | 35~40 | 480 |
C4006 | 4000 | 300 | 1400 | 2200×1200 | 35~40 | 505 |
C4007 | 4000 | 350 | 1300 | 1700×1500 | 35~40 | 570 |
C4008 | 4000 | 350 | 1300 | 2200×1800 | 35~40 | 655 |
C4009 | 4000 | 400 | 2050 | 1700X1200 | 55-65 | 520 |
Max Platform Height≥3M | ||||||
C1011 | 1000 | 470 | 3000 | 1700x1000 | 35-45 | 450 |
C2012 | 2000 | 560 | 3000 | 1700x1000 | 50-60 | 750 |
C2013 | 2000 | 850 | 4200 | 2500*1500 | 70-80 | 900 |
C0401 | 400 | 600 | 4140 | 1700x1000 | 30-40 | 800 |
C0801 | 800 | 706 | 4210 | 1700x1000 | 70-80 | 858 |
Other | ||||||
C3001 | 3000 | 220 | 1010 | 1300*800 | 20~25 | 350 |
C8000 | 8000 | 240 | 1050 | 3000*1200 | 20~25 | 370 |
Please Note: If the standard models can not meet your requirements, please ask us to customize them for you.

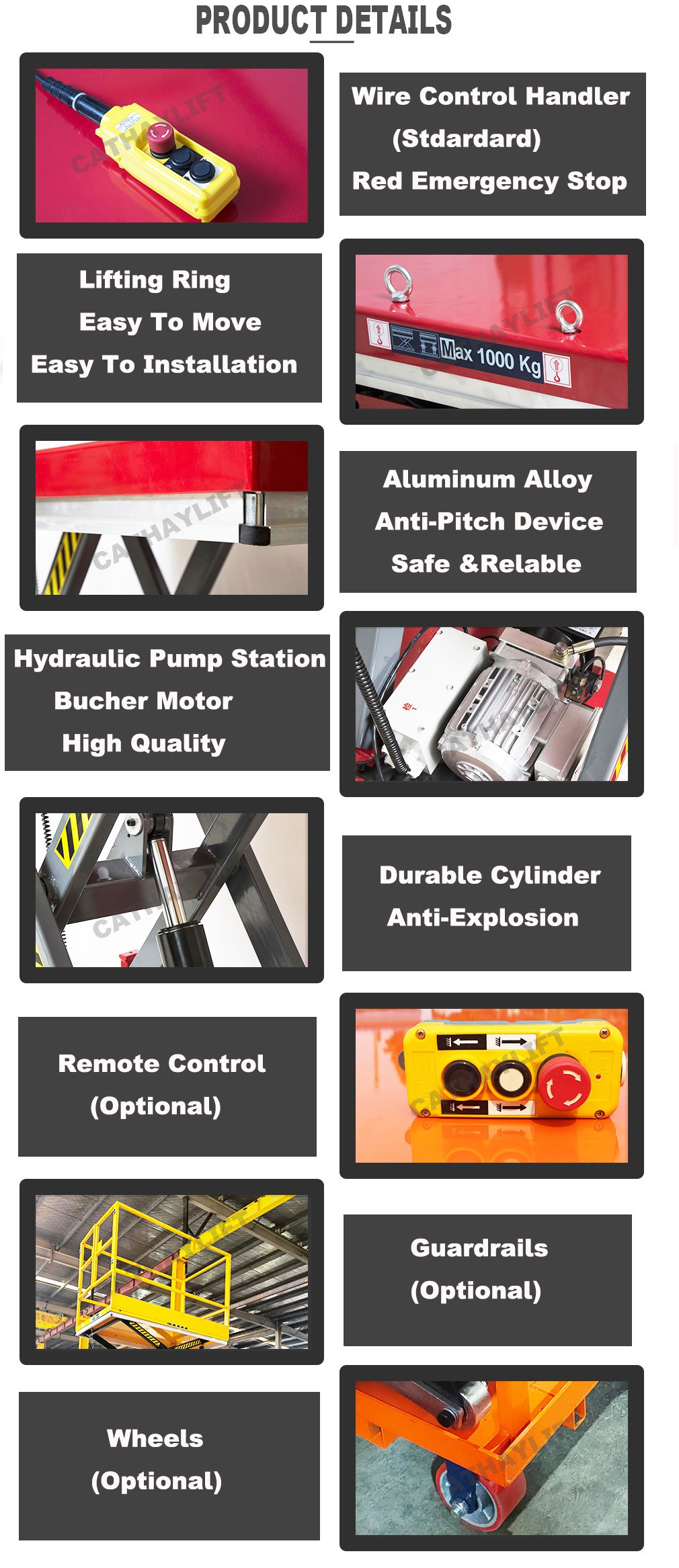

Product Details
Features & Advantages:
Explosion-proof valves: protect the hydraulic pipe and anti-hydraulic pipe rupture.
Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
Emergency decline valve: it can go down when you meet an emergency or power off.
Overload protection locking device: in case of dangerous overload.
Anti-dropping device: Prevent the falling of the platform.
Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.

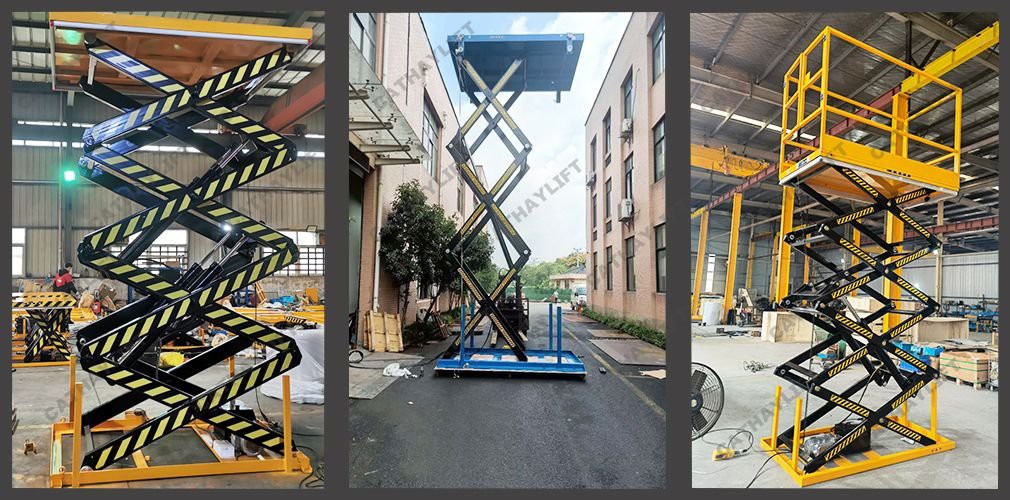

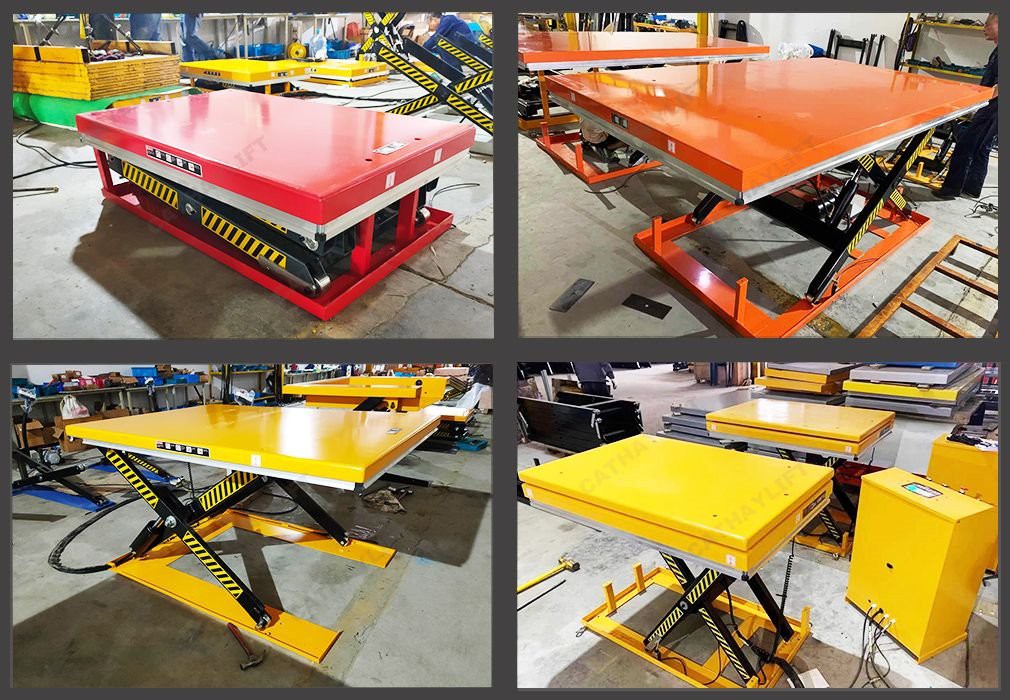

Real Order
