Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of manual single scissor lift table in China. We warmly welcome you to buy discount manual single scissor lift table for sale here from our factory. Quality products and reasonable price are available.

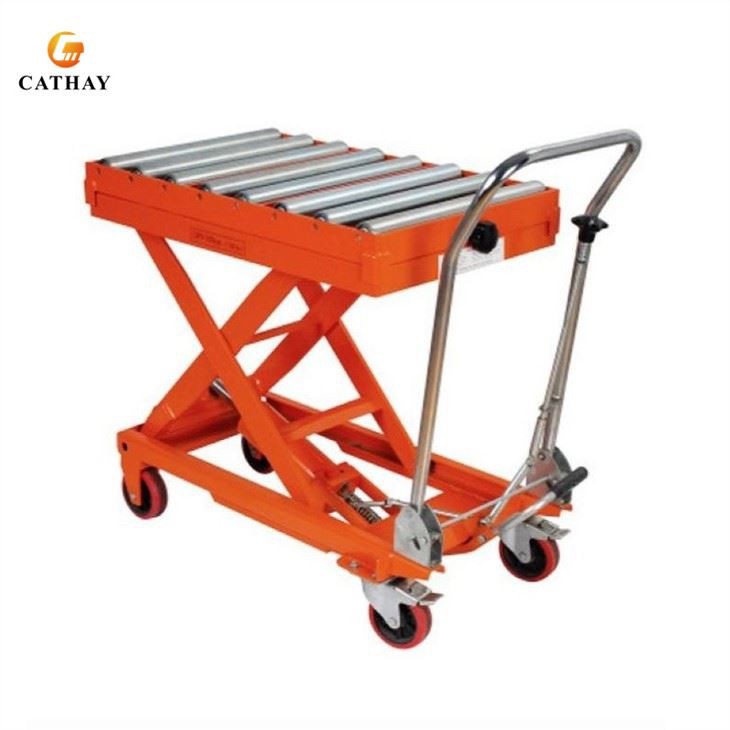

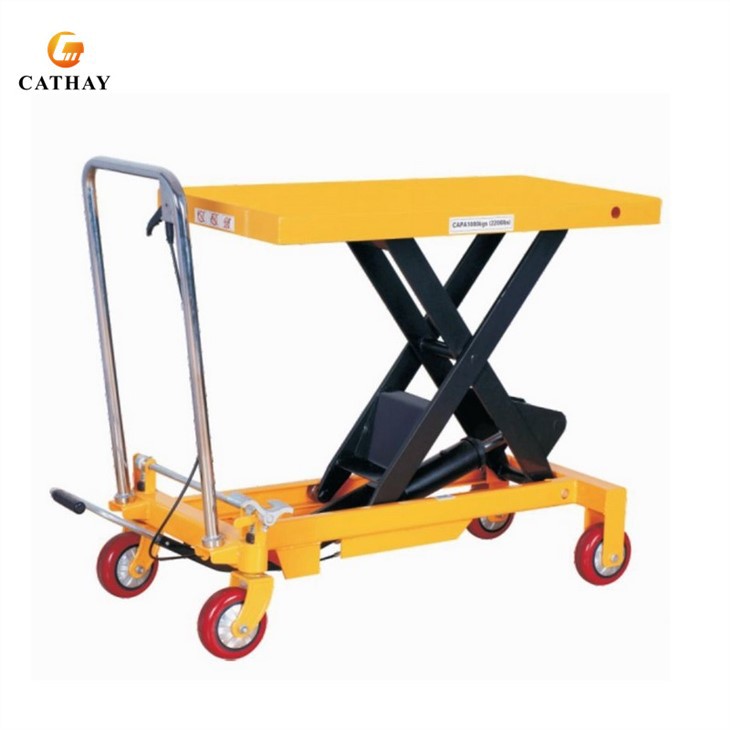

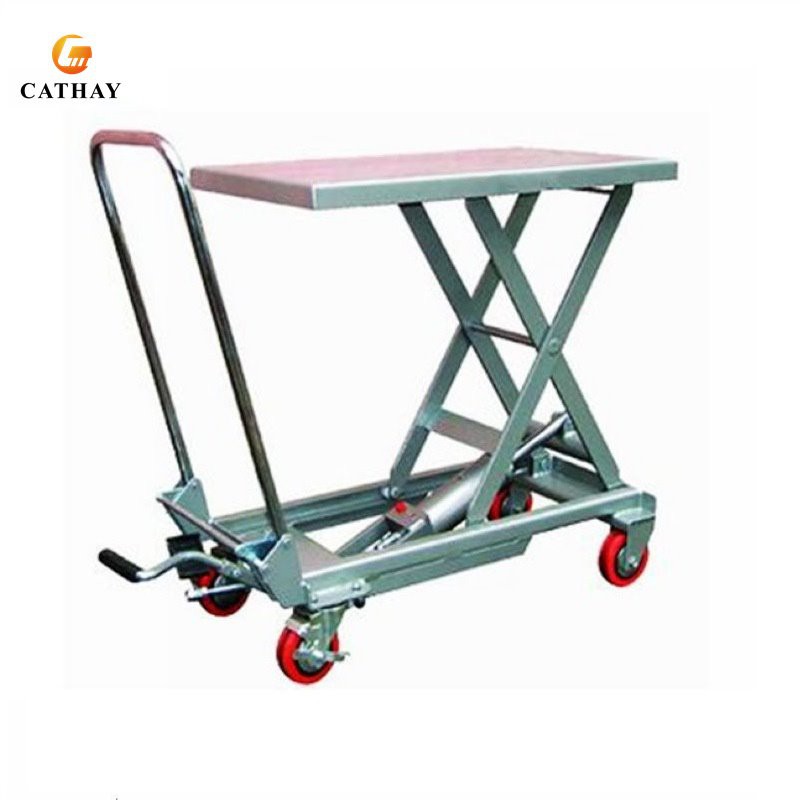

Manual single scissor lift table also known as hydraulic trolley, mold lift truck, small mobile lifting platform, is a small lifting machine, mainly used for small-scale lifting, picking and placing items, and handling small valuables. The appearance of the product is elegant and beautiful, the structure is firm, stable and reliable, and the internal performance and service life have reached the same advanced level as the equipment. Widely used in logistics and transportation, warehouse management, libraries, supermarkets, and general small equipment manufacturing.
Model type | Capacity (kg) | Platform size(mm) | Lifting height(mm) | Weight(kg) |
BS15 | 150 | 700*450 | 265-755 | 41 |
BS25 | 250 | 830*500 | 330-910 | 78 |
BS50 | 500 | 1010*520 | 435-1000 | 112 |
BS75 | 750 | 1010*520 | 442-1000 | 112 |
BS100 | 1000 | 1010*520 | 445-950 | 130 |
BS15D | 150 | 830*500 | 435-1430 | 90 |
BS30D | 300 | 1010*520 | 435-1585 | 138 |
BS50D | 500 | 1010*520 | 440-1575 | 156 |
BS80D | 800 | 1010*520 | 470-1410 | 160 |
ES30 | 300 | 1010*520 | 450-950 | 140 |
ES50 | 500 | 1010*520 | 450-950 | 148 |
ES75 | 750 | 1010*520 | 450-950 | 154 |
ES100 | 1000 | 1010*520 | 480-950 | 169 |
ES30D | 300 | 1010*520 | 495-1600 | 183 |
ES50D | 500 | 1010*520 | 495-1618 | 198 |
ES80D | 800 | 1010*520 | 510-1460 | 208 |
ES100D | 1000 | 1010*520 | 510-1450 | 230 |
BS50LA | 500 | 1525*620 | 400-1000 | 175 |
BS50LB | 500 | 1200*800 | 370-1190 | 160 |
BS100L | 1000 | 1200*800 | 425-1225 | 163 |
ES50LA | 500 | 1525*620 | 440-1575 | 215 |
ES50LB | 500 | 1200*800 | 430-1220 | 220 |
ES100L | 1000 | 1200*800 | 430-1220 | 225 |
Features & Advantages:
● Sturdy wishbone beam composite steel support and countertop construction.
● The countertop can be directly made of stainless steel cutting panel or additionally paved with stainless steel surface sticker on the basic tabletop of the basic platform truck to achieve dust and rust prevention.
● When the foot pedal is raised, the height of the table can be raised to the required level, which is easy to operate.
● There are 2 steering PU wheels and 2 Non-steering PU wheels, and a braking device is provided on the steering wheel.
● Lifting-travel-lowering three functions are controlled by handle, and the lowering speed can be controlled manually.
● Equipped with overload protection valve and safety stop to protect the operator and oil pump.
● Optional: Rotary switch or pull switch / chrome armrest, painted armrest or folding armrest.

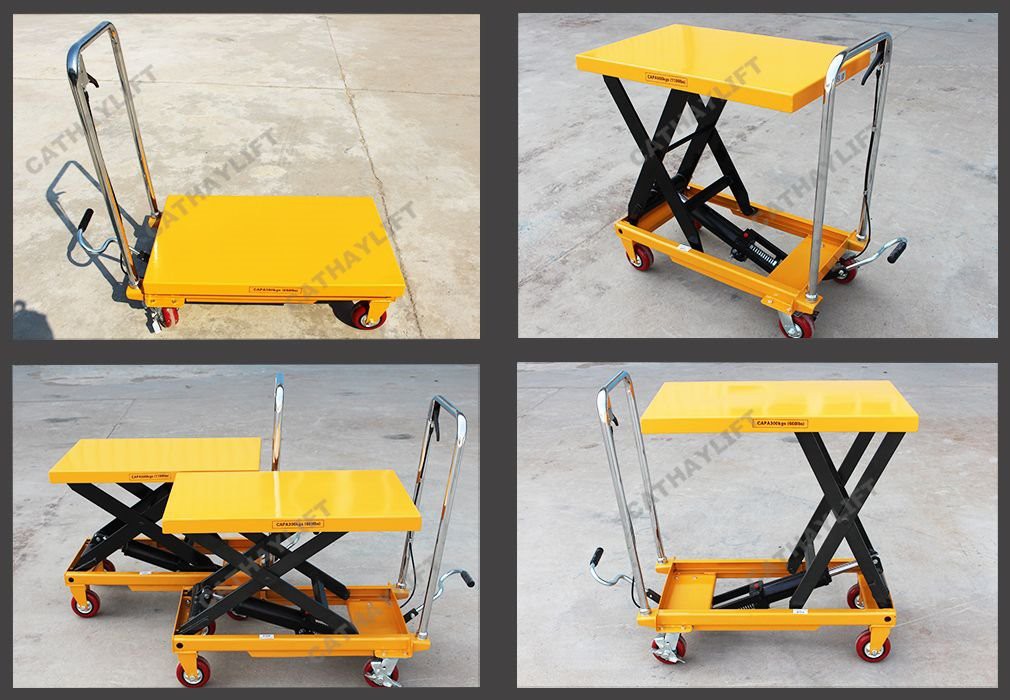

Real Order
