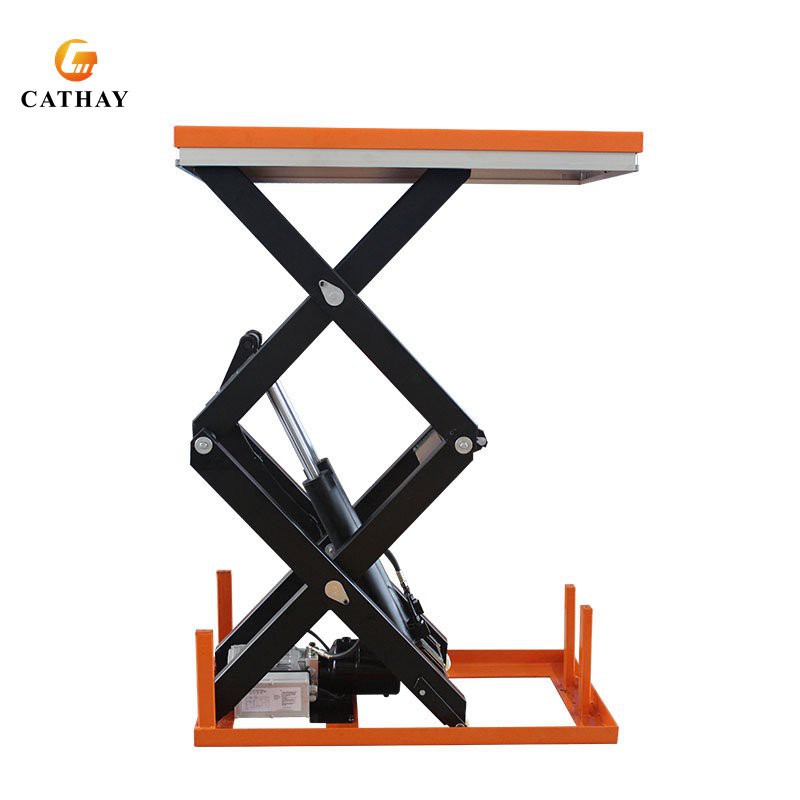

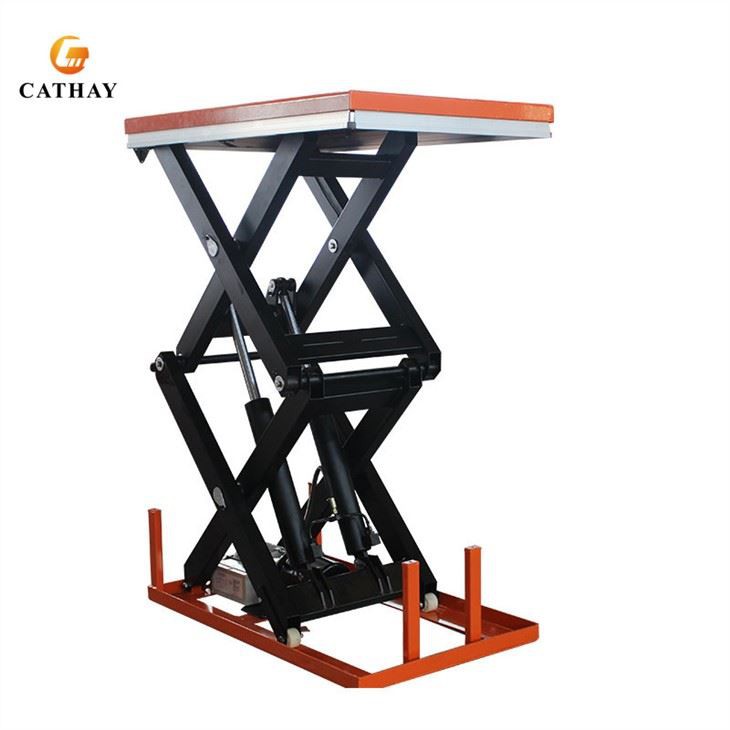

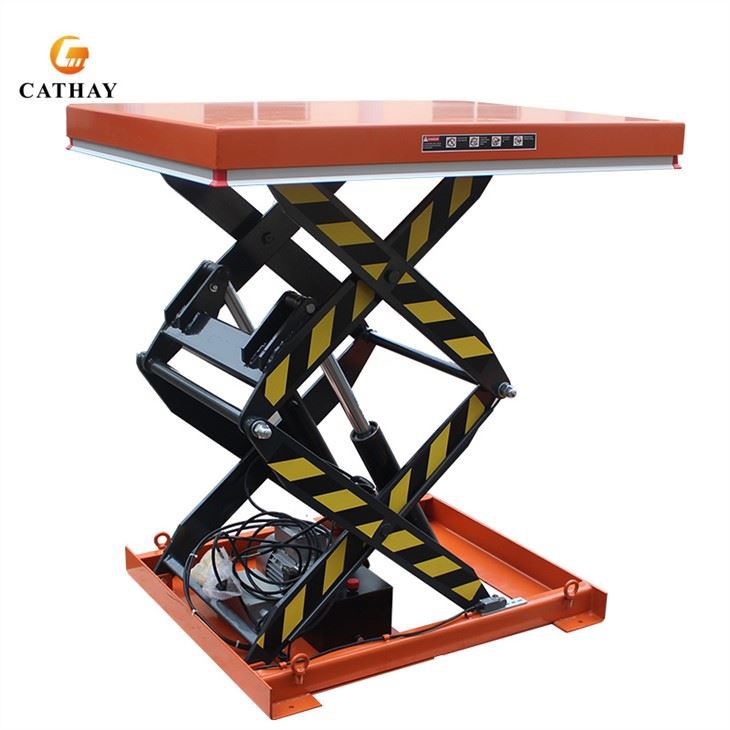

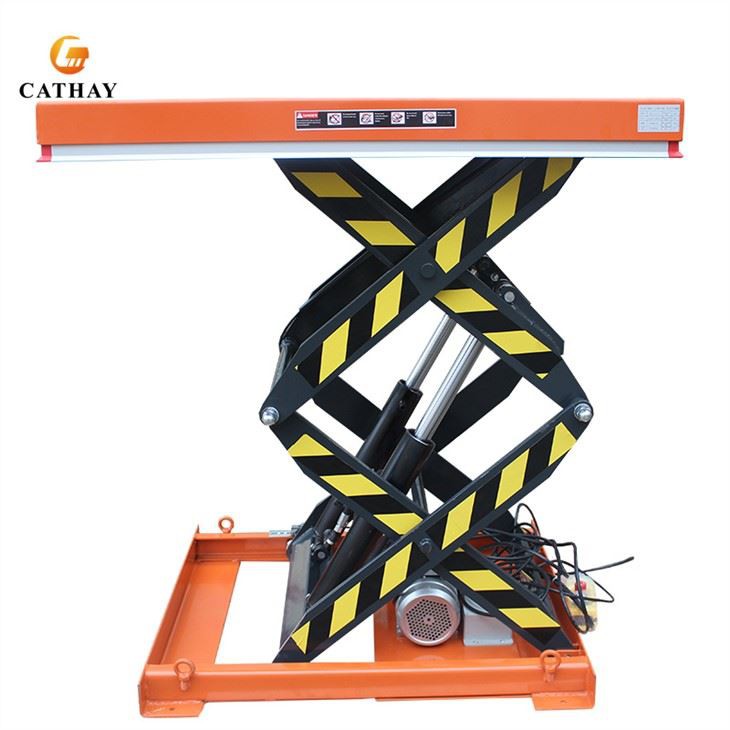

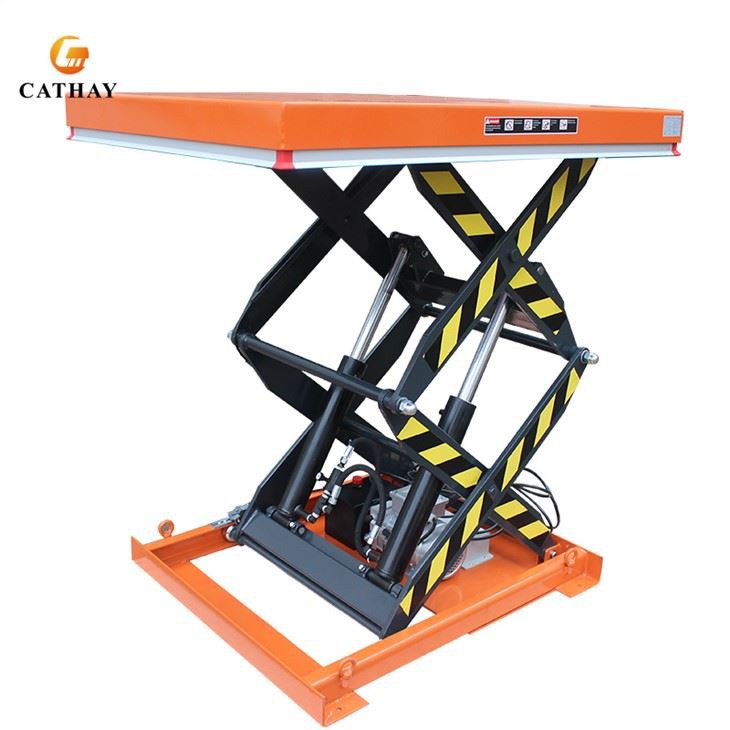

Double Scissor Lift Table

1~5m Lifting height, the product has a solid structure, large bearing capacity, stable lifting, simple and convenient installation and maintenance, and is an economical and practical ideal cargo conveying equipment to replace elevators between low floors. According to the installation environment and use requirements of the lifting platform, you can choose different fixed hydraulic lifts, choose different optional configurations, complete the task of lifting items, and achieve better use results

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of double scissor lift table in China. We warmly welcome you to buy discount double scissor lift table for sale here from our factory. Quality products and reasonable price are available.

Double Scissor Lift Table is a kind of cargo lifting equipment with good lifting stability and wide applicability. Mainly used for production line, automatic line transportation of goods with height difference on a certain section, material online and offline, workpiece assembly and other lifting operations. According to different work requirements and use environments, different workbench forms, power forms, control methods and other additional accessories can be configured. The structure is compact and stable, and can adapt to high frequency continuous operation. The lifting height is stable, which can meet the stable lifting of large-tonnage goods. It is equipped with a hydraulic system with anti-attachment and overload safety protection to ensure safe operation. The table tops such as rollers, balls, and turntables are arbitrarily configured to meet the requirements of different working conditions. The fixed lift is a special hydraulic lifting platform used for cargo transportation. It is mainly used in warehouses, garages, workshops and other working floors to transport goods up and down. It has a wide range of applicability, large carrying capacity, safe and stable lifting, and simple and convenient installation and maintenance. It is an economical and practical ideal cargo conveying equipment.

Model	Load Capacity(KG)	Self Height (MM)	Max Platform Height(MM)	Platform Size(MM)	Lifting time (S)	Net weight (KG)
C1011	1000	470	3000	1700x1000	35-45	450
C2012	2000	560	3000	1700x1000	50-60	750
C2013	2000	850	4200	2500*1500	70-80	900
C0401	400	600	4140	1700x1000	30-40	800
C0801	800	706	4210	1700x1000	70-80	858

Please Note: If the standard models can not meet your requirements, please ask us to custom it for you.

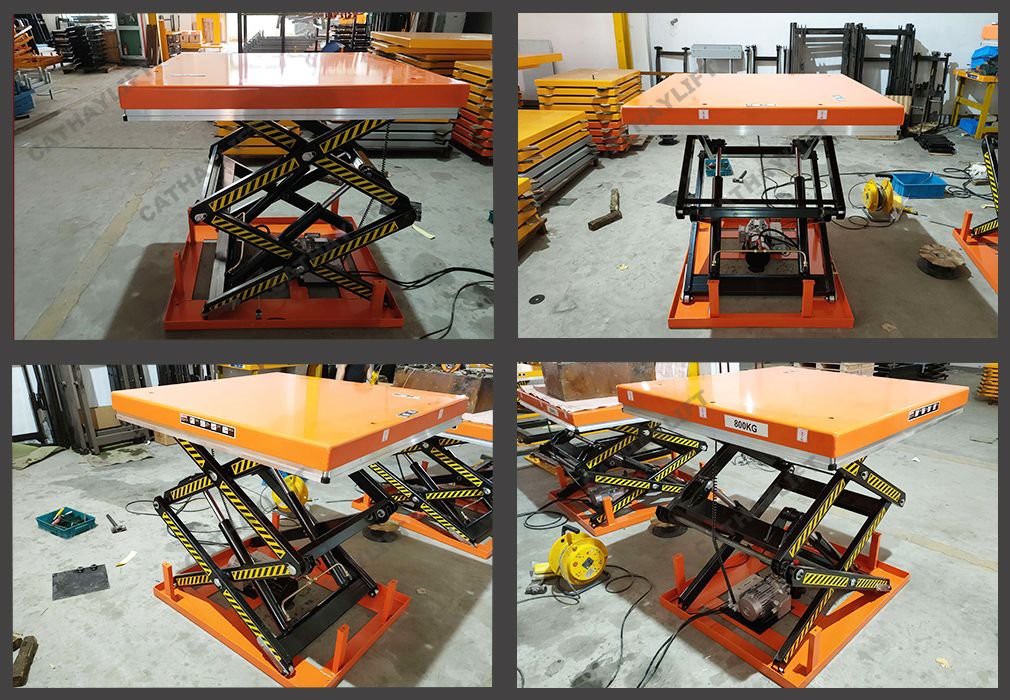

Product Details

Hydraulic Pump Station

Aluminum Anti-Pinch Device

Perfect Clamping and Durable Scissor Structure

Durable Hydraulic Cylinder

Travel Switch to Protect Cylinders Stop properly

Wire Control Handle(Standard)

Remote Control(Optional)

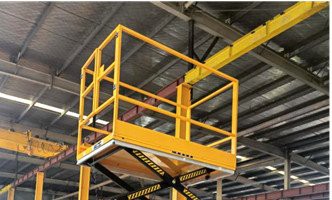

Guardrails(Optional)

Wheels for easy moving(Optional)

Features & Advantages:

● Hydraulic platform, heavy-duty design. Standard use of 380V/50Hz AC power supply, other AC power supply can be customized, or optional battery power.

● Adopt imported pump station to make the goods lift smoothly and powerfully.

● There is a safety bar device under the table, when the table descends and encounters obstacles, it stops descending to ensure safety.

● Adopt anti-pinch scissor design. Prevent pinching. With overload protection. more reliable,safer.

● Equipped with safety bar for easy maintenance.

● Widely used in manufacturing, logistics, maintenance and other industries.

● In line with European EN1757-2, American ANSI/ASME safety standards.
