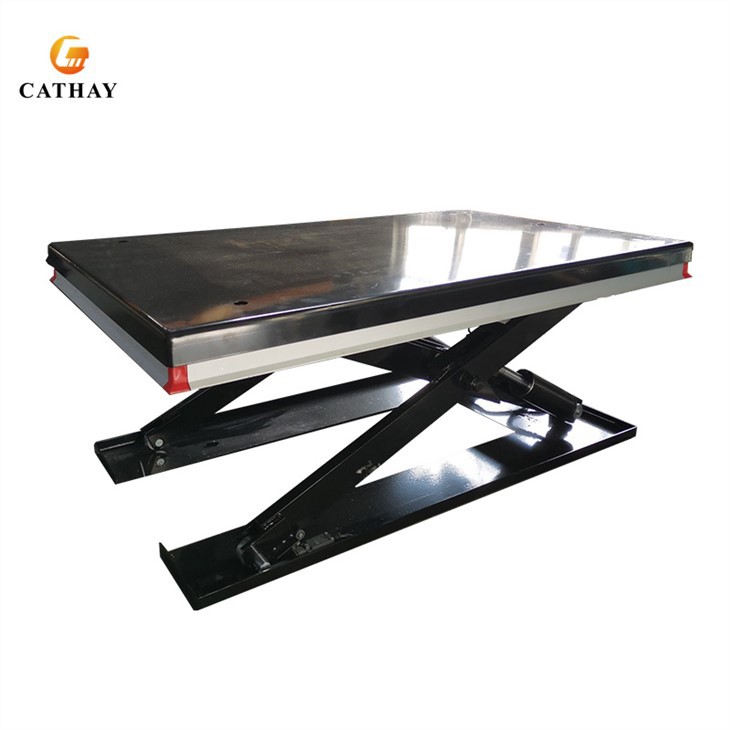

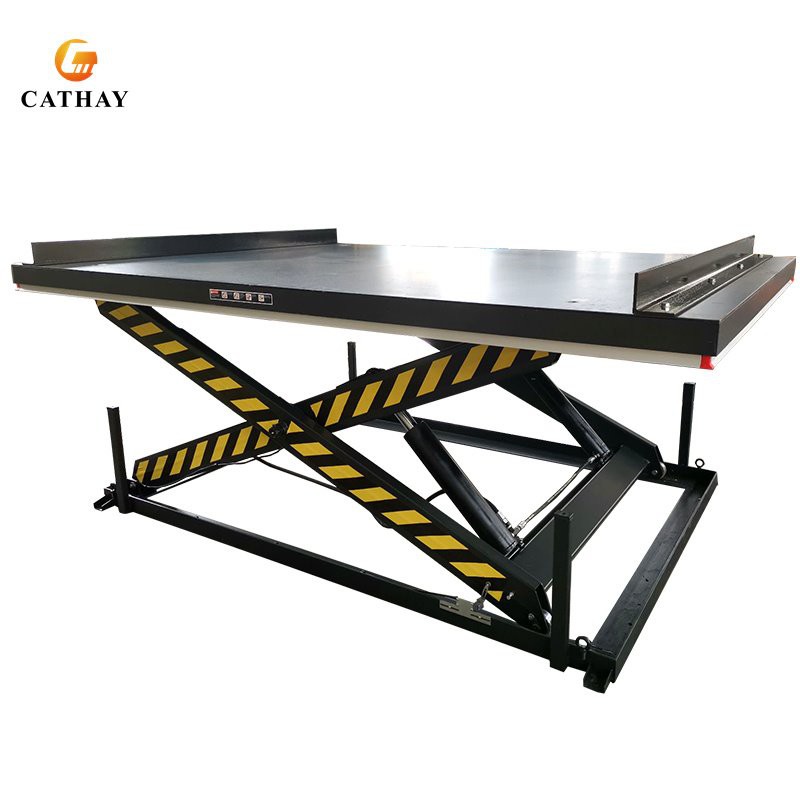

Scissor Table Lifter

Scissor table lifter is a compact platform that can be used in various areas for lifting operations. The products are divided into 1ton/2ton/3ton/4ton according to different models, and the lifting height is 1m/2m/3m/4m. We support Customized products for the actual situation of customers, including customized product table size, lifting height, load capacity, and various other auxiliary accessories.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of scissor table lifter in China. We warmly welcome you to buy discount scissor table lifter for sale here from our factory. Quality products and reasonable price are available.

Scissor Table Lifer is a device mainly used in material handling and lifting. It is made of high-strength manganese steel and has been shot-blasted and plastic-sprayed. According to the different uses of the product, we can tailor the product for you. Different voltages are customized for different countries, for example, North America needs 220v 60Hz 3ph, and Europe needs 380v 50Hz 3Ph. Battery power may also be required for some workplaces without AC power, or for workflows where direct power is not convenient.

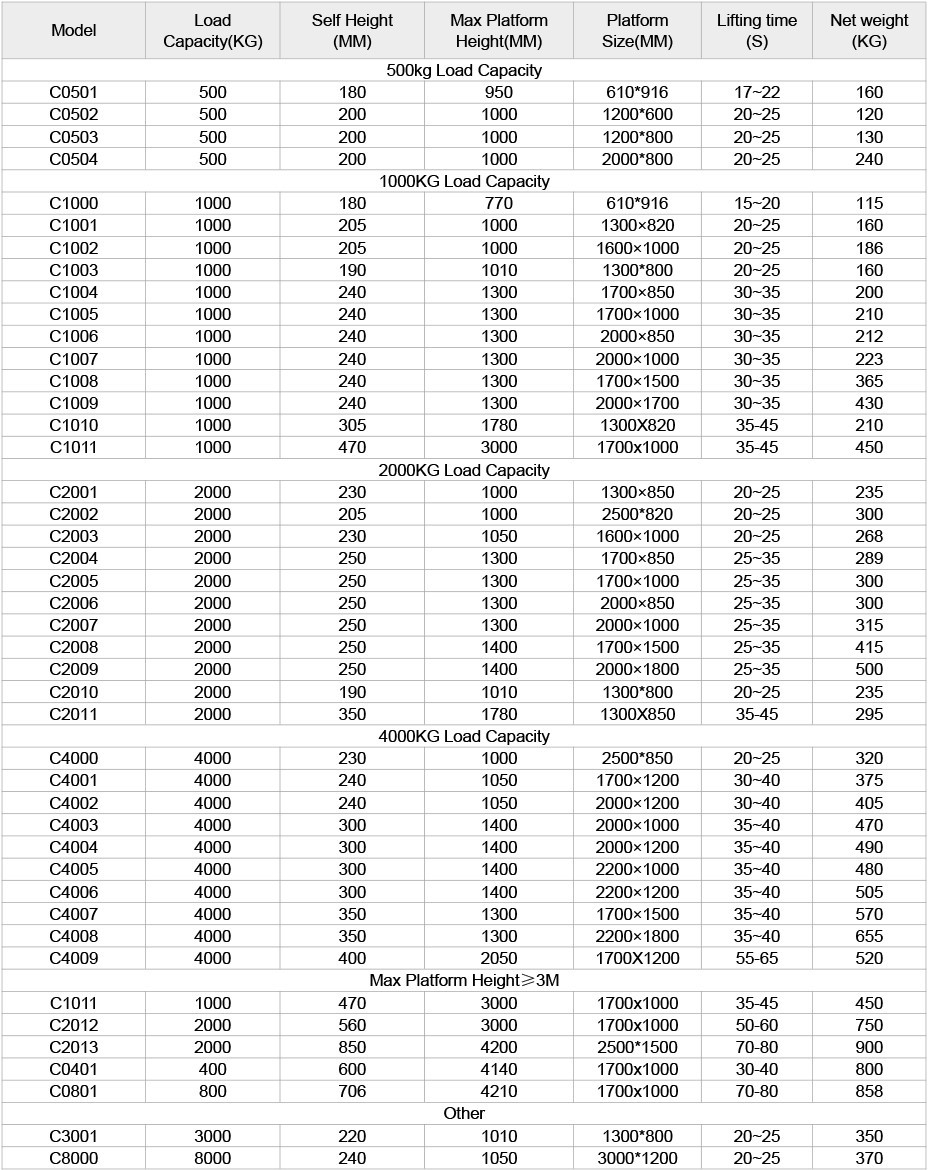

hydraulic lift table-parameters

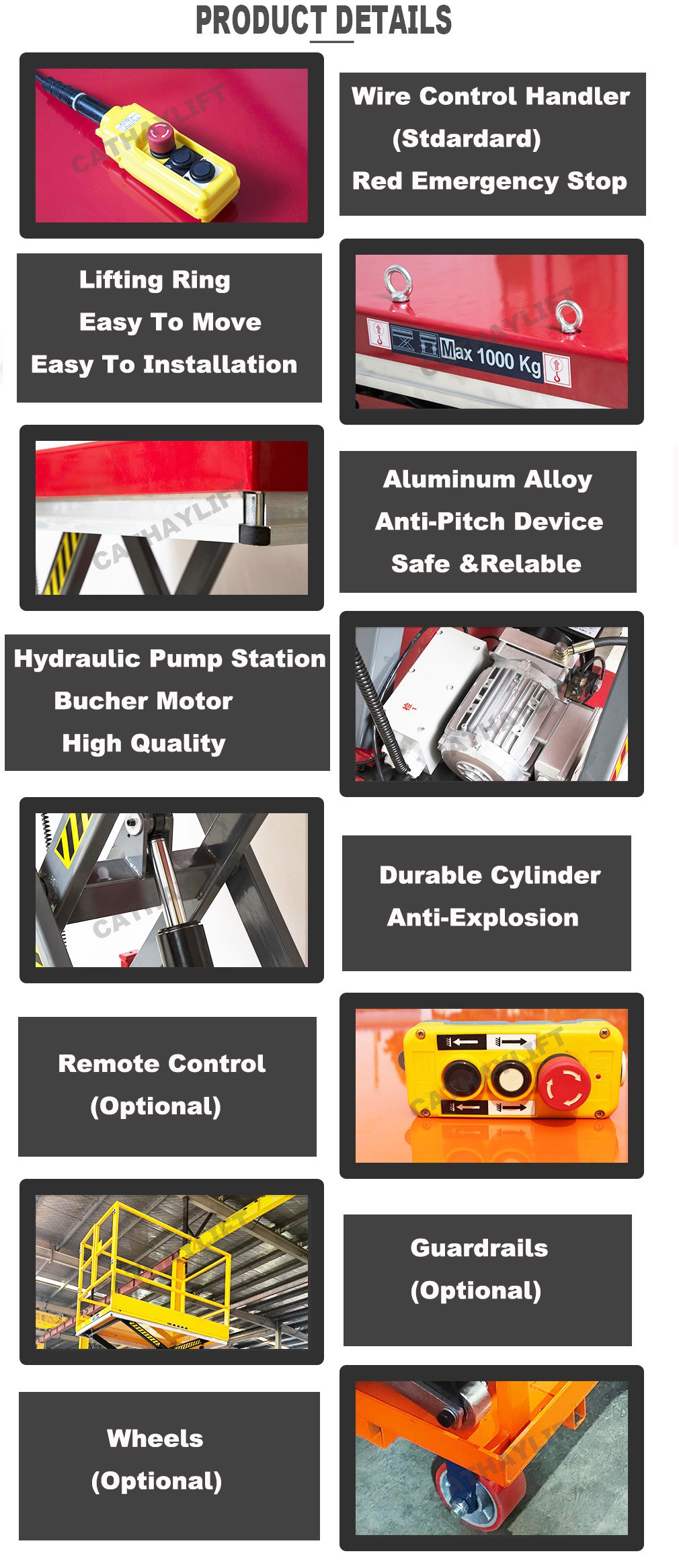

hydraulic lift table-details 3

Daily inspection is effective to find the malfunction or fault on the lift table. Before the operation, check the lift table according to the following points.

Check all the terms of WARNING and CAUTION.

Check scratches, bending, or crack on the lift table.

Check the smooth movement of the table.

Check if there is any hydraulic oil leakage.

Check the vertical creep of the table.

Check if all the bolts and nuts are firmly tightened.
