Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of single scissor lift in China. We warmly welcome you to buy discount single scissor lift for sale here from our factory. Quality products and reasonable price are available.

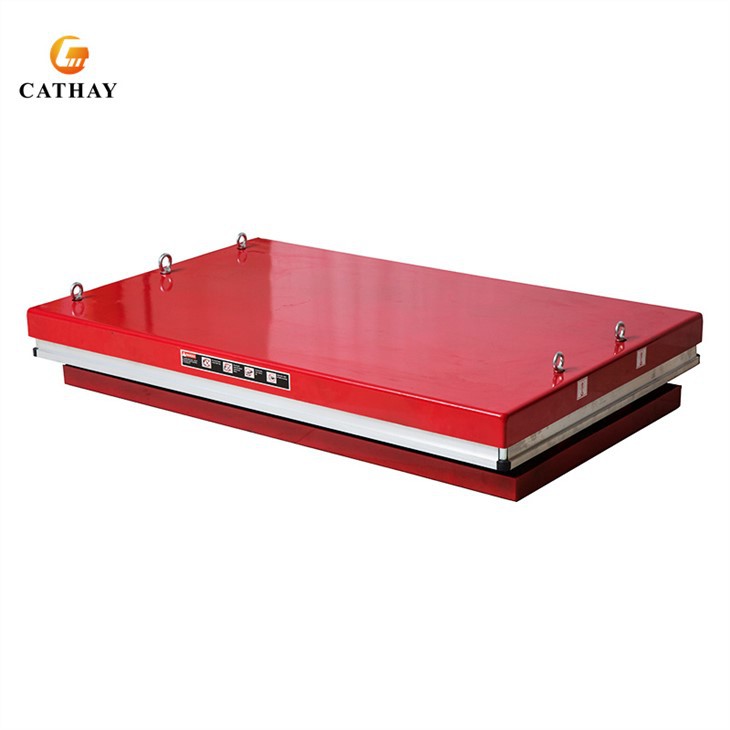

CATHAYLIFT Standard single sciCor lift adopts high-strength precision oil cylinder and imported sealing ring, which has good sealing performance to avoid leakage and other drawbacks, and improves the safety of the overall equipment. The countertop is made of high-quality paint, anti-rust and corrosion-resistant, and the layout steel is purchased for better load-bearing capacity. The equipment is provided with power-off protection, and the lifting platform can stop rising and falling when the emergency button is pressed.
Model | Load Capacity (KG) | Self Height (MM) | Max Platform Height (MM) | Platform Size (MM) | Lifting time (S) | Net weight (KG) |
500kg Load Capacity | ||||||
C0501 | 500 | 180 | 950 | 610*916 | 17~22 | 160 |
C0502 | 500 | 200 | 1000 | 1200*600 | 20~25 | 120 |
C0503 | 500 | 200 | 1000 | 1200*800 | 20~25 | 130 |
C0504 | 500 | 200 | 1000 | 2000*800 | 20~25 | 240 |
1000KG Load Capacity | ||||||
C1000 | 1000 | 180 | 770 | 610*916 | 15~20 | 115 |
C1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | 160 |
C1002 | 1000 | 205 | 1000 | 1600×1000 | 20~25 | 186 |
C1003 | 1000 | 190 | 1010 | 1300*800 | 20~25 | 160 |
C1004 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 |
C1005 | 1000 | 240 | 1300 | 1700×1000 | 30~35 | 210 |
C1006 | 1000 | 240 | 1300 | 2000×850 | 30~35 | 212 |
C1007 | 1000 | 240 | 1300 | 2000×1000 | 30~35 | 223 |
C1008 | 1000 | 240 | 1300 | 1700×1500 | 30~35 | 365 |
C1009 | 1000 | 240 | 1300 | 2000×1700 | 30~35 | 430 |
C1010 | 1000 | 305 | 1780 | 1300X820 | 35-45 | 210 |
C1011 | 1000 | 470 | 3000 | 1700x1000 | 35-45 | 450 |
2000KG Load Capacity | ||||||
C2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 |
C2002 | 2000 | 205 | 1000 | 2500*820 | 20~25 | 300 |
C2003 | 2000 | 230 | 1050 | 1600×1000 | 20~25 | 268 |
C2004 | 2000 | 250 | 1300 | 1700×850 | 25~35 | 289 |
C2005 | 2000 | 250 | 1300 | 1700×1000 | 25~35 | 300 |
C2006 | 2000 | 250 | 1300 | 2000×850 | 25~35 | 300 |
C2007 | 2000 | 250 | 1300 | 2000×1000 | 25~35 | 315 |
C2008 | 2000 | 250 | 1400 | 1700×1500 | 25~35 | 415 |
C2009 | 2000 | 250 | 1400 | 2000×1800 | 25~35 | 500 |
C2010 | 2000 | 190 | 1010 | 1300*800 | 20~25 | 235 |
C2011 | 2000 | 350 | 1780 | 1300X850 | 35-45 | 295 |
4000KG Load Capacity | ||||||
C4000 | 4000 | 230 | 1000 | 2500*850 | 20~25 | 320 |
C4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 |
C4002 | 4000 | 240 | 1050 | 2000×1200 | 30~40 | 405 |
C4003 | 4000 | 300 | 1400 | 2000×1000 | 35~40 | 470 |
C4004 | 4000 | 300 | 1400 | 2000×1200 | 35~40 | 490 |
C4005 | 4000 | 300 | 1400 | 2200×1000 | 35~40 | 480 |
C4006 | 4000 | 300 | 1400 | 2200×1200 | 35~40 | 505 |
C4007 | 4000 | 350 | 1300 | 1700×1500 | 35~40 | 570 |
C4008 | 4000 | 350 | 1300 | 2200×1800 | 35~40 | 655 |
C4009 | 4000 | 400 | 2050 | 1700X1200 | 55-65 | 520 |
Max Platform Height≥3M | ||||||
C1011 | 1000 | 470 | 3000 | 1700x1000 | 35-45 | 450 |
C2012 | 2000 | 560 | 3000 | 1700x1000 | 50-60 | 750 |
C2013 | 2000 | 850 | 4200 | 2500*1500 | 70-80 | 900 |
C0401 | 400 | 600 | 4140 | 1700x1000 | 30-40 | 800 |
C0801 | 800 | 706 | 4210 | 1700x1000 | 70-80 | 858 |
Other | ||||||
C3001 | 3000 | 220 | 1010 | 1300*800 | 20~25 | 350 |
C8000 | 8000 | 240 | 1050 | 3000*1200 | 20~25 | 370 |
Please Note: If the standard models can not meet your requirements, please ask us to custom it for you.
Product Details

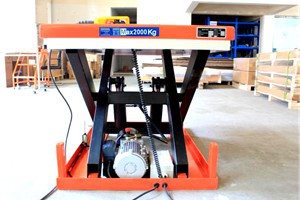

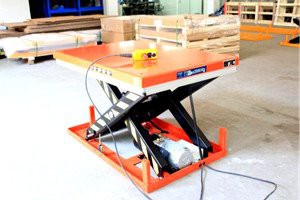

Overview
Overview
Overview

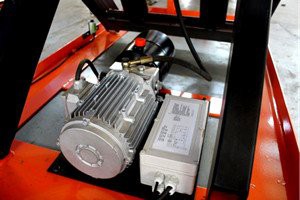

Hydraulic Pump Station
Aluminum Anti-Pinch Device

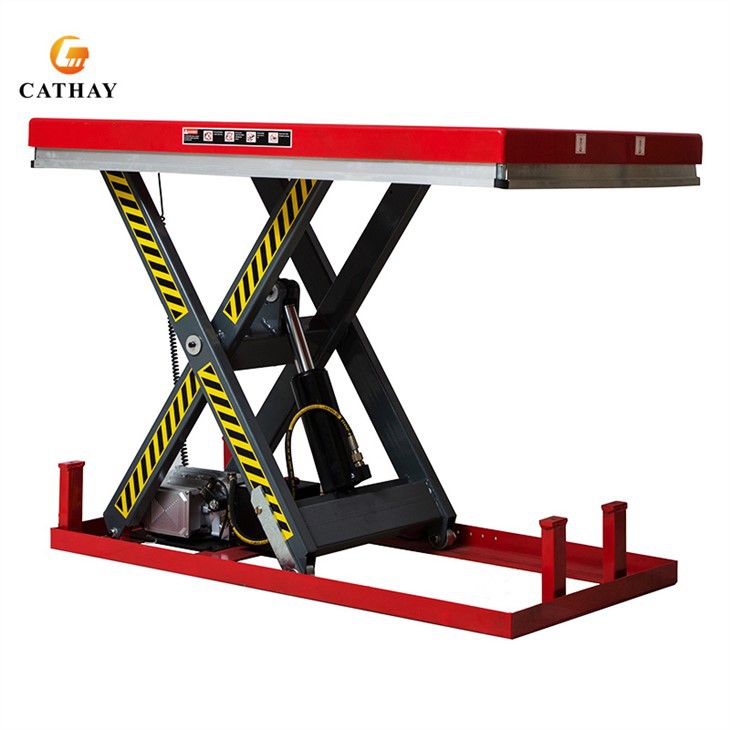

Perfect Clamping and Durable Scissor Structure

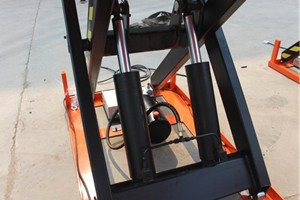

Durable Hydraulic Cylinder

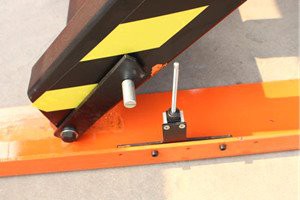

Travel Switch to Protect Cylinders Stop properly
Wire Control Handle(Standard)
Remote Control(Optional)

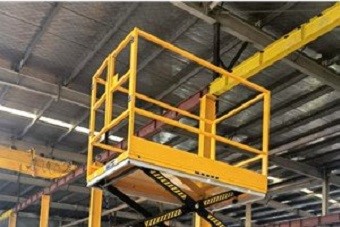

Guardrails(Optional)
Wheels for easy moving(Optional)
Features & Advantages:
● The surface of the equipment has undergone industrial treatment, including shot blasting, plastic spraying, electrostatic spraying, and has a high degree of anti-rust and anti-corrosion functions.
● High-quality hydraulic pump station (sino-foreign joint venture) ensures smooth operation of the scissor lift.
● Aluminum alloy anti-pinch design, safe and reliable, self-lubricating design at the king pin roller, maintenance-free for life.
● The detachable lifting rings are located at the four corners of the table, which is convenient for the lifting, moving and installation of the lift.
● The heavy-duty oil cylinder is equipped with a drainage system and a check valve, and the explosion-proof design ensures that the lift table will not drop even if the oil pipe bursts.
● In order to prevent overload operation, the product is equipped with a pressure reducing valve, and due to the design of the flow control valve, the descending speed can be adjusted.
● The product fully complies with the American ANSI/ASME standard and the European EN1570 standard
● The product is easy to install, easy to operate, and minimal maintenance.
● It is responsive and can be quickly stopped at any position in the lifting and lowering, which is convenient for operation.

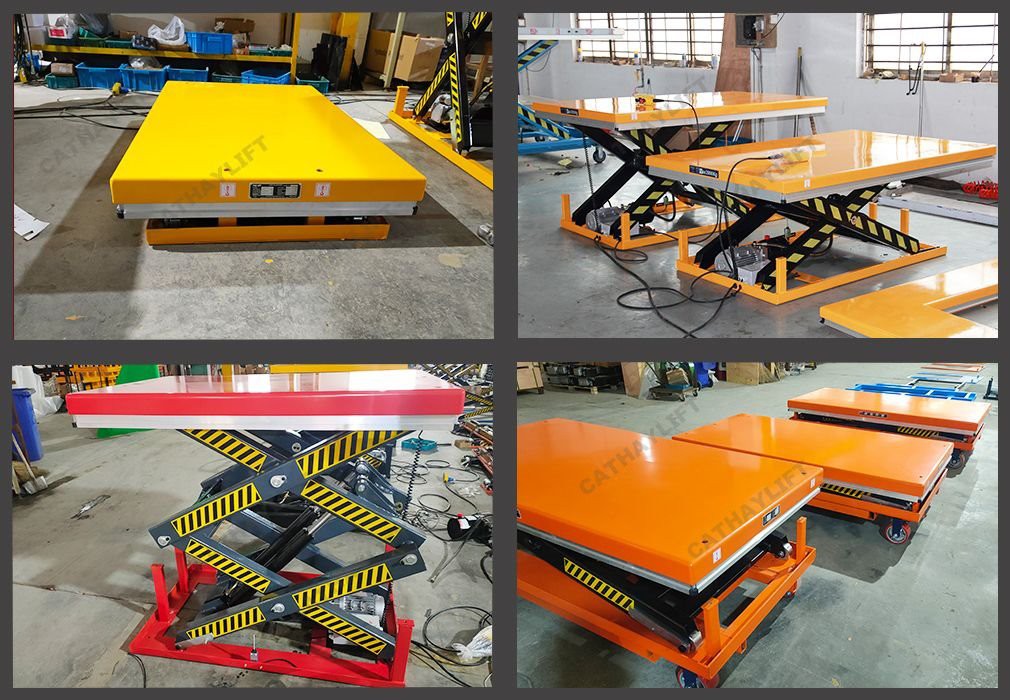

Real Order
