Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of stationary scissor lift in China. We warmly welcome you to buy discount stationary scissor lift for sale here from our factory. Quality products and reasonable price are available.

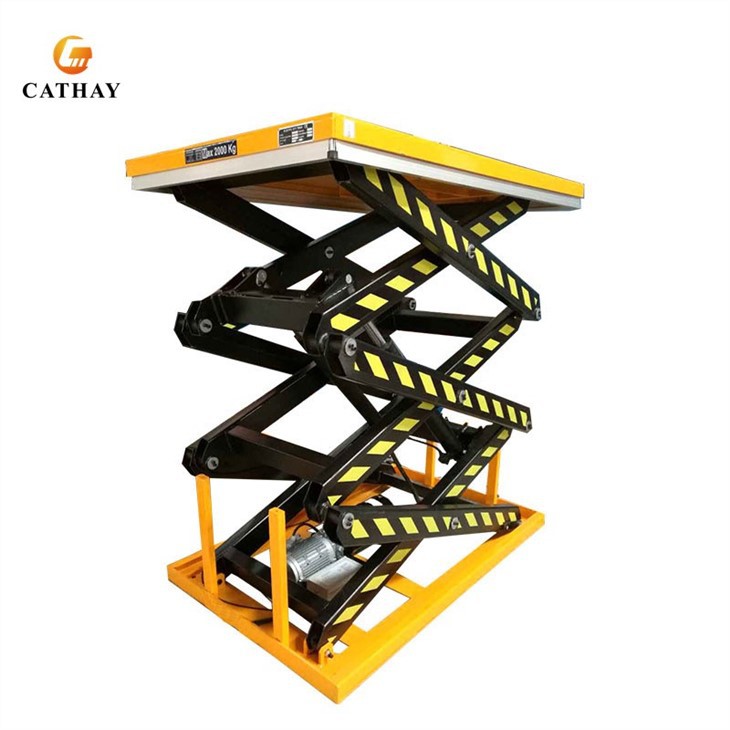

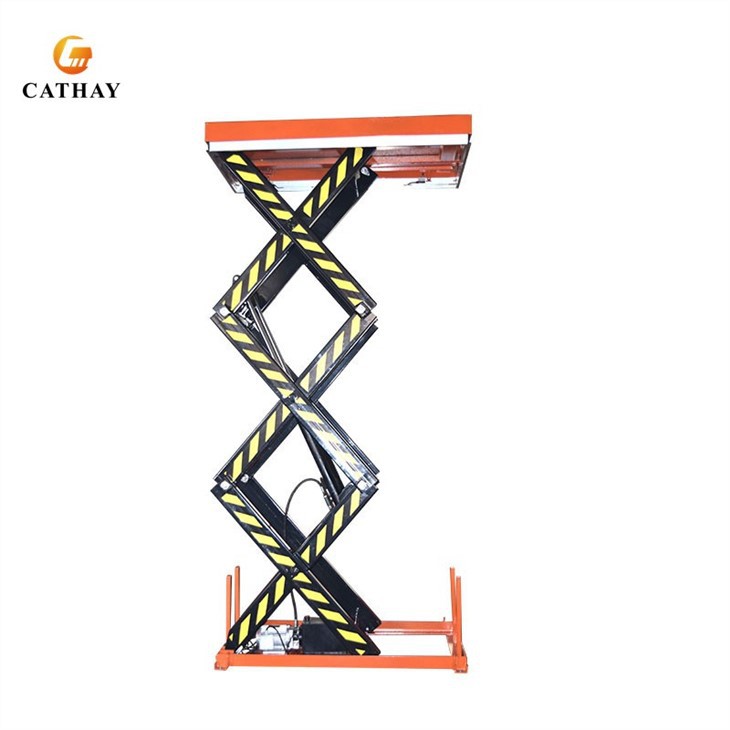

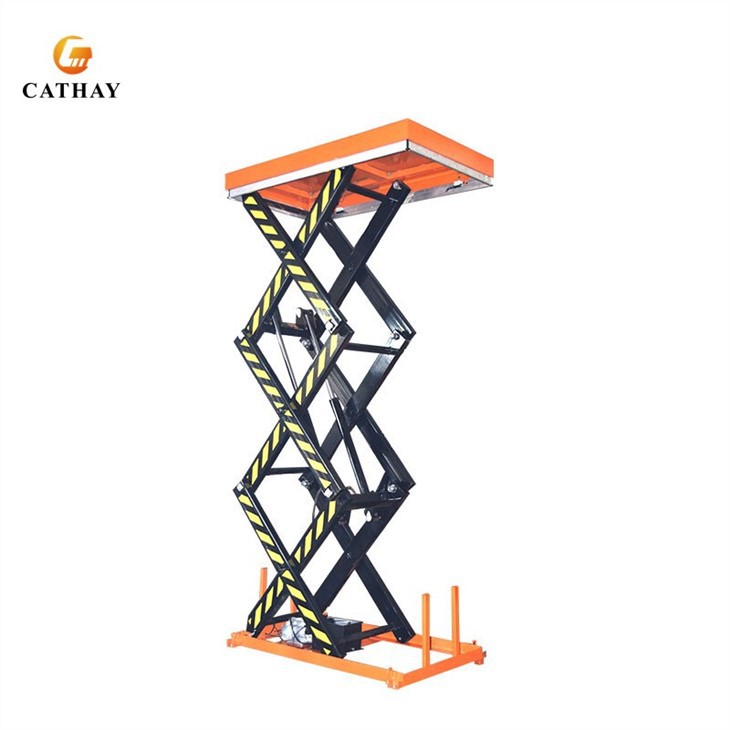

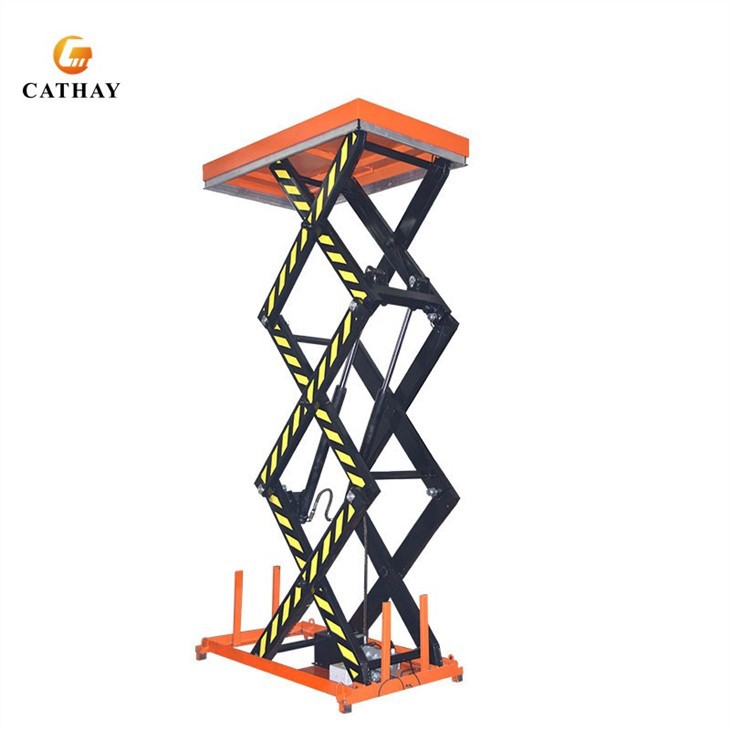

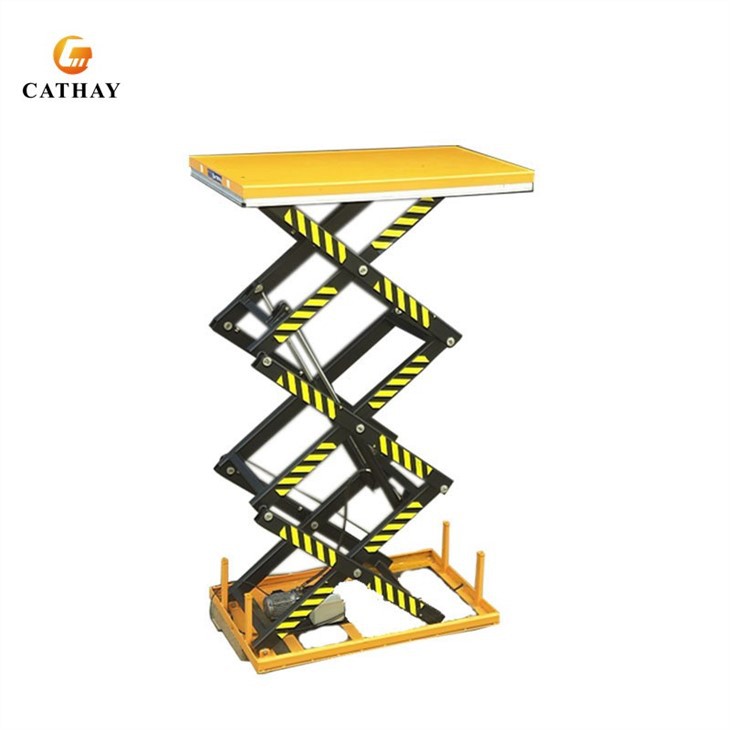

Hydraulic Stationary Scissor Lift Table
Cathay lift stationary scissor lift table is an economical material lifting equipment, which plays an important role in the lifting of heavy goods and in the cooperation of the production line etc.
In order to facilitate customers' choices, we have designed a variety of standard models for customers to choose from. If the standard models cannot meet the actual needs, please contact us to customize products for them.
Products Details
Notes:
Shandong Cathay Machinery Co, Ltd, as a professional hydraulic lift supplier, reminds customers to carefully consider the space size before ordering. Due to the height of this product, it is usually necessary to carry out ground engineering and build a suitable pit so that the ground and its table can reach a horizontal position, which is more convenient for loading and unloading and entry and exit of goods. Because some customers did not consider the height of the product itself, the maximum platform height of the product does not match the actual height of use, causing great trouble.
Stroke height is the height difference between when the table top is retracted to the lowest position and when the table top is extended to the highest position
The maximum platform height is the height difference between the platform and the ground when the platform is extended to the highest position.
Please distinguish between the two when ordering. The voltage of the standard product is the industrial voltage 3Ph. If the household voltage is usually the civilian voltage, please also pay attention to confirming the local voltage with our salesman when ordering. We will customize the pump station according to your requirements to avoid the mismatch between the pump station voltage and the local voltage, and it can not be used.
According to the different usage requirements and different workflows of the products, the products can be designed and customized in a variety of ways, which has achieved the purpose of increasing work sales and reducing labor costs. For example: adding rollers, remote control, optional guardrails on the table, adding rotatable table tops, adding wheels for easy movement, etc. Please consult us for the specific situation to provide you with the most reasonable plan.
Safety:
1. Explosion-proof valves: protect the hydraulic pipe, and anti-hydraulic pipe rupture, although the hydraulic pipe rupture, it will guarantee the lift low down very smoothly.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure to be normal to protect the whole hydraulic system.
3. Anti-dropping device: Prevent falling of platform
4. The hydraulic system is controlled by a solenoid valve, when powered off, the solenoid will stop working and meantime, the lift stop.
5. Emergency decline valve: it can make the lift low down when you meet an emergency or power off.
