Electric Lift Table

Name: China Electric Lift Table Manufacturers Suppliers Factory - Good Price - Cathay Machinery
Brand: Cathaylift
SKU: 185627336

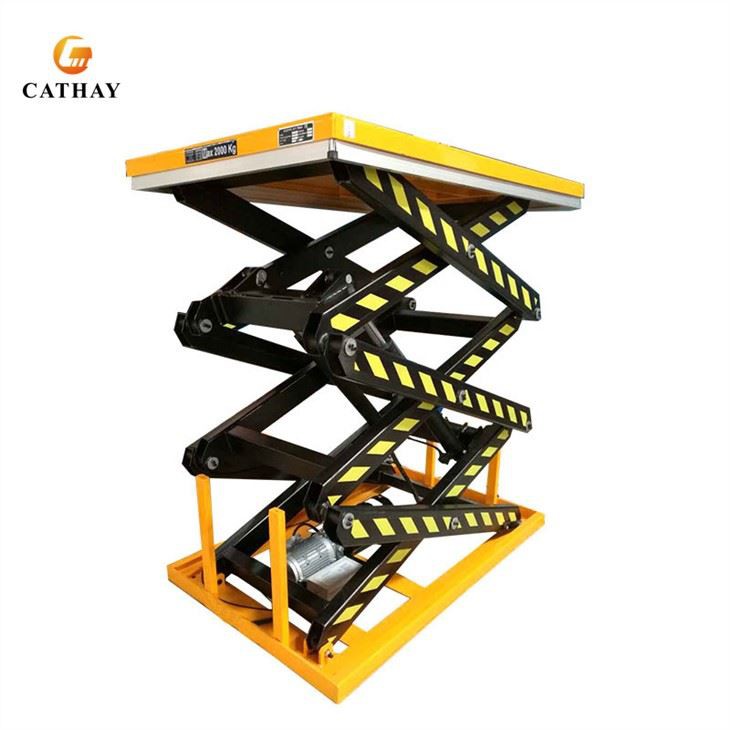

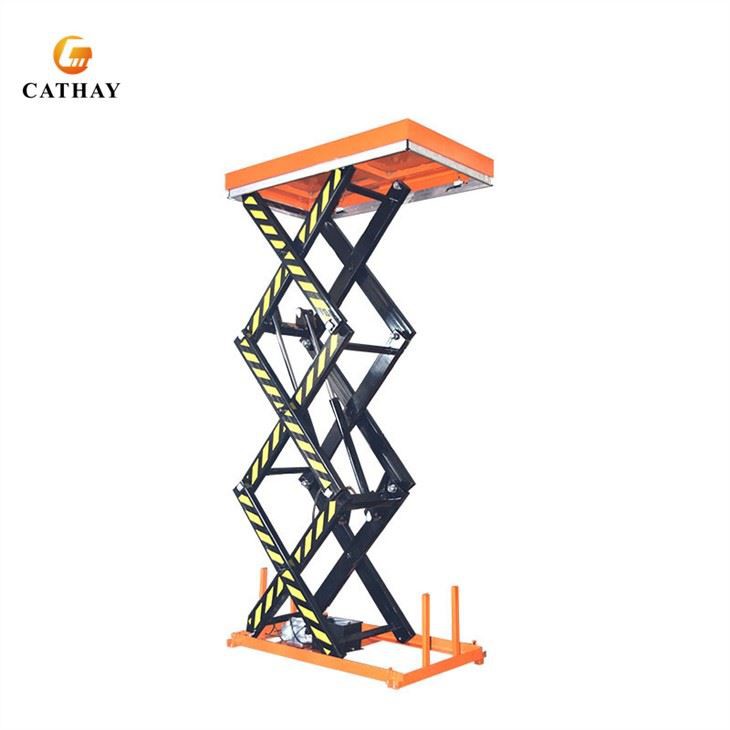

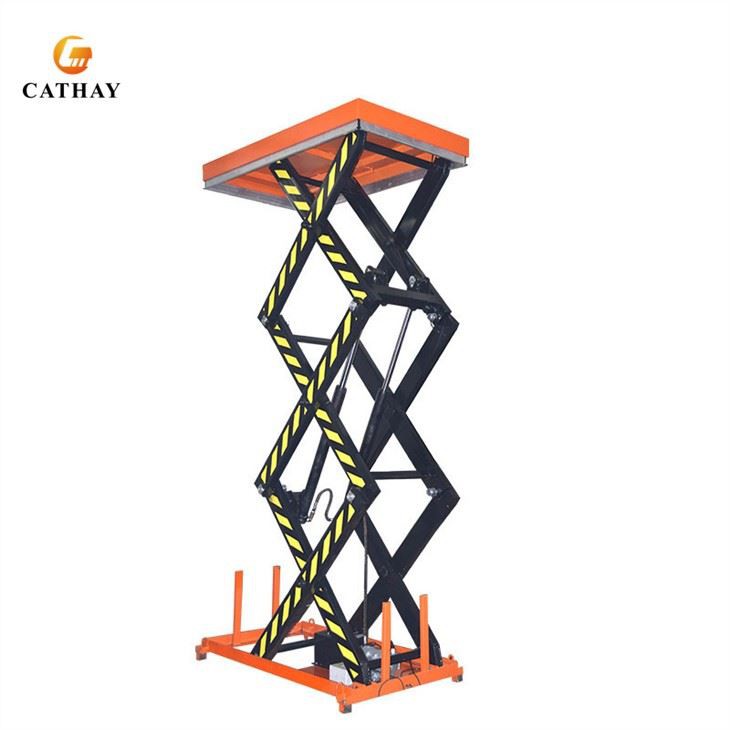

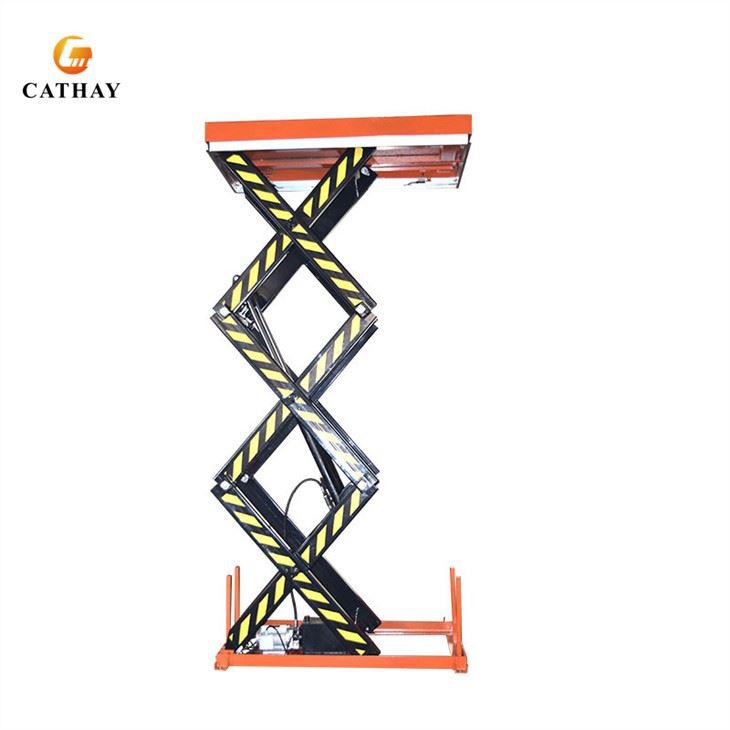

Multi-scissor Electric Lift Table, maximum lifting height 5m, heavy load, high quality power unit, reliable quality, standard safety facilities, internal power unit is equipped with pressure relief valve to prevent overload, flow control valve to control the descending speed, OEM&ODM accept.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric lift table in China. We warmly welcome you to buy discount electric lift table for sale here from our factory. Quality products and reasonable price are available.

CATHAYLIFT Electric Lift table is divided into fixed single-fork lift platform and fixed multi-scissor lift platform. It is a kind of cargo lifting equipment with good lifting stability and a wide range of applications. It is mainly used for cargo transportation between production line height differences; material online, Off-line; adjustment of workpiece height during workpiece assembly; high-place feeder feeding; component lifting during assembly of large equipment; loading and unloading of large machine tools; warehouse loading and unloading places are matched with forklifts and other handling vehicles for fast loading and unloading of goods, etc.

Model	Load Capacity(KG)	Self Height (MM)	Max Platform Height(MM)	Platform Size(MM)	Lifting time (S)	Net weight (KG)
500kg Load Capacity
C0501	500	180	950	610*916	17~22	160
C0502	500	200	1000	1200*600	20~25	120
C0503	500	200	1000	1200*800	20~25	130
C0504	500	200	1000	2000*800	20~25	240
1000KG Load Capacity
C1000	1000	180	770	610*916	15~20	115
C1001	1000	205	1000	1300×820	20~25	160
C1002	1000	205	1000	1600×1000	20~25	186
C1003	1000	190	1010	1300*800	20~25	160
C1004	1000	240	1300	1700×850	30~35	200
C1005	1000	240	1300	1700×1000	30~35	210
C1006	1000	240	1300	2000×850	30~35	212
C1007	1000	240	1300	2000×1000	30~35	223
C1008	1000	240	1300	1700×1500	30~35	365
C1009	1000	240	1300	2000×1700	30~35	430
C1010	1000	305	1780	1300X820	35-45	210
C1011	1000	470	3000	1700x1000	35-45	450
2000KG Load Capacity
C2001	2000	230	1000	1300×850	20~25	235
C2002	2000	205	1000	2500*820	20~25	300
C2003	2000	230	1050	1600×1000	20~25	268
C2004	2000	250	1300	1700×850	25~35	289
C2005	2000	250	1300	1700×1000	25~35	300
C2006	2000	250	1300	2000×850	25~35	300
C2007	2000	250	1300	2000×1000	25~35	315
C2008	2000	250	1400	1700×1500	25~35	415
C2009	2000	250	1400	2000×1800	25~35	500
C2010	2000	190	1010	1300*800	20~25	235
C2011	2000	350	1780	1300X850	35-45	295
4000KG Load Capacity
C4000	4000	230	1000	2500*850	20~25	320
C4001	4000	240	1050	1700×1200	30~40	375
C4002	4000	240	1050	2000×1200	30~40	405
C4003	4000	300	1400	2000×1000	35~40	470
C4004	4000	300	1400	2000×1200	35~40	490
C4005	4000	300	1400	2200×1000	35~40	480
C4006	4000	300	1400	2200×1200	35~40	505
C4007	4000	350	1300	1700×1500	35~40	570
C4008	4000	350	1300	2200×1800	35~40	655
C4009	4000	400	2050	1700X1200	55-65	520
Max Platform Height≥3M
C1011	1000	470	3000	1700x1000	35-45	450
C2012	2000	560	3000	1700x1000	50-60	750
C2013	2000	850	4200	2500*1500	70-80	900
C0401	400	600	4140	1700x1000	30-40	800
C0801	800	706	4210	1700x1000	70-80	858
Other
C3001	3000	220	1010	1300*800	20~25	350
C8000	8000	240	1050	3000*1200	20~25	370

Please Note: If the standard models can not meet your requirements, please ask us to custom it for you.

Product Details

Hydraulic Pump Station

Aluminum Anti-Pinch Device

Perfect Clamping and Durable Scissor Structure

Durable Hydraulic Cylinder

Travel Switch to Protect Cylinders Stop properly

Wire Control Handle(Standard)

Remote Control(Optional)

Guardrails(Optional)

Wheels for easy moving(Optional)

Features & Advantages:

● Using high-quality pump station, the lifting is stable and powerful.

● There is an aluminum alloy safety bar device under the table, and the table will stop immediately when it encounters an obstacle to ensure safety.

● The anti-pinch scissor fork design is installed under the table to prevent pinching, and at the same time, it has an overload protection function, which is more reliable and safer.

● Equipped with safety wedges for easy maintenance.

● Mainly suitable for warehousing, logistics, manufacturing and other occasions.

● The Electric lift table have obtained CE, Rohs, ISO9001 and other international certifications, and the products are sold well in more than 100 countries around the world.
