Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of all terrain manlift in China. We warmly welcome you to buy discount all terrain manlift for sale here from our factory. Quality products and reasonable price are available.

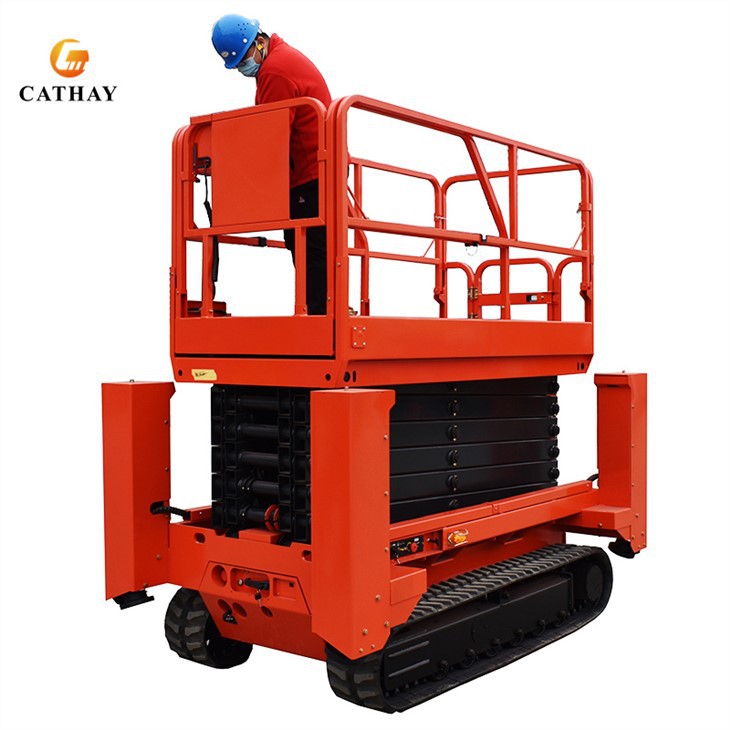

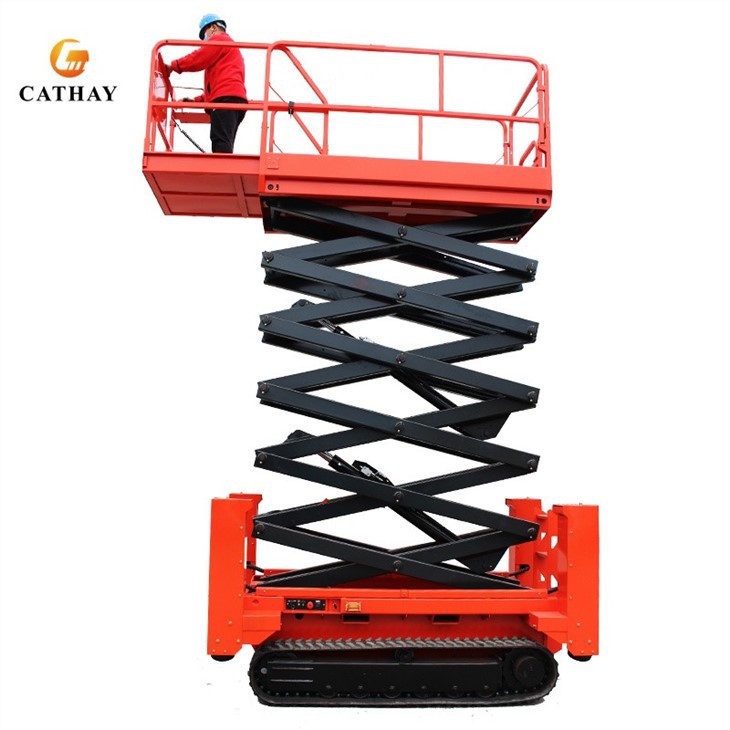

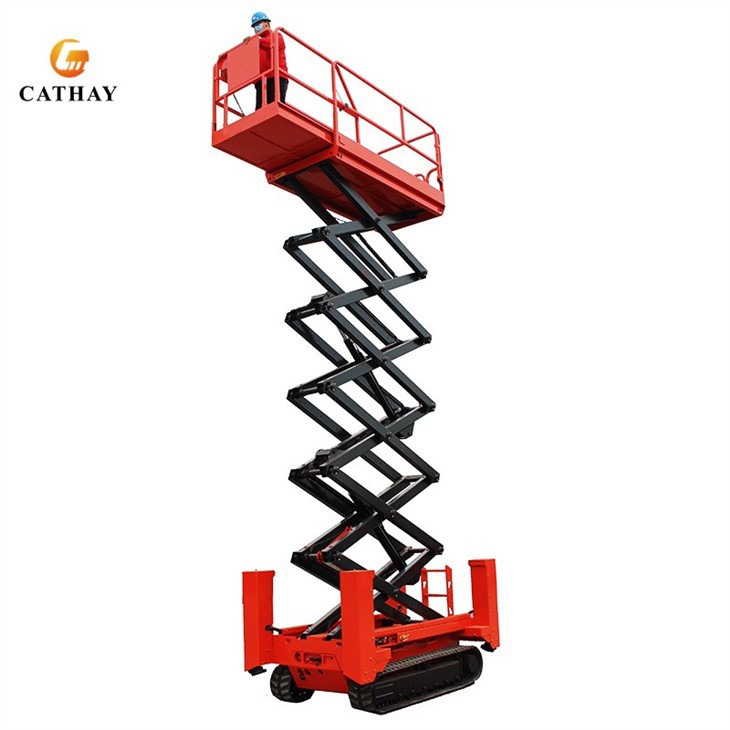

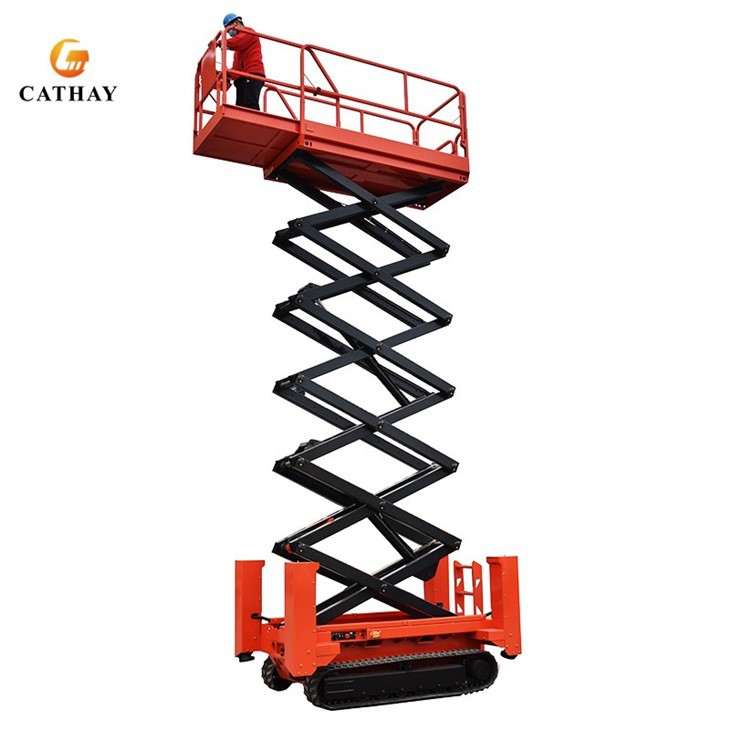

6~14m All Terrain Scissor Lift (Manlift)
Cathaylift track crawler scissor lift electric drive, load 230~450kg, maximum working height 14m. A remote control device can be added according to the needs of customers. It is easy to move, the table is large, and multiple people can work together. The lift is widely sold to Germany, the United States, the Netherlands, Chile, Brazil, and other countries, and are one of our main star products. The crawler scissor lift adopts industrial crawlers, which are not easy to scratch the ground and stick to debris. The non-slip crawlers have no scratches on the ground and are shock-absorbing. The design of the detachable guardrail not only reduces its transportation volume but also saves more storage space. The whole equipment adopts an electrophoretic plastic spraying process to ensure the corrosion resistance of the product.
|
Model Type |
CL-TC04 |
CL-TC06 |
CL-TC06H |
CL-TC08 |
CL-TC08H |
CL-TC10 |
CL-TC10H |
CL-TC12 |
CL-TC12H |
|
Automatic Leveling Hydraulic Outriggers |
None |
None |
Equipped |
None |
Equipped |
None |
Equipped |
None |
Equipped |
|
Working height(m) |
6.5m |
8m |
8m |
10m |
10m |
12m |
12m |
14m |
14m |
|
Load Capacity(kg) |
200Kg |
450Kg |
450Kg |
450Kg |
450Kg |
320Kg |
320Kg |
320Kg |
320Kg |
|
Overall Length(m) |
1.27×0.79 ×1.82 |
2.47×1.39 ×2.28 |
2.782×1.581 ×2.28 |
2.47×1.39 ×2.7 |
2.782×1.581 ×2.4 |
2.47×1.39 ×2.53 |
2.782×1.581 ×2.53 |
2.47×1.39 ×2.67 |
2.782×1.581 ×2.67 |
|
Machine Weight(Kg) |
790Kg |
2400Kg |
2800Kg |
2550Kg |
2950kg |
2840Kg |
3240kg |
3000Kg |
3480kg |

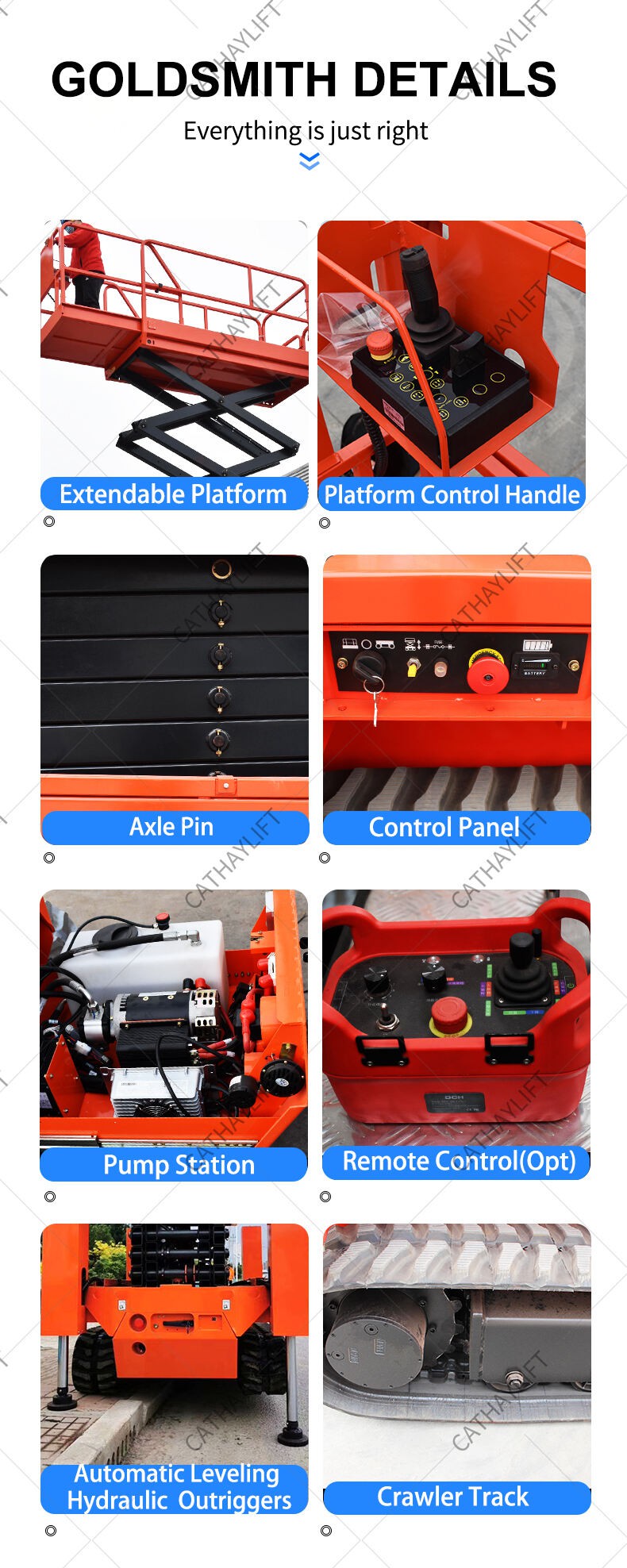

Products Details
Characteristics:
1. The surface of our scissor lift is shot blasting. It is very smooth and beautiful. The painting will be very anti-corrosion.
2. scissor lift structure is very compact so as to guarantee the structure is strong enough.
3. We adopt an automatic production line so that the quality is highly guaranteed.
4. High-strength steel structures, smoothly lift up and drop down, easily operated with very few faults.
5. Power sources: local power is available at the working sites.
Safety precautions:
1. In special circumstances, the scissor lift will use explosion-proof electric equipment.
2. The platform is equipped with an anti-skid plate to prevent slipping, it is safe enough when working on the platform.
3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load is beyond its rated load capacity.
4. The scissor lift equipped single control solenoid valves to prevent the platform from dropping if power fails.
You can open the manual dropped valve to lower the platform to the home position.
Application
It moves and lifts all by battery power. Driving control panel and lifting control panel are all on the platform. The operator can control moving, turning, lifting, lowering, and all other movements on the platform. Of course, a lifting control panel is also available on one side of the body.The products are widely used in various complex construction sites and adapt to various terrains. It is an indispensable helper in construction machinery.
