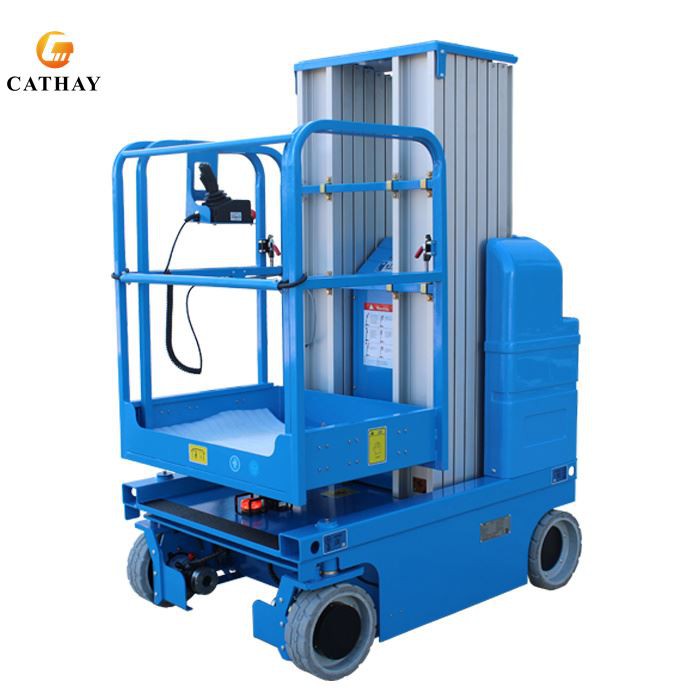

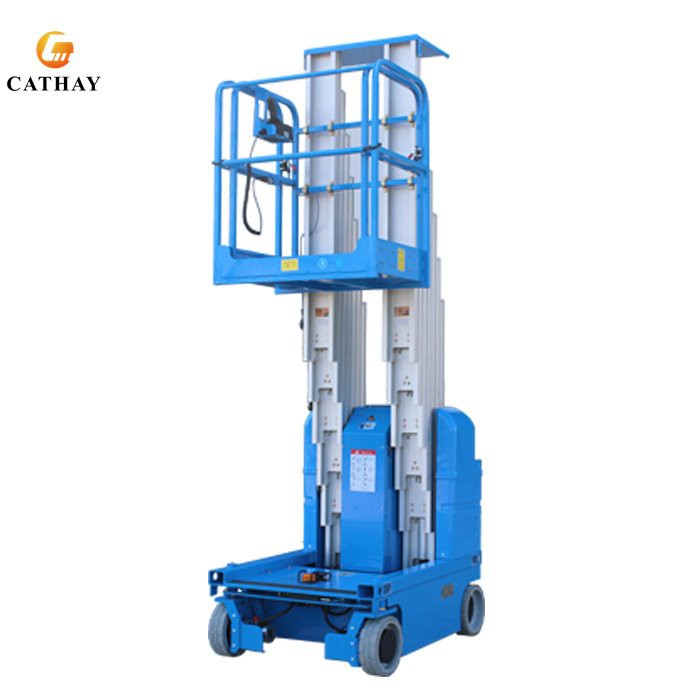

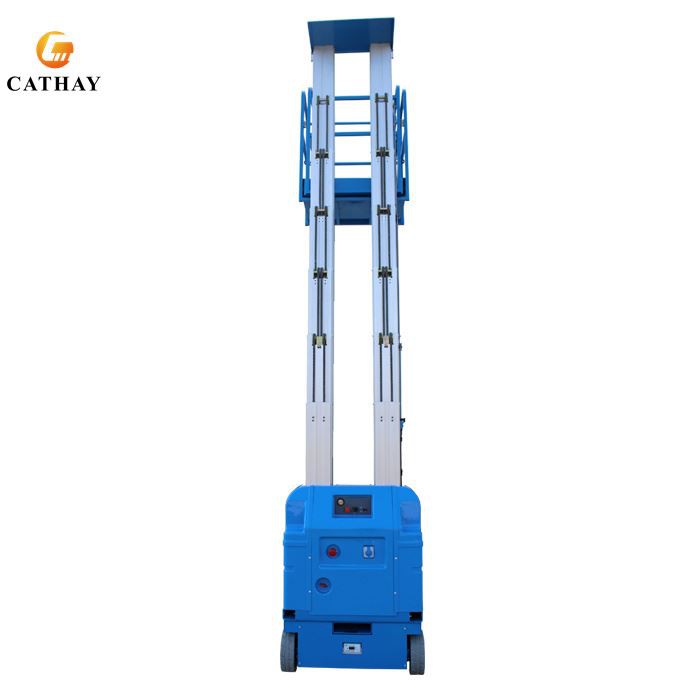

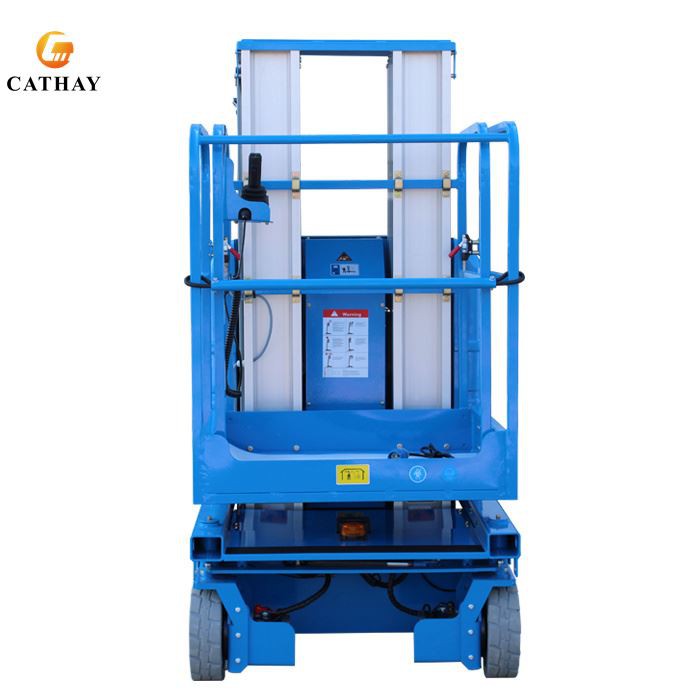

This product uses well-known brand accessories inside, the bottom frame is made of Q345 steel, steel plate welding, strong and reliable, the mast aluminum alloy is made of 6005T5 high-strength aviation aluminum, the safety guardrail is made of 35mm*35mm square tube, and we designed potholes for safety. A variety of safety applications such as protection systems, oil pipe explosion-proof systems, fault self-diagnosis systems, etc., fully guarantee the safety of operators, and can greatly improve work efficiency.
Model No. | CR-7.5D | CR-9D | |
Max.Platform Height | mm | 7500 | 9000 |
Max Working Height | mm | 9500 | 11000 |
Load Capacity | mm | 200Kg | 150kg |
occupants | mm | 1 | 1 |
Overall size | mm | 1460*1020*1990 | 1460*820*1990 |
Platform Size | mm | 1000*620 | |
Wheel Base | mm | 1140 | |
Max Drive Speed(Platform Stowed) | Km/h | 4 | |
Max Drive Speed(Platform Extended) | Km/h | 1.1 | |
Min Turn Radius | mm | 0 | |
UP/Down speed | /SEC | 48/40SEC | 53/48SEC |
Driving Wheel Size | mm | Φ230X80 | |
Battery | V/Ah | 2X12VDC/100AH | |
Lifting motor | / | 24VDC/1.3KW | |
Net weight | kg | 1260 | 1360 |
Charger | 24V/15A | 24V/15A | |
Product Details:
● High sensitivity, high flexibility, ultra-low error rate (proportional control)
● Ground control system and in-basket control system
● ECU (Platform Self-Diagnostic System)
● Hydraulic steering, electric drive (stable and reliable)
● Pure battery power, high environmental efficiency (smart charger)
● Automatic detection pothole protection system
● Safety warning system (buzzer light, strobe light)
● Automatic detection of ground angle (tilt sensor)
Details Images:
Travel switch, wear-resistant cable, non-slip pad:
The high-quality travel switch has good temperature resistance and humidity resistance and can be better used in some applications where electromagnetic interference, high temperature, and high humidity are required to ensure correct mechanical action. Wear-resistant cables are not only resistant to high temperatures and extreme weather, but also to a certain degree of mechanical external force. A non-slip mat is placed on the bottom of the basket to prevent the operator from slipping on it.
Dual control system (basket, ground):
The high-operability intelligent control handle is adopted, and the machine can be operated to lift and lower while the handle is tightly grasped, Which prevents the operator from unintentionally touching and causing danger.
The ground control system and the basket control system cannot be used at the same time to avoid danger. Both control systems are equipped with emergency stop buttons to avoid emergencies.
Hydraulic steering, electric drive, buzzer, tilt sensor:
Hydraulic control front wheel steering, front wheel electric drive, with load detection function, if the rated load exceeds the rated load, it cannot be lifted and there is a light warning (this function is automatically turned off after the platform is lifted by 200 or 400mm).2 high elastic rubber grey tires each front and rear, tire diameter 305mm, width 100mm.
