Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of indoor man lift in China. We warmly welcome you to buy discount indoor man lift for sale here from our factory. Quality products and reasonable price are available.

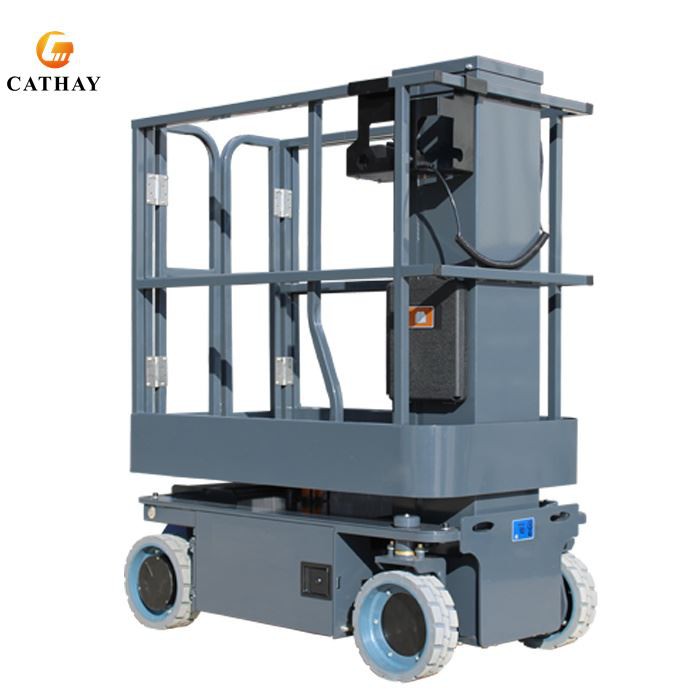

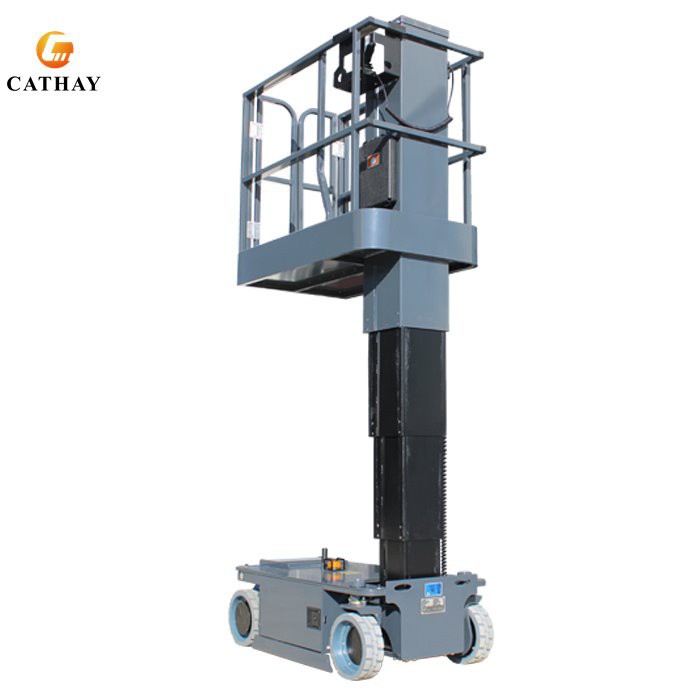

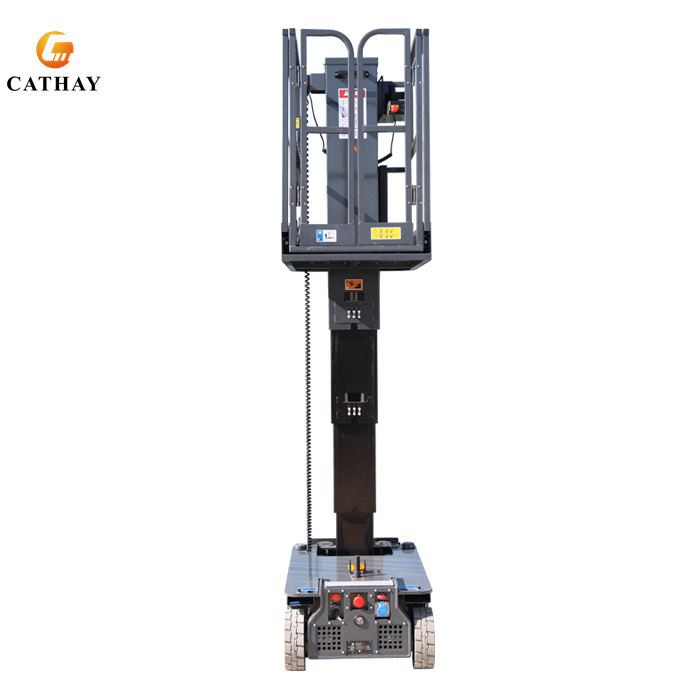

The indoor man lift is an energy-saving and environmentally friendly product. It replaces the traditional oil cylinder with an electric push rod. It is oil-free. It has a lightweight structure and high operability. It can be used in a variety of indoor and other narrow spaces for high-altitude operations. The lifting height of the product is 3.6m~6m, and the maximum load can reach 227kg.
Model Type No. | CSTAR-3600 | CSTAR-4800 | CSTAR-6000 |
Max.Platform Height | 3.6m | 4.8m | 6m |
Max Lifting Height | 5.6m | 6.8m | 8m |
Load Capacity | 227kg | 159kg | |
Extendable platform capacity | 114kg | ||
Platform Size | 1.3x0.7m | ||
Extendable platform length | 0.51m | ||
Wheel base | 1.04m | ||
Inner Turning Radius | 0m | ||
Outer Turning Radius | 1.4m | ||
Travel Speed(Stowed) | 4km/h | ||
Travel Speed(Raised) | 1.1km/h | ||
Up/down Speed | 31/32sec | 41.5/42sec | 52/53sec |
Grade Ability | 25% | ||
Drive Tires | 305X100mm | ||
Drive Motors | 2X24VDC/0.5KW | ||
Lifting Motor | 24DC/1.3KW | ||
Battery | 2X12V/100AH | ||
Charger | 24V/15A | ||
Weight | 810kg | 980kg | 1060kg |
Product Details:
● Electric push rod(oil-free)
● Brushless DC motor( Maintenance-free for the whole machine)
● No noise
● Zero emission
● Energy saving and environmental protection
● Flexible, small turning radius, high agility, high maneuverability.
● Equipped with multiple safety designs
● Higher cost performance
Details Images:
Extensible Platform and electric push rod:
The size of the extendable platform is 0.51m, which can be quickly deployed to the operation point, which is convenient and fast. The electric push rod replaces the traditional oil cylinder, which is safe and reliable, and the chain is built in, which achieves an oil-free design.
Dual control system:

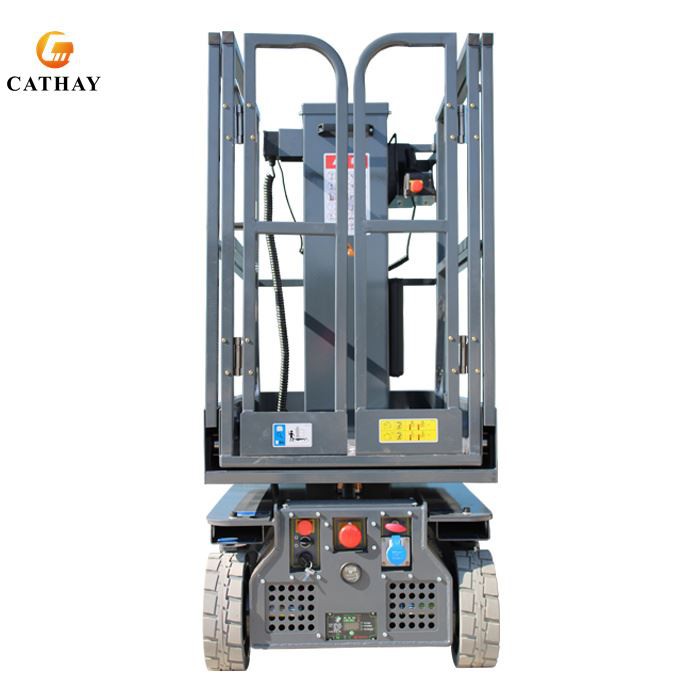

The ground control system is equipped with emergency descent valve, main power switch, emergency stop button and charging jack (protected by blue case) built-in charger. The control handle in the platform, proportional control, anti-misoperation design, the screen can display the corresponding fault code, horn control button, and control the machine to move up and down.
Pumping station ECU and tilt sensor:
Bucher Motor, stable and reliable Electronic Control Unit (ECU) controls the machine to analyze each action, analyze the machine fault, and the fault code will be displayed on the machine ground control panel.
The tilt sensor detects the level of the ground. When the horizontal angle is greater than 2 degrees and the raised height reaches 2m, the machine will automatically lock, and at this time, the intelligent descending operation will be performed. Ensure operator safety.
Maintenance-free lead-acid batteries
Compared with traditional batteries, advantages: no need to add any liquid; less corrosion to terminal pile heads and wires; Strong resistance to overcharging; large starting current; long power storage time.
High elastic rubber static grey tires and hydraulic steering system:
Tire: Φ305*100mm, mute, no trace. There are standard forklift holes on the side to meet the needs of long-distance transportation. The hydraulic steering system improves the sensitivity while reducing energy consumption. The power steering assist can also be adjusted according to parameters such as angle and vehicle speed, making it more stable.
Automatic pothole protection system:
The pothole protection has a sensor switch. When the pothole protection is not fully opened, the platform will automatically stop when it rises to a height of 2 meters and cannot rise.
Application
Real Order:
