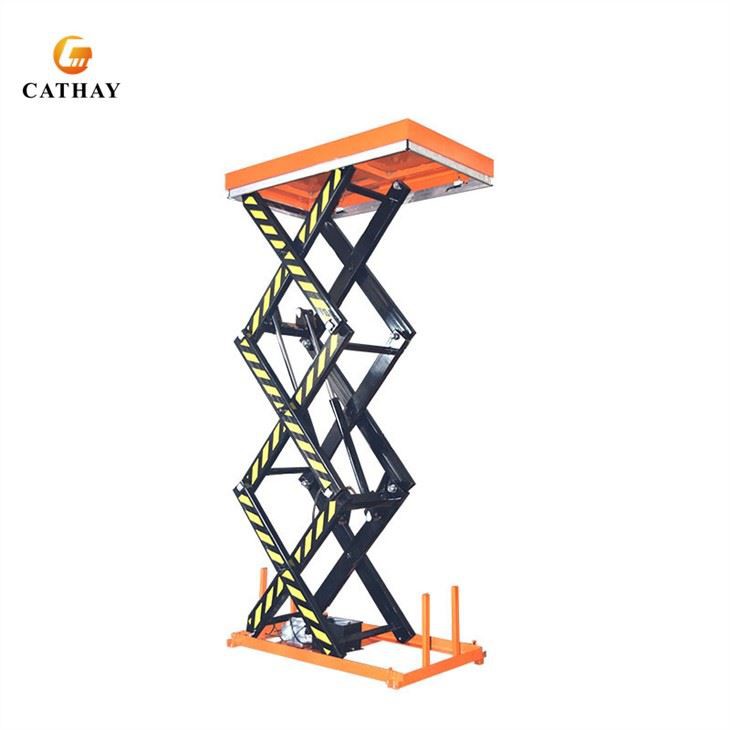

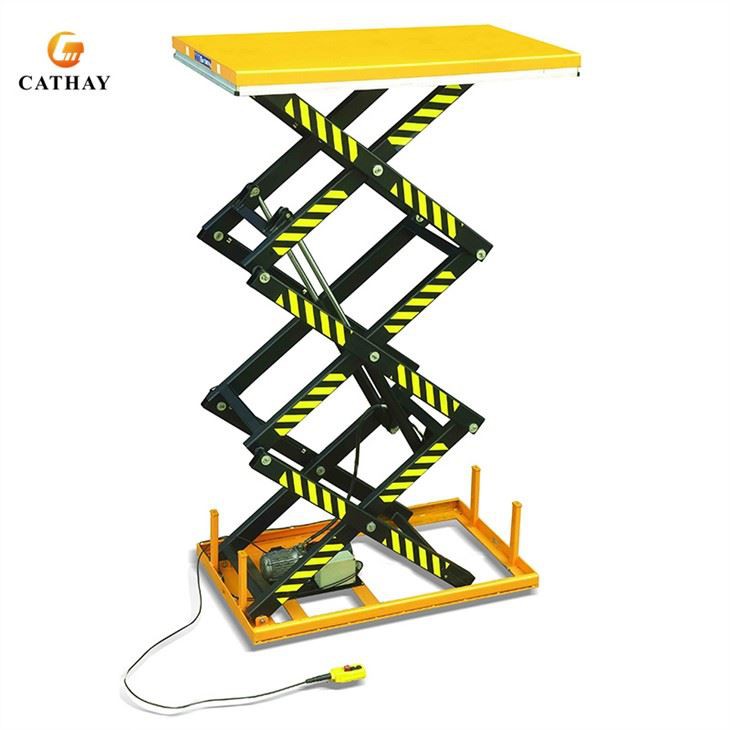

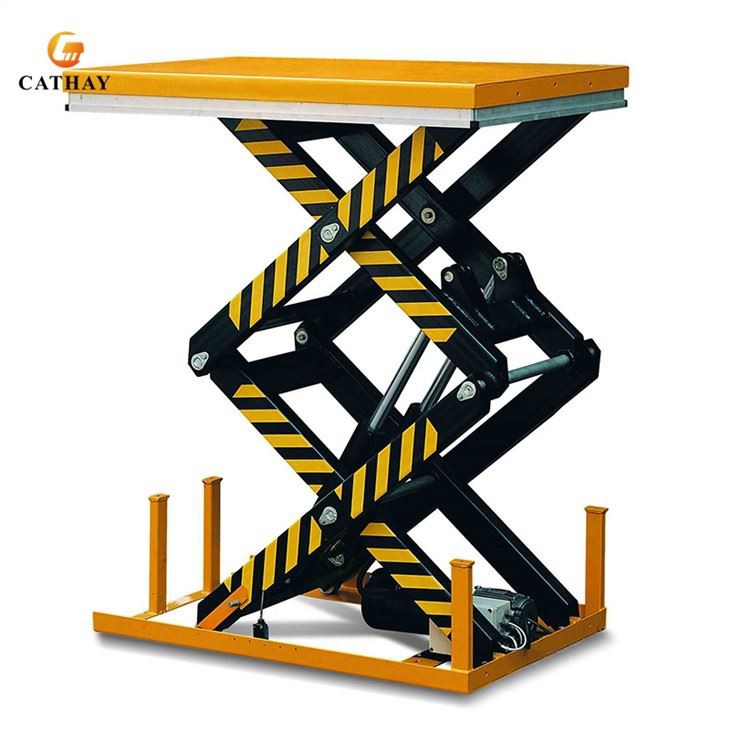

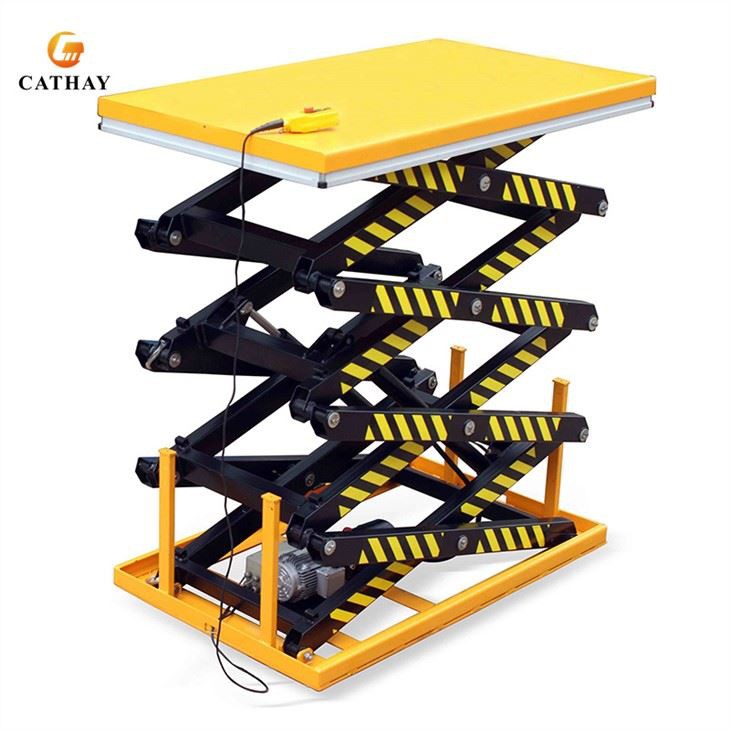

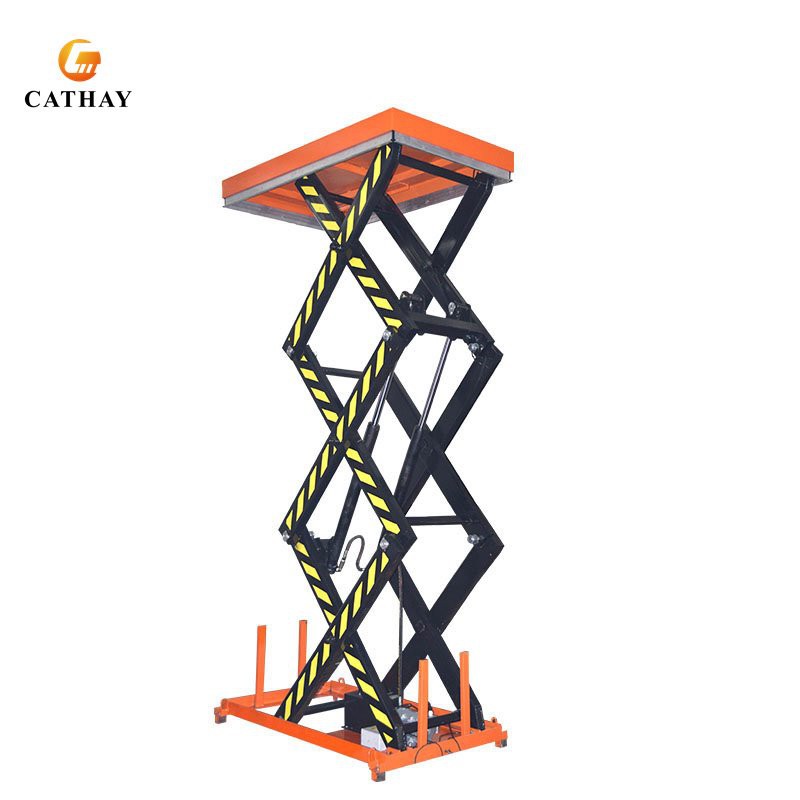

Hydraulic Scissor Lift

Name: Good Price Hydraulic Scissor Lift Manufacturers Suppliers Factory - Cathay Machinery
Brand: Cathaylift
SKU: 185754826

The standard Hydraulic Scissor Lift can lift up to more than 4m and load up to 5000kg.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hydraulic scissor lift in China. We warmly welcome you to buy discount hydraulic scissor lift for sale here from our factory. Quality products and reasonable price are available.

Hydraulic Scissor lift fixed hydraulic lifting platform refers to a lifting operation machine with a relatively fixed working place and a large carrying capacity. It is also a widely used lifting operation machine. It is widely used for goods transportation between production lines with a certain height difference, zero Component assembly, auto repair industry, etc.

Model	Load Capacity(KG)	Self Height (MM)	Max Platform Height(MM)	Platform Size(MM)	Lifting time (S)	Net weight (KG)
500kg Load Capacity
C0501	500	180	950	610*916	17~22	160
C0502	500	200	1000	1200*600	20~25	120
C0503	500	200	1000	1200*800	20~25	130
C0504	500	200	1000	2000*800	20~25	240
1000KG Load Capacity
C1000	1000	180	770	610*916	15~20	115
C1001	1000	205	1000	1300×820	20~25	160
C1002	1000	205	1000	1600×1000	20~25	186
C1003	1000	190	1010	1300*800	20~25	160
C1004	1000	240	1300	1700×850	30~35	200
C1005	1000	240	1300	1700×1000	30~35	210
C1006	1000	240	1300	2000×850	30~35	212
C1007	1000	240	1300	2000×1000	30~35	223
C1008	1000	240	1300	1700×1500	30~35	365
C1009	1000	240	1300	2000×1700	30~35	430
C1010	1000	305	1780	1300X820	35-45	210
C1011	1000	470	3000	1700x1000	35-45	450
2000KG Load Capacity
C2001	2000	230	1000	1300×850	20~25	235
C2002	2000	205	1000	2500*820	20~25	300
C2003	2000	230	1050	1600×1000	20~25	268
C2004	2000	250	1300	1700×850	25~35	289
C2005	2000	250	1300	1700×1000	25~35	300
C2006	2000	250	1300	2000×850	25~35	300
C2007	2000	250	1300	2000×1000	25~35	315
C2008	2000	250	1400	1700×1500	25~35	415
C2009	2000	250	1400	2000×1800	25~35	500
C2010	2000	190	1010	1300*800	20~25	235
C2011	2000	350	1780	1300X850	35-45	295
4000KG Load Capacity
C4000	4000	230	1000	2500*850	20~25	320
C4001	4000	240	1050	1700×1200	30~40	375
C4002	4000	240	1050	2000×1200	30~40	405
C4003	4000	300	1400	2000×1000	35~40	470
C4004	4000	300	1400	2000×1200	35~40	490
C4005	4000	300	1400	2200×1000	35~40	480
C4006	4000	300	1400	2200×1200	35~40	505
C4007	4000	350	1300	1700×1500	35~40	570
C4008	4000	350	1300	2200×1800	35~40	655
C4009	4000	400	2050	1700X1200	55-65	520
Max Platform Height≥3M
C1011	1000	470	3000	1700x1000	35-45	450
C2012	2000	560	3000	1700x1000	50-60	750
C2013	2000	850	4200	2500*1500	70-80	900
C0401	400	600	4140	1700x1000	30-40	800
C0801	800	706	4210	1700x1000	70-80	858
Other
C3001	3000	220	1010	1300*800	20~25	350
C8000	8000	240	1050	3000*1200	20~25	370

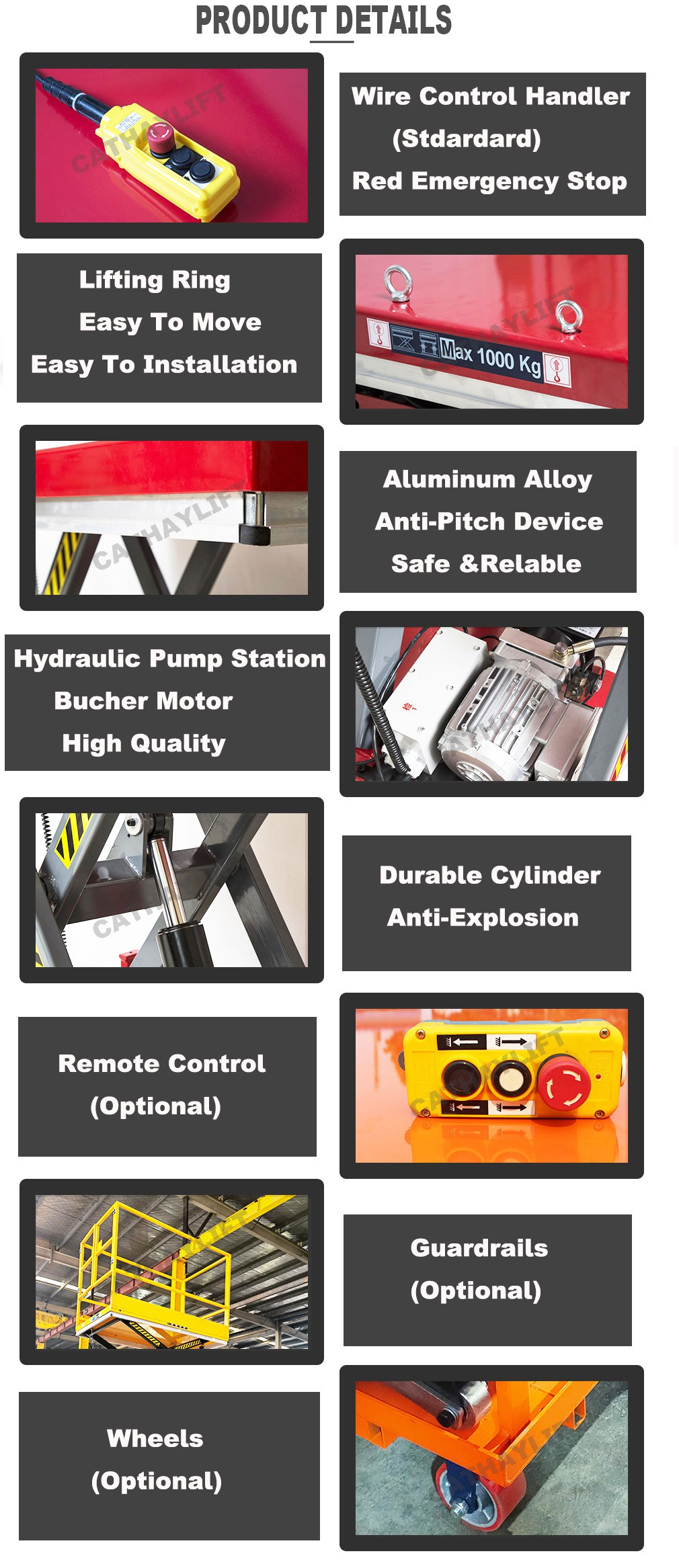

Product Details

hydraulic lift table-details 3

Features &Advantages:

● The ascending and descending process is uniform and smooth.

● Compact structure, simple appearance, flexible and convenient maintenance and use.

● The rated load is heavy, which effectively improves the work efficiency.

● A wide range of optional accessories are available to fully meet customer needs.

● Clean and pollution-free, conducive to environmental maintenance.

Installation:

● Construction requirements: The foundation pit is equipped with a waterproof layer, the size error is less than 10mm, and the thickness of the foundation is greater than 200mm. It is recommended to use C30 concrete.

● Power distribution: configure the corresponding power distribution box according to the motor power of the lifting platform. The standard power supply of the lifting platform is a three-phase four-wire AC 380V power supply.

● Pre-embedded pipe: lay a 2" pipe from the hydraulic station to the foundation pit (can be entered from any direction of the foundation pit), and the pipe corner radius "R" is greater than 400mm.

● Hydraulic station: The installation location of the hydraulic station is determined by the owner according to the principle of proximity and convenient operation.

● The size shown in the pictures on this page does not mean that it is suitable for all customers. If the installation space is limited, or other special circumstances, you can consult CATHAYLIFT.
