Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of manual scissor lift platform in China. We warmly welcome you to buy discount manual scissor lift platform for sale here from our factory. Quality products and reasonable price are available.
The descending control of the platform is controlled by a knob or a wrench. The rated loading capacity is 300kg, 350kg, 500kg, 800kg, and 1000kg respectively. The work surface rises steadily. Manipulate the control knob or lift the wrench upward to make the worktable descend smoothly. The bottom of the frame is equipped with a universal wheel, which can be rotated in any direction, and the operation is flexible and easy.
Model type | Capacity (kg) | Platform size(mm) | Lifting height(mm) | Weight(kg) |
BS15 | 150 | 700*450 | 265-755 | 41 |
BS25 | 250 | 830*500 | 330-910 | 78 |
BS50 | 500 | 1010*520 | 435-1000 | 112 |
BS75 | 750 | 1010*520 | 442-1000 | 112 |
BS100 | 1000 | 1010*520 | 445-950 | 130 |
BS15D | 150 | 830*500 | 435-1430 | 90 |
BS30D | 300 | 1010*520 | 435-1585 | 138 |
BS50D | 500 | 1010*520 | 440-1575 | 156 |
BS80D | 800 | 1010*520 | 470-1410 | 160 |
ES30 | 300 | 1010*520 | 450-950 | 140 |
ES50 | 500 | 1010*520 | 450-950 | 148 |
ES75 | 750 | 1010*520 | 450-950 | 154 |
ES100 | 1000 | 1010*520 | 480-950 | 169 |
ES30D | 300 | 1010*520 | 495-1600 | 183 |
ES50D | 500 | 1010*520 | 495-1618 | 198 |
ES80D | 800 | 1010*520 | 510-1460 | 208 |
ES100D | 1000 | 1010*520 | 510-1450 | 230 |
BS50LA | 500 | 1525*620 | 400-1000 | 175 |
BS50LB | 500 | 1200*800 | 370-1190 | 160 |
BS100L | 1000 | 1200*800 | 425-1225 | 163 |
ES50LA | 500 | 1525*620 | 440-1575 | 215 |
ES50LB | 500 | 1200*800 | 430-1220 | 220 |
ES100L | 1000 | 1200*800 | 430-1220 | 225 |
Features&Advantages:
● The foot lever is linked with the hydraulic system to lift the platform to the required position;
● The overload protection device, that is, the pressure limiting valve, automatically controls the vehicle body to work within the limited load range to protect the vehicle body and user safety.
● The wheels are all made of polyurethane material, which is anti-noise.
● Products are widely used in machinery manufacturing, aerospace, medicine and health, logistics and distribution, warehouse supermarkets, automobiles, food, railways, petrochemicals, textiles and other industries.

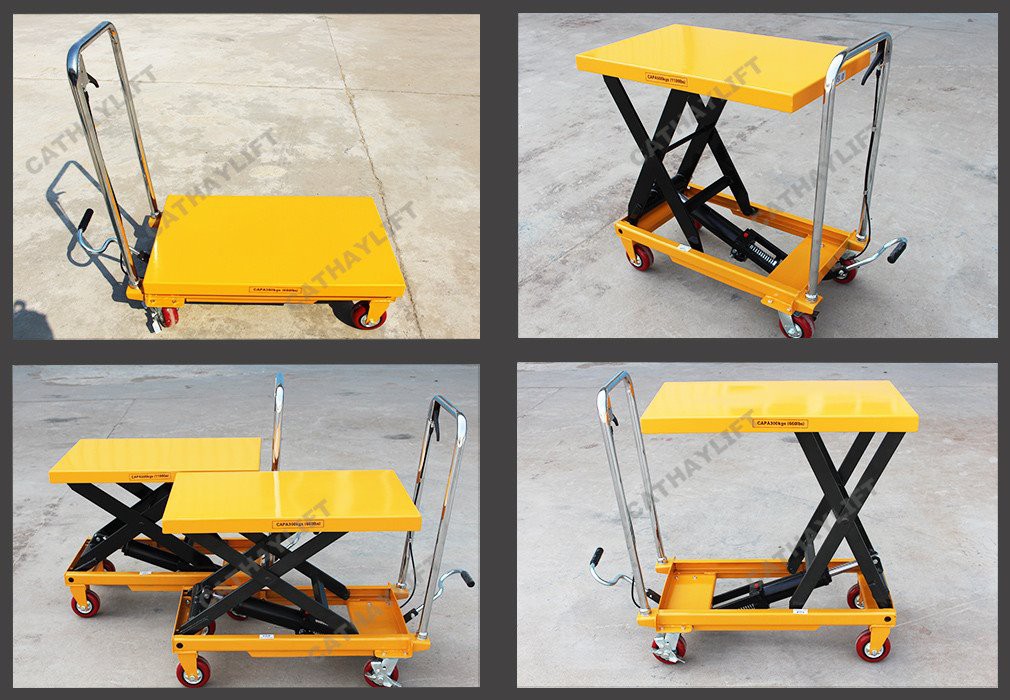

Real Order
