Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mobile warehouse shelf picking machine in China. We warmly welcome you to buy discount mobile warehouse shelf picking machine for sale here from our factory. Quality products and reasonable price are available.
The CATHAYLIFT series electric lifting and picking machines adopt an integral welded frame of military-grade 8mm high-strength alloy steel plates, which has a 42% higher torsional strength than traditional channel steel structures. Combined with thickened plate-type dual redundant chains and transmission systems, an industrial-grade anti-slip platform (600mm×640mm) with a dynamic load of 300kg is constructed, which can safely support two people working together at high altitudes. It can achieve 2700-4500mm stepless lifting and millimeter-level precise positioning, and can adapt to harsh environments such as cold chain warehousing, providing efficient vertical storage and access solutions for modern warehousing.
|
Model Type |
EP-2.7 |
EP-3.3 |
EP-4.0 |
EP-4.5 |
|
Max.Platform Height(mm) |
2700 |
3300 |
4000 |
4500 |
|
Max.Machine Height(mm) |
4120 |
5000 |
5400 |
6000 |
|
Ground Clearance(mm) |
40 |
|||
|
Rated Capacity(mm) |
300 |
|||
|
Platform Size(mm) |
600*640 |
|||
|
Overall Length(mm) |
1530 |
1620 |
||
|
Overall Width(mm) |
700 |
700 |
||
|
Overall Height(mm) |
1830 |
2130 |
1840 |
2000 |
|
Overall Net Weightt(mm) |
430 |
450 |
660 |
680 |
Products Details
Features & Advantages
- Strengthened double-chain transmission The thickened composite chain has been tested for durability, and with the synchronous drive of dual motors, the lifting accuracy reaches ±1mm
- Triple safety structure Thickened guardrail + stamped and welded cargo basket + dynamic anti-collision system, load 300kg without deformation
- Intelligent integrated control One-rod electronic control system, supports seamless switching of speed regulation/lifting/emergency stop functions
- Military-grade anti-corrosion treatment Five surface processes (shot blasting + phosphating + electrostatic spraying) to achieve rust prevention
- High-hardness solid tire + self-balancing module, 5° ramp runs smoothly without deviation

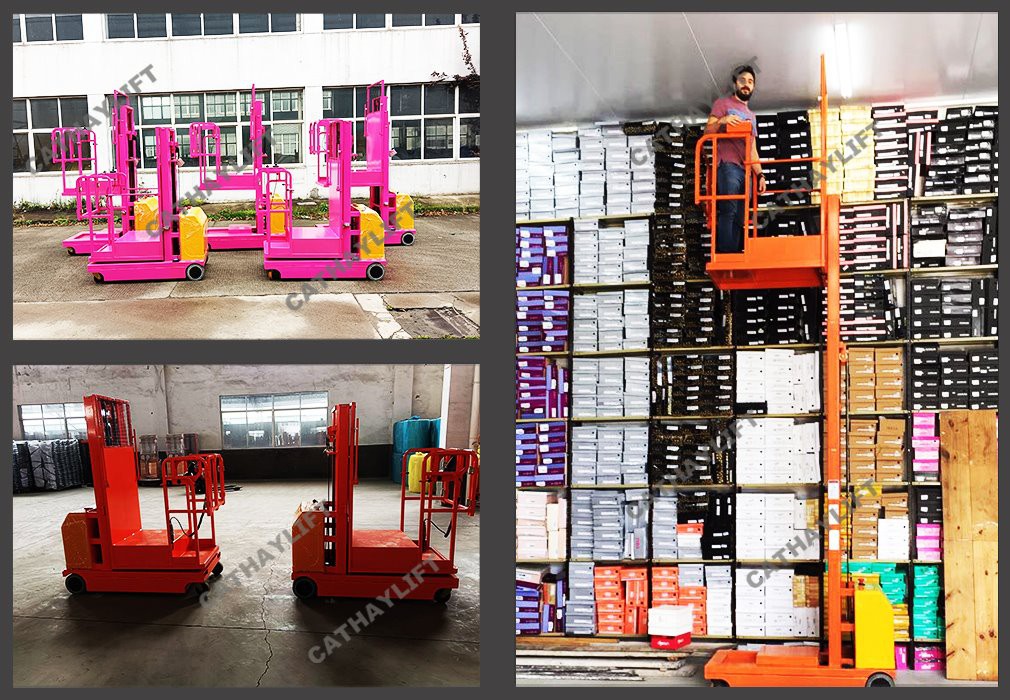

Real Order
