Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of order picker platform in China. We warmly welcome you to buy discount order picker platform for sale here from our factory. Quality products and reasonable price are available.

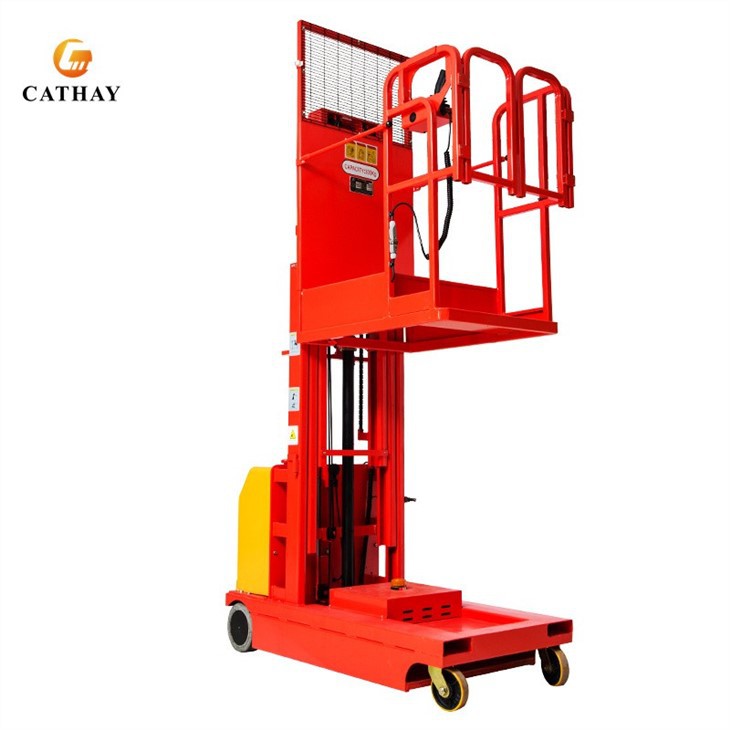

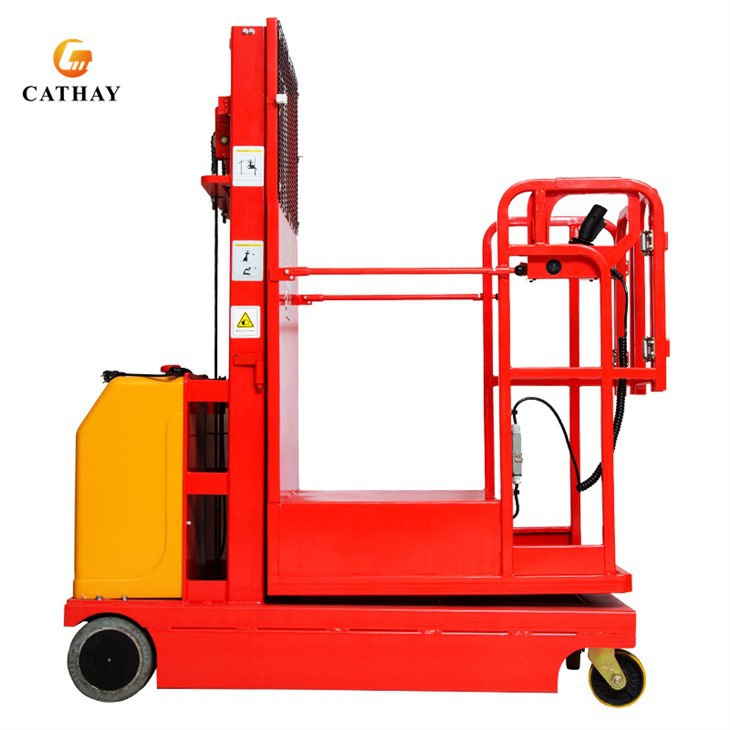

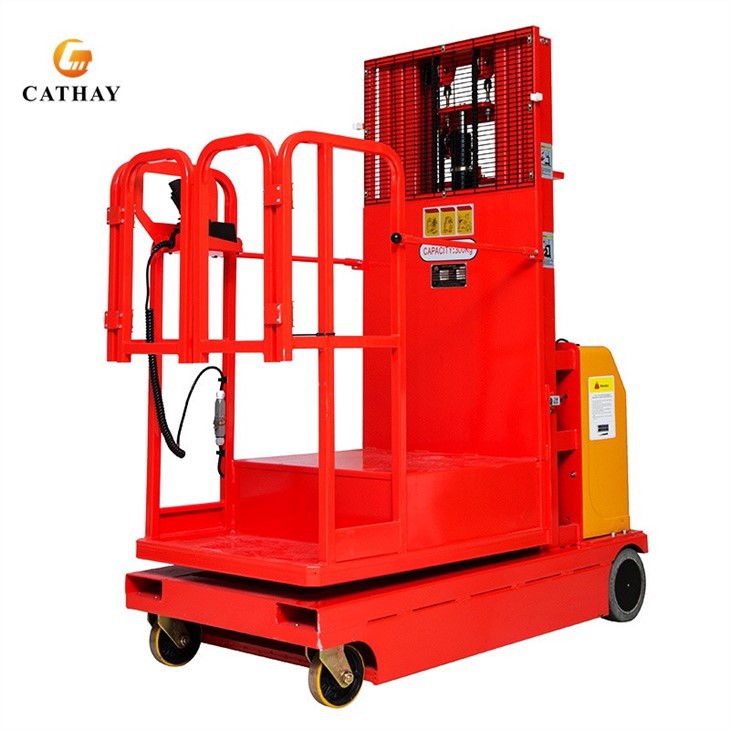

2.7m~4.5m Order Picker Platform
The Cathaylift order picker platform has full electric and semi-electric options. Full electric model = electric lifting + electric walking, Semi-electric model = hand push movement + electric lifting. The all-electric model is suitable for more high-frequency workplaces, and the semi-electric model is suitable for general-frequency work.
The all-electric model controls the movement and lifting of the machine through the flexible operating lever on the platform, and it can be switched freely. The operating handle includes a lifting button, walking button, turtle speed button, and horn button, and is equipped with a joystick for operation. The design of the manual emergency lowering valve avoids the failure to lower when the power is interrupted, making it safer and more convenient to use.
|
Model Type |
EP-2.7 |
EP-3.3 |
EP-4.0 |
EP-4.5 |
|
Max.Platform Height(mm) |
2700 |
3300 |
4000 |
4500 |
|
Max.Machine Height(mm) |
4120 |
5000 |
5400 |
6000 |
|
Ground Clearance(mm) |
40 |
|||
|
Rated Capacity(mm) |
300 |
|||
|
Platform Size(mm) |
600*640 |
|||
|
Overall Length(mm) |
1530 |
1620 |
||
|
Overall Width(mm) |
700 |
700 |
||
|
Overall Height(mm) |
1830 |
2130 |
1840 |
2000 |
|
Overall Net Weight(mm) |
430 |
450 |
660 |
680 |
Products Details
Note:
1. The goods should be put on the platform evenly. And forbid overload.
2. The platform should be maintained at the lowest position when you are moving the picker to another working place.
3. Forbid to stand under the platform when it is working
4. Forbid to lay the picker on the slope.
5. The battery is the source of energy for the picker. It is necessary to follow the instructions given
to obtain full output, a satisfactory battery lifetime, and to keep the machine in the best condition.
6. We recommend changing the hydraulic oil after one month's operation(or 200 hours), and even if the operation time has not been reached, change the oil once a year. Oil should be filtered
cleaned and maintained adequately.
7. If there is an emergency happens, please use the EMERGENCY STOP button to decline.
Real Order
