Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of vehicle turntable in China. We warmly welcome you to buy discount vehicle turntable for sale here from our factory. Quality products and reasonable price are available.

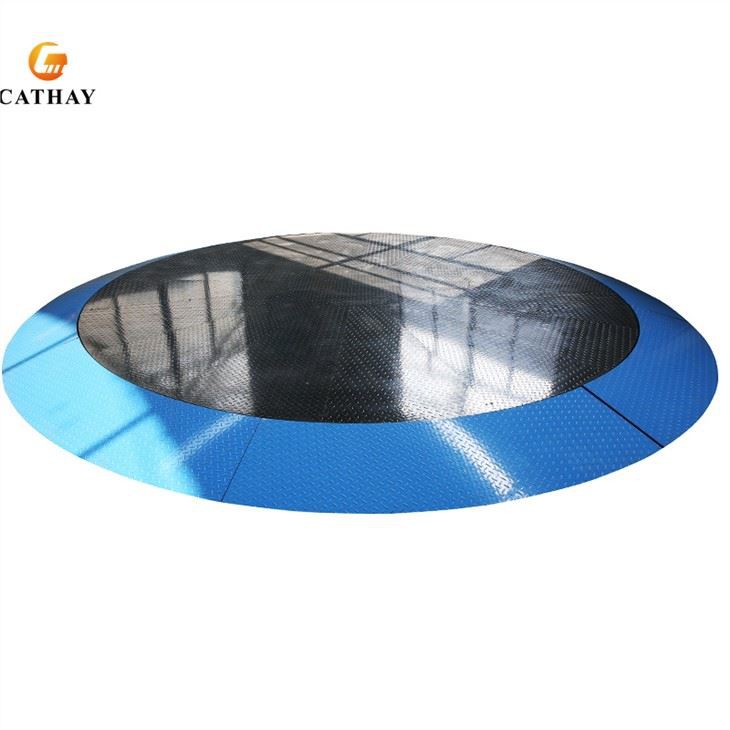

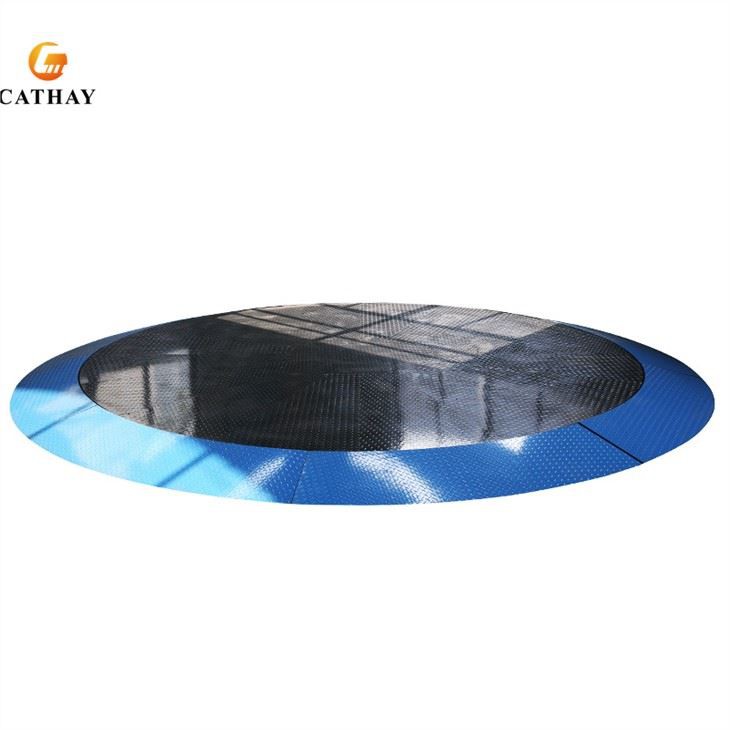

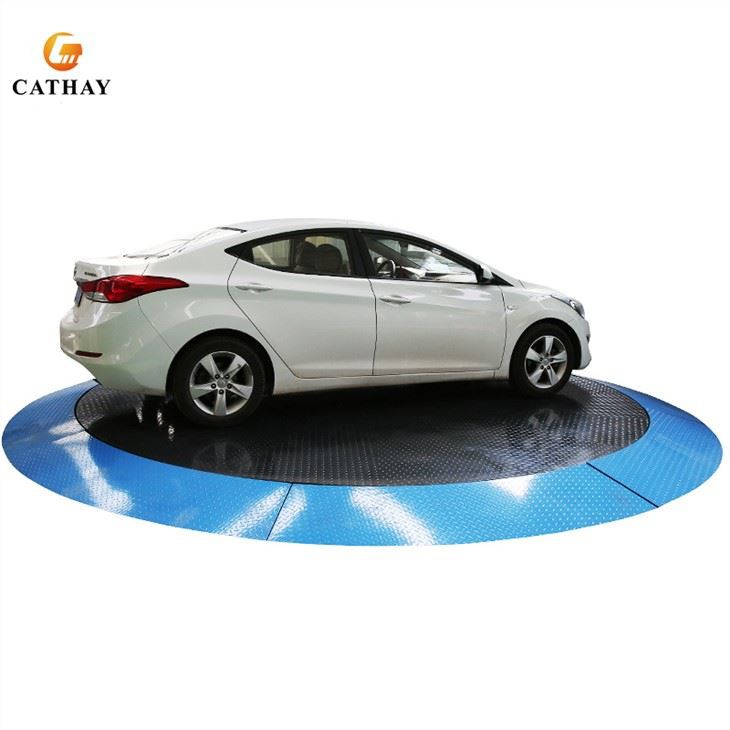

Vehicle Turntable is easy to install, convenient and quick, with low noise, stable operation, and the modular installation brings you convenience without any damage to the ground. It is suitable for participating in multiple auto expositions for traveling exhibitions, and can be disassembled and used for multiple times. Rotary car booths can be divided into four groups, six groups, eight groups, ten groups, twelve groups, etc. according to the size of the turntable. Other special requirements such as diameter, rotation speed, equipment height, clockwise rotation, counterclockwise rotation, and load bearing can be provided according to user requirements.
Model No. | CT-3.0 | CT-4.0 | CT-4.5 | CT-5.0 | CT-5.5 | CT-6.0 |
Type | Gear Transmission/Friction Transmission | |||||
Operation | Remote Control Frequency Conversion | |||||
Diameter(mm) | 3000 | 4000 | 4500 | 5000mm | 5500 | 6000 |
Load Capacity(Kg) | 3000 | |||||
Self Height | 320/135 | |||||
Rotationary Speed | 400/300 | |||||
Platform Material | 4mm Checkered Steel Plate/ | |||||
Power Supply Parameter | Customized | |||||
Motor Power(W) | 750*1/120*4 | |||||
Sectorial Frame | 40*40 Rectangular Tube+60*60 Square Tube | |||||
Package Size | 2.2*1.8*0.55 | 2.2*2*0.7 | 2.2*2*0.85 | 2.6*2.25*0.86 | 2.75*2.2*0.85 | 3.03*2.2*1 |
Weight | 1050 | 1450 | 1800 | 2250 | 2750 | 3000 |

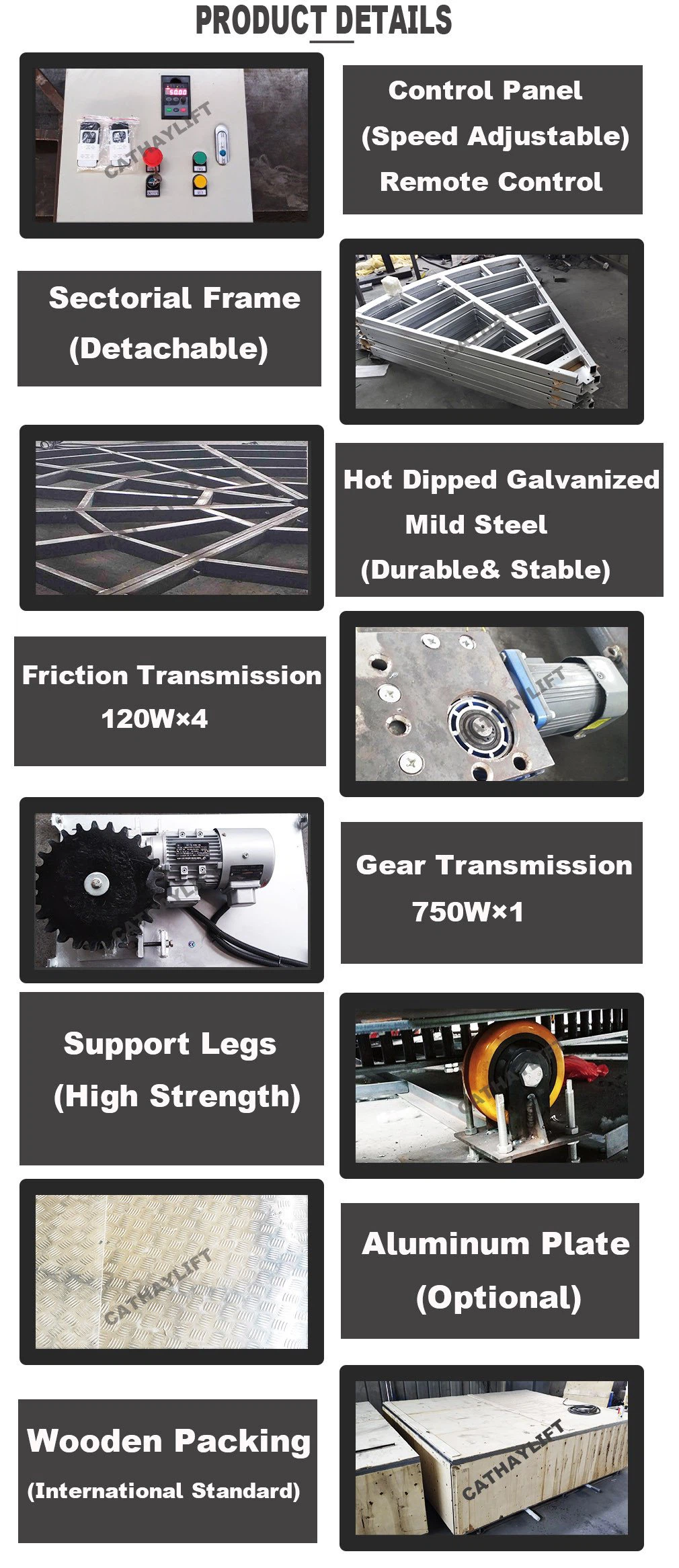

Product Details
Maintenance:
1. Whether the rollers, intermediate shafts and bearings, oil cylinder pins and bearings, boom hinge shafts and bearings are worn or not.
2. All parts of the elevator are filled with some lubricating oil to prolong the service life of the bearing.
3. Oil quality and oil level of hydraulic oil. When the lift is raised all the way, at this position, the hydraulic oil level should be 40-50 mm higher than the bottom of the tank. If the hydraulic oil becomes dark, sticky or has foreign matter such as grit, it should be replaced in time if found.

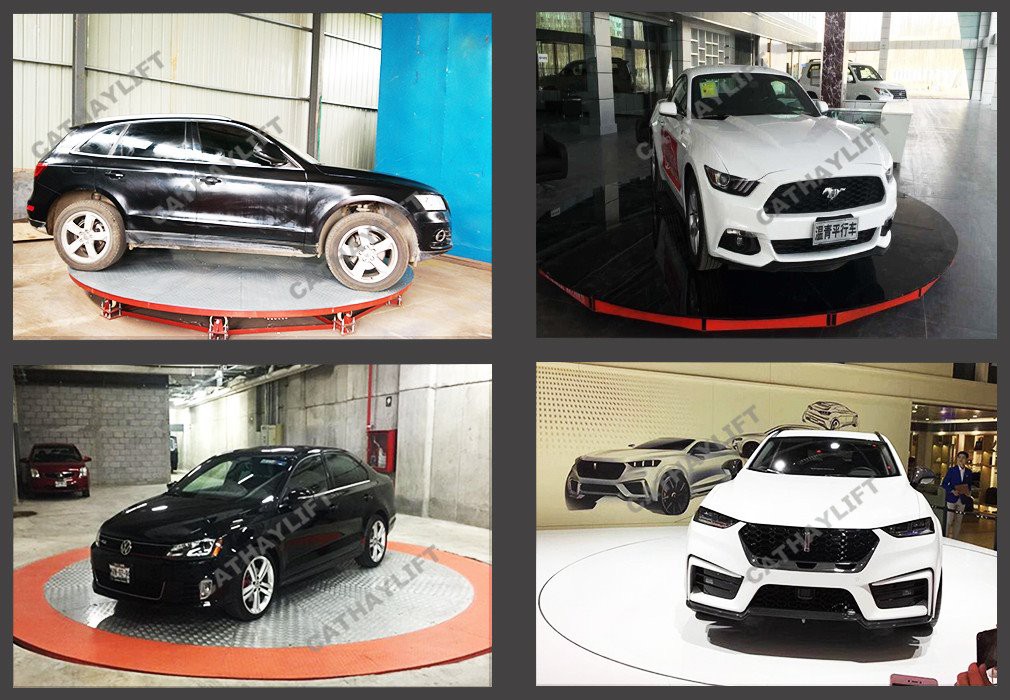

Real Order
