Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of vertical stair lift chair in China. We warmly welcome you to buy discount vertical stair lift chair for sale here from our factory. Quality products and reasonable price are available.

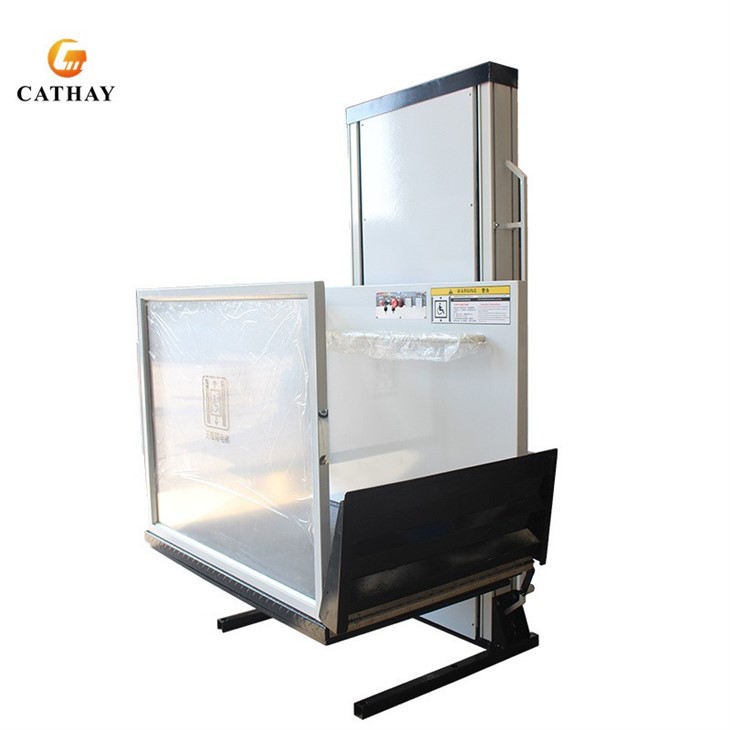

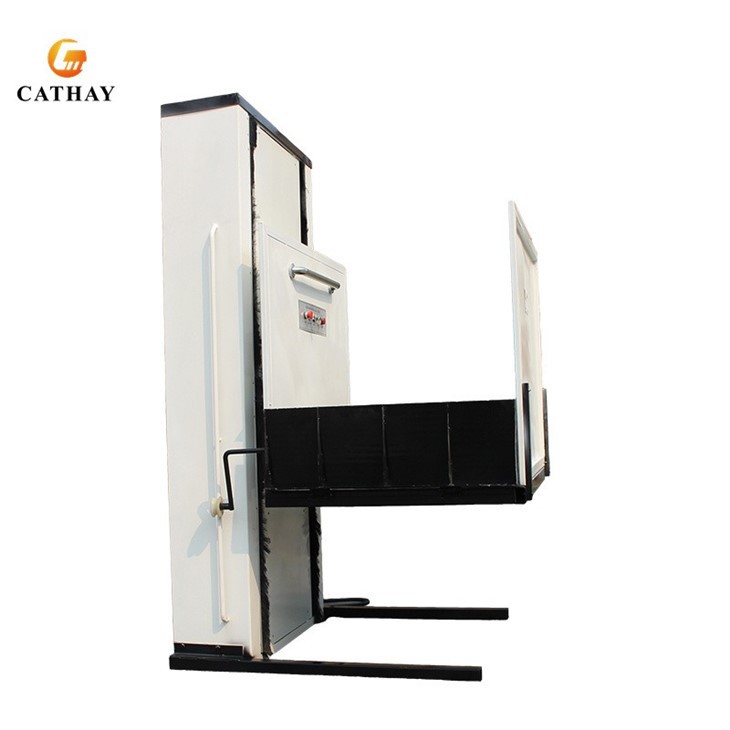

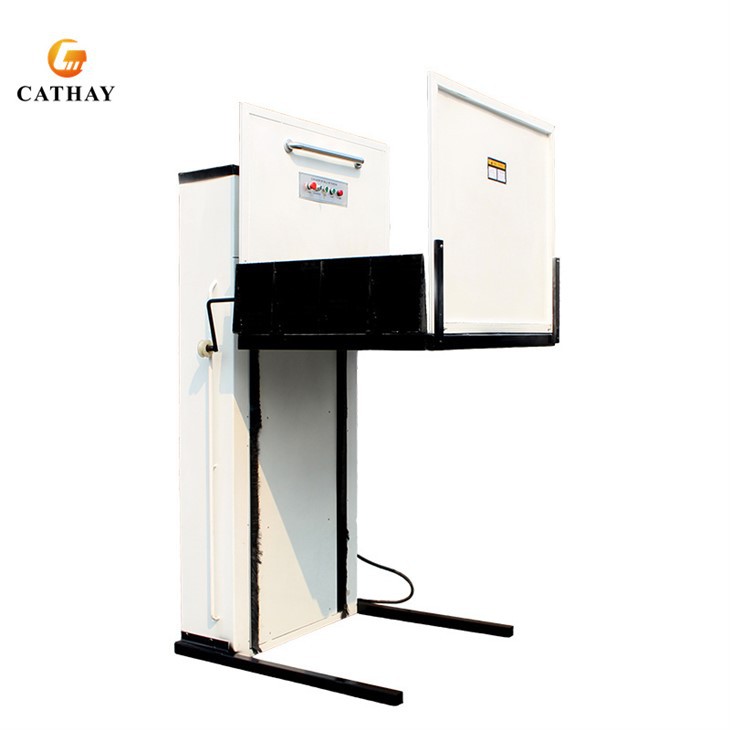

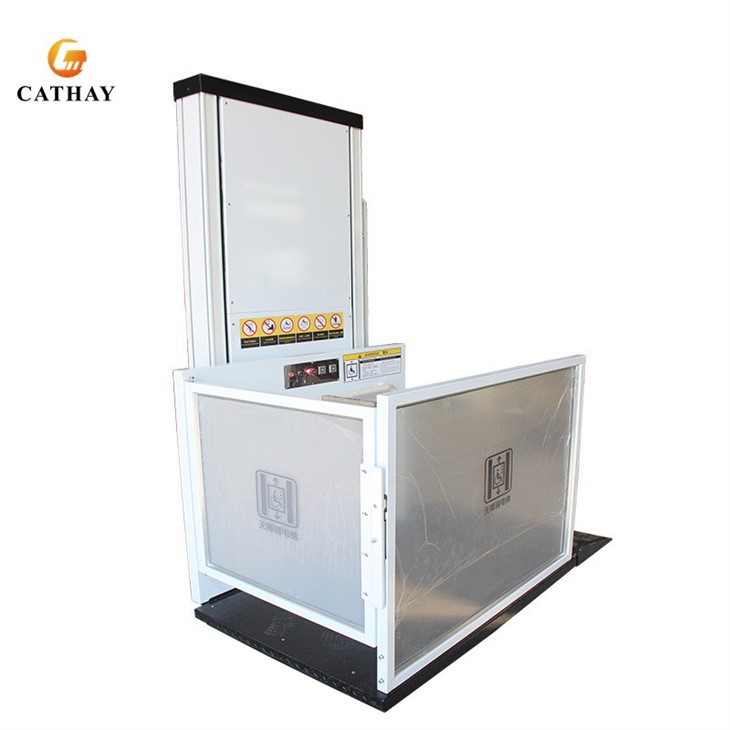

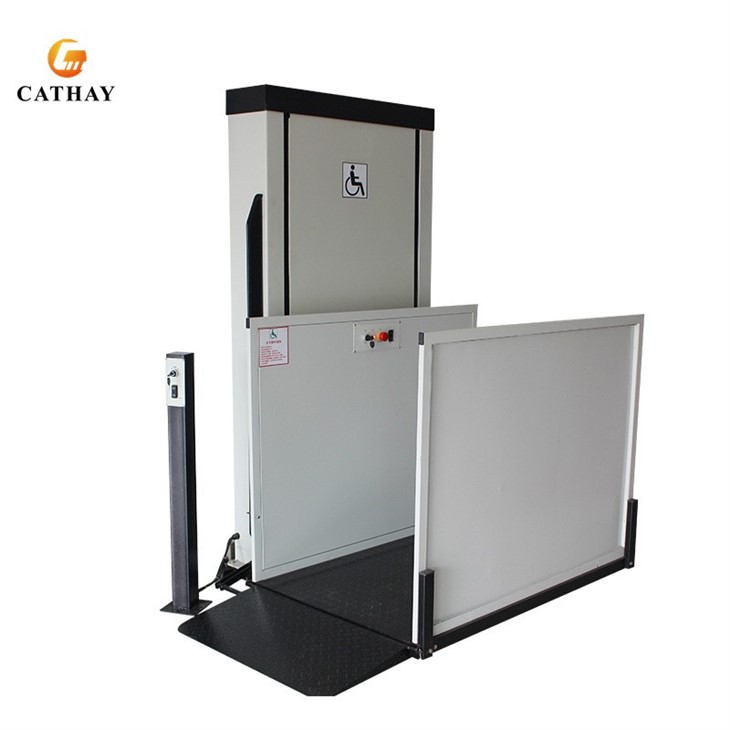

With a lifting height of 1-6 meters and a 250kg capacity, CATHAYLIFT Vertical Stair Lift Chair is ideal for both residential and industrial use. The lift features a flexible configuration, accommodating various environments and requirements, including explosion-proof settings. Its hydraulic system ensures overload protection and prevents platform descent, while the pipeline explosion-proof design guarantees secure operation. Multi-point control is enabled with buttons on each floor and the platform. Perfect for senior and disabled mobility, as well as efficient cargo handling across different industries.
|
Model Type |
HL10 |
HL15 |
HL20 |
HL25 |
HL30 |
HL35 |
HL40 |
HL50 |
HL60 |
|
Max. Platform Height |
1000mm |
1500mm |
2000mm |
2500mm |
3000mm |
3500mm |
4000mm |
5000mm |
6000mm |
|
Load Capacity |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
|
N.W/G.W(kg) |
350/450 |
450/550 |
550/700 |
700/850 |
780/900 |
850/1000 |
880/1050 |
1000/1200 |
1100/1300 |
|
Machine Size(mm) |
2000*1430*1300 |
2500*1430*1300 |
3000*1430*1000 |
3500*1430*1000 |
4000*1430*1000 |
4600*1430*1000 |
5100*1430*1000 |
6100*1430*1000 |
7100*1430*1000 |
|
Platform size |
1430*1000mm skid proof checkered steel |
||||||||
|
Working Condition |
Both indoors and outdoors -20°~70°C |
||||||||
|
Entrance-Exit Way |
It's customized 90°or 180° |
||||||||
|
Installation |
No pit installing,easy to install and remove |
||||||||
|
Switches |
1.One control panel on the platform |
||||||||
Product Details
Safety Precautions:
- Emergency Descent: Outfitted with a manual lowering function, this mechanism ensures the lift can be brought down safely during power outages or other failures, offering reassurance in emergency situations.
- Automatic Ramp: The lift features a self-packing ramp that folds neatly when the lift is in use. This design optimizes space and guarantees a seamless lifting operation.
- Aluminum Rails: Made with sturdy and durable aluminum extrusions, the rails provide exceptional strength and longevity, ensuring consistent and reliable performance.
- Protection Chain: The built-in protection chain improves balance and stability during use. It also acts as a safety feature, preventing abrupt drops and ensuring smooth vertical movement.
- Overload Protection: Our lift is fitted with an over-current relay control and a pressure relief valve. These elements prevent overloading, protecting both the equipment and the operator.
- Noise Standards: The lift operates quietly, complying with the strict noise regulations established by American ANSI/ASME and European EN1570 standards. This ensures a pleasant and quiet user experience.
Real Order
