Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of 10m to 20m towable trailer boom lift in China. We warmly welcome you to buy discount 10m to 20m towable trailer boom lift for sale here from our factory. Quality products and reasonable price are available.

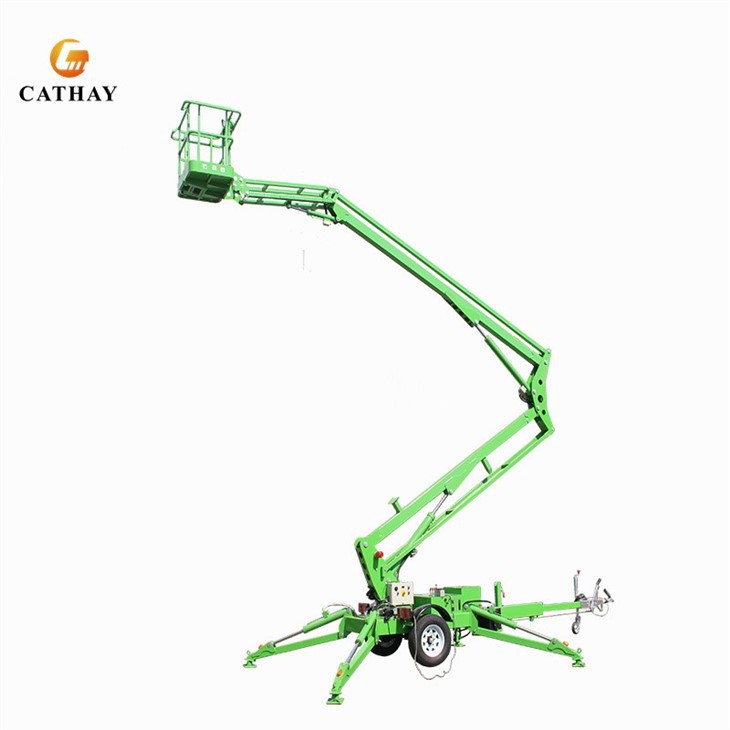

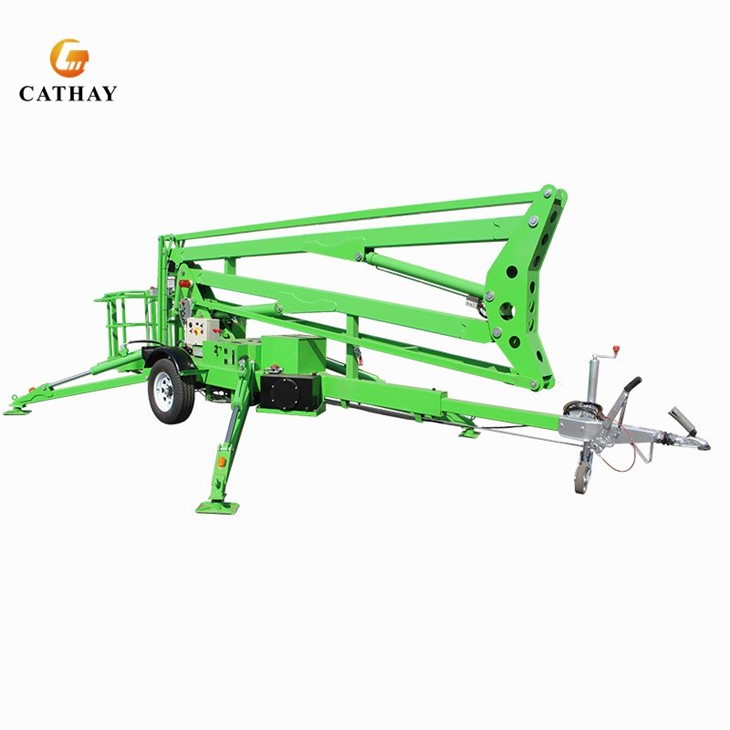

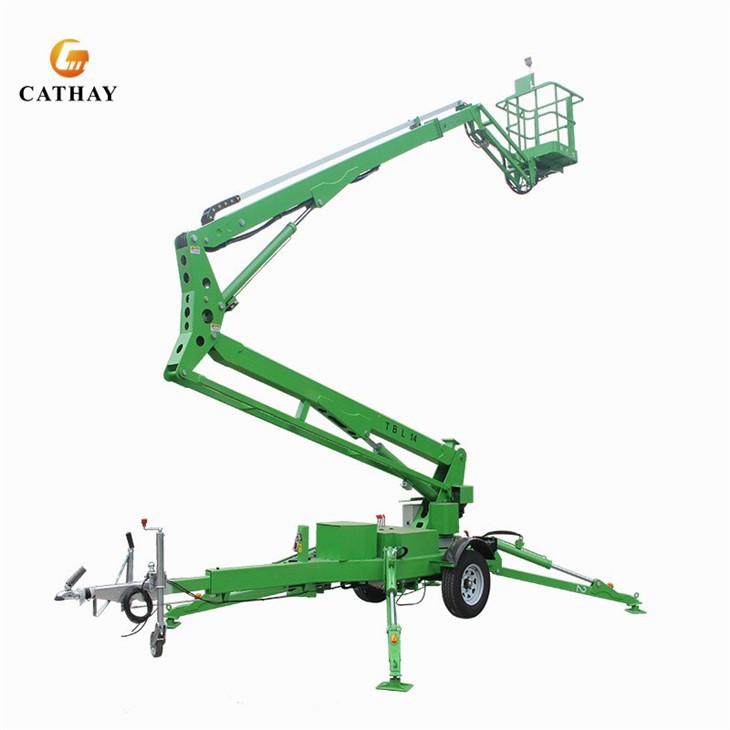

10m To 20m Towable Trailer Boom Lift
The Cathaylift 10m to 20m Towable Trailer Boom Lift offers a versatile lifting height range from 10m to 20m and a working height from 12m to 22m, with a load capacity of 200kg. Designed for easy transportation, it can be towed by various vehicles without needing a commercial driver's license. Equipped with hydraulic outriggers and an automatic leveling mechanism, it ensures a safe and stable working environment. Ideal for maintenance, construction, and other tasks, this boom lift enhances efficiency and safety, making it an essential tool for professionals who need reliable access to elevated work areas.
Products Details
Advantages:
Versatile Power Options: Choose between diesel, gasoline, AC, or DC power to suit various work environments and needs.
Easy Transportation: The towable design allows for easy transport by various vehicles without needing a commercial driver's license, making it highly portable and convenient.
Safety and Stability: Hydraulic outriggers and an automatic leveling mechanism ensure a safe and reliable working space, enhancing employee safety during tasks.
Efficient Operation: The full-proportional hydraulic control system and 360° continuous turntable rotation enable quick and precise positioning, allowing tasks to be completed efficiently.
High Load Capacity: With a load capacity of 200kg, it can accommodate multiple tools and materials, reducing the need for multiple trips and increasing productivity.
Wide Working Range: A lifting height of 10m to 20m and a working height of 12m to 22m provide extensive reach, suitable for various applications such as maintenance, construction, and inspections.
Real Order
|
Model Type |
CTA-10A |
CTA-12A |
CTA-14T |
CTA-16T |
CTA-18T |
CTA-20T |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18M |
20M |
|
Working height |
12M |
14M |
16M |
18M |
20M |
22M |
|
Load Capacity |
200KG |
|||||
|
Platform size |
0.9*0.7M |
|||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3000KG |
3100KG |
|
Overall Size( L*W*H) |
5.2*1.7*2.1M |
6.2*1.7*2.1M |
5.6*1.7*2.1M |
5.7*1.7*2.2M |
6.5*1.8*2.3M |
5.8*1.9*2.3M |
|
Power optional |
AC-electrical Power (Xi'an Motor) |
|||||
|
Diesel Power Motor (YSD Motor) |
||||||
|
Gasoline Power (Honda Motor) |
||||||
|
DC Battery Power (Bucher Motor) |
||||||
|
AC+ Diesel/Gas Power (Dual Power) |
||||||
|
AC/Diesel/Gas+DC Power (Dual Power) |
||||||
|
Extra Optional |
Friction wheel walking device: (Automatic Moving) |
|||||
