Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of aluminium lift platform in China. We warmly welcome you to buy discount aluminium lift platform for sale here from our factory. Quality products and reasonable price are available.

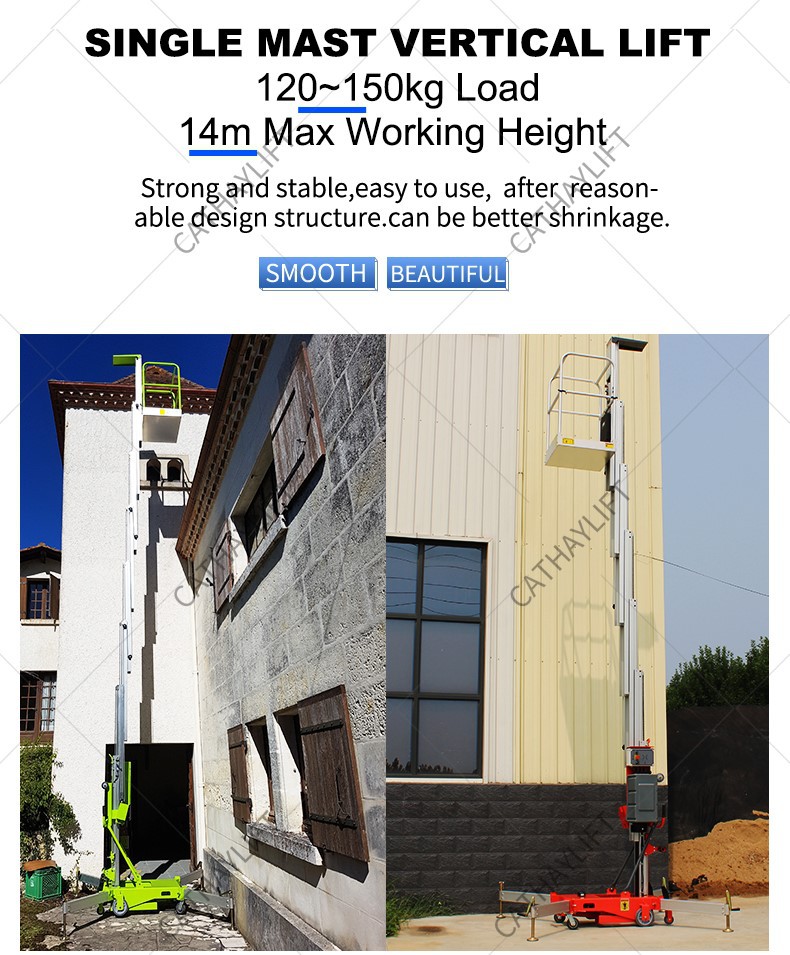

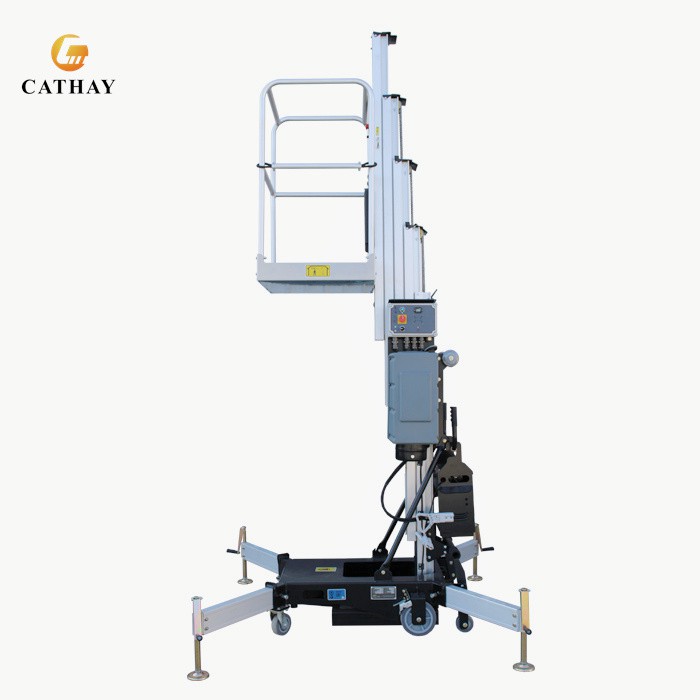

Aluminium Lift Platform
Equipped with high-quality wheels, CATHAYLIFT's Aluminum Lift Platform can be easily maneuvered manually, allowing for seamless transportation across different work areas. Its straightforward design minimizes the need for frequent upkeep, reducing downtime and operational costs. CATHAYLIFT Aluminum Lift Platform's compact design allows it to navigate tight spaces with ease, while its user-friendly operation ensures efficiency and safety for operators. Whether you're reaching high shelves, servicing equipment, or performing overhead installations, CATHAYLIFT's Aluminum Lift Platform delivers the performance and reliability you need to get the job done.
Scheduled Maintenance:
- To ensure the long-term performance and safety of CATHAYLIFT's Aluminum Lift Platform, regular maintenance is essential. Quarterly, annual, and biennial maintenance checks must be conducted by trained and qualified personnel who are familiar with the specific requirements of this equipment. These routine inspections help identify and address potential issues before they escalate, ensuring the platform remains in optimal working condition.
- For platforms that have been out of service for more than three months, a thorough quarterly inspection is mandatory before they can be safely returned to operation. This precautionary measure ensures that all components, including mechanical and structural elements, are functioning correctly after a period of inactivity.
Product Details:
More product details:
AVIATION GRADE
6005T6 aluminum alloy
Highest strength series

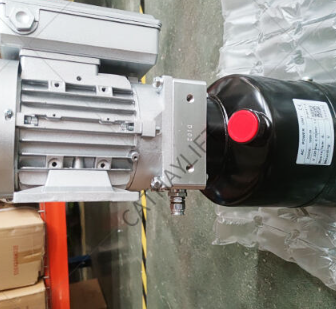

PUMP STATION
Bucher Hydraulic Pump Station
ANTI-WEARING
Pass 50 times/min test
5 million tests
|
Model No. |
CUP-5H |
CUP-6H |
CUP-8H |
CUP-9H |
CUP-10H |
CUP-12H |
|
|
Max.Platform Height |
5m |
6m |
8m |
9m |
10m |
12m |
|
|
Max Working Height |
6m |
8m |
10m |
11m |
12m |
14m |
|
|
Load Capacity |
150kg |
150kg |
150kg |
150kg |
136kg |
120kg |
|
|
Platform Size |
0.67*0.66m |
||||||
|
Occupants |
One person |
||||||
|
Outrigger Coverage |
1.7*1.7m |
1.7*1.7m |
1.6*1.6m |
1.7*1.7m |
1.9*1.7m |
2.3*1.9m |
|
|
Overall Size |
1.24*0.74*1.99m |
1.24*0.74*1.99m |
1.36*0.74*1.99m |
1.4*0.74*1.99m |
1.42*0.74*1.99m |
1.46*0.81*2.68m |
|
|
Net Weight |
300kg |
320kg |
345kg |
365kg |
385kg |
460kg |
|
|
Motor Power |
0.75kw |
||||||
|
Options |
DC |
12v |
|||||
|
DC Motor |
1.5kw |
||||||
|
Charger |
12v15A |
||||||
