Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mast lift in China. We warmly welcome you to buy discount mast lift for sale here from our factory. Quality products and reasonable price are available.

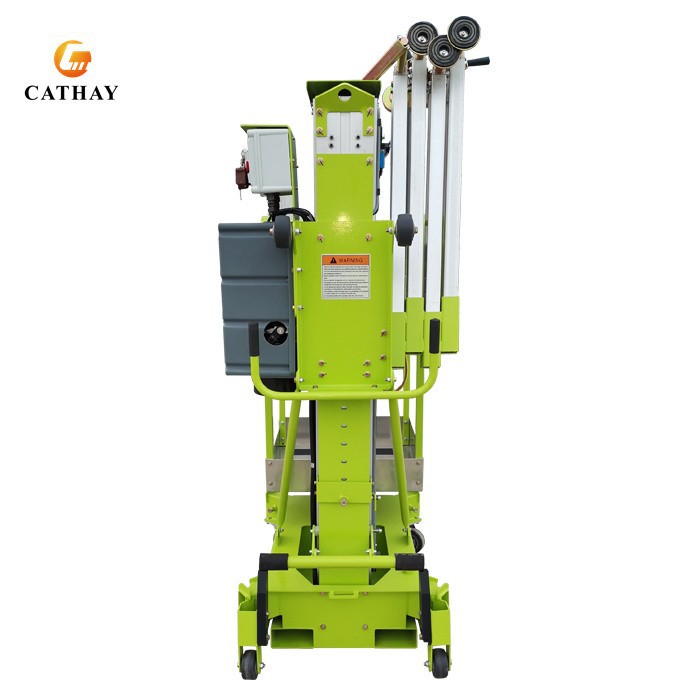

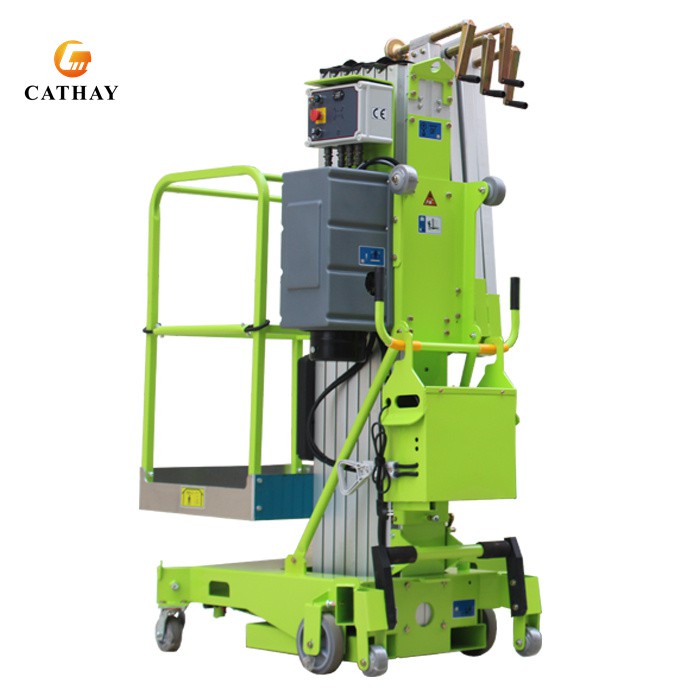

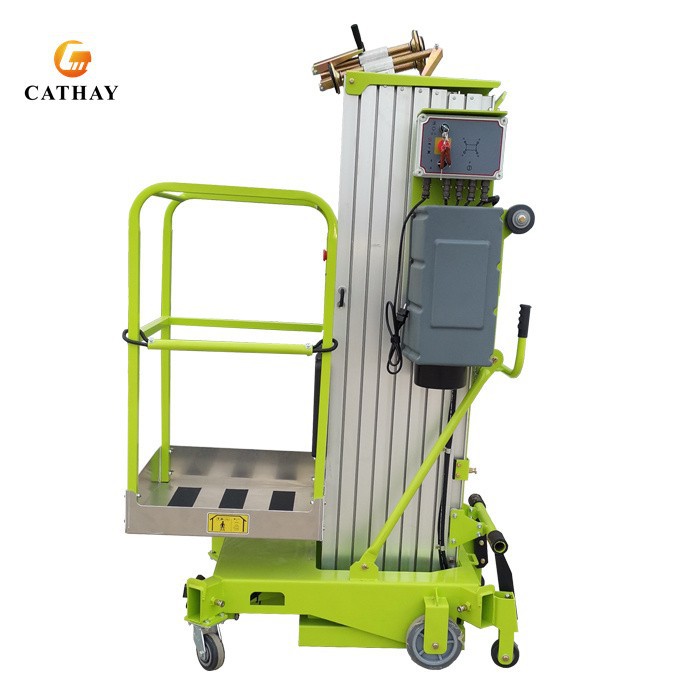

The Mast Lift by CATHAYLIFT – Your Ultimate Solution for Efficient and Eco-Friendly Aerial Maintenance Tasks.
Elevate your aerial maintenance operations to new heights with the Mast Lift by CATHAYLIFT. With its unparalleled performance, reliability, and safety features, it's the ultimate solution for all your vertical access needs. Let's delve into the remarkable features of our cutting-edge lift:
|
Model No. |
|
CR-6 |
CR-7.5 |
|
Max.Platform Height |
Mm |
6000 |
7500 |
|
Max Working Height |
Mm |
8000 |
9500 |
|
Load Capacity |
Mm |
150Kg |
125kg |
|
Occupants |
Mm |
1 |
1 |
|
Overall Size |
Mm |
1400(1890)*760*1990 |
1400(1890)*1020*1990 |
|
Platform Size |
Mm |
1260*700 |
|
|
Wheel Base |
Mm |
1140 |
|
|
Max Drive Speed(Platform Stowed) |
Km/h |
4 |
|
|
Max Drive Speed(Platform Extended) |
Km/h |
1.1 |
|
|
Min Turn Radius |
Mm |
0 |
|
|
Up/Down Speed |
/Sec |
43/35Sec |
48/40Sec |
|
Driving Wheel Size |
Mm |
Φ230X80 |
|
|
Battery |
V/Ah |
2X12Vdc/100Ah |
|
|
Lifting Motor |
/ |
24Vdc/1.3Kw |
|
|
Net Weight |
Kg |
1120 |
1170 |
|
Charger |
|
24V/15A |
24V/15A |
Product Details:
Minimal Downtime and Maintenance:
With minimal downtime and maintenance requirements, our Mast Lift maximizes uptime and productivity, allowing you to focus on your core tasks without interruptions.
Details Images:
Platform extension deck:
Enhance your reach with our additional extensible platform, allowing you to access challenging areas effortlessly. With an extra 0.48m of extension, you can tackle tasks with precision and ease.
Self-locking basket and seat belt buckle
Platform control handle:
Experience seamless control with our ergonomic platform control handle. Designed for operator comfort and precision maneuverability, it ensures optimal performance with every use.
Ground control panel:
Easily manage operations from ground level with our intuitive ground control panel. Streamline your workflow and maximize productivity with convenient access to lift controls and functions.
Aluminum mast, Lifting Chain and anti-wearing cable:
Benefit from smooth and reliable lifting operations with our high-quality lifting chain and anti-wearing cable. Engineered for durability and longevity, they withstand rigorous use in demanding environments.
Anti-slip black pads
Prioritize safety with our anti-slip black pads, providing secure footing for operators even in challenging conditions. Reduce the risk of slips and falls for a safer working environment.
Buzzer, Strobe light, tilt sensor:
Our lift is equipped with essential safety features including a buzzer, strobe light, and tilt sensor, ensuring enhanced safety awareness and accident prevention on the job site.
Hydraulically controlled front wheel steering,electric drive:
Experience superior maneuverability and control with our hydraulically controlled front wheel steering and electric drive system. Navigate narrow spaces with ease and efficiency, completing tasks with precision and agility.
Application
Real Order:
