Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of aluminum wheelchair lift in China. We warmly welcome you to buy discount aluminum wheelchair lift for sale here from our factory. Quality products and reasonable price are available.

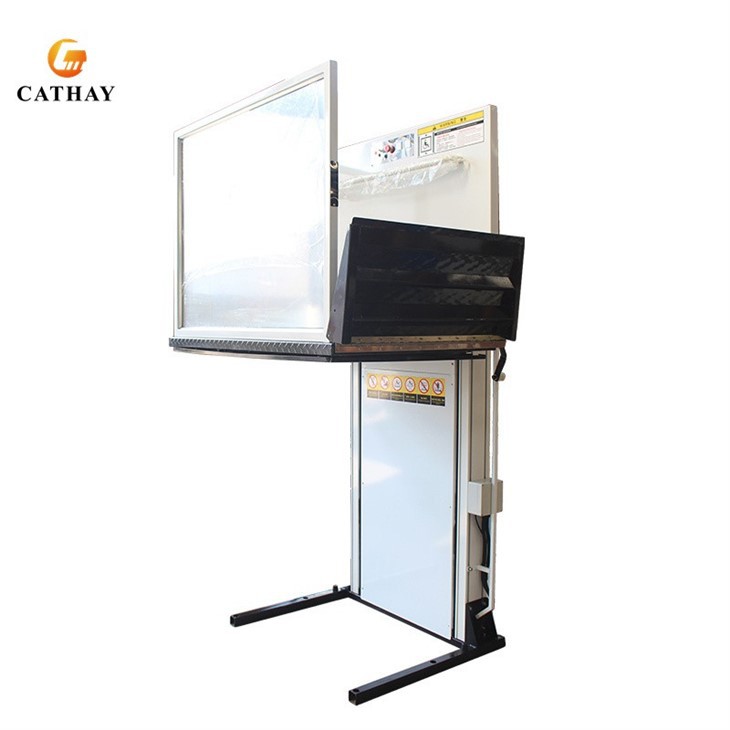

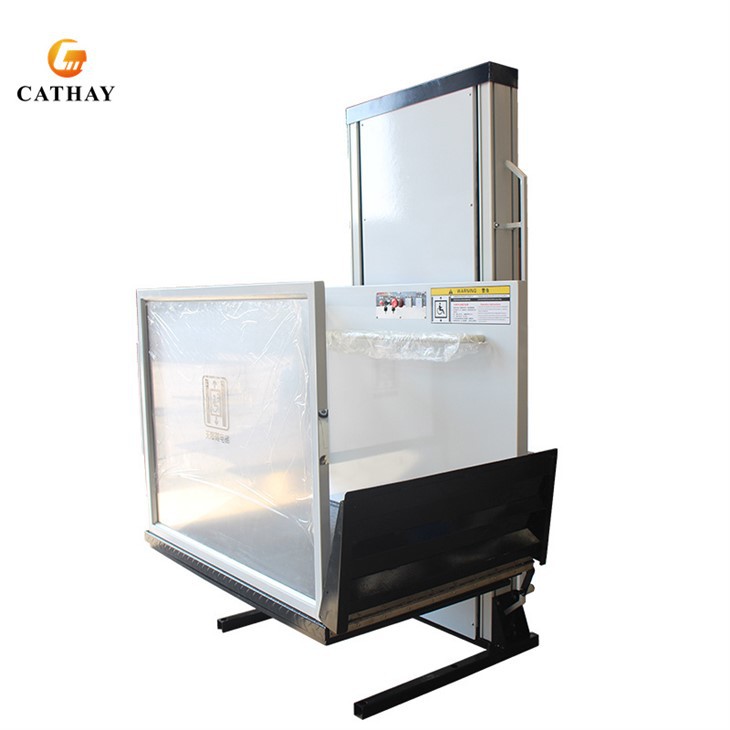

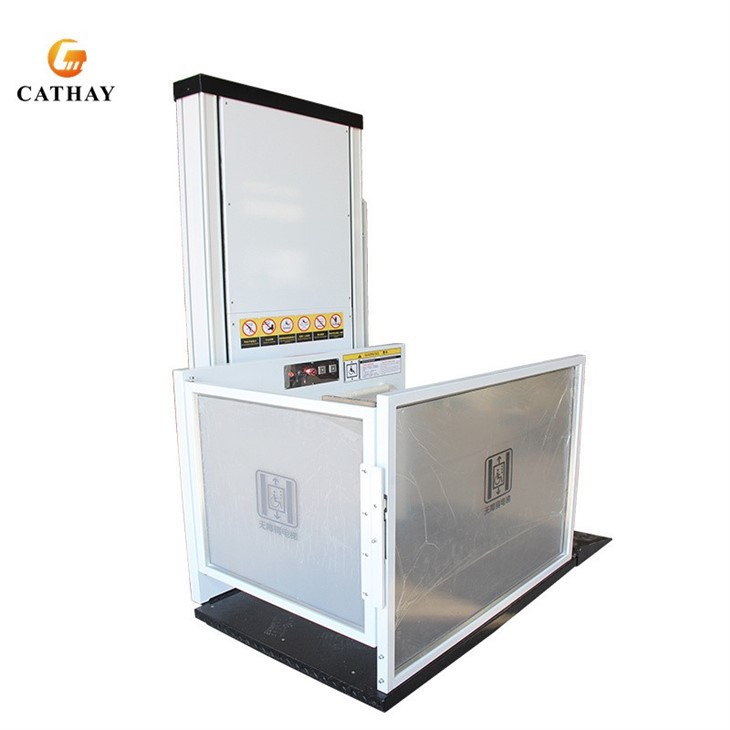

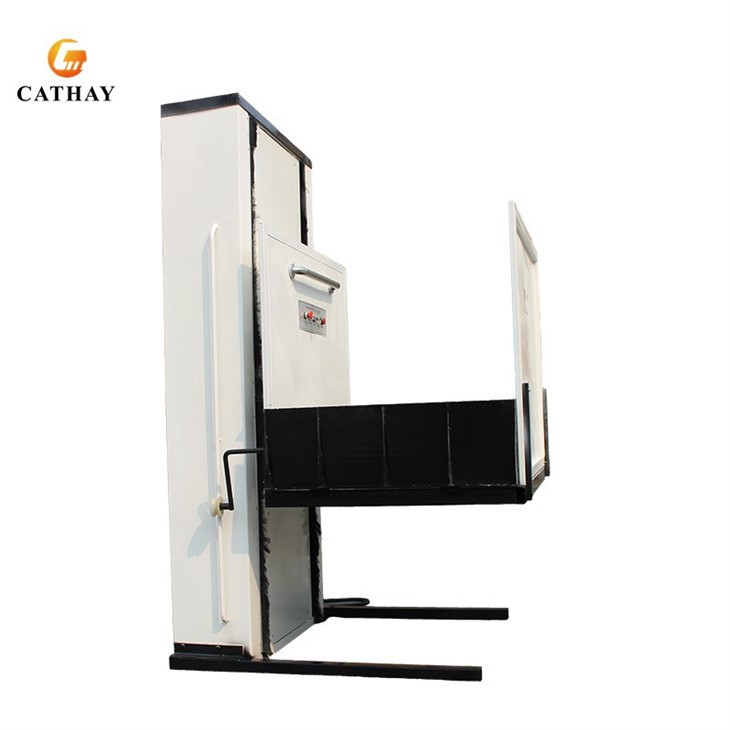

Aluminum Wheelchair Lift
Embark on an effortless vertical journey with the CATHAYLIFT Aluminum Wheelchair Lift, an embodiment of innovative and inclusive design that integrates seamlessly within your architectural space. This hydraulic lift, a marvel of engineering, is tailored for those who seek a blend of luxury, safety, and space efficiency in mobility solutions. CATHAYLIFT's Aluminum Wheelchair Lift is more than just an aid; it's a symbol of freedom and independence, expertly crafted to empower and elevate the human spirit. With its blend of security, sophistication, and silent operation, it stands as the pinnacle of accessible home innovation.
|
Model Type |
HL10 |
HL15 |
HL20 |
HL25 |
HL30 |
HL35 |
HL40 |
HL50 |
HL60 |
|
Max. Platform Height |
1000mm |
1500mm |
2000mm |
2500mm |
3000mm |
3500mm |
4000mm |
5000mm |
6000mm |
|
Load Capacity |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
|
N.W/G.W(kg) |
350/450 |
450/550 |
550/700 |
700/850 |
780/900 |
850/1000 |
880/1050 |
1000/1200 |
1100/1300 |
|
Machine Size(mm) |
2000*1430*1300 |
2500*1430*1300 |
3000*1430*1000 |
3500*1430*1000 |
4000*1430*1000 |
4600*1430*1000 |
5100*1430*1000 |
6100*1430*1000 |
7100*1430*1000 |
|
Platform size |
1430*1000mm skid proof checkered steel |
||||||||
|
Working Condition |
Both indoors and outdoors -20°~70°C |
||||||||
|
Entrance-Exit Way |
It's customized 90°or 180° |
||||||||
|
Installation |
No pit installing,easy to install and remove |
||||||||
|
Switches |
1.One control panel on the platform |
||||||||
Product Details
Advantages:
● Minimal Structural Demands: Revel in the simplicity of installation as this lift requires just a single load-bearing wall and a modest pit depth starting at a mere 60mm. By eliminating the need for a machine room, it asserts a low impact on building infrastructure, providing you with a cost-efficient and hassle-free setup.
● Unmatched Safety Protocols: Safety takes precedence with the CATHAYLIFT. Engineered to prevent any over-speeding incidents, it promises a smooth and controlled ascent and descent. The lift stands as a paragon of reliability with an intelligent mechanical design boasting a high safety factor. The innovative inclusion of a backup battery enables self-rescue, offering peace of mind through a manual descent during power outages.
● Space-Saving Dynamics: Discover the freedom to install this lift in spaces once deemed impossible. The absence of a counterweight and the sleek design that houses only two tracks means it occupies less architectural footprint. The CATHAYLIFT Aluminum Wheelchair Lift is not just an elevator; it's a smart space solution that brings together elegance and functionality.
● Effortlessly Quiet Operation: Experience tranquility in motion with the silent yet powerful pump station equipped with a variable frequency drive for low-noise performance. The superior design ensures comfort not just in motion but in ambiance, maintaining a peaceful environment for all.
●Emergency Control and Protection Features: Prepare for the unexpected with the emergency lowering valve that enables a safe and manual descent. The lift's ascent is safeguarded with a built-in relief valve, shielding against excessive pressure while ensuring overload protection, adding another layer of user safety.
Real Order
