Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of cheap residential lift in China. We warmly welcome you to buy discount cheap residential lift for sale here from our factory. Quality products and reasonable price are available.

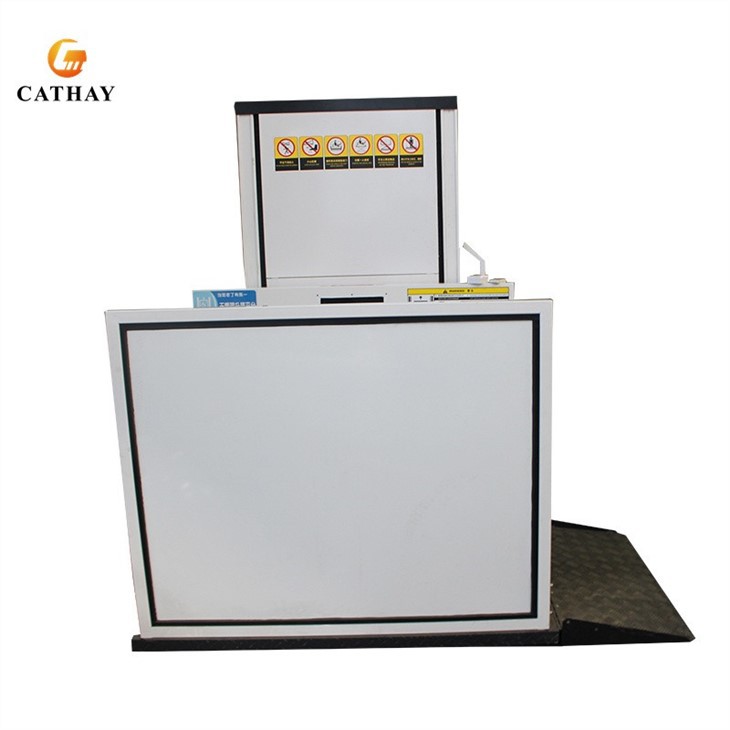

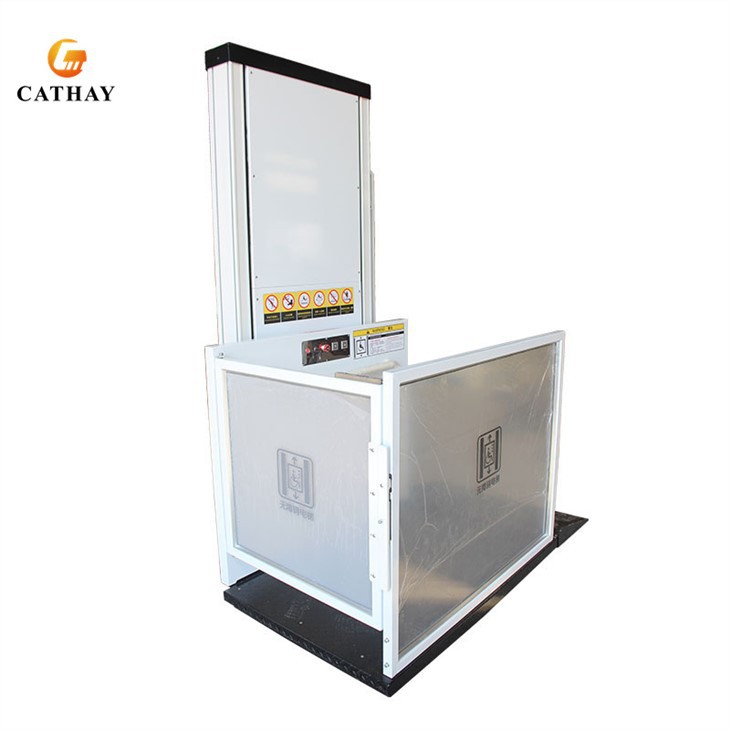

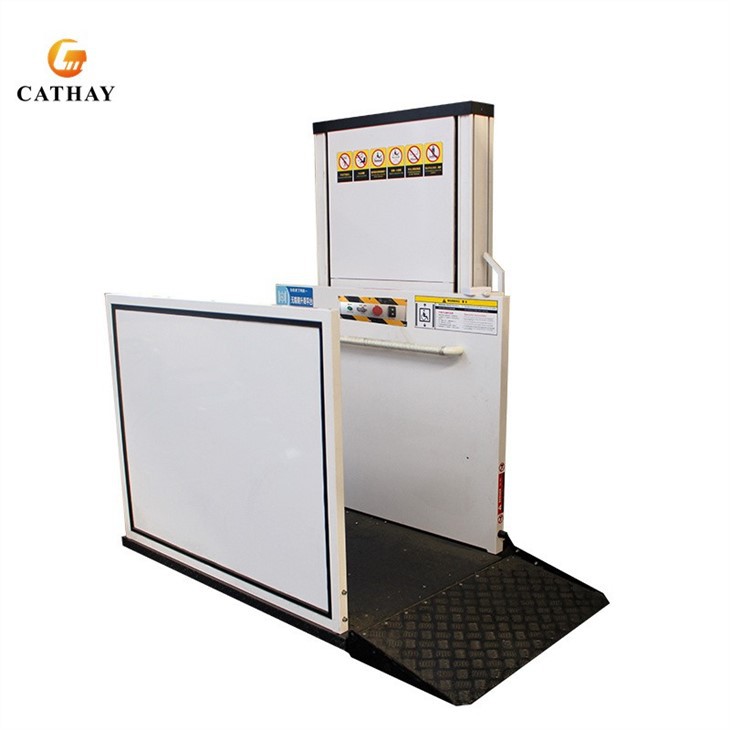

The CATHAYLIFT wheelchair lifting platform can lift 1-6 meters and is composed of three parts: the lifting platform guide rail and the drive box; the lifting platform is made of C-shaped steel as the main component, and it adopts "rocker self-resetting switch operation" without foundation pit Type installation, directly fixed on the concrete floor, the lifting bottom plate can be manually lowered when the manual hydraulic valve is opened; hydraulic drive, the lifting is stable and safe, the exterior is made of brushed stainless steel and aluminum plate electrostatic sprayed plastic chassis/panel, the appearance is small and beautiful, and does not hinder the surrounding environment. The lift for the disabled is directly installed on the ground, without the need for a supporting pit for civil engineering, the construction is simple, the product is placed outdoors, it is not easy to accumulate water, it is not easy to rust, and it is easy to maintain.

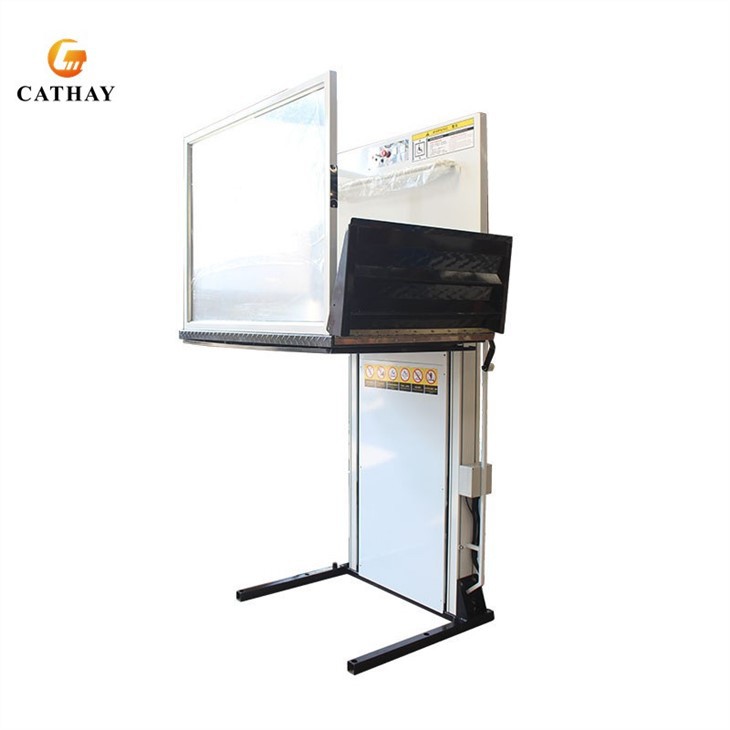

The wheelchair lifting platform can be folded and placed against the wall when not in use, so that it will not occupy the space at the entrance and exit of the passage. When the disabled in a wheelchair are in use, the four wheels of the wheelchair can be fixed on the platform, and the lifting platform can be controlled to enter the underground passage after pressing the switch, which is safe and convenient. The barrier-free lifting platform is a lift specially designed and manufactured for the disabled. The barrier-free lifting platform is mainly used in public places such as hospitals, schools, hotels, hotels, shopping malls, etc. The barrier-free lifting platform can accommodate wheelchairs, disabled people or people with limited mobility. Just press the help buttons at both ends, and the on-duty staff will immediately start the automatic elevator.
Model Type | HL10 | HL15 | HL20 | HL25 | HL30 | HL35 | HL40 | HL50 | HL60 |
Max. Platform Height | 1000mm | 1500mm | 2000mm | 2500mm | 3000mm | 3500mm | 4000mm | 5000mm | 6000mm |
Load Capacity | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg |
N.W/G.W(kg) | 350/450 | 450/550 | 550/700 | 700/850 | 780/900 | 850/1000 | 880/1050 | 1000/1200 | 1100/1300 |
Machine Size(mm) | 2000*1430*1300 | 2500*1430*1300 | 3000*1430*1000 | 3500*1430*1000 | 4000*1430*1000 | 4600*1430*1000 | 5100*1430*1000 | 6100*1430*1000 | 7100*1430*1000 |
Platform size | 1430*1000mm skid proof checkered steel | ||||||||
Working Condition | Both indoors and outdoors -20°~70°C | ||||||||
Entrance-Exit Way | It's customized 90°or 180° | ||||||||
Installation | No pit installing, easy to install and remove | ||||||||
Switches | 1.One control panel on the platform | ||||||||
Products Details
●Disabled lift drive system: hydraulic or screw drive.
●The operation mode of the lift for the disabled: jog control/or automatic.
●The installation method of the lift for the disabled: no foundation pit installation, then fixed on the concrete floor.
●The external control device of the lift for the disabled: the outbound call box is respectively placed on the wall near the upper and lower floors of the equipment, and a remote control can also be used.
●Emergency stop of the lift for the disabled: Press the emergency button switch to control the operation of the machine.
●Manual operation of the lift for the disabled: the hydraulic valve is opened, or the lifting bottom plate can be manually lowered when the screw is manually rotated.
●Safety interlock of the lift for the disabled: the lifting platform cannot operate during any abnormal operation.
