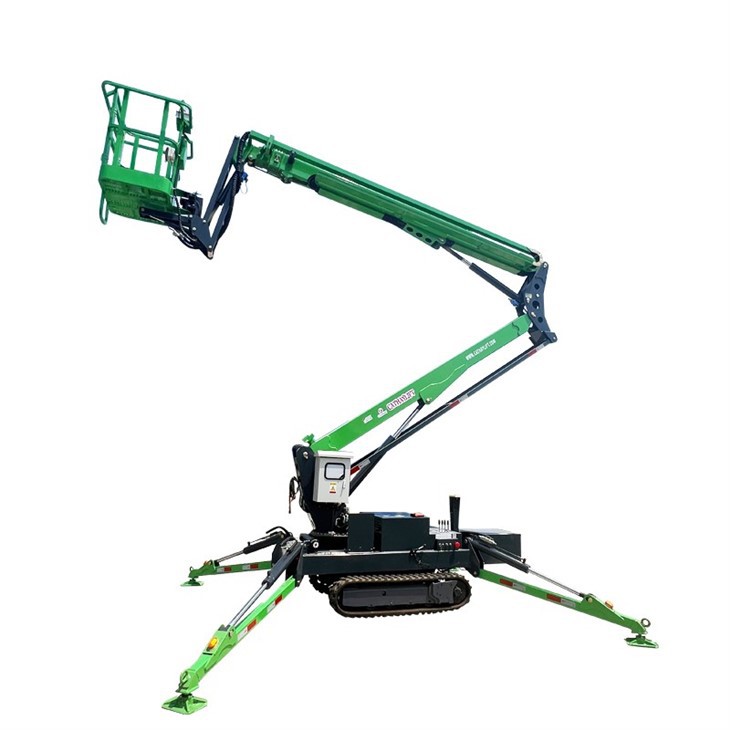

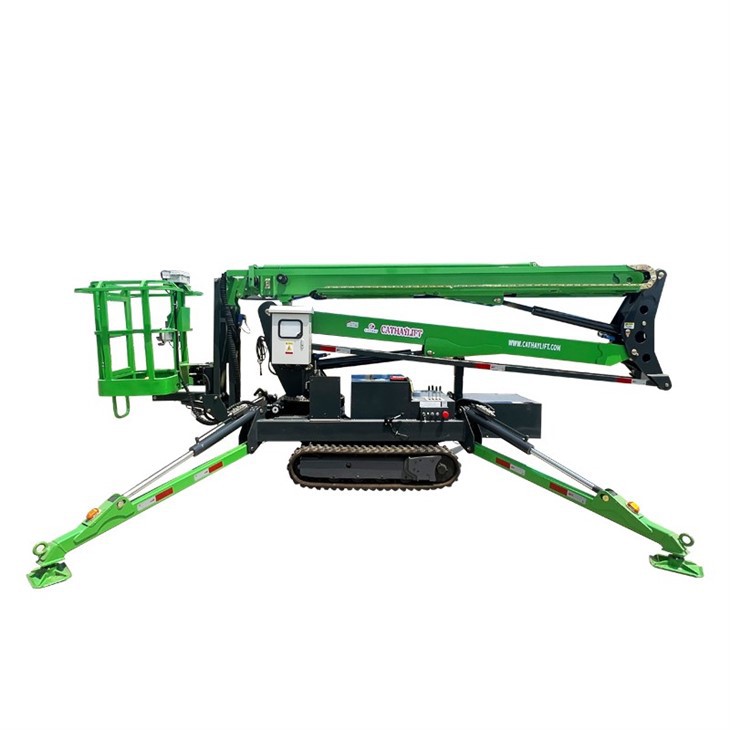

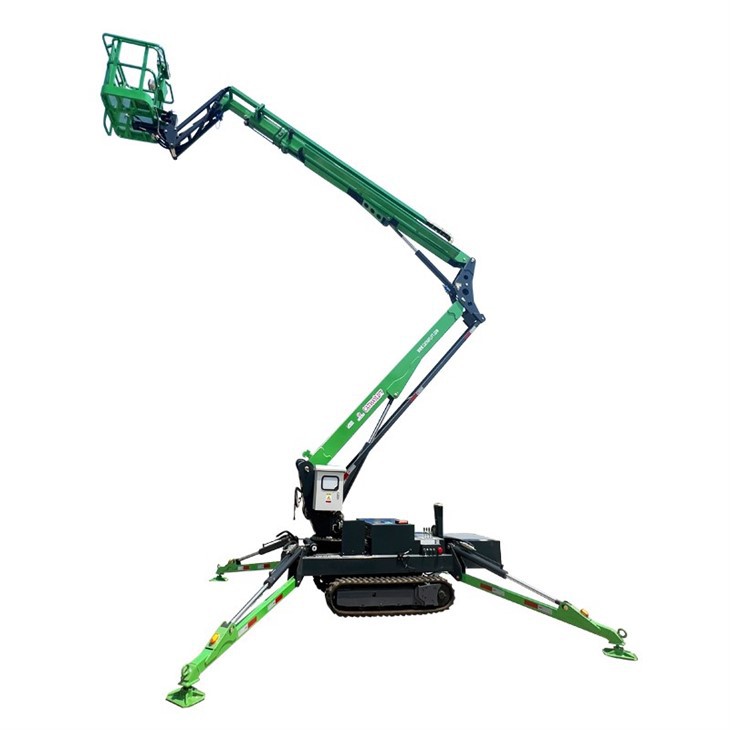

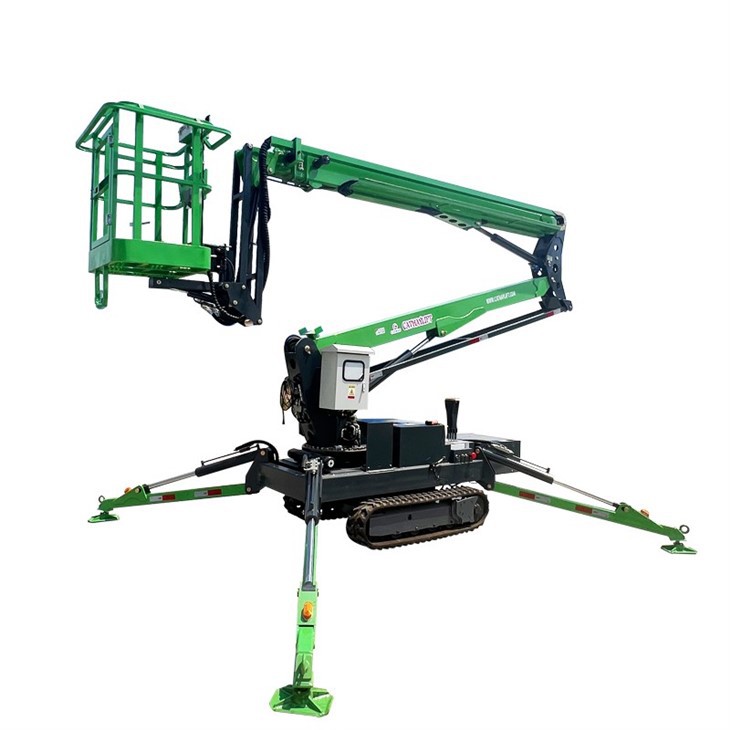

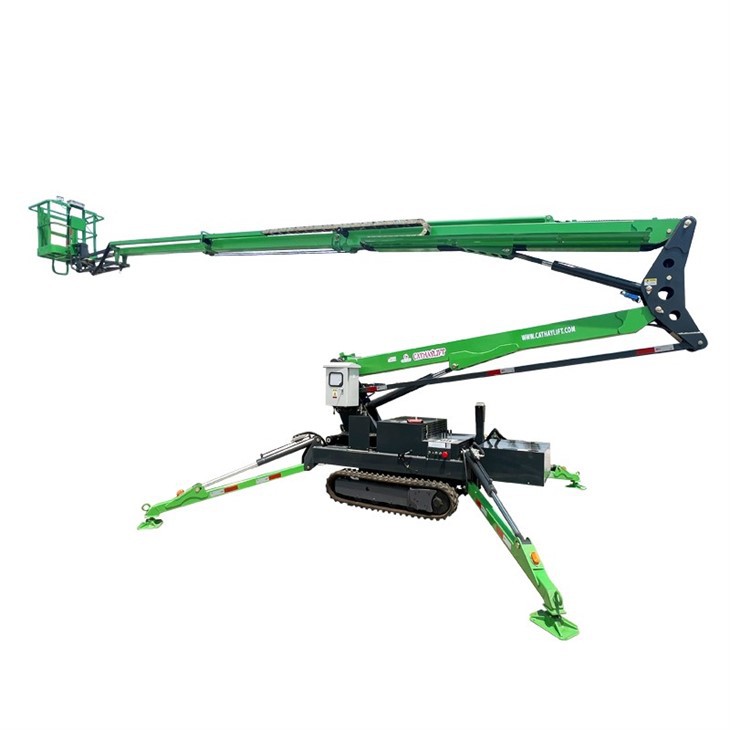

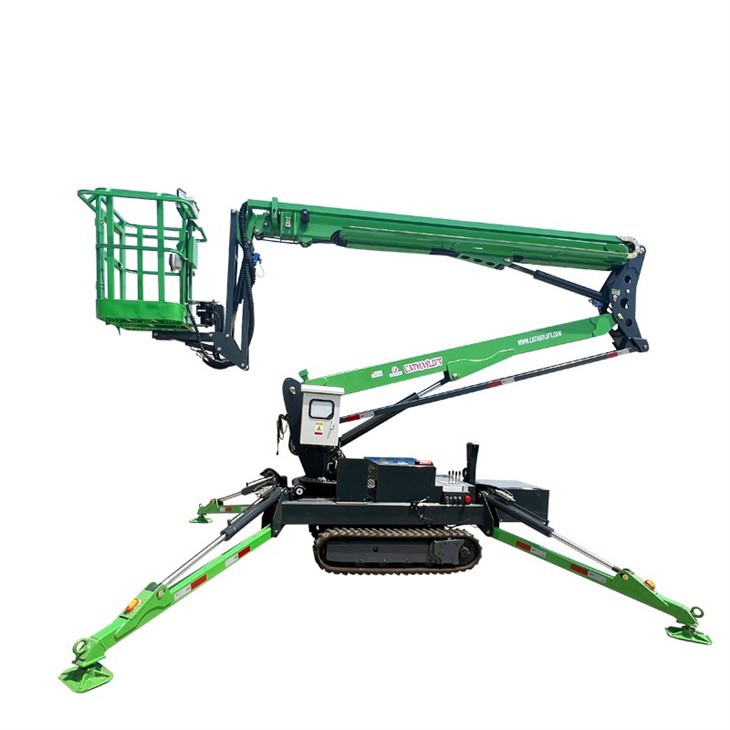

10~24m Mobile Crawler Boom Aerial Work Platform
CATHAYLIFT mobile tracked boom aerial work platforms, covering working heights from 10 to 24 meters, are designed to handle complex terrain, offering the advantages of smooth operation and easy relocation. This multi-functional boom platform is equipped with self-balancing hydraulic outriggers, maintaining stable operation even on rough terrain, and is suitable for various indoor and outdoor work scenarios. Its robust structure and reliable mobility provide excellent maneuverability and safety, effectively improving work efficiency in construction, maintenance, and industrial sectors. Whether in complex outdoor terrain or confined indoor spaces, CATHAYLIFT tracked boom aerial work platforms provide efficient and stable aerial work solutions.
Products Details

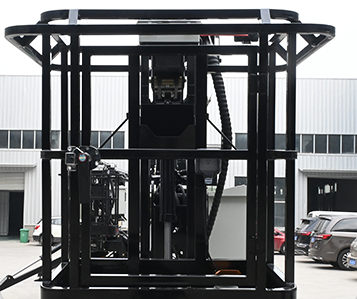

MANNEDBASKET
0.9*0.8mextralarge basket,load capacity200kg~3 extra large load capacity. Basket edge protection guardrail.

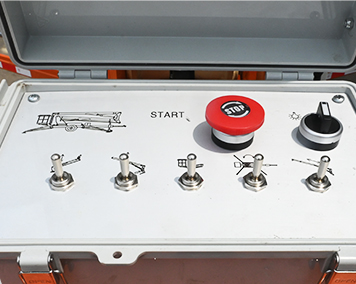

BASKETCONTROL
Emergency stop button, graphic operation
button,lighting switch.
DEADMANSWTICH(FOOTSWTICH)
Anti-misoperation design,foot switch and
platform control are used together to provide double safety guarantee .
ACPOWERONTHEPLATFORM
It supports carrying electrical tools to work,and
can beadditionallyconfiguredwith gas pipeline
and water pipeline interfaces.

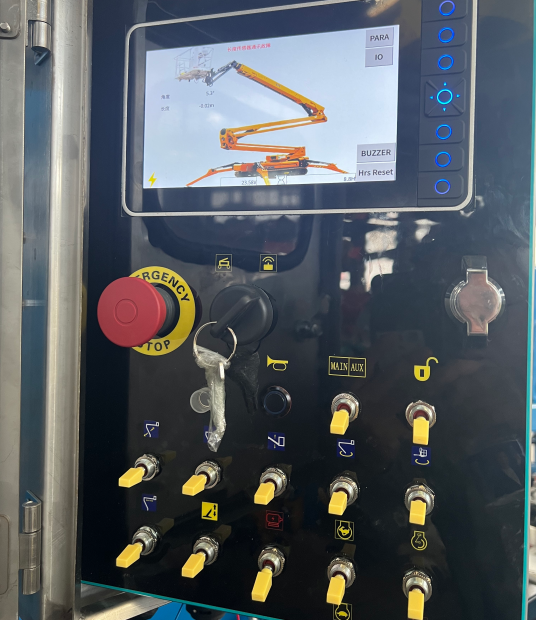

GROUNDLCDTOUCHCONTROL
Touch screen and button design, LCD screen
built-in angle viewingand E manual. power switch-
ingcanbeachieved through the touchscreen.
LEVELINGOFTHEBASKET
The basket can be leveled with one button,
simple and efficient.
OUTRIGGERCONTROLLER
The machine can work normally only when the
outriggers are fully leveled.
SELF-BALANCINGFOOTPADS
The tail of the outrigger is equipped with a
self-balancing foot pad,which can adapt to more
complex ground, and is equipped with a lifting
ring and a warning light.

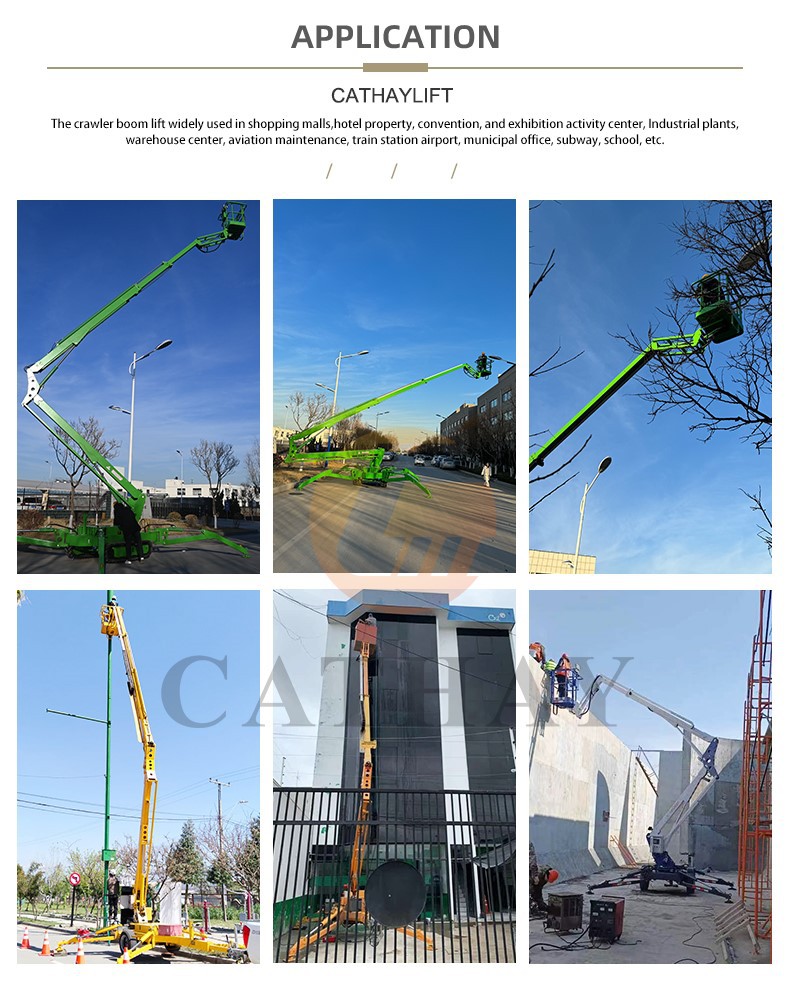

Application
Real Order
|
Model Type |
CTA-10TC |
CTA-12TC |
CTA-14TC |
CTA-16TC |
CTA-18TC |
CTA-20TC |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18 |
20 |
|
Working height |
12M |
14M |
16M |
18M |
20 |
22 |
|
Load Capacity |
200KG |
|||||
|
Platform size |
0.9*0.8M |
|||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3500KG |
3800KG |
|
Overall Size( L*W*H) |
5.2*1.35*2. 1M |
6.2*1.35*2. 1M |
6.1*1.35*2. 7M |
6.5*1.35*2. 85M |
6.8*1.35*2. 9M |
7.2*1.35*2. 95M |
|
Electric Motor |
48V/3.3kw |
|||||
|
Battery |
8*12V/230Ah |
|||||
|
Wind Resistance Level |
5 |
|||||
