10~20m Compact Boom Lift

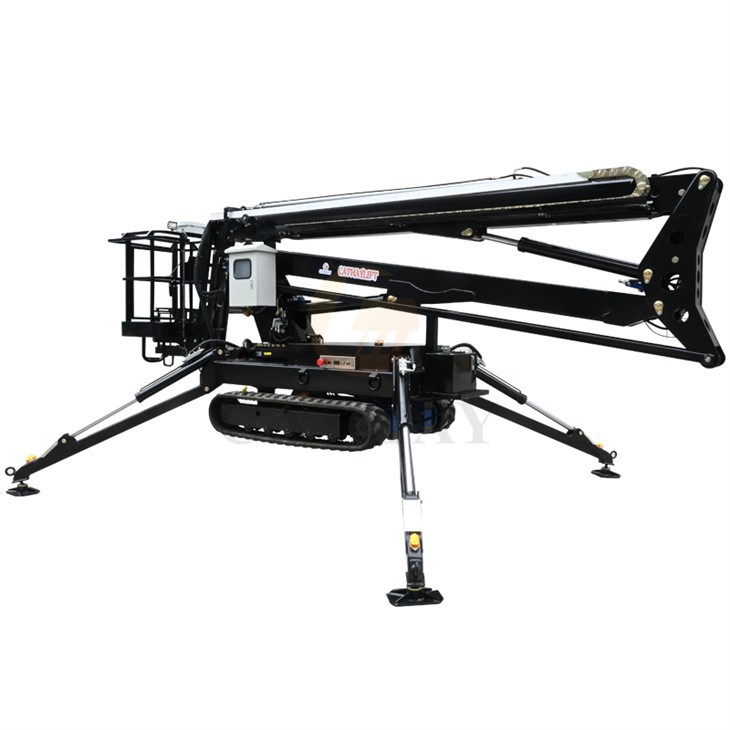

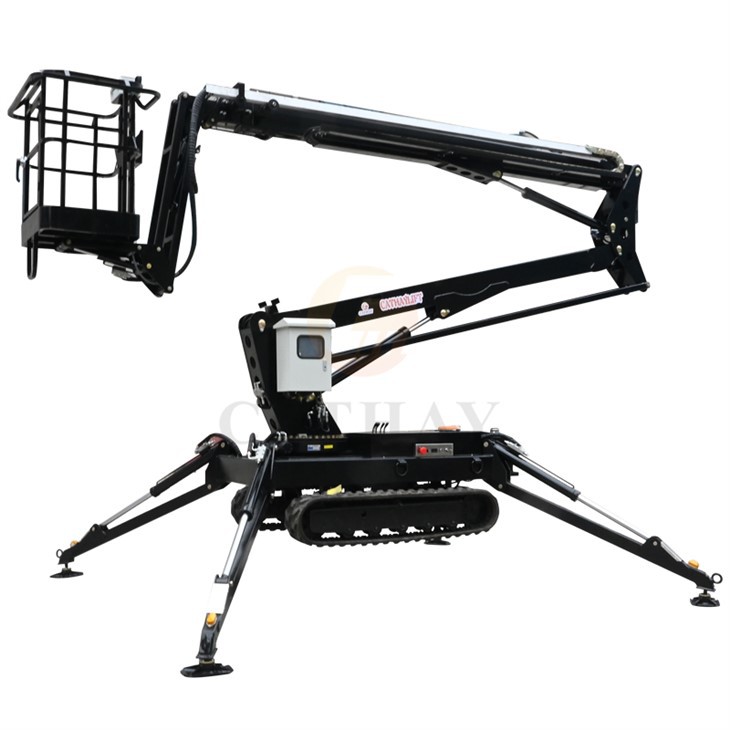

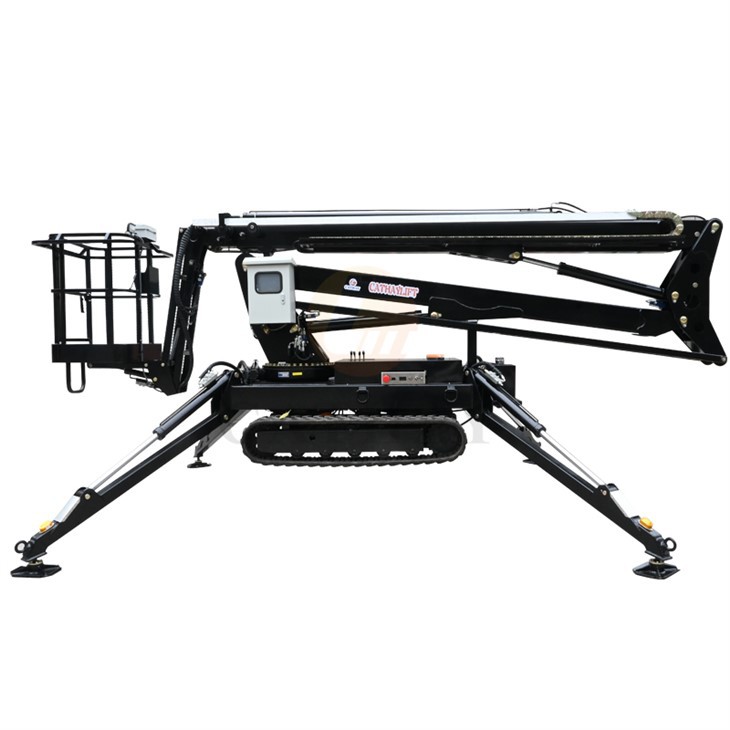

The CATHAYLIFT Compact Boom Lift adopts various powers, such as AC/DC/ Gasoline/ Diesel. It is widely used in rough ground, and the driving is stable; the crawler travels and brakes, and the climbing ability is 36%; the boom part is composed of two sets of parallel four-bar linkages. , the storage volume is compact, and the lifting stroke is large; the middle part is a simple boom telescopic mechanism, which increases the operating range of the platform. It is suitable for high-level exhibition arrangement in venues, and also suitable for space operations in factories with narrow areas or spaces; it is especially suitable for large-scale high-altitude continuous operations in airport terminals, stations, docks, shopping malls, stadiums, residential properties, factories and mine workshops, etc.
Products Details
Details Images
Application
Real Order
|
Model Type |
CTA-10TC |
CTA-12TC |
CTA-14TC |
CTA-16TC |
CTA-18TC |
CTA-20TC |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18 |
20 |
|
Working height |
12M |
14M |
16M |
18M |
20 |
22 |
|
Load Capacity |
200KG |
|||||
|
Platform size |
0.9*0.8M |
|||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3500KG |
3800KG |
|
Overall Size( L*W*H) |
5.2*1.35*2. 1M |
6.2*1.35*2. 1M |
6.1*1.35*2. 7M |
6.5*1.35*2. 85M |
6.8*1.35*2. 9M |
7.2*1.35*2. 95M |
|
Electric Motor |
48V/3.3kw |
|||||
|
Battery |
8*12V/230Ah |
|||||
|
Wind Resistance Level |
5 |
|||||
