Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of self-propelled crawler boom lift in China. We warmly welcome you to buy discount self-propelled crawler boom lift for sale here from our factory. Quality products and reasonable price are available.

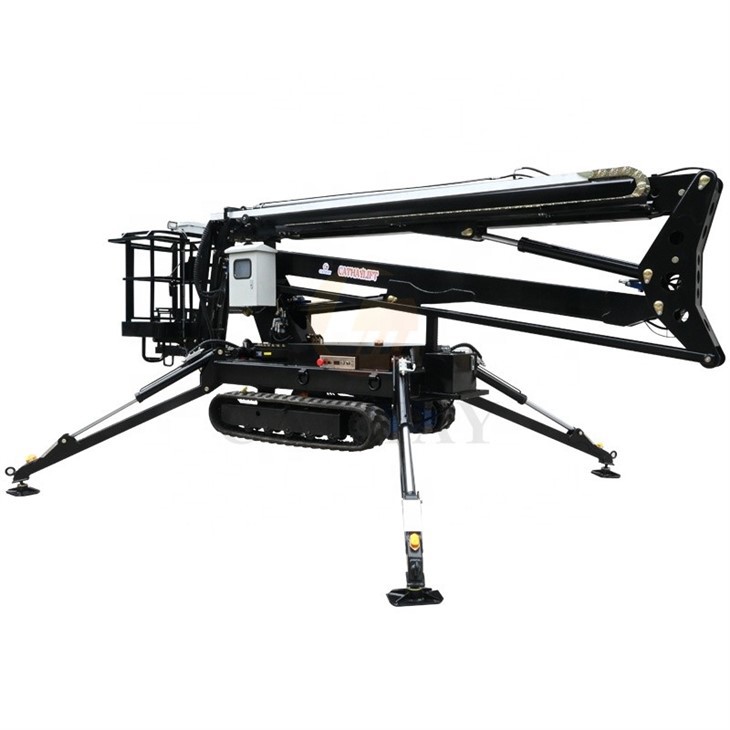

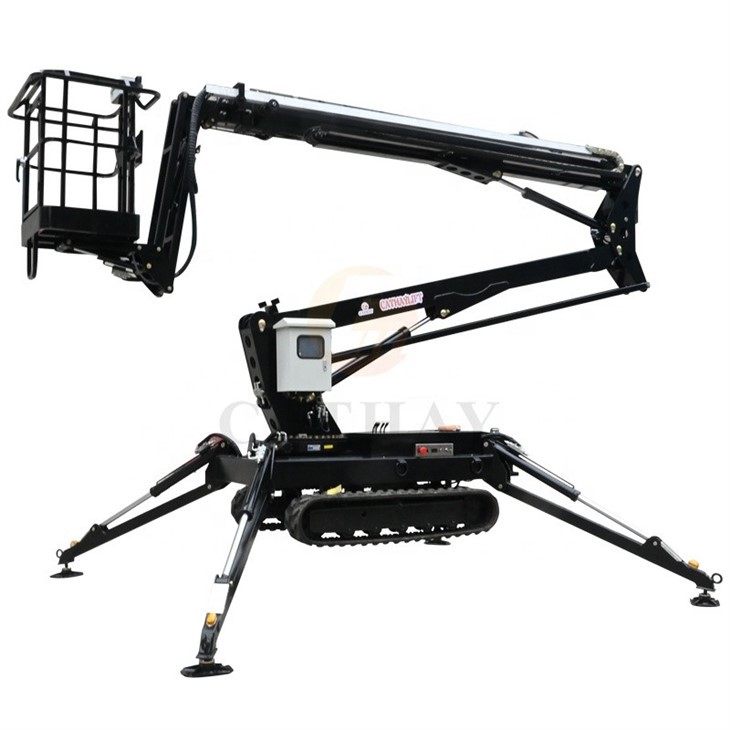

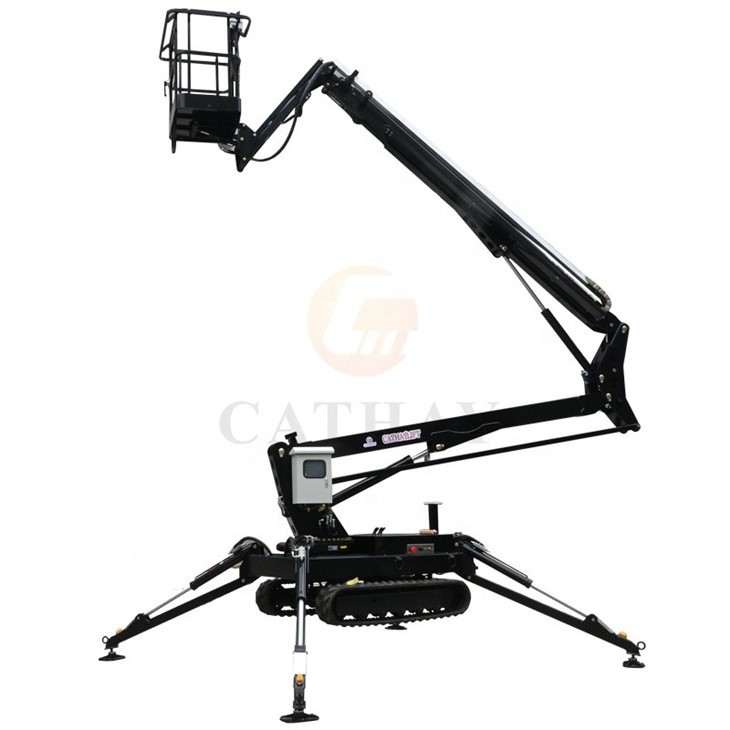

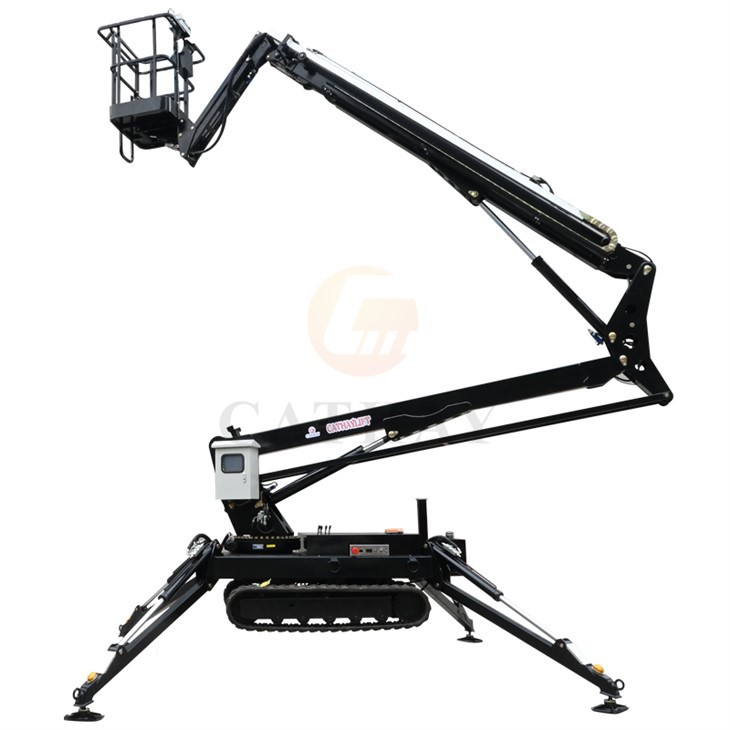

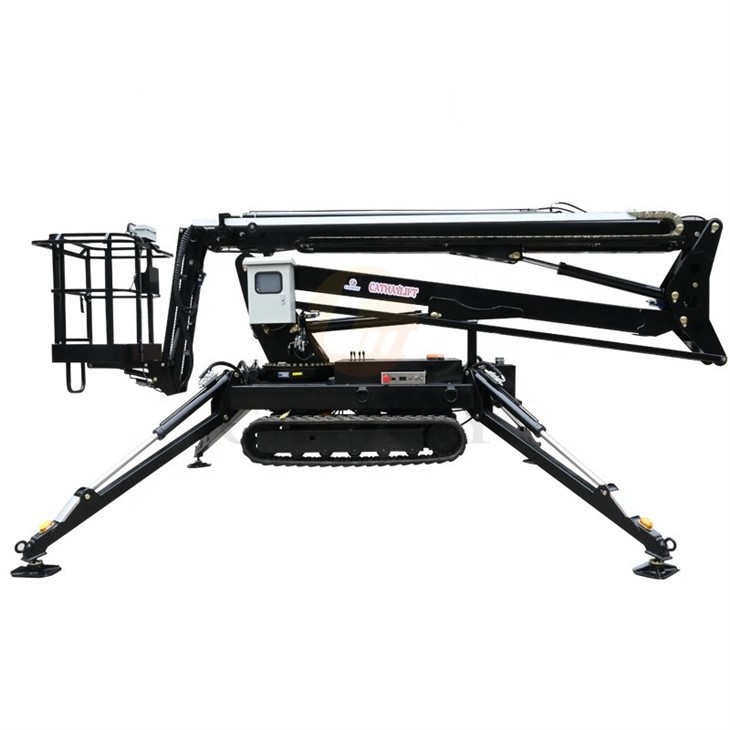

10~20m Self-propelled Crawler Boom Lift
CATHAYLIFT Self-propelled Crawler Boom Lift, a robust solution designed to elevate your projects to new heights. With a lifting capacity of 200kg and a height range of 10m to 20m, it offers unparalleled performance across various terrains. This crawler boom lift seamlessly integrates multiple power sources, including AC, DC, gasoline, and diesel, ensuring adaptability to diverse working environments. Its maneuverability on rough ground is matched by its smooth operation, making it ideal for high-rise exhibition setups and navigating narrow factory spaces with ease. Elevate your efficiency and safety standards with the CATHAYLIFT crawler boom lift.
Products Details
Details Images
Application
Real Order
|
Model Type |
CTA-10TC |
CTA-12TC |
CTA-14TC |
CTA-16TC |
CTA-18TC |
CTA-20TC |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18 |
20 |
|
Working height |
12M |
14M |
16M |
18M |
20 |
22 |
|
Load Capacity |
200KG |
|||||
|
Platform size |
0.9*0.8M |
|||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3500KG |
3800KG |
|
Overall Size( L*W*H) |
5.2*1.35*2. 1M |
6.2*1.35*2. 1M |
6.1*1.35*2. 7M |
6.5*1.35*2. 85M |
6.8*1.35*2. 9M |
7.2*1.35*2. 95M |
|
Electric Motor |
48V/3.3kw |
|||||
|
Battery |
8*12V/230Ah |
|||||
|
Wind Resistance Level |
5 |
|||||
