Electric Small Scissor Lift
video
Electric Small Scissor Lift

Electric Small Scissor Lift

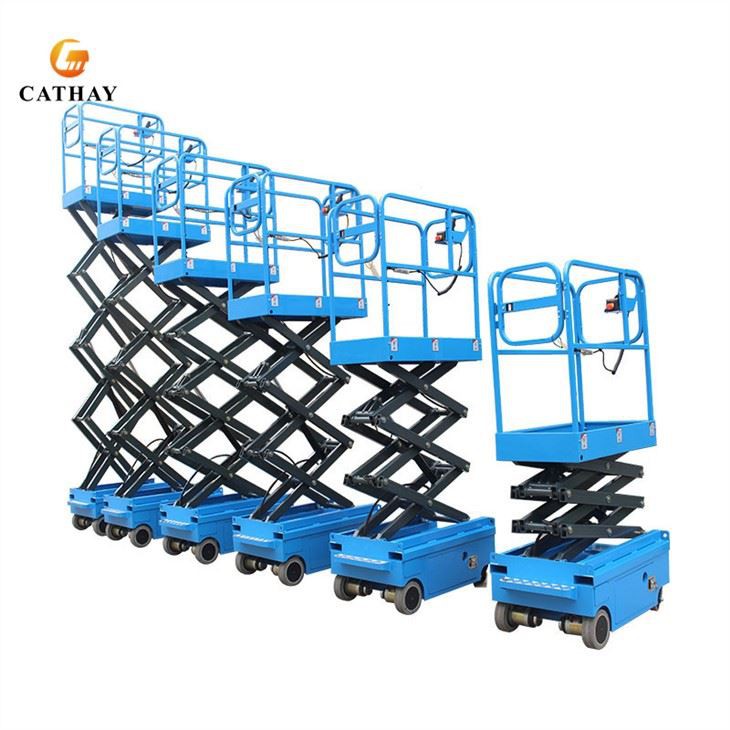

Electric smalla scissor lift are high-altitude operation equipments with excellent elevating stability and wide applicability which are developed and designed on basis of advantages of similar products at home and abroad. They are mainly suitable to outdoor open construction with more excellent flexibility and maneuverability to be suitable to high-altitude operation with wide scope and great fluidity due to pushing function of trolley.
Send Inquiry
Chat Now
Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric small scissor lift in China. We warmly welcome you to buy discount electric small scissor lift for sale here from our factory. Quality products and reasonable price are available.

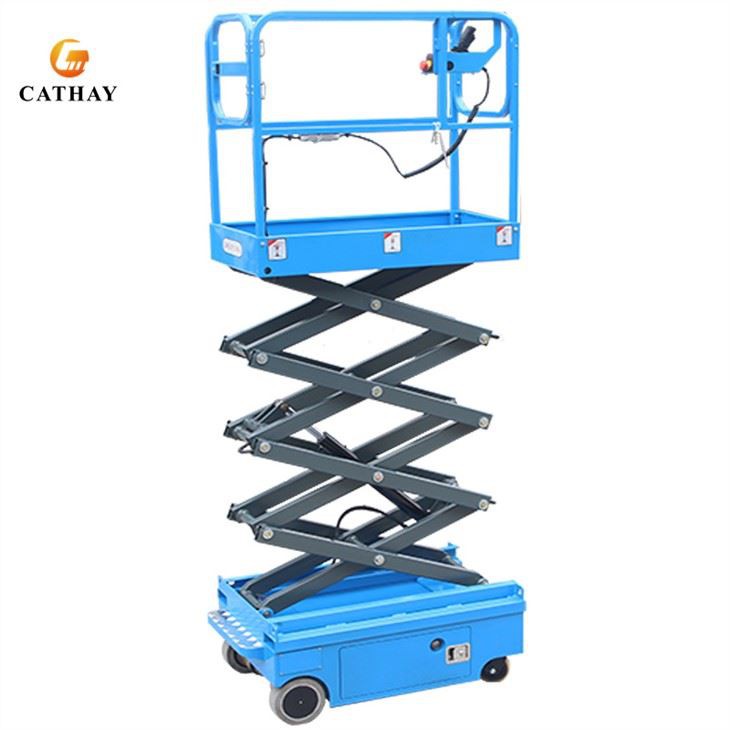

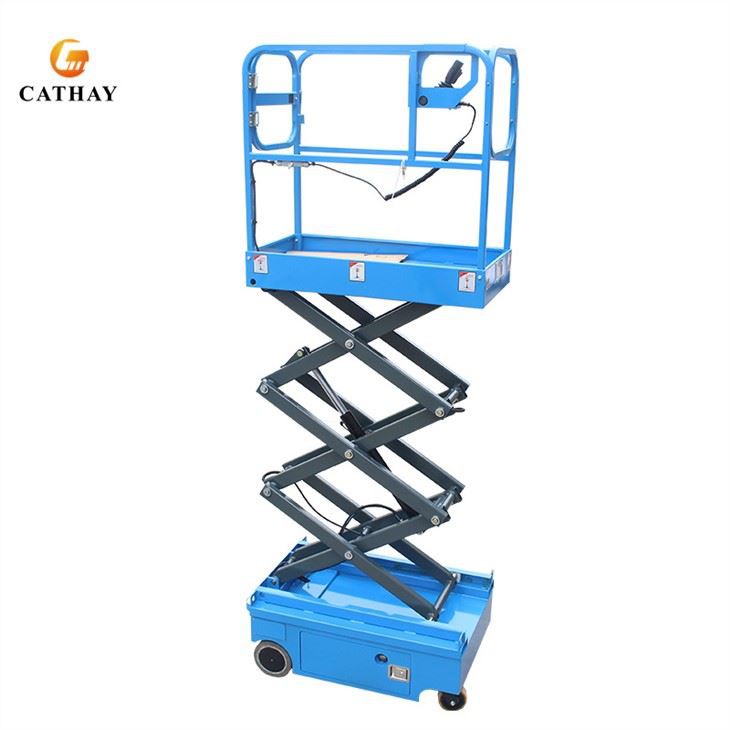

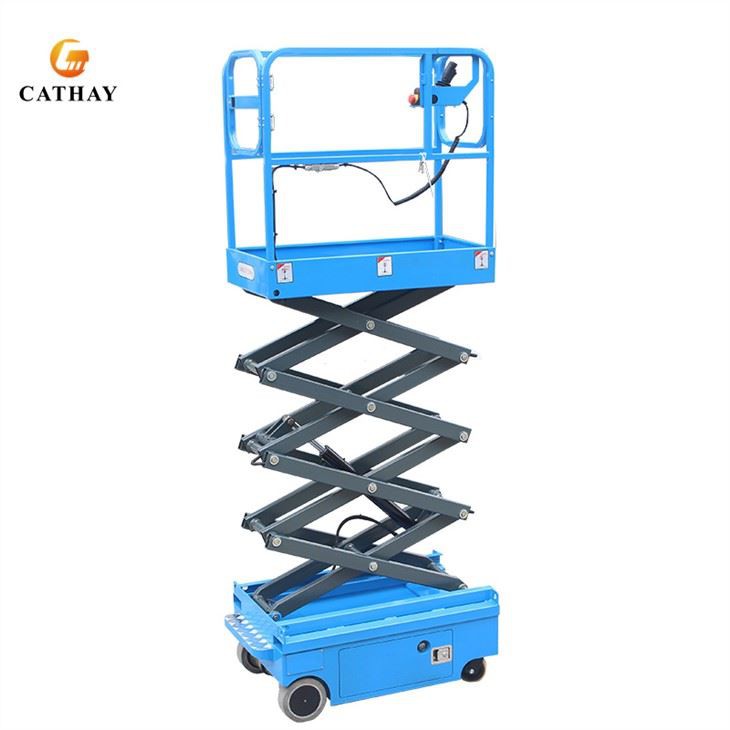

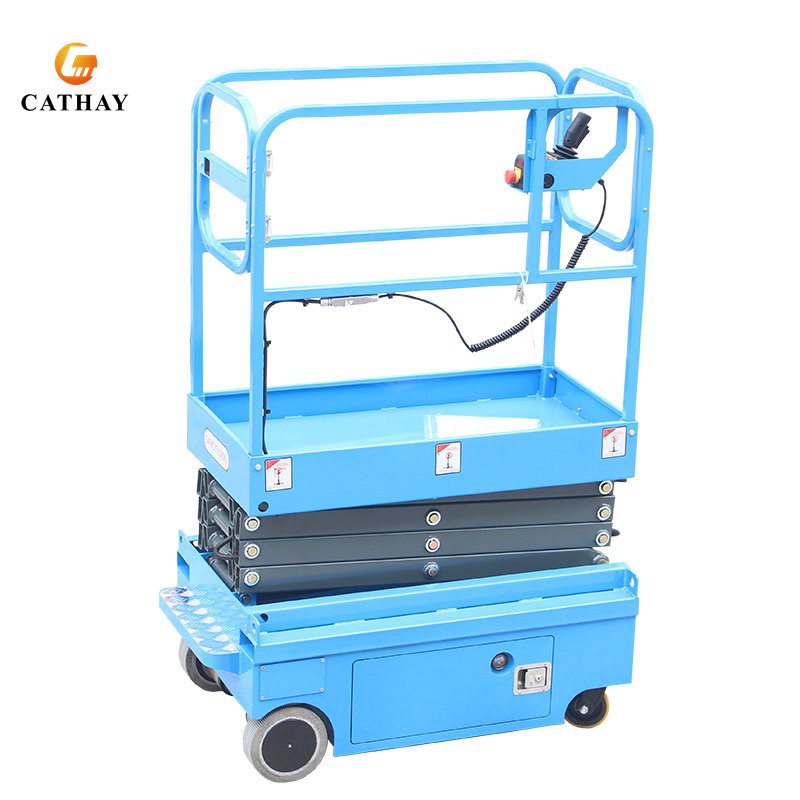

Small mini scissor lift, 300kg payload, 3m and 3.9m lift height models, compact frame, small size, small turning radius, lightweight, can be used on weight-sensitive ground, the platform is spacious enough to accommodate two tons. o Three workers, can be used indoors and outdoors, weighs 300kg, can carry workers and gears at the same time, centralized charging, and easy battery maintenance. Electric Motor, Electric Drive Control System, Electric Motor and Hydraulic Pump Station, Durable Battery Indicator, Smart Battery Charger, Ergonomic Control Handle High Strength Hydraulic Cylinder. It can also drive its movement at its fully extended height and has a built-in pit protection system that provides support if it's being driven on uneven surfaces. An efficient electric drive makes it run longer than similar elevators. The scissor lift is low-cost to operate because it has no chains, cables, or rollers in its mast.

Model Type

CLMS30

CLMS39

CLMS48

Max. Platform Height (mm)

3000

3900

4800

Max. Working Height (mm)

5000

5900

6800

Lift Rated Capacity (kg)

300

300

300

Platform Size (mm)

1170*600


Overall Size (mm)

1180* 760*18301180* 760* 19301180*760*2030

Overall Net Weight (kg)

490

600

710
Product Details:

Overview


Overview


Overview


Control Handle(Curties) Intuitive Control, High Maneuverability


Ground Control Panel(Up,Down,Emergency Lowing Valive,Battery Power Indicator)


Ladder (Easy to climp)


Battery Group(Maintenance-free lead-acid battery)


Internal smart Charger


Italy Hydrappp Hydraulic Pump Station


Italy Doyle Hydraulic Valve


Electric Driven &Steering(Rear Wheels)


Solid universal wheel(Front Wheels)
