Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of small indoor lift in China. We warmly welcome you to buy discount small indoor lift for sale here from our factory. Quality products and reasonable price are available.

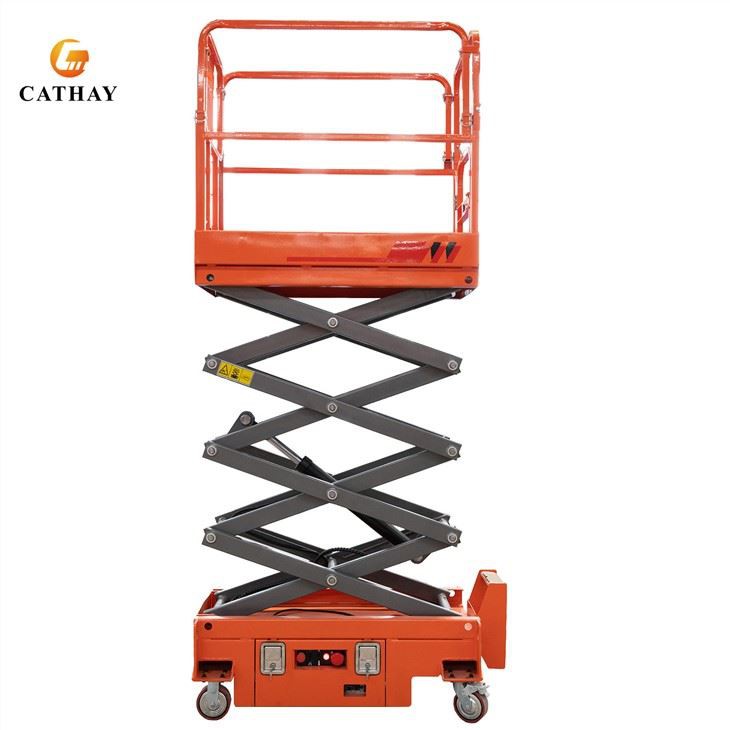

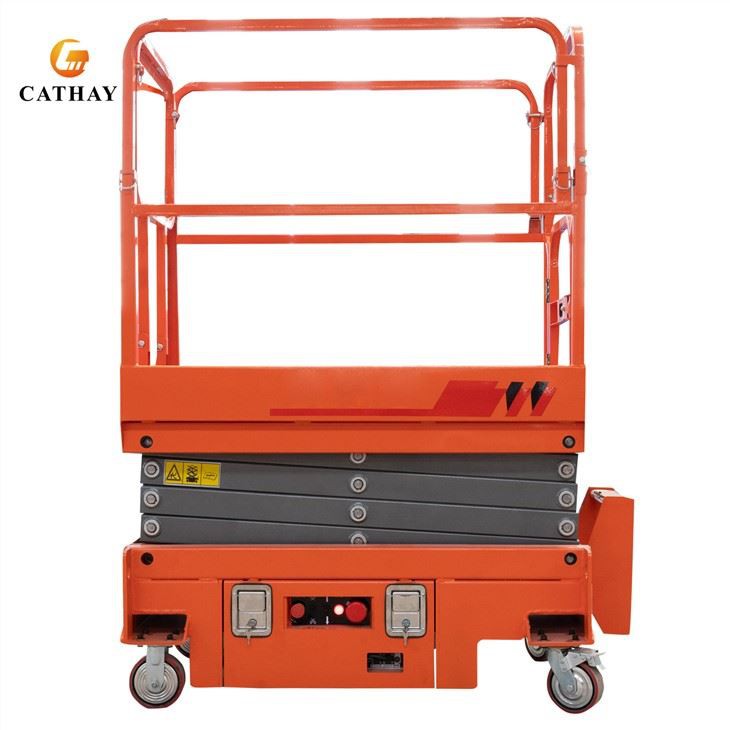

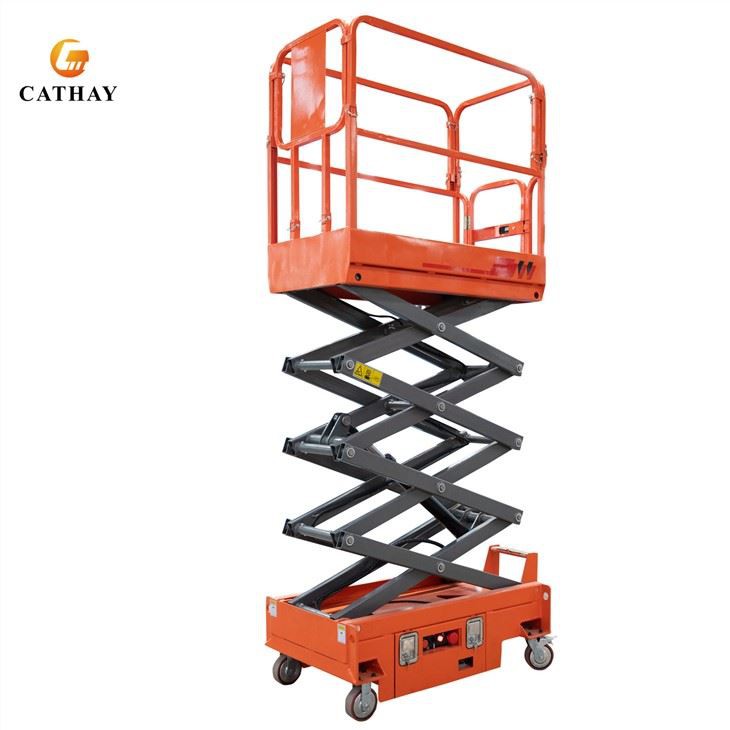

CATHAYLIFT small indoor lift is a platform suitable for all indoor aerial work. The product is made of high-strength manganese steel rectangular tube with high strength. The whole vehicle consists of three parts: base, scissors, and workbench. The Bucher pump station, NOK seals, ensure good sealing performance of the oil cylinder, and the price is absolutely low, it is the first choice for you to find indoor high-altitude work.
Model Type | CLM30 | CLM39 | CLM48 |
Max.Platform Height(MM) | 3000 | 3900 | 4800 |
Working Height(MM) | 5000 | 5900 | 6800 |
Min.Platform Height(MM) | 630 | 700 | 780 |
Platform Size(MM) | 1170×600 | 1170*600 | 1170*600 |
Rated Capacity(KG) | 300 | 240 | 240 |
Lifting Time(S) | 33 | 40 | 40 |
Descent time(S) | 30 | 30 | 30 |
Lifting Motor(V/KW) | 12/0.8 | ||
Battery Charger(V/A) | 12/15 | ||
Overall Length(MM) | 1300 | ||
Overall Width(MM) | 740 | ||
Guide rail height(MM) | 1100 | ||
Overall Height with Guardrail (MM) | 1650 | 1700 | 1870 |
Overall Net Weight(KG) | 360 | 420 | 450 |
Product Details:
Overview
Overview
Overview
Contraol Panel On The Platform
Ground Control Panel(Up,Down,Emergency Lowing Valive)
Ladder for eay to climp
Battery Group(Maintenance-free lead-acid battery)
Italy Hydrappp Hydraulic Pump Station
Support Legs(3.9m model)
Real Order:
