Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of portable lift table in China. We warmly welcome you to buy discount portable lift table for sale here from our factory. Quality products and reasonable price are available.
CATHAYLIFT Portable Lift Table adopts high-end brand accessories, which is durable and has a shelf life of two years and a shelf life of five years for the main structure. The number of complete lifts exceeds 2,000 times. It has won many patents, test reports, ISO international quality certification, and strict process management and production procedures. , test environment, to achieve high quality level.
Model | Load Capacity(KG) | Self Height | Max Platform Height(MM) | Platform Size(MM) | Lifting time | Net weight |
500kg Load Capacity | ||||||
C0501 | 500 | 180 | 950 | 610*916 | 17~22 | 160 |
C0502 | 500 | 200 | 1000 | 1200*600 | 20~25 | 120 |
C0503 | 500 | 200 | 1000 | 1200*800 | 20~25 | 130 |
C0504 | 500 | 200 | 1000 | 2000*800 | 20~25 | 240 |
1000KG Load Capacity | ||||||
C1000 | 1000 | 180 | 770 | 610*916 | 15~20 | 115 |
C1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | 160 |
C1002 | 1000 | 205 | 1000 | 1600×1000 | 20~25 | 186 |
C1003 | 1000 | 190 | 1010 | 1300*800 | 20~25 | 160 |
C1004 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 |
C1005 | 1000 | 240 | 1300 | 1700×1000 | 30~35 | 210 |
C1006 | 1000 | 240 | 1300 | 2000×850 | 30~35 | 212 |
C1007 | 1000 | 240 | 1300 | 2000×1000 | 30~35 | 223 |
C1008 | 1000 | 240 | 1300 | 1700×1500 | 30~35 | 365 |
C1009 | 1000 | 240 | 1300 | 2000×1700 | 30~35 | 430 |
C1010 | 1000 | 305 | 1780 | 1300X820 | 35-45 | 210 |
C1011 | 1000 | 470 | 3000 | 1700x1000 | 35-45 | 450 |
2000KG Load Capacity | ||||||
C2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 |
C2002 | 2000 | 205 | 1000 | 2500*820 | 20~25 | 300 |
C2003 | 2000 | 230 | 1050 | 1600×1000 | 20~25 | 268 |
C2004 | 2000 | 250 | 1300 | 1700×850 | 25~35 | 289 |
C2005 | 2000 | 250 | 1300 | 1700×1000 | 25~35 | 300 |
C2006 | 2000 | 250 | 1300 | 2000×850 | 25~35 | 300 |
C2007 | 2000 | 250 | 1300 | 2000×1000 | 25~35 | 315 |
C2008 | 2000 | 250 | 1400 | 1700×1500 | 25~35 | 415 |
C2009 | 2000 | 250 | 1400 | 2000×1800 | 25~35 | 500 |
C2010 | 2000 | 190 | 1010 | 1300*800 | 20~25 | 235 |
C2011 | 2000 | 350 | 1780 | 1300X850 | 35-45 | 295 |
4000KG Load Capacity | ||||||
C4000 | 4000 | 230 | 1000 | 2500*850 | 20~25 | 320 |
C4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 |
C4002 | 4000 | 240 | 1050 | 2000×1200 | 30~40 | 405 |
C4003 | 4000 | 300 | 1400 | 2000×1000 | 35~40 | 470 |
C4004 | 4000 | 300 | 1400 | 2000×1200 | 35~40 | 490 |
C4005 | 4000 | 300 | 1400 | 2200×1000 | 35~40 | 480 |
C4006 | 4000 | 300 | 1400 | 2200×1200 | 35~40 | 505 |
C4007 | 4000 | 350 | 1300 | 1700×1500 | 35~40 | 570 |
C4008 | 4000 | 350 | 1300 | 2200×1800 | 35~40 | 655 |
C4009 | 4000 | 400 | 2050 | 1700X1200 | 55-65 | 520 |
Max Platform Height≥3M | ||||||
C1011 | 1000 | 470 | 3000 | 1700x1000 | 35-45 | 450 |
C2012 | 2000 | 560 | 3000 | 1700x1000 | 50-60 | 750 |
C2013 | 2000 | 850 | 4200 | 2500*1500 | 70-80 | 900 |
C0401 | 400 | 600 | 4140 | 1700x1000 | 30-40 | 800 |
C0801 | 800 | 706 | 4210 | 1700x1000 | 70-80 | 858 |
Other | ||||||
C3001 | 3000 | 220 | 1010 | 1300*800 | 20~25 | 350 |
C8000 | 8000 | 240 | 1050 | 3000*1200 | 20~25 | 370 |
Product Details
Hydraulic Pump Station
Aluminum Anti-Pinch Device
Perfect Clamping and Durable Scissor Structure
Durable Hydraulic Cylinder
Travel Switch to Protect Cylinders Stop properly
Wire Control Handle(Standard)
Remote Control(Optional)
Guardrails(Optional)
Wheels for easy moving(Optional)

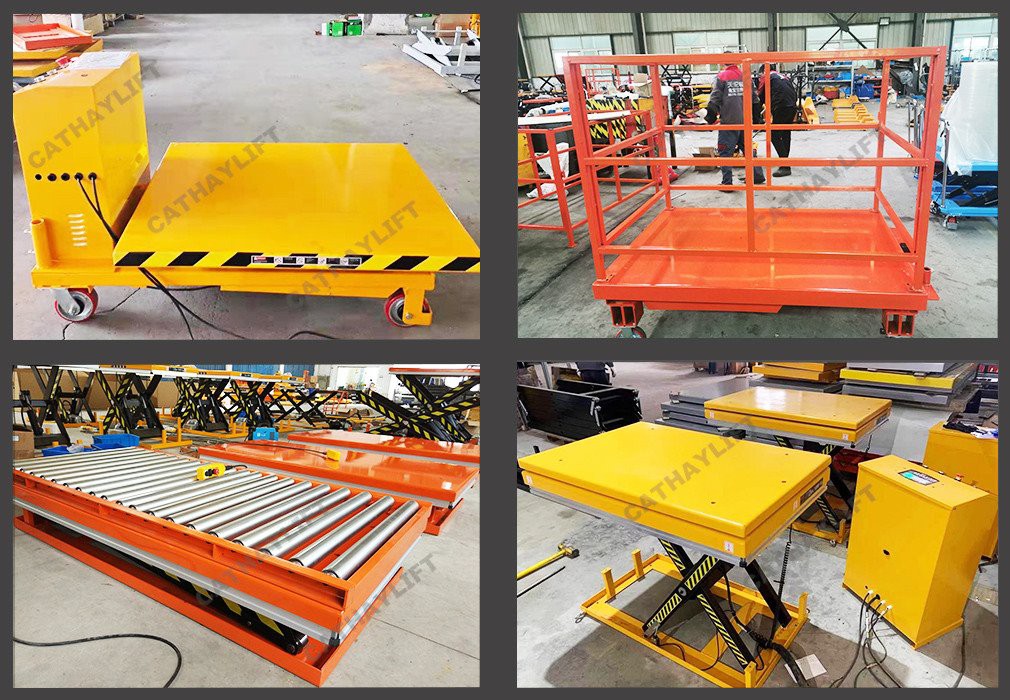

Real Order
