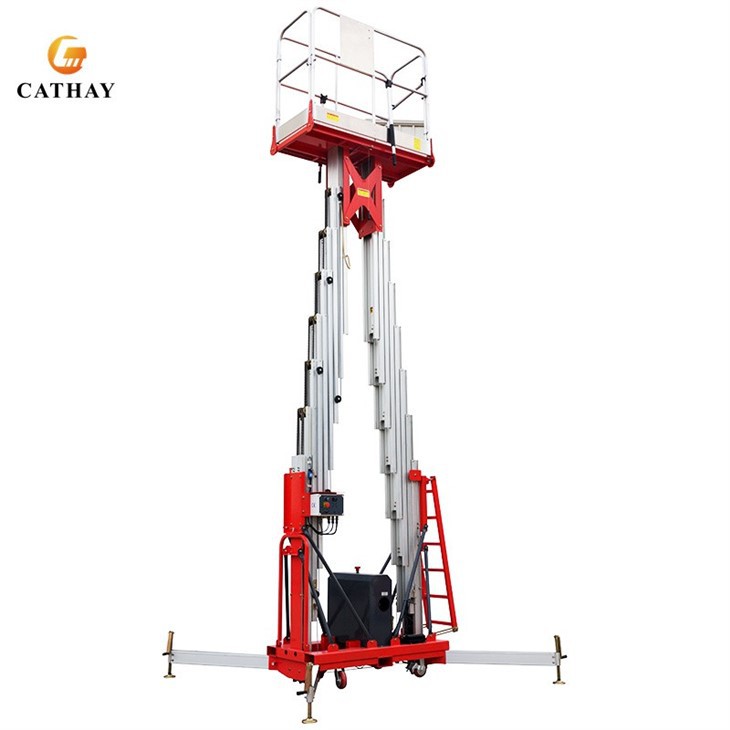

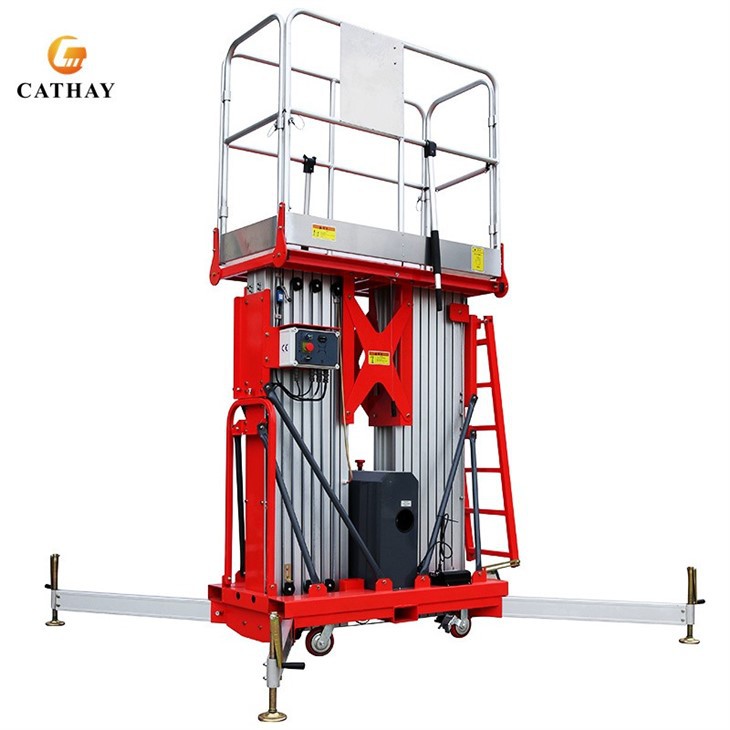

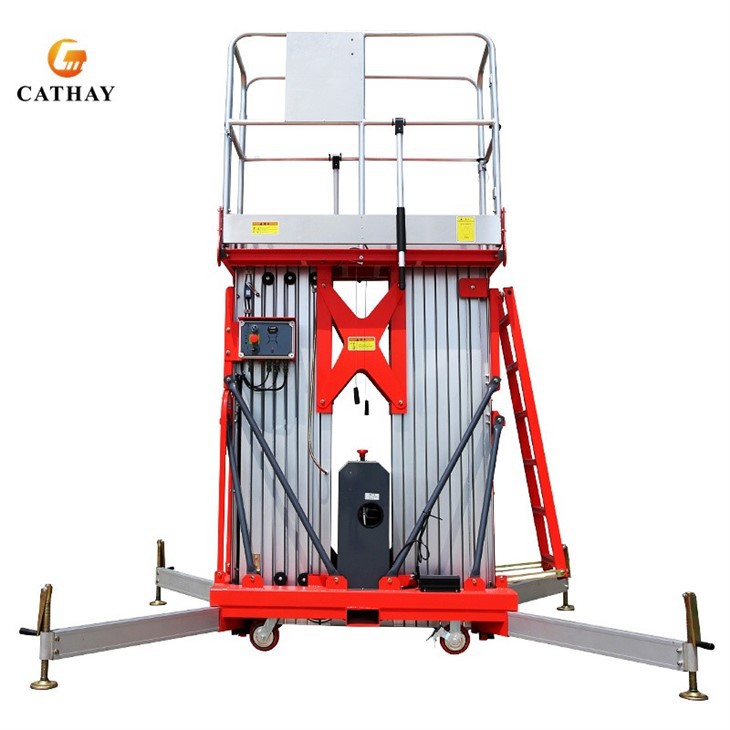

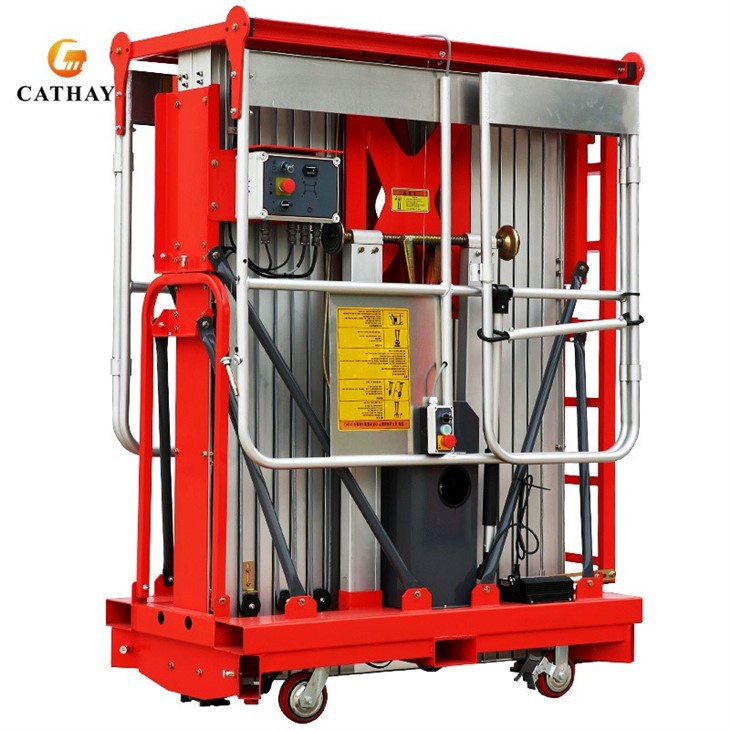

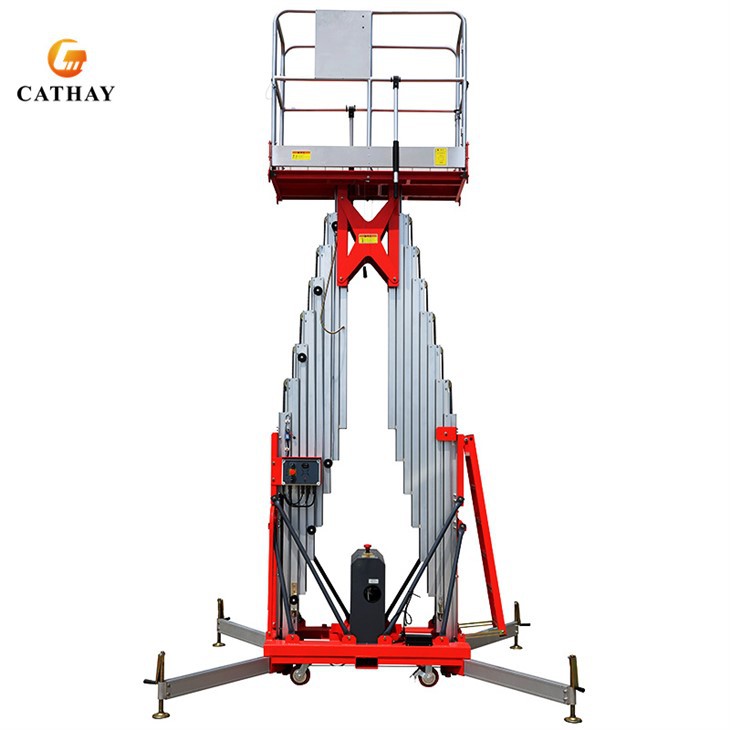

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of self-propelled vertical double mast lift in China. We warmly welcome you to buy discount self-propelled vertical double mast lift for sale here from our factory. Quality products and reasonable price are available.
The core components of this device are selected from high-quality components of well-known manufacturers, and the main structure of the base is made of Q345 manganese steel, which is combined with the overall stamping and welding process to ensure the stability of the frame. The lifting column is made of 6005T5 aviation-grade high-strength aluminum alloy material, and the guardrail is equipped with 35×35mm reinforced square steel beams. Innovative integrated road adaptive stabilization device, hydraulic pipeline anti-burst mechanism, intelligent fault pre-inspection module and other multiple protection technologies, while fully ensuring the safety of operators, significantly improve the operation efficiency of the equipment.
|
Model No. |
CR-7.5D |
CR-9D |
|
|
Max.Platform Height |
mm |
7500 |
9000 |
|
Max Working Height |
mm |
9500 |
11000 |
|
Load Capacity |
mm |
200Kg |
150kg |
|
occupants |
mm |
1 |
1 |
|
Overall size |
mm |
1460*1020*1990 |
1460*820*1990 |
|
Platform Size |
mm |
1000*620 |
|
|
Wheel Base |
mm |
1140 |
|
|
Max Drive Speed(Platform Stowed) |
Km/h |
4 |
|
|
Max Drive Speed(Platform Extended) |
Km/h |
1.1 |
|
|
Min Turn Radius |
mm |
0 |
|
|
UP/Down speed |
/SEC |
48/40SEC |
53/48SEC |
|
Driving Wheel Size |
mm |
Φ230X80 |
|
|
Battery |
V/Ah |
2X12VDC/100AH |
|
|
Lifting motor |
/ |
24VDC/1.3KW |
|
|
Net weight |
kg |
1260 |
1360 |
|
Charger |
24V/15A |
24V/15A |
|
Product Details:
● High-precision closed-loop proportional control technology (sensitive response/low failure rate)
● Ground platform control center and cargo basket coordinated control
● ECU electronic control unit (platform self-diagnosis system)
● Hydraulic steering mechanism + electric drive system (dynamic balance guarantee mechanism)
● Environmentally friendly energy solution (intelligent energy charging system)
● Terrain intelligent perception and protection system (real-time monitoring based on laser radar)
● Sound and light composite alarm device (multi-band buzzer + high-brightness strobe warning light)
● Platform inclination automatic detection system (three-dimensional digital inclination sensor)
Details Images:
Travel limit device, wear-resistant cable, anti-skid safety base pad:
High-quality travel limit device (compliant with IEC 60947-5-1 standard) has wide temperature range environmental adaptability and anti-electromagnetic disturbance characteristics, and accurately positions the actuator in industrial scenarios with strong electromagnetic fields, temperature fluctuations and humidity changes. Wear-resistant power cable (UL 758 certified) adopts temperature protection design, and integrates anti-mechanical external force structure to withstand continuous pressure. The work platform base is equipped with an anti-skid safety pad (EN ISO 20345 certified), which uses a high friction coefficient surface treatment process and an anti-overturning structure design to protect workers from falling.
Ergonomic intelligent control handle, dual-control interlocking safety logic, emergency brake module:
Equipped with a programmable intelligent handle that complies with the ISO 13849 standard, it adopts a grip-trigger operation and a false touch protection structure design to achieve accurate transmission of lifting commands to avoid false touches. Ground control and hanging basket control cannot be carried out at the same time, and both are dual-channel safety circuits.
Full hydraulic steering, intelligent electric drive system, sound and light warning device, three-dimensional tilt sensor module:
The front axle adopts a hydraulic closed-loop steering system, equipped with an intelligent electric drive unit and an integrated load dynamic sensing system. The platform is lifted to a critical height to trigger the height interlock protection and activate the warning light. The walking mechanism is equipped with 4 sets of high-elasticity composite rubber tires with a specification of Φ305mm×100mm, and the tread adopts RAL 7035 industrial gray wear-resistant formula.
Application
Real Order:
