Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of two mast self propelled aluminum lift in China. We warmly welcome you to buy discount two mast self propelled aluminum lift for sale here from our factory. Quality products and reasonable price are available.

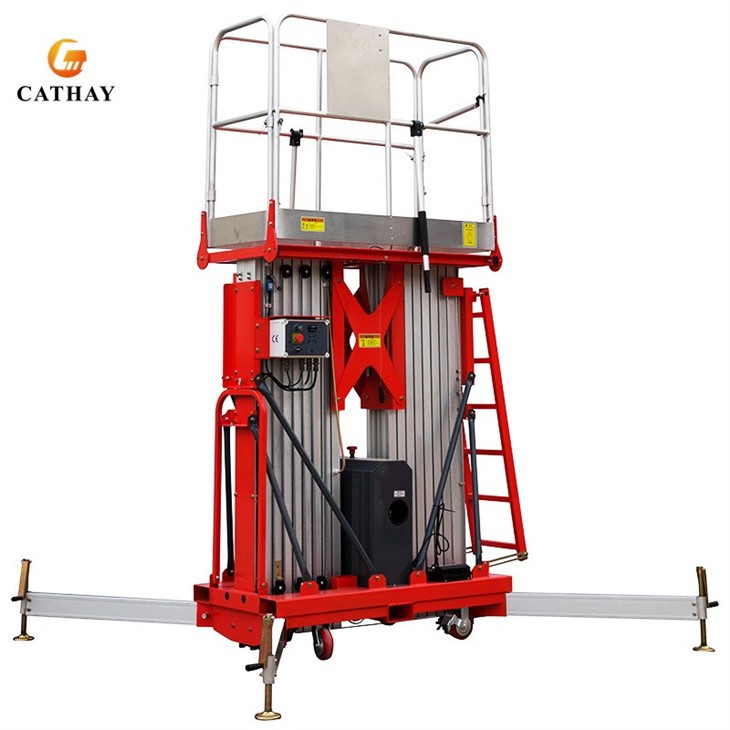

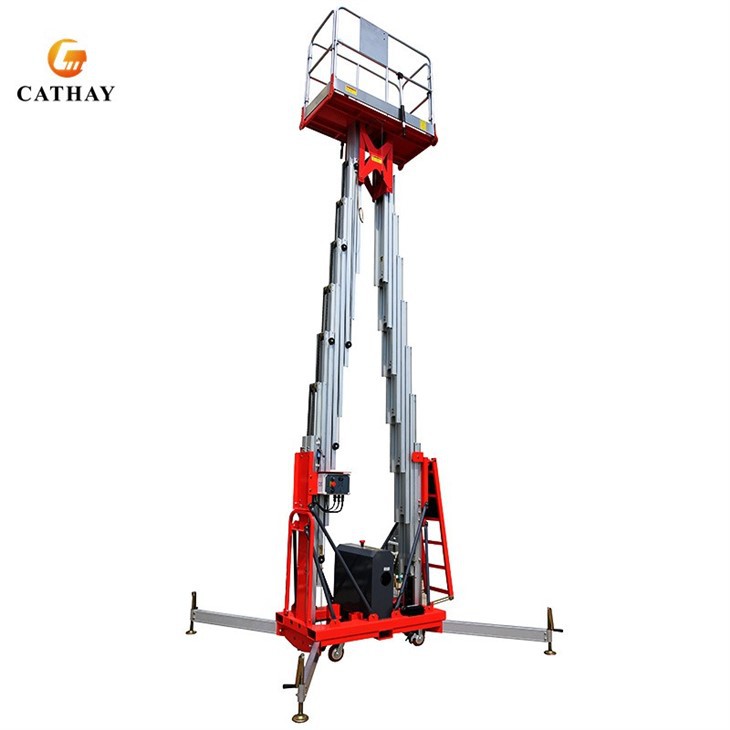

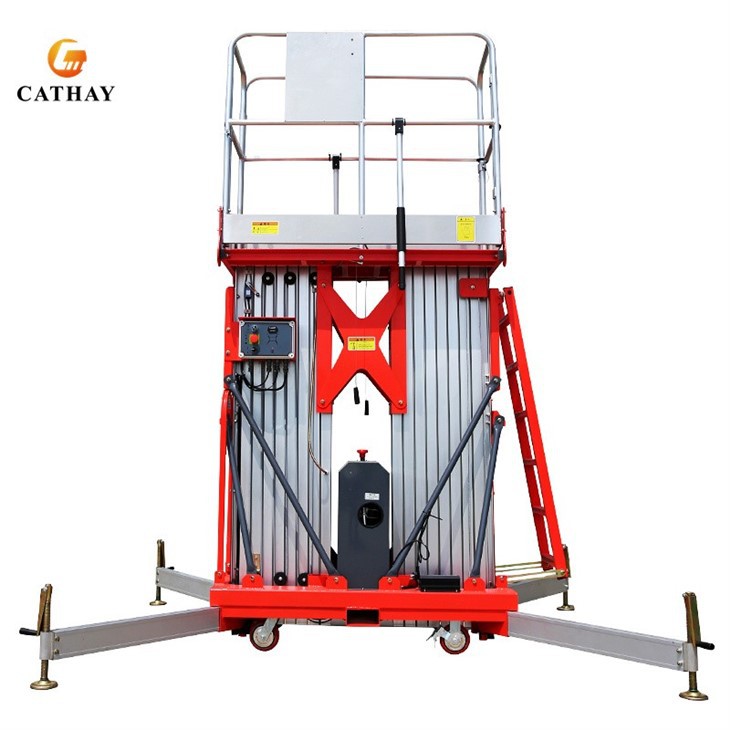

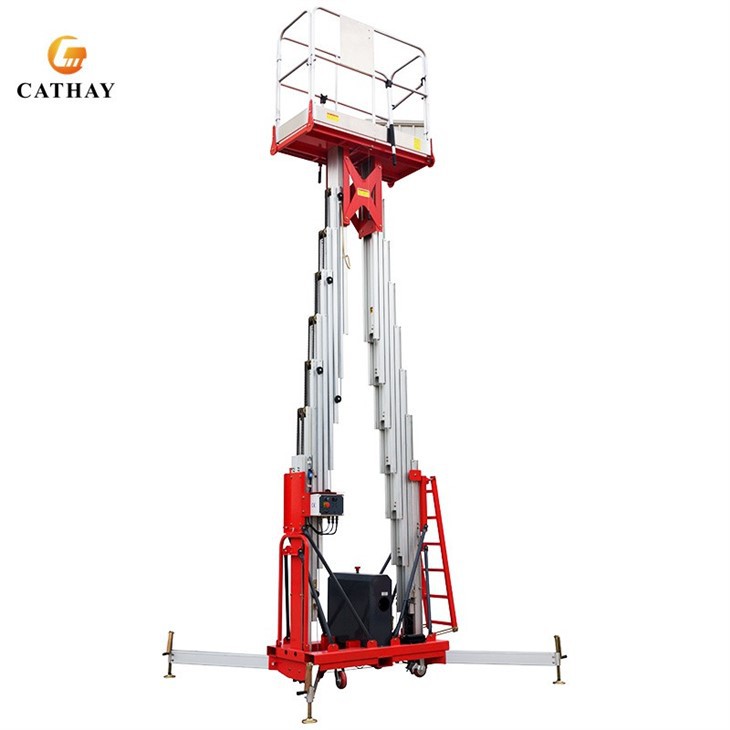

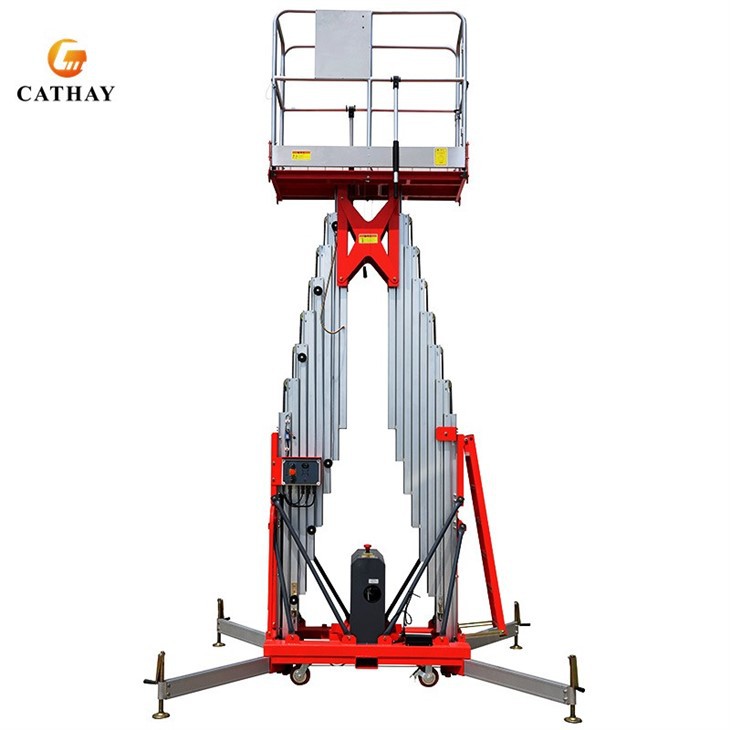

Two Mast Self Propelled Aluminum Lift
Introducing the Two Mast Self Propelled Aluminum Lift by CATHAYLIFT, an epitome of cutting-edge engineering and robust design. This high-performance aerial work platform is crafted to provide unmatched safety, efficiency, and convenience, making it an ideal choice for various maintenance, installation, and construction tasks.
One of the standout features of this lift is the anti-fall locking valve. This crucial safety mechanism ensures that the platform remains securely in place during operation, preventing any sudden or accidental descent. This guarantees the utmost safety for operators, allowing them to focus on their tasks with peace of mind.

Products Details
The lift is constructed from 6005T6 aluminum alloy, renowned as the highest strength series. This premium material endows the platform with exceptional durability and strength, while still maintaining a lightweight and compact structure. This combination of robustness and portability makes the lift easy to maneuver and transport, without compromising on structural integrity.
Equipped with insert outriggers, the lift provides superior stability during operation. These outriggers can be easily deployed and retracted, ensuring the lift remains steady even at its maximum height. This feature is particularly beneficial when working in environments that require frequent relocation of the platform.




Real Order
The non-marking noiseless PU solid wheels are another notable feature. These wheels are designed to provide smooth and silent movement, minimizing disruption in noise-sensitive environments such as hospitals, libraries, and office buildings. Additionally, they do not leave marks on flooring, preserving the aesthetic quality of indoor surfaces.
In summary, the Two Mast Self Propelled Aluminum Lift by CATHAYLIFT combines advanced safety features, premium materials, and user-friendly design to deliver a top-notch aerial work platform. Its anti-fall locking valve, 6005T6 aluminum alloy construction, insert outriggers, and non-marking noiseless PU solid wheels make it an exceptional choice for professionals seeking reliability, safety, and ease of use in their elevated work tasks.



|
Model No. |
CUP-6DH |
CUP-8DH |
CUP-9DH |
CUP-10DH |
CUP-12DH |
CUP-14DH |
CUP-16DH |
|||||
|
Max.Platform Height |
6m |
8m |
9m |
10m |
12m |
14m |
16m |
|||||
|
Max Working Height |
8m |
10m |
11m |
12m |
14m |
16m |
18m |
|||||
|
Load Capacity |
300kg |
300kg |
250kg |
250kg |
200kg |
200kg |
150kg |
|||||
|
Platform Size |
1.45*0.7m |
1.8*0.7m |
||||||||||
|
Occupants |
Two people |
|||||||||||
|
Outrigger Coverage |
2.45*1.75m |
2.7*1.8m |
||||||||||
|
Overall Size |
1.45*0.81*1.99m |
1.88*0.81*2.68m |
||||||||||
|
Net Weight |
610kg |
645kg |
680kg |
715kg |
750kg |
892kg |
996kg |
|||||
|
Motor Power |
1.5kw |
|||||||||||
|
Options |
DC |
2x12v |
||||||||||
|
DC Motor |
2.2kw |
|||||||||||
|
Charger |
12v15A |
|||||||||||
