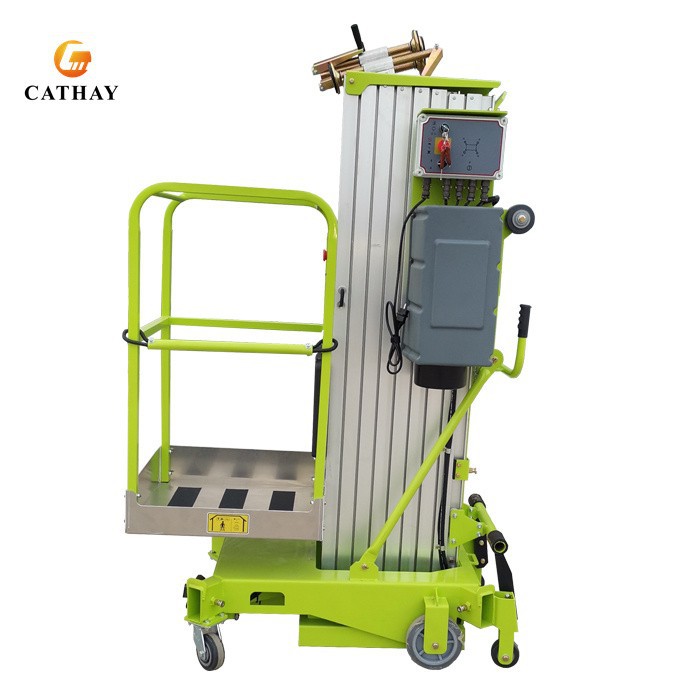

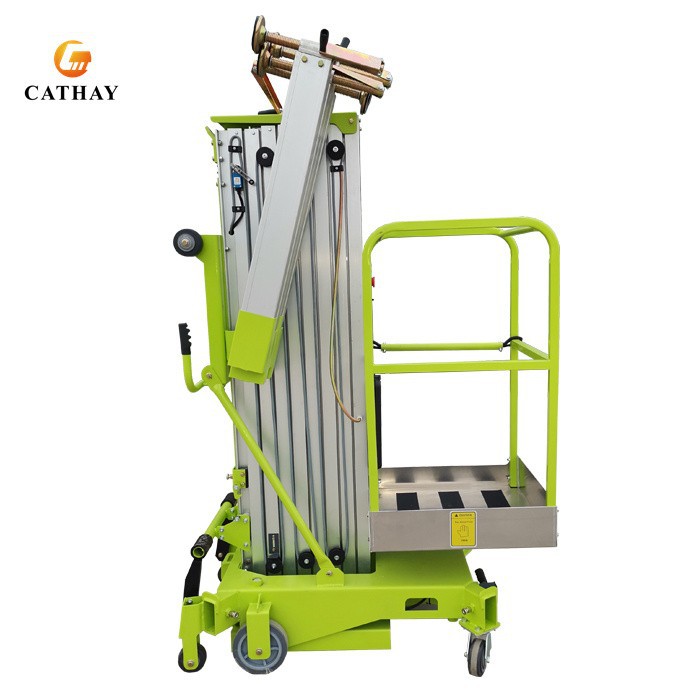

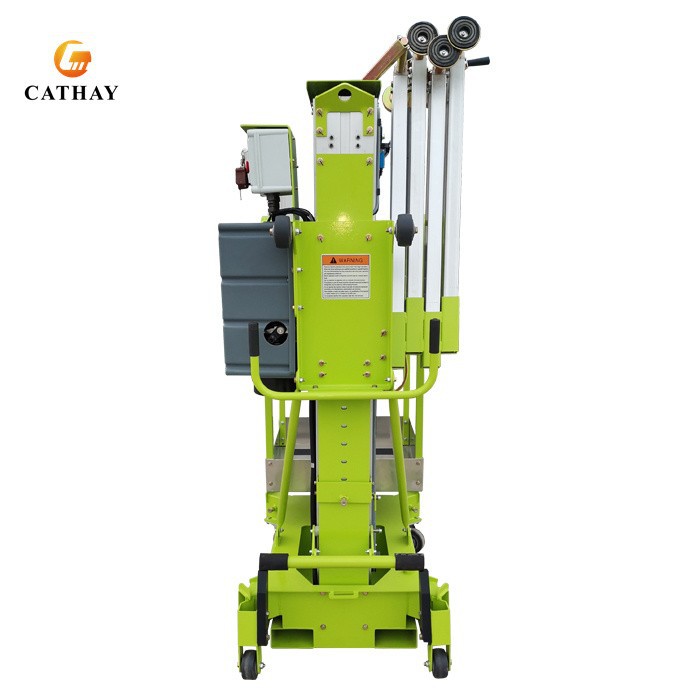

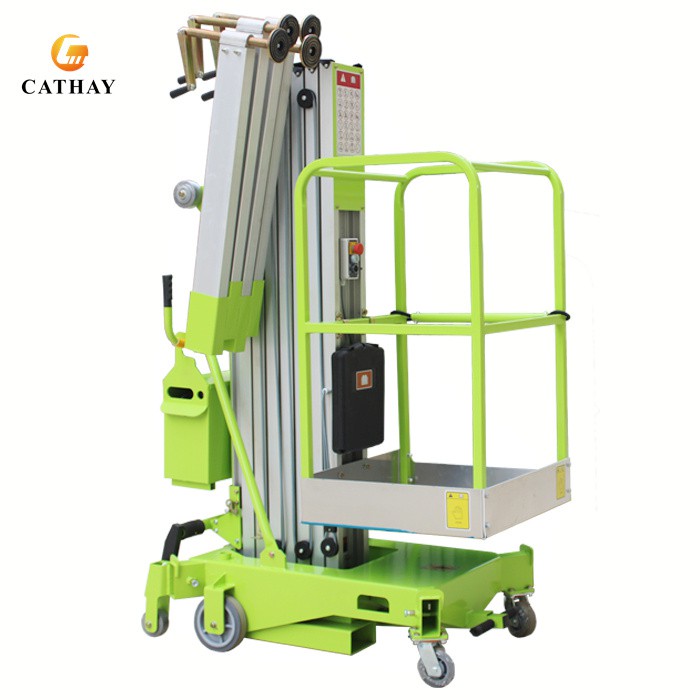

5~12m Push-around Aluminum Lift
The CUP-H series aluminum lift is an ideal tool for indoor and outdoor high-altitude operations with a maximum platform height of 5~12m and a load capacity of 150kg. It is designed to cater specifically to the EU and North American markets, and is comparable to renowned brands such as JLG, Genie, and Haulotte. However, our high-end models are significantly more affordable, costing only one-third of their price while providing the same level of working performance and high-end features. The platform of the lift is equipped with a socket, providing greater convenience for aerial work, while the control box on the mast includes a power switch, emergency button, and outriggers interlock indicator. The aviation plug, wear-resistant cable, and other features make it highly durable. Notably, our models also come equipped with special features such as the outriggers interlock indicator, aviation plug, and single-person loading device, which are not commonly found in standard models.

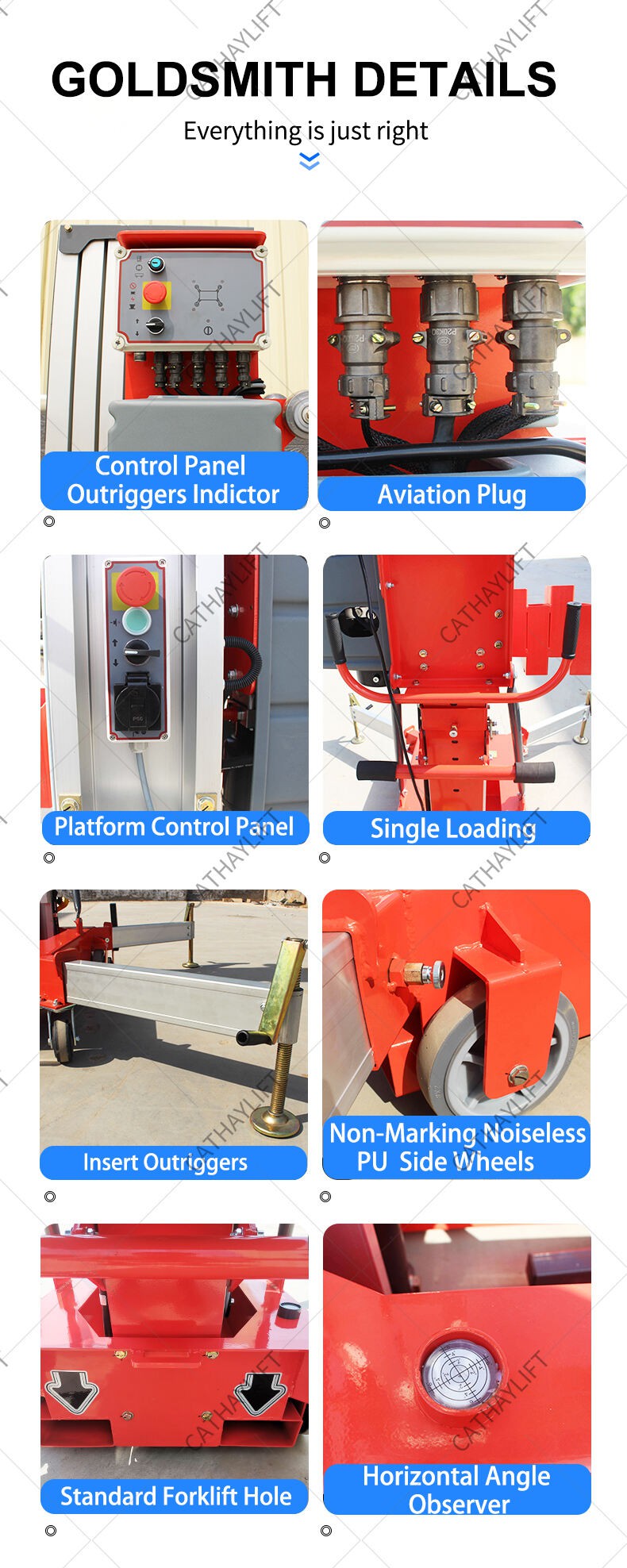

Products Details
CUP-H series compared with similar products on the market:
|
|
CUP-H series from Shandong Cathay Machinery Co., Ltd |
|
Other similar products |
|
Anti- misoperation button |
There are emergency stop, ascending, descending, and public buttons on the control panel; when ascending or descending, you need to hold down the corresponding button and the "public" key to start the ascent and descend. Avoid accidental contact by workers or accidental operation due to the misuse of a single button to start lifting. |
|
Most of them only have two buttons for up and down, some manufacturers have installed anti-misoperation, and almost no manufacturers have four buttons at the same time. |
|
Power supply connected to the platform |
Power tools can be used directly on the platform |
|
No such configuration |
|
Outrigger interlocking |
The platform can only be raised and lowered after the four legs are installed and the ground is stressed. |
|
No such configuration |
|
Outrigger indicator |
The four outriggers must be properly installed and in place, and the four indicators on the control panel will all light up before the machine can be powered up and down. Resolutely put an end to the safety accidents that occur because the workers do not follow the rules or use the machine without inserting the legs. |
|
Rotating or telescopic legs are used without connection instructions; the platform can be raised even if not fully supported |
|
Aluminum alloy support legs |
Aluminum alloy insert-type supporting legs are adopted, with a large contact area and a more stable structure. And the aluminum alloy support legs are maintenance-free for life. |
|
With the use of turn-out iron legs, only two points connected to the base, the structure is unstable, and easy to rust, causing potential safety hazards. |
|
A single person can load the device |
The equipment can be loaded onto the freight vehicle by a single person, reducing the cost of loading and unloading. |
|
Without auxiliary wheels for loading, forklifts are required for loading and unloading. Single loading is not possible. |
|
Standard forklift hole |
All products are designed with standard forklift holes for easy loading and unloading. The center of gravity of the aluminum alloy platform is unevenly distributed. If there is no forklift hole, there will be a high probability of tipping during transportation, which is likely to cause equipment damage and personal injury. |
|
The body has no forklift hole design, and the loading and unloading equipment is extremely inconvenient: on the one hand, the forklift is easy to damage the hydraulic system at the bottom of the machine, on the other hand, because the center of gravity of the aluminum alloy platform is unevenly distributed, according to the loading and unloading method of the general forklift driver, this is very likely Equipment damage and casualties. |
|
Back-up wheel for undercard (for single mast lifting platform) |
There are two small wheels at the rear of the undercarriage (at a slightly higher position behind the big wheel), supported by the center big wheel as the of gravity center. When encountering a more minor ridge, the machine body can be moved freely by tilting it slightly. |
|
Basically, there is no such design. If you encounter uneven ground, the cart will be more laborious. |
|
Synchronization on device |
The synchronization device can ensure that during the ascent or descent process if there is a slight obstacle inside the mast, each mast can be raised or lowered synchronously |
|
Without a synchronization device, the mast of the aluminum alloy may be out of synchronization during ascent or descent. If the two-post platform is out of synchronization, the platform frame may tilt to one side. |
|
Signal line |
Highly flexible towline cable, bending life: 50 times/minute,> 5 million times, anti-shallow water, oil, UV, weather resistance, cold resistance, wear resistance, can withstand heavy mechanical external forces |
|
Extruded wires are generally used, and there is more relative movement between aluminum alloys. Long-term use will cause internal fractures. |
|
Guide devise between the columns (slider, guide wheel) |
The polymer self-lubricating slider and imported nylon wheel are used between the columns, which is free of lubrication and avoids the abrasion of the internal material of the aluminum alloy caused by long-term use, resulting in equipment instability. |
|
Most domestic products use plastic guide wheels to save costs. The guide wheel and the column are in point contact (the contact surface has only 2 points). Long-term use will cause the frame of the column and the machine to shake significantly, affecting the work quality and mood of workers in high places. Security is relatively low. |
|
Explosion-proof valve |
Prevent the platform from falling due to the bursting of the tubing. |
|
The oil cylinder is directly connected to the oil pipe, and there is no explosion-proof device. Once the oil pipe bursts, the platform frame falls immediately. |
|
Seals |
NOK seals; have an excellent sealing effect and are durable. |
|
Low-cost seals have a short service life and poor sealing effect. Frequently cause leaks. |
|
Support column |
The width of the column determines the degree of shaking after the platform is raised. We use a 200mm high-strength aluminum alloy ultra-wide column to ensure that the operating table shakes less. |
|
186mm (or below) ordinary aluminum alloy column, because of low cost, there is no guarantee of material quality. The degree of sway is stronger than that of mid-range products, which seriously affects the psychology of the workers and has potential safety hazards. |
Why choose our CUP-H:
One of the most notable features of this lift is its lightweight design, making it effortless for one person to load, move, and set up. It is also towable by a trailer or van, increasing its versatility. Despite its small size, it comes equipped with stabilizers with rubber, making it suitable for use on fragile surfaces without causing damage.
The lift's advanced design structure, which originates from the United States, ensures its safety during use. Furthermore, it uses a PTFE trap between the columns, providing high self-lubrication and eliminating wear between aluminum alloys, making it maintenance-free for life.
The lift incorporates American Parker/Japanese NOK seals, which provide superior sealing and increased durability. Additionally, the American COLSON casters, made of high-grade polyurethane material, are highly resistant to wear and have a low failure rate. They have a service life that is over three times that of standard casters and cause minimal damage to high-grade stone floors.
The width of the column is crucial in minimizing platform shake when raised. Therefore, the lift features a 200mm high-strength aluminum alloy ultra-wide column, ensuring a stable work platform and increased operator safety.
Finally, the lift is constructed from 6005T5 high-strength aerospace aluminum alloy supplied by national-level enterprises, ensuring its quality. This material is known for its strength and durability, making it the perfect choice for a machine that will experience heavy use in various work environments.
In summary, the CUP series single mast vertical lift range from 7m to 14m is an exceptional choice for those in need of a versatile, easy-to-use, and safe indoor aerial work platform. Its lightweight design, advanced features, and quality construction provide excellent value and make it significantly less expensive than local alternatives. Whether you're working in a factory, warehouse, or other indoor space, this lift can help you complete your tasks quickly and safely.
Real Order
|
Model No. |
CUP-5H |
CUP-6H |
CUP-8H |
CUP-9H |
CUP-10H |
CUP-12H |
|
|
Max.Platform Height |
5m |
6m |
8m |
9m |
10m |
12m |
|
|
Max Working Height |
6m |
8m |
10m |
11m |
12m |
14m |
|
|
Load Capacity |
150kg |
150kg |
150kg |
150kg |
136kg |
120kg |
|
|
Platform Size |
0.67*0.66m |
||||||
|
Occupants |
One person |
||||||
|
Outrigger Coverage |
1.7*1.7m |
1.7*1.7m |
1.6*1.6m |
1.7*1.7m |
1.9*1.7m |
2.3*1.9m |
|
|
Overall Size |
1.24*0.74*1.99m |
1.24*0.74*1.99m |
1.36*0.74*1.99m |
1.4*0.74*1.99m |
1.42*0.74*1.99m |
1.46*0.81*2.68m |
|
|
Net Weight |
300kg |
320kg |
345kg |
365kg |
385kg |
460kg |
|
|
Motor Power |
0.75kw |
||||||
|
Options |
DC |
12v |
|||||
|
DC Motor |
1.5kw |
||||||
|
Charger |
12v15A |
||||||
