Single Mast Lift

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of single mast lift in China. We warmly welcome you to buy discount single mast lift for sale here from our factory. Quality products and reasonable price are available.

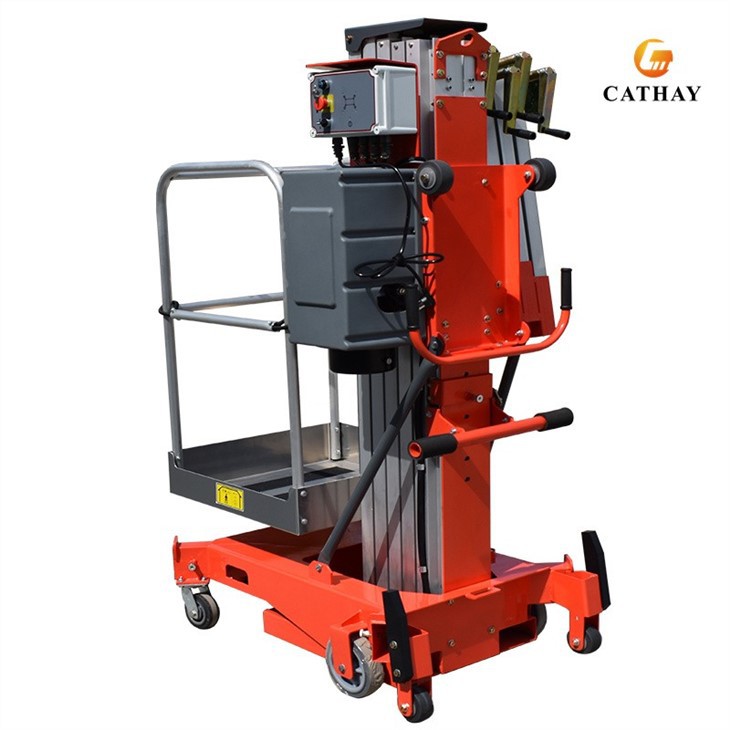

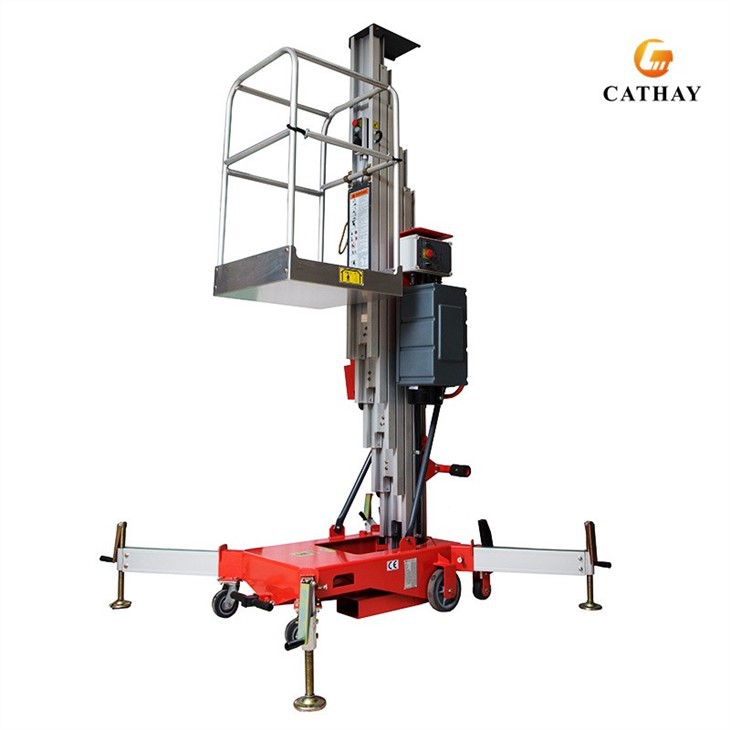

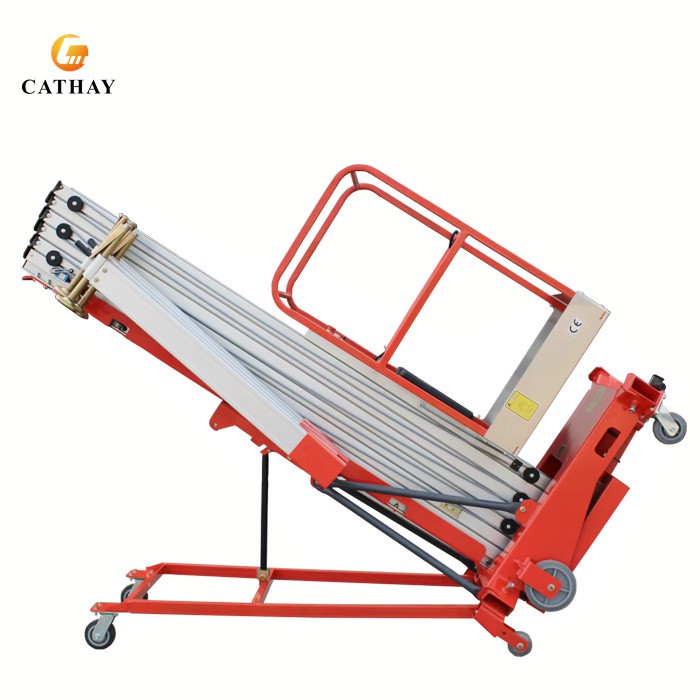

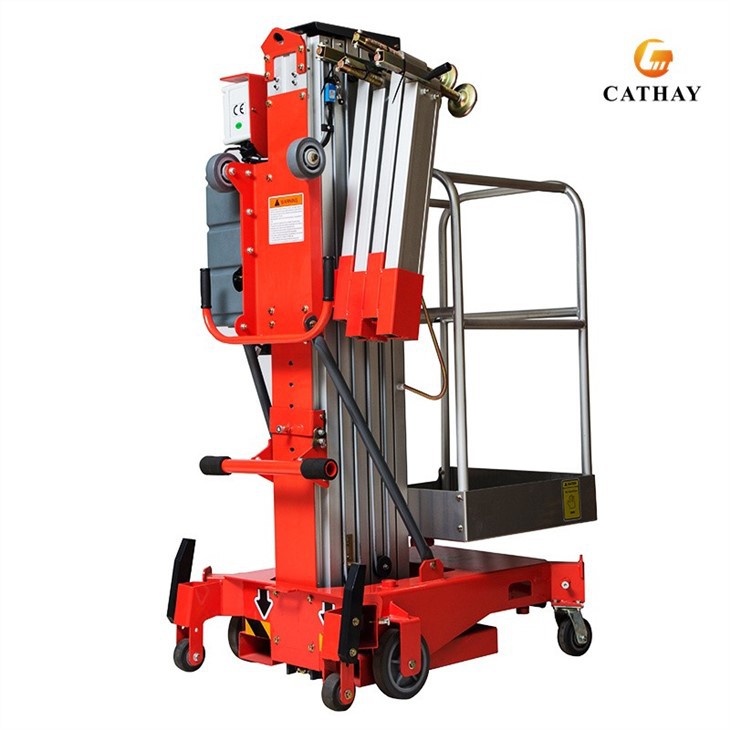

5~12m Single Mast Lift

The CUP series Single mast lift is lightweight and compact, allowing for easy access to narrow aisles or elevators. It can be easily transported by van or trailer, making it a cost-effective option for those looking for a reliable aerial work platform. and it is easy to install and use, with four wheels and two side wheels for easy manual maneuvering. It requires minimal maintenance, making it a versatile solution for various projects.

Maintenance performed quarterly, annually and every two years must be completed by a person trained and qualified to perform maintenance on this machine Machines that have been out of service for more than three months must receive a quarterly inspection before they are put back into service.

The workplace inspection helps the operator determine if the workplace is suitable for safe machine operation. It should be performed by the operator prior to moving the machine to the workplace.

It is the operator’s responsibility to read and remember the workplace hazards, then watch for and avoid them while moving, setting up, and operating the machine.

Be aware of and avoid the following hazardous situations:
●Drop-offs or holes
●Bumps, floor obstructions, or debris
●Slopes that exceed the machine’s leveling capability：5%
●Unstable or slippery surfaces
●Overhead obstructions and high-voltage conductors
●Hazardous locations
●Inadequate surface support to withstand all load forces imposed by the machine
●Wind and weather conditions
●The presence of unauthorized personnel
●Other possible unsafe conditions

Be sure that all decals are legible and in place. See the Decals section.

Check for battery fluid leaks and proper fluid level. Add distilled water if needed. See the Maintenance section. (DC models)

Check for hydraulic oil leaks and proper oil levels. Add oil if needed. See the Maintenance section.

Check the following components or areas for damage, improperly installed or missing parts, and unauthorized modifications:

Electrical components, wiring, and electrical cables
The hydraulic power unit, hoses, fittings, and cylinder
Platform entry mid-rail
Sequencing cables and pulleys
Lifting chains and idler wheels
Nuts, bolts, and other fasteners
Mast columns
Breather cap
Outriggers, leveling jacks, and footpads Check the entire machine for:
Dents or damage
Corrosion or oxidation
Cracks in welds or structural components
Be sure that all structural and other critical components are present and all associated
