Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of all terrain crawler crane in China. We warmly welcome you to buy discount all terrain crawler crane for sale here from our factory. Quality products and reasonable price are available.

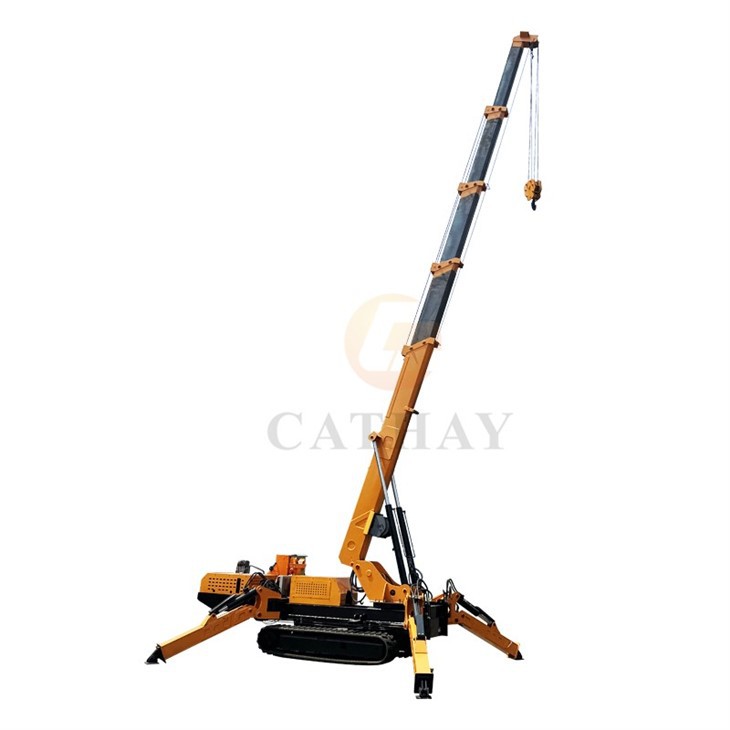

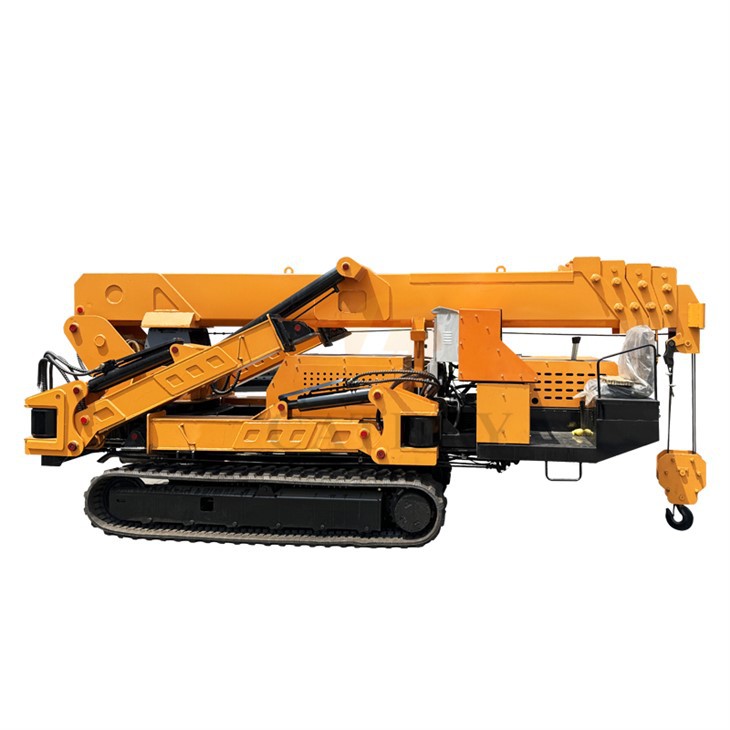

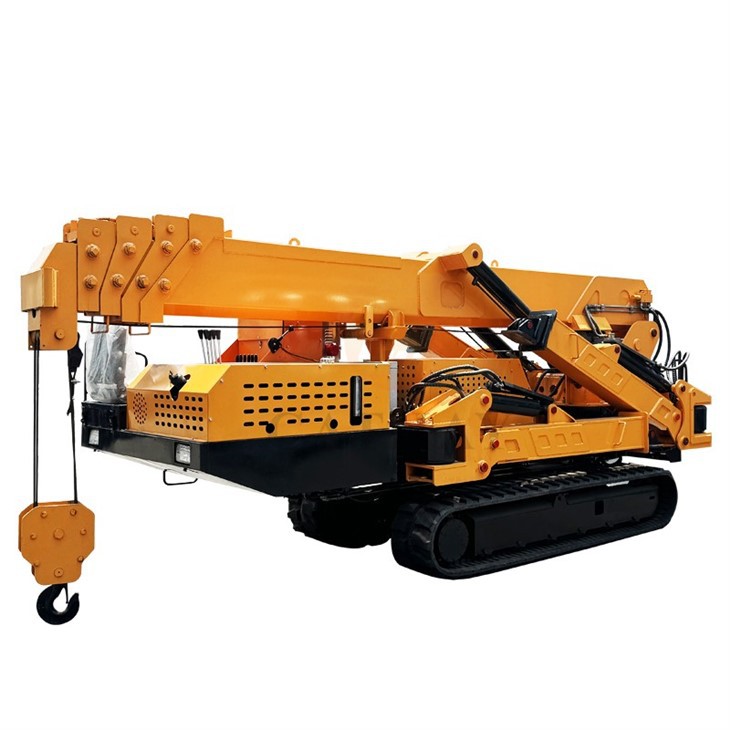

All Terrain Crawler Crane
Available in both oil-electric dual-use and pure electric versions, CATHAYLIFT's All Terrain Crawler Crane addresses the environmental challenges of traditional heavy machinery. By reducing reliance on diesel engines, it significantly lowers emissions. The electric power options not only protect the engine and reduce wear but also result in substantial fuel savings, lowering operational costs. Additionally, it comes with optional features such as wireless remote control, JIB, and a man bucket, enhancing its functionality and adaptability for specialized tasks. With a low initial investment, a short payback period, and long-term profitability, this crane is a cost-effective solution for businesses aiming to balance performance and sustainability.
|
Model |
CTT-1.2T |
CTT-2T |
CTT-3T |
CTT-5T |
CTT-8T |
CTT-10T |
CTT-12T |
|
Lifting Capacity (ton) |
1.2 |
2 |
3 |
5 |
8 |
10 |
12 |
|
Lifting Height (m) |
6 |
9 |
16 |
18.5 |
20 |
24 |
|
|
Turntable (mm) |
400 |
430 |
840 |
1000 |
1200 |
||
|
Max. Working Radius |
4.7m×0.4t |
8.6m×0.4t |
15.3m×0.5t |
16.8m×0.35t |
18.7m×0.3t |
21.3m×0.5t |
|
|
Walking Speed |
0~2.5 km/h |
0~3 km/h |
|||||
|
Weight (kg) |
1750 |
2000 |
2900 |
6500 |
7800 |
10000 |
11500 |
|
Overall Height (mm) |
1400 |
1600 |
5000 |
5300 |
5700 |
||
|
Overall Width (mm) |
650 |
950 |
1000 |
1600 |
1800 |
||
|
Overall Length (mm) |
2100 |
2200 |
3000 |
2000 |
2200 |
2400 |
|
Product Details:
- Advanced Control System:
- Incorporates a highly automated control system to minimize human errors.
- Enhances operational precision and significantly reduces the risk of accidents.
- Remote Operation Capability:
- Allows operators to control the crane from a safe distance.
- Improves safety by keeping personnel away from hazardous lifting zones.
- Cost Efficiency:
- Designed with fewer complex components, lowering the likelihood of mechanical failures.
- Results in reduced long-term maintenance and repair expenses.
- Superior Terrain Adaptability:
- Boasts a 36% climbing ability for optimal performance on uneven or challenging surfaces.
- Ensures reliable operation in rugged and demanding environments.
- Optional Attachments:
- Includes customizable features such as wireless remote control, JIB, and man bucket.
- Enhances functionality and adaptability for specialized tasks.
- Eco-Friendly Manufacturing:
- Built with low-noise and low-energy consumption technologies.
- Aligns with global environmental standards and reduces the carbon footprint.
- Lithium Battery Option:
- Offers a lithium battery-powered model for cleaner, emission-free operation.
- Ideal for environmentally sensitive areas and indoor applications.
Buyers Show：
- Dual Power Modes:
- Provides both oil-electric hybrid and pure electric versions.
- Enables flexible power selection based on project requirements and environmental considerations.
- Enhanced Engine Protection:
- Electric operation reduces engine wear and extends the lifespan of the machinery.
- Lowers fuel consumption, leading to significant cost savings over time.
Application:
