Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of small portable crane lift in China. We warmly welcome you to buy discount small portable crane lift for sale here from our factory. Quality products and reasonable price are available.

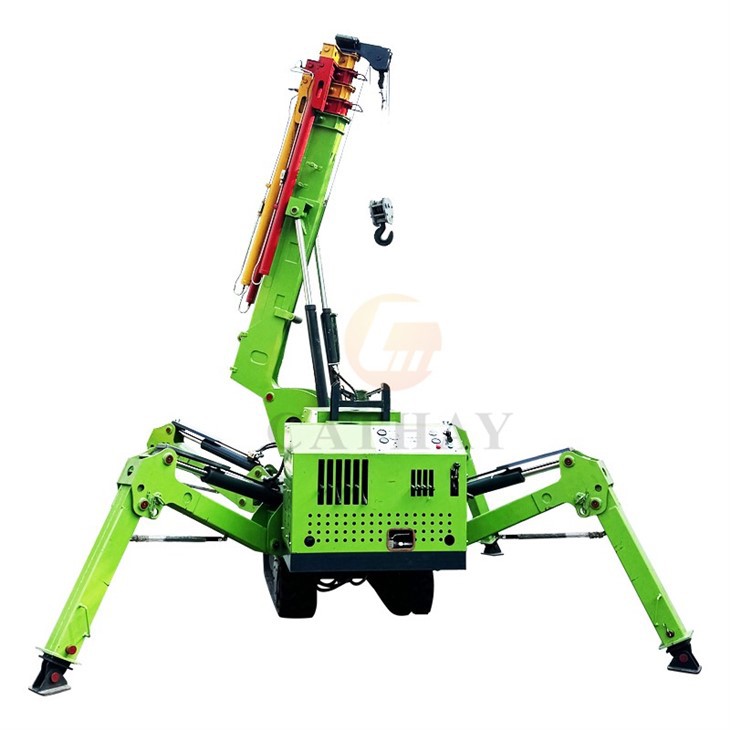

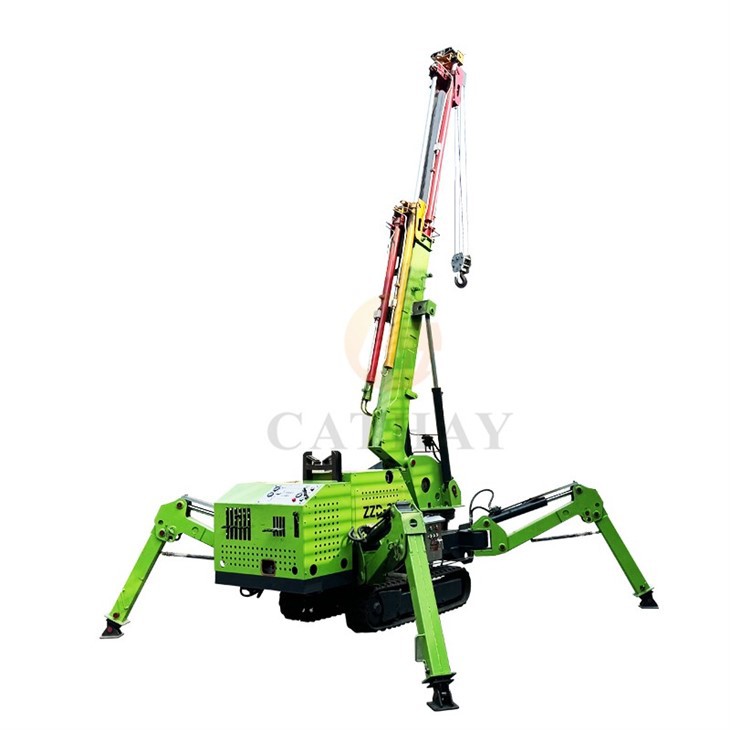

Small Portable Crane Lift
CATHAYLIFT's Small Portable Crane Lift has oil-electric dual-use and pure electric versions, which are both environmentally friendly and scientific, making up for the shortcoming that large cranes cannot be driven by electricity. It can protect the engine and reduce engine wear, and save fuel and money. Small Portable Crane Lift has low cost, short payback period and long profit time.
|
Model |
CTT-1.2T |
CTT-2T |
CTT-3T |
CTT-5T |
CTT-8T |
CTT-10T |
CTT-12T |
|
Lifting Capacity |
1.2ton |
2ton |
3ton |
5ton |
8ton |
10ton |
12ton |
|
Lifting height |
6m |
6m |
9m |
16m |
18.5m |
20m |
24m |
|
Turntable |
400mm |
400mm |
430mm |
840mm |
1000mm |
1000mm |
1200mm |
|
Max working radius |
4.7m×0.4t |
4.7m×0.4t |
8.6m×0.4t |
15.3m×0.5t |
16.8m×0.35t |
18.7m×0.3t |
21.3m×0.5t |
|
Walking speed |
0-2.5km/h |
0-2.5km/h |
0-2.5km/h |
0-2.5km/h |
0-2.5km/h |
0-3km/h |
0-3km/h |
|
Weight(kg) |
1750 |
2000 |
2900 |
6500 |
7800 |
10000 |
11500 |
|
Overall height(mm) |
1400 |
1600 |
1600 |
5000 |
5300 |
5700 |
5700 |
|
Overall width t(mm) |
650 |
950 |
1000 |
1600 |
1600 |
1600 |
1800 |
|
Overall Length (mm) |
2100 |
2200 |
3000 |
2000 |
2200 |
2200 |
2400 |
|
Climbing ability(%) |
36% |
||||||
|
Power: |
Diesel(Electric start)+AC (Dual power) |
||||||
|
Optional: |
Battery Power (lithium battery) |
||||||
|
Optional: |
Wireless Remote control |
||||||
|
Optional: |
JIB |
||||||
|
Optional: |
Man bucket |
||||||


Products Details
CATHAYLIFT's Small Portable Crane Lift is an innovative solution designed to provide efficient and reliable lifting capabilities while ensuring user safety and ease of maintenance. Here are the key features and advantages of this exceptional product:
High Safety Standards:
- Advanced Control System: Equipped with a highly automated control system, the crane lift minimizes human error, significantly reducing the risk of accidents.
- Remote Operation: The ability to operate the crane remotely further enhances safety by keeping the operator at a safe distance from the lifting area.
Easy Maintenance:
- Simple Structure: The crane's straightforward design makes it easy to maintain, helping to save on maintenance costs.
- Cost-Effective: Reduced complexity means fewer parts that can fail, translating to lower long-term maintenance expenses.
Eco-Friendly Design:
- Green Manufacturing: In response to the growing emphasis on environmental consciousness, the crane lift incorporates low-noise, low-energy consumption technologies.
- Lithium Battery Option: The availability of a lithium battery version promotes eco-friendly operation with reduced emissions.
- Dual Power Modes: Featuring both oil-electric hybrid and pure electric models, the crane lift offers flexible power options. This dual capability allows for electric operation when possible, reducing engine wear and saving on fuel costs.
- Environmental Benefits: These features make the crane lift an excellent choice for businesses looking to minimize their environmental impact while maintaining high efficiency.

Products Description

Application
- Compact and Portable: The small, portable design of the crane lift makes it ideal for various applications, including tight or confined spaces where larger cranes cannot operate.
- Adaptable Use: Whether in construction, warehousing, or other industrial settings, the crane lift provides versatile lifting solutions to meet diverse needs.

Real Order
