Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of crawler spider crane in China. We warmly welcome you to buy discount crawler spider crane for sale here from our factory. Quality products and reasonable price are available.

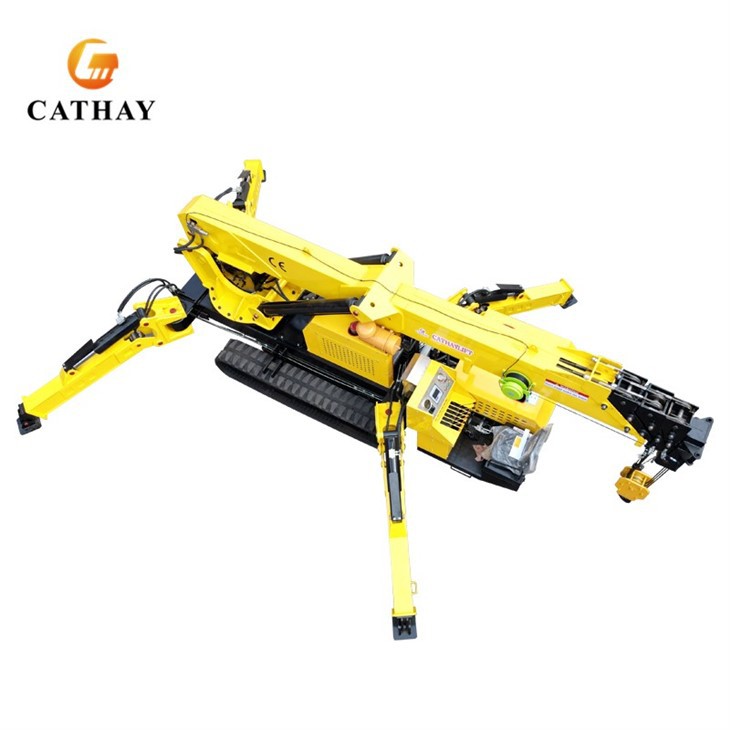

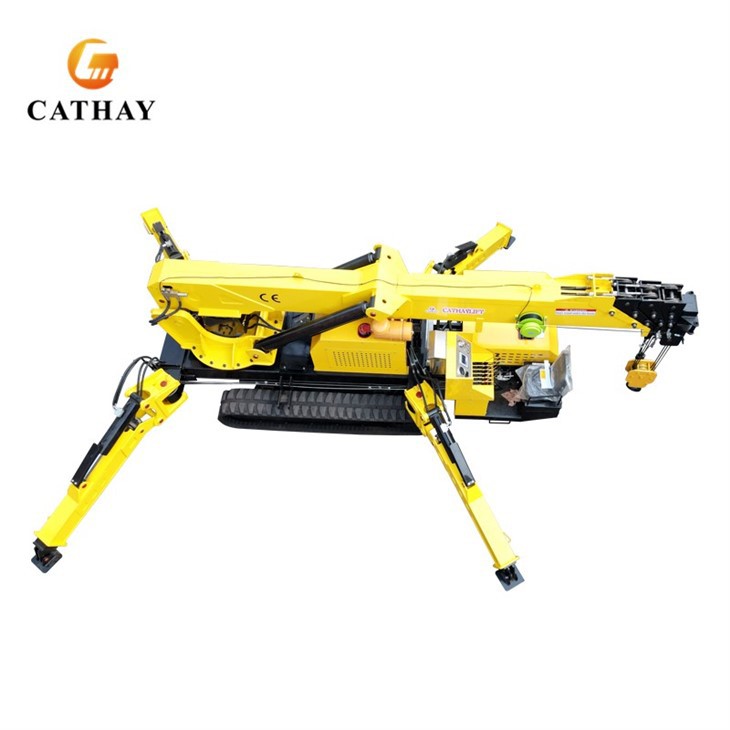

Crawler Spider Crane
The maximum span of the Crawler Spider Crane's outriggers is 5.6 meters, and the spider crane can flexibly go up and down the ground with its "long legs" folded. Its chassis has the flexibility of a crawler crane and the super stability of a truck crane. The Crawler Spider Crane can be used for construction in places where large cranes cannot enter, such as narrow roads, many slopes, and muddy ground.
|
Model |
CTT-1.2T |
CTT-2T |
CTT-3T |
CTT-5T |
CTT-8T |
CTT-10T |
CTT-12T |
|
Lifting Capacity |
1.2ton |
2ton |
3ton |
5ton |
8ton |
10ton |
12ton |
|
Lifting height |
6m |
6m |
9m |
16m |
18.5m |
20m |
24m |
|
Turntable |
400mm |
400mm |
430mm |
840mm |
1000mm |
1000mm |
1200mm |
|
Max working radius |
4.7m×0.4t |
4.7m×0.4t |
8.6m×0.4t |
15.3m×0.5t |
16.8m×0.35t |
18.7m×0.3t |
21.3m×0.5t |
|
Walking speed |
0-2.5km/h |
0-2.5km/h |
0-2.5km/h |
0-2.5km/h |
0-2.5km/h |
0-3km/h |
0-3km/h |
|
Weight(kg) |
1750 |
2000 |
2900 |
6500 |
7800 |
10000 |
11500 |
|
Overall height(mm) |
1400 |
1600 |
1600 |
5000 |
5300 |
5700 |
5700 |
|
Overall width t(mm) |
650 |
950 |
1000 |
1600 |
1600 |
1600 |
1800 |
|
Overall Length (mm) |
2100 |
2200 |
3000 |
2000 |
2200 |
2200 |
2400 |
|
Climbing ability(%) |
36% |
||||||
|
Power: |
Diesel(Electric start)+AC (Dual power) |
||||||
|
Optional: |
Battery Power (lithium battery) |
||||||
|
Optional: |
Wireless Remote control |
||||||
|
Optional: |
JIB |
||||||
|
Optional: |

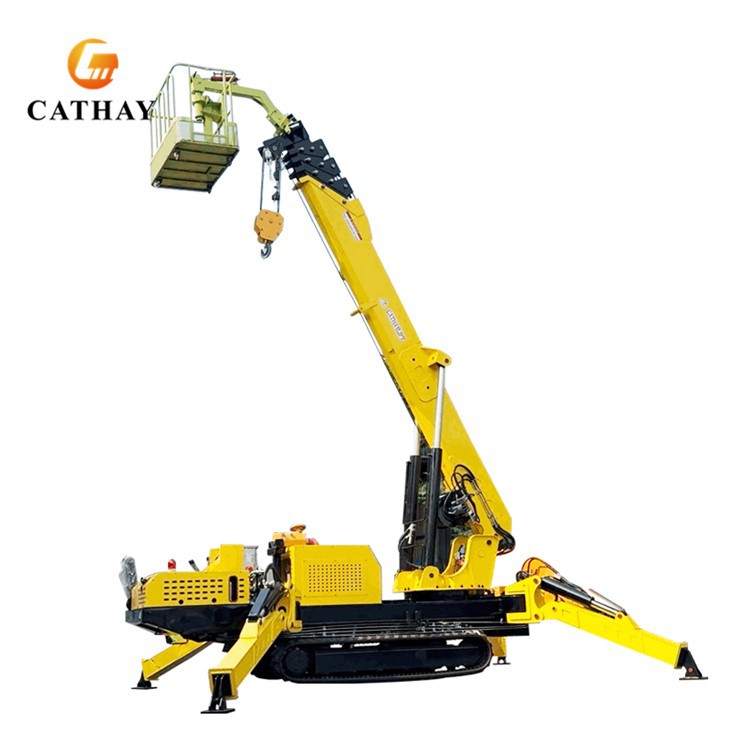

Man bucket |
||||||

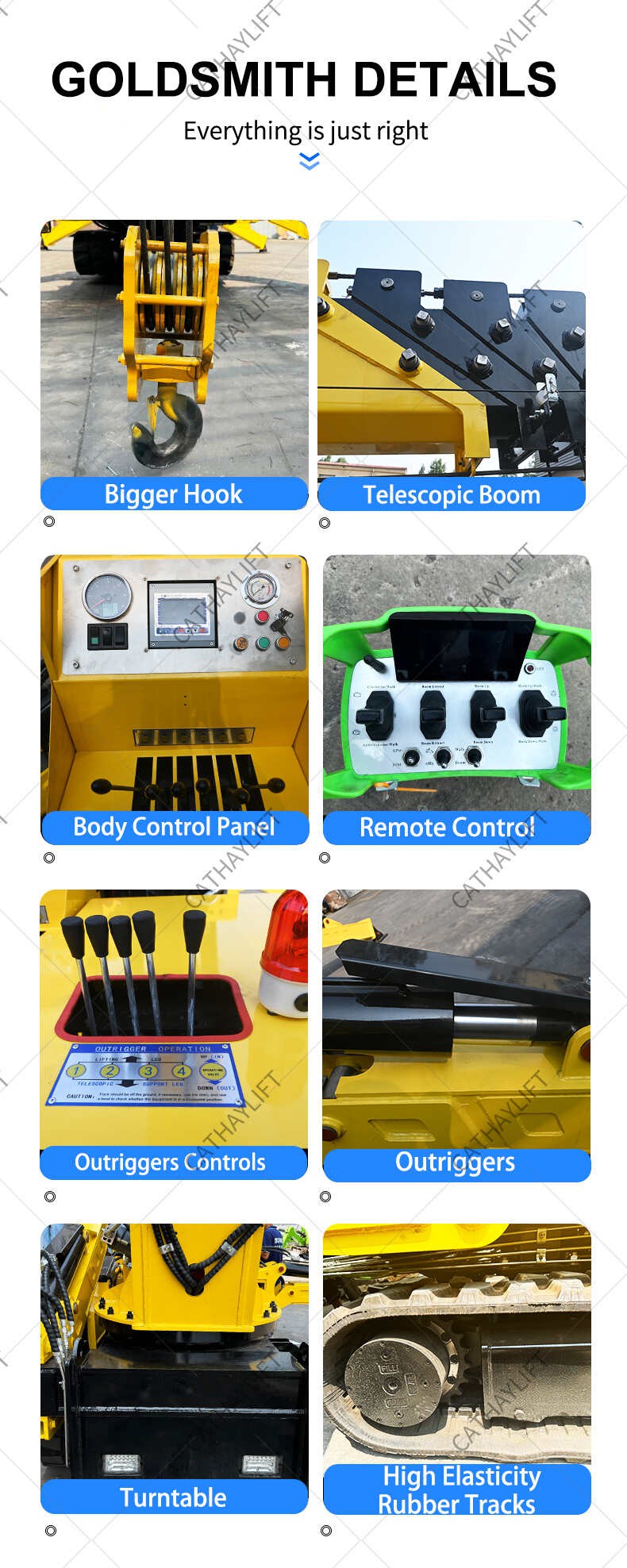

Products Details:
- Compact structure: Crawler Spider Crane adopts a compact design, equipped with four fully hydraulic automatic retractions, with a maximum span of 5.6 meters, large span, safe and stable, compact structure, small size, strong passability, and can adapt to various different working environments.
- High flexibility: Crawler Spider Crane has high flexibility, deceleration slewing mechanism, smooth rotation, stable lifting speed, and stable work. It can be operated in a small space to achieve precise positioning and handling!
- High efficiency: Due to the unique design of Crawler Spider Crane, it can operate at close range, with small size, strong power and high safety level, which is a machine that general cranes or cranes cannot match. It avoids the cumbersome operation of using large cranes, making it efficient in lifting operations and able to complete various lifting tasks quickly and accurately.
Features & Advantages:
- Equipped with 4 fully hydraulic automatic legs, enlarged and lengthened, large span, safe and stable;
- Planetary reduction slewing mechanism, smooth rotation, stable lifting speed;
- Small size, strong power, high safety level, which is unmatched by ordinary cranes or cranes;
- It was born to complete the glass installation work more efficiently. Mini spider cranes are also widely used indoors, in narrow spaces and narrow passages.
Real Order：
