Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of small hoist crane in China. We warmly welcome you to buy discount small hoist crane for sale here from our factory. Quality products and reasonable price are available.

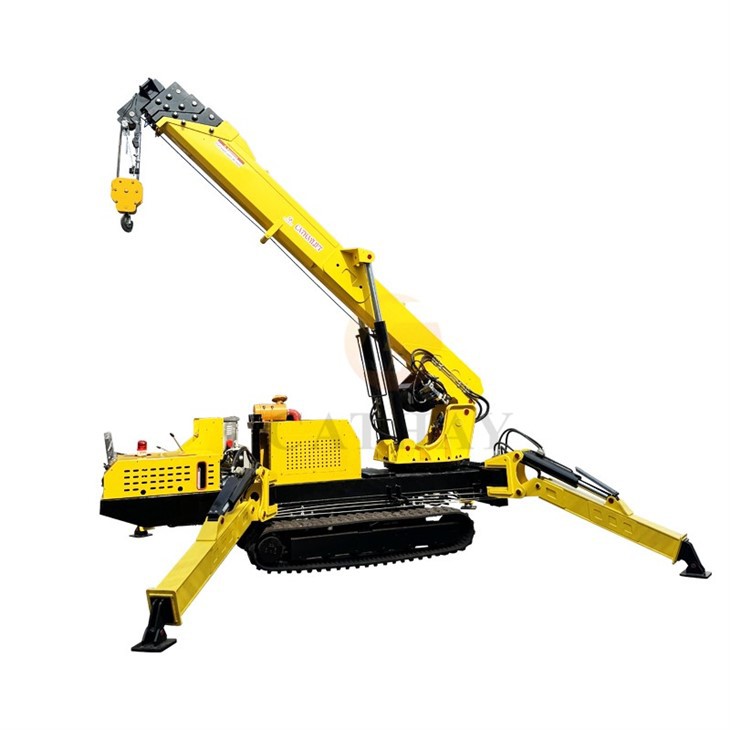

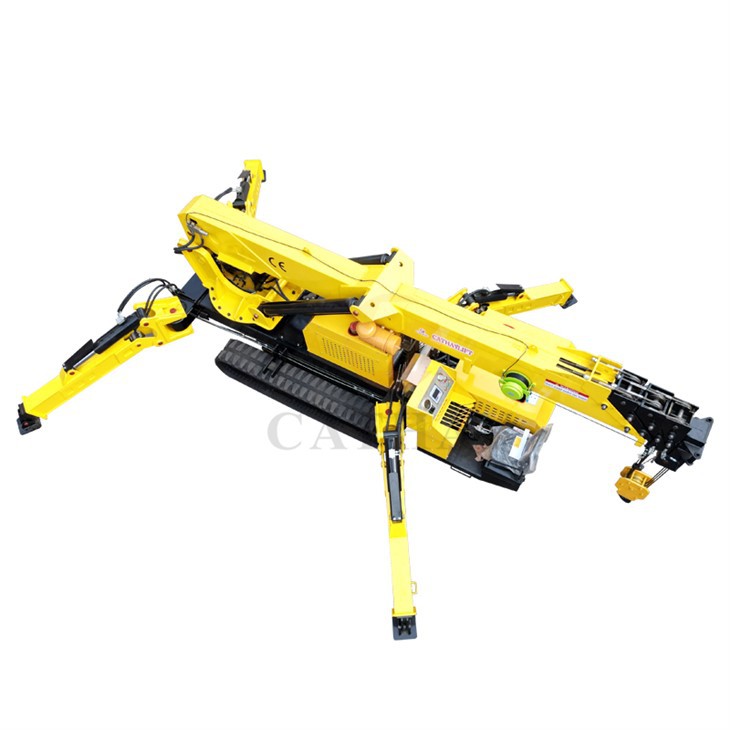

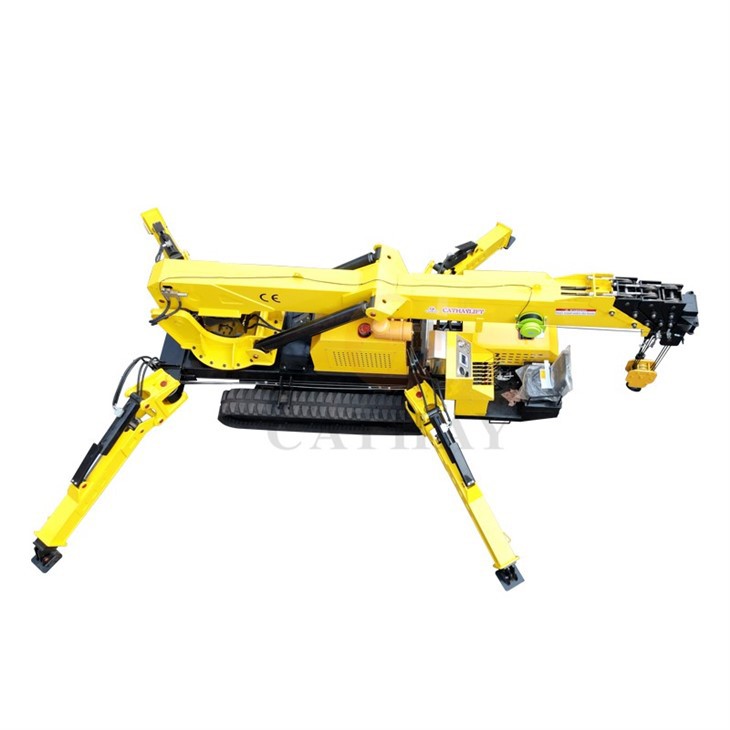

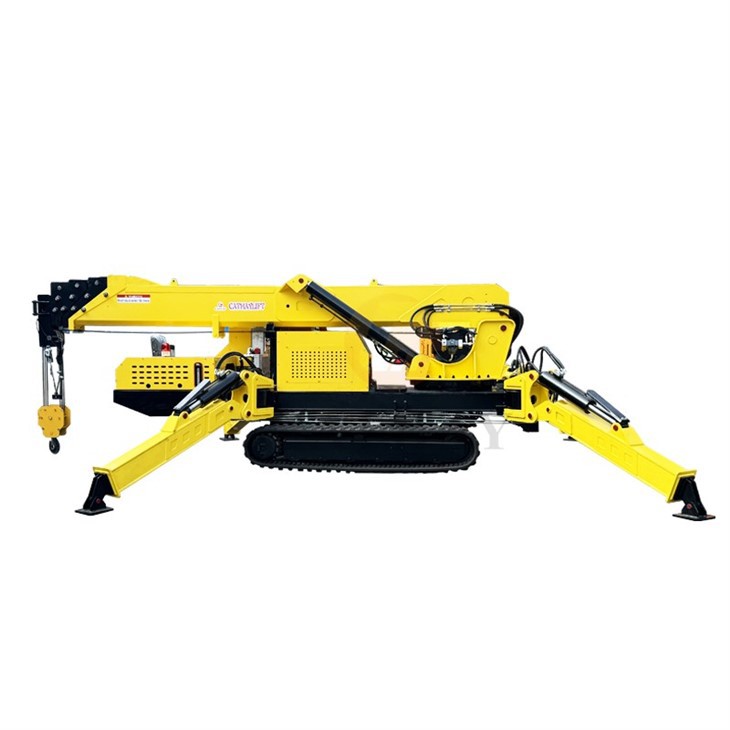

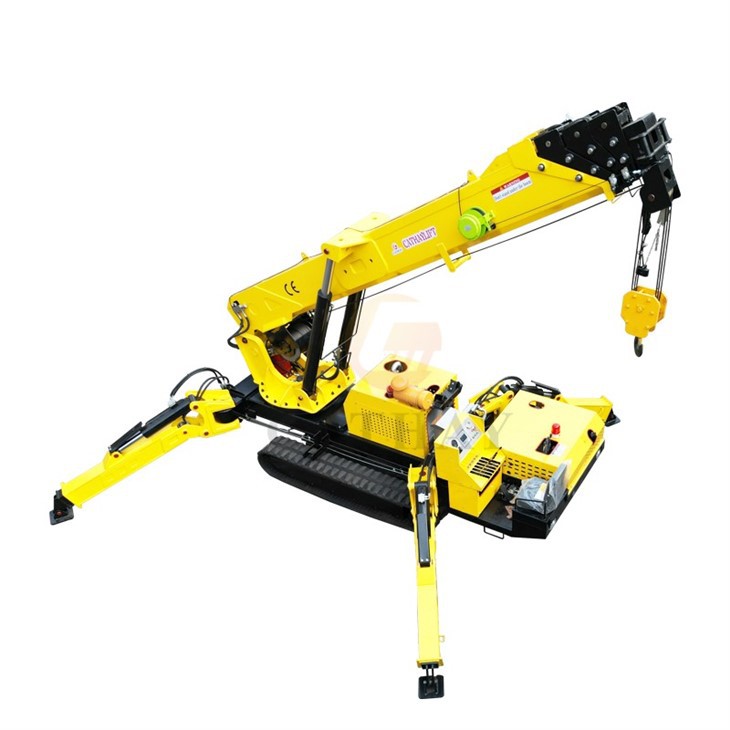

Small Hoist Crane
CATHAYLIFT's Small Hoist Crane stands out with its innovative oil-electric dual-use and pure electric versions, addressing the limitations of large cranes that often lack electric power capabilities. This eco-conscious design not only minimizes environmental impact but also contributes to significant cost savings by reducing fuel consumption and engine wear. The crane's highly automated control system streamlines operations, minimizing human error and significantly reducing the risk of accidents. Remote operation capability further enhances safety by allowing operators to control the crane from a safe distance. Optional features like wireless remote control, JIB, and man bucket further enhance its versatility, allowing customization to specific requirements.
|
Model |
CTT-1.2T |
CTT-2T |
CTT-3T |
CTT-5T |
CTT-8T |
CTT-10T |
CTT-12T |
|
Lifting Capacity (ton) |
1.2 |
2 |
3 |
5 |
8 |
10 |
12 |
|
Lifting Height (m) |
6 |
9 |
16 |
18.5 |
20 |
24 |
|
|
Turntable (mm) |
400 |
430 |
840 |
1000 |
1200 |
||
|
Max. Working Radius |
4.7m×0.4t |
8.6m×0.4t |
15.3m×0.5t |
16.8m×0.35t |
18.7m×0.3t |
21.3m×0.5t |
|
|
Walking Speed |
0~2.5 km/h |
0~3 km/h |
|||||
|
Weight (kg) |
1750 |
2000 |
2900 |
6500 |
7800 |
10000 |
11500 |
|
Overall height (mm) |
1400 |
1600 |
5000 |
5300 |
5700 |
5700 |
|
|
Overall Width (mm) |
650 |
950 |
1000 |
1600 |
1800 |
||
|
Overall Length (mm) |
2100 |
2200 |
3000 |
2000 |
2200 |
2400 |
|
|
Climbing Ability |
36% |
||||||
|
Power |
Diesel (electric start) + AC (dual power) |
||||||
|
Optional |
Battery power (lithium battery), Wireless remote control, JIB, Man bucket |
||||||
Product Details:
- Diesel Engine + Dual Power Motor:
- The heart of this crane lies in its powerful diesel engine and dual power motor combination. This setup ensures consistent performance, stable starts and stops, and a remarkably long service life.
- Hydraulic Motor and Engineering Rubber Pedals:
- The crane's hydraulic motor system, coupled with its engineering rubber pedals, provides superior maneuverability while minimizing ground damage. This lightweight, agile design allows the crane to navigate easily across various terrains, from uneven ground to paved surfaces.
- Remote Control Operation:
- Effortlessly control the crane from a safe distance with the intuitive remote control feature. This allows operators to maneuver the crane precisely, minimizing risks associated with close proximity to the lifting area.
- Manual Speed Adjustment:
- Fine-tune lifting speed with the manual speed adjustment feature, ensuring delicate and controlled movements for sensitive loads.
- Weight-Lifting Support Legs:
- The crane's robust support legs provide exceptional stability during lifting operations, further enhancing safety and ensuring secure load handling.
Product Description:
- Remotely Controlled Walking: The crane's advanced controls allow for remote operation of its walking function, providing effortless maneuverability and positioning in challenging environments.
- Adjustable Outriggers: The crane's outriggers can be freely combined and adjusted in height, offering unmatched flexibility in adapting to diverse working conditions and optimizing stability.
- Small Footprint: The Small Hoist Crane boasts a compact design, allowing it to operate efficiently in confined spaces, making it ideal for projects with limited access or maneuvering room.
