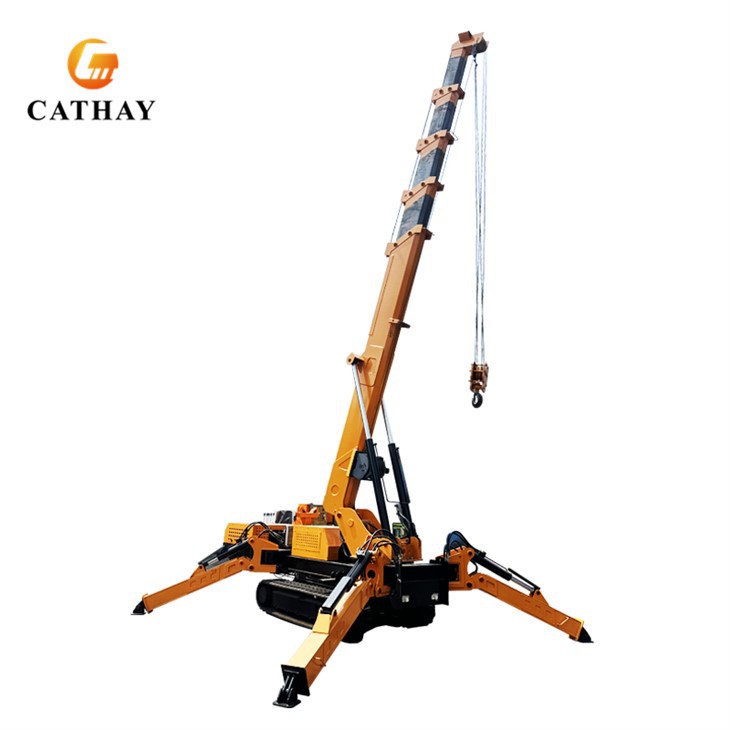

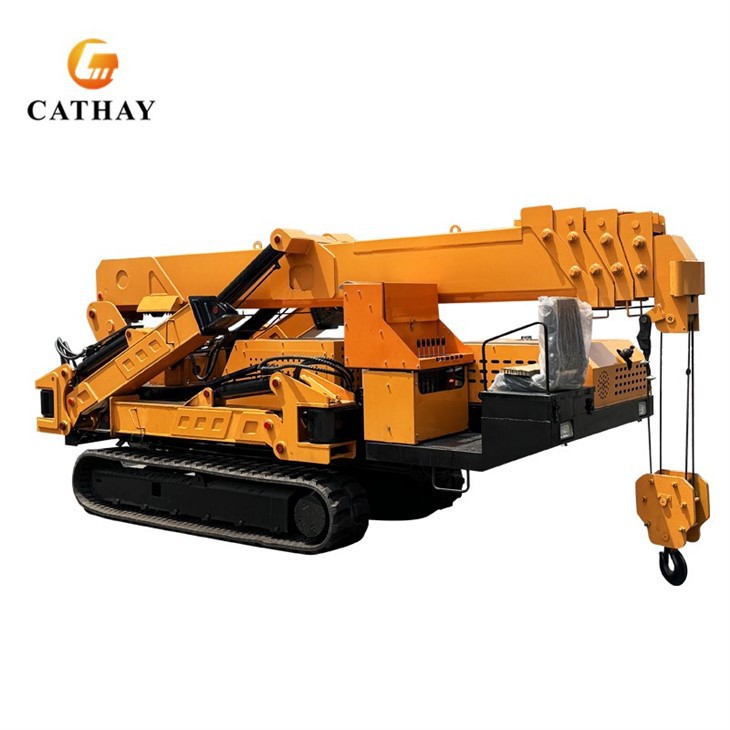

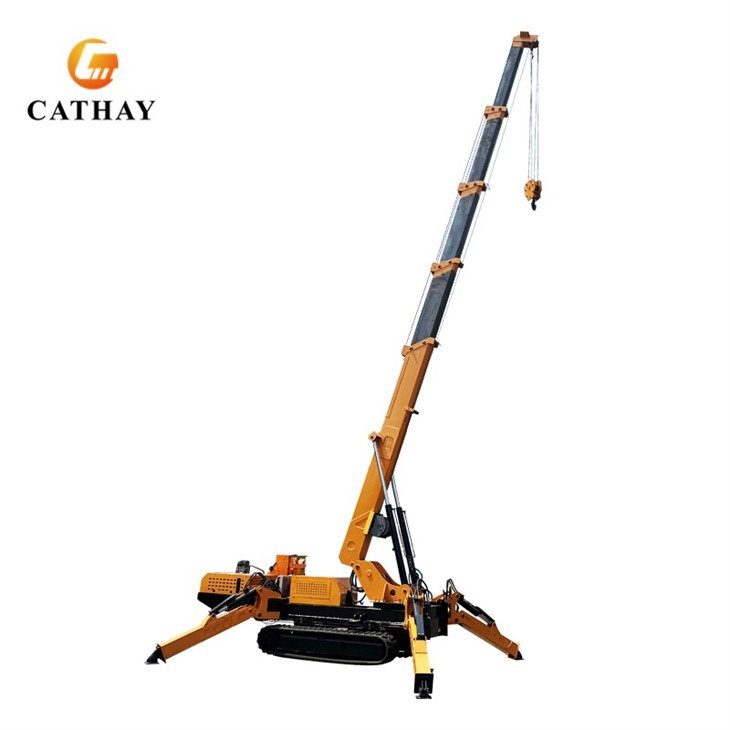

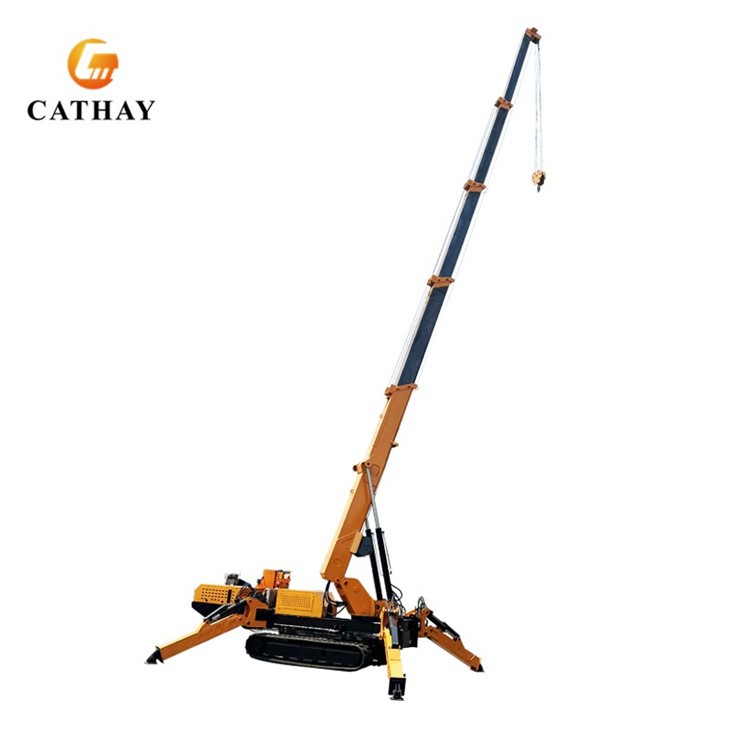

Tracked Spider Lift

Name: China Tracked Spider Lift Manufacturers Suppliers Factory - Good Price - Cathay Machinery
Brand: Cathaylift
SKU: 245766604

The CATHAYLIFT Tracked Spider Lift, a revolutionary high-altitude work platform, redefines the way we approach challenging tasks in hazardous environments. Engineered to handle heavy lifting capabilities of 8 to 10 tons, this cutting-edge equipment transcends traditional limitations, enabling workers to reach previously inaccessible areas with unparalleled safety. Its unique design, featuring a spider-like track system, provides exceptional maneuverability and stability on uneven terrains, making it ideal for diverse applications like outdoor maintenance, construction, and large-scale infrastructure projects. The robust and reliable Tracked Spider Lift empowers workers to safely perform tasks at significant heights, providing a secure and efficient platform for intricate repairs, installations, and inspections.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of tracked spider lift in China. We warmly welcome you to buy discount tracked spider lift for sale here from our factory. Quality products and reasonable price are available.

Tracked Spider Lift

CATHAYLIFT's Tracked Spider Lift is a testament to our commitment to safety and efficiency, pushing the boundaries of high-altitude access solutions. Its versatile design and exceptional weight capacity allow users to effortlessly transport heavy materials, equipment, and personnel to elevated locations, streamlining complex operations. The Tracked Spider Lift's compact footprint and intuitive control system ensure ease of operation and maneuverability, minimizing downtime and maximizing productivity. With its exceptional load-bearing capacity and adaptable design, the CATHAYLIFT Tracked Spider Lift is the go-to solution for professionals seeking a reliable and safe way to address high-altitude challenges. Whether it's a demanding construction project or routine maintenance operations, our Tracked Spider Lift provides the ultimate platform for success, empowering workers to reach new heights and achieve exceptional results.

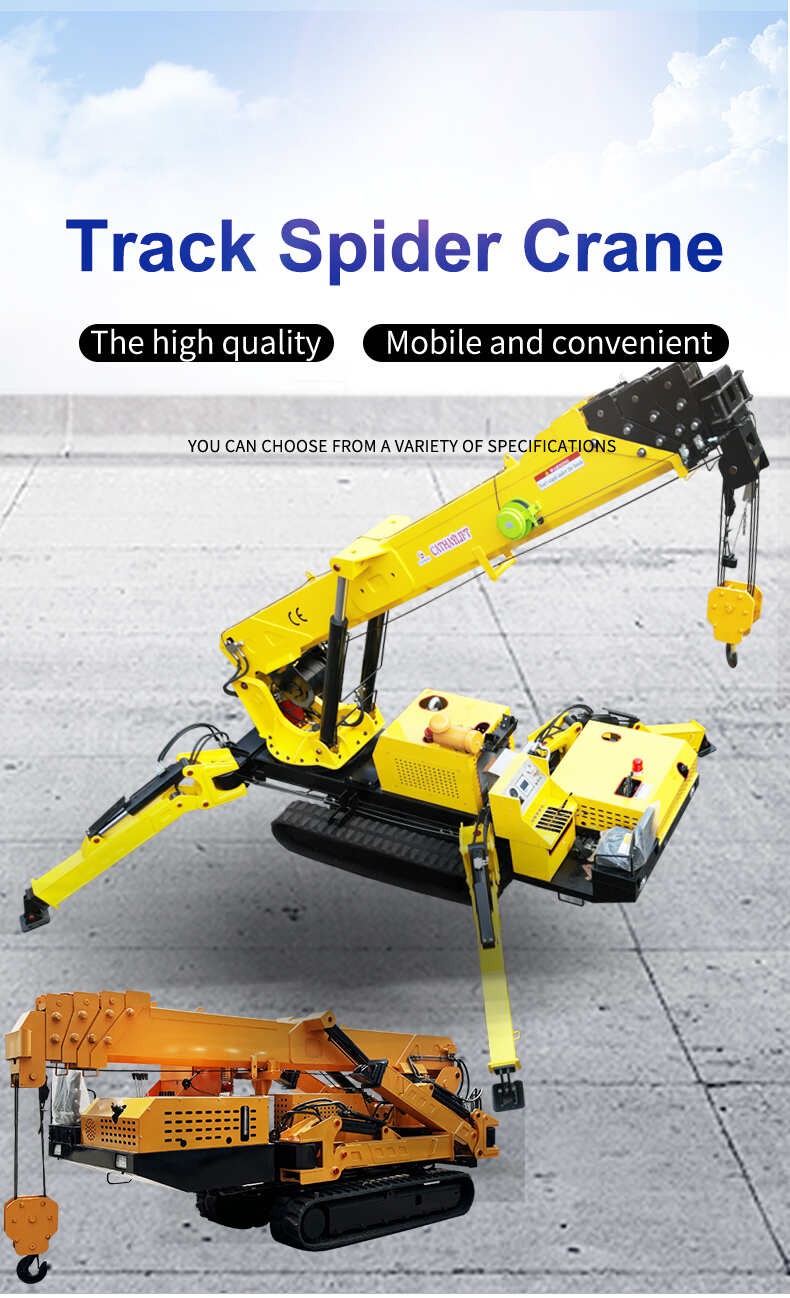

mini crawler crane 1

Model	CTT-1.2T	CTT-2T	CTT-3T	CTT-5T	CTT-8T	CTT-10T	CTT-12T
Lifting Capacity	1.2ton	2ton	3ton	5ton	8ton	10ton	12ton
Lifting height	6m	6m	9m	16m	18.5m	20m	24m
Turntable	400mm	400mm	430mm	840mm	1000mm	1000mm	1200mm
Max working radius	4.7m×0.4t	4.7m×0.4t	8.6m×0.4t	15.3m×0.5t	16.8m×0.35t	18.7m×0.3t	21.3m×0.5t
Walking speed	0-2.5km/h	0-2.5km/h	0-2.5km/h	0-2.5km/h	0-2.5km/h	0-3km/h	0-3km/h
Weight(kg)	1750	2000	2900	6500	7800	10000	11500
Overall height(mm)	1400	1600	1600	5000	5300	5700	5700
Overall width t(mm)	650	950	1000	1600	1600	1600	1800
Overall Length (mm)	2100	2200	3000	2000	2200	2200	2400
Climbing ability(%)	36%
Power:	Diesel(Electric start)+AC (Dual power)
Optional:	Battery Power (lithium battery)
Optional:	Wireless Remote control
Optional:	JIB
Optional:	Man bucket

Product Details

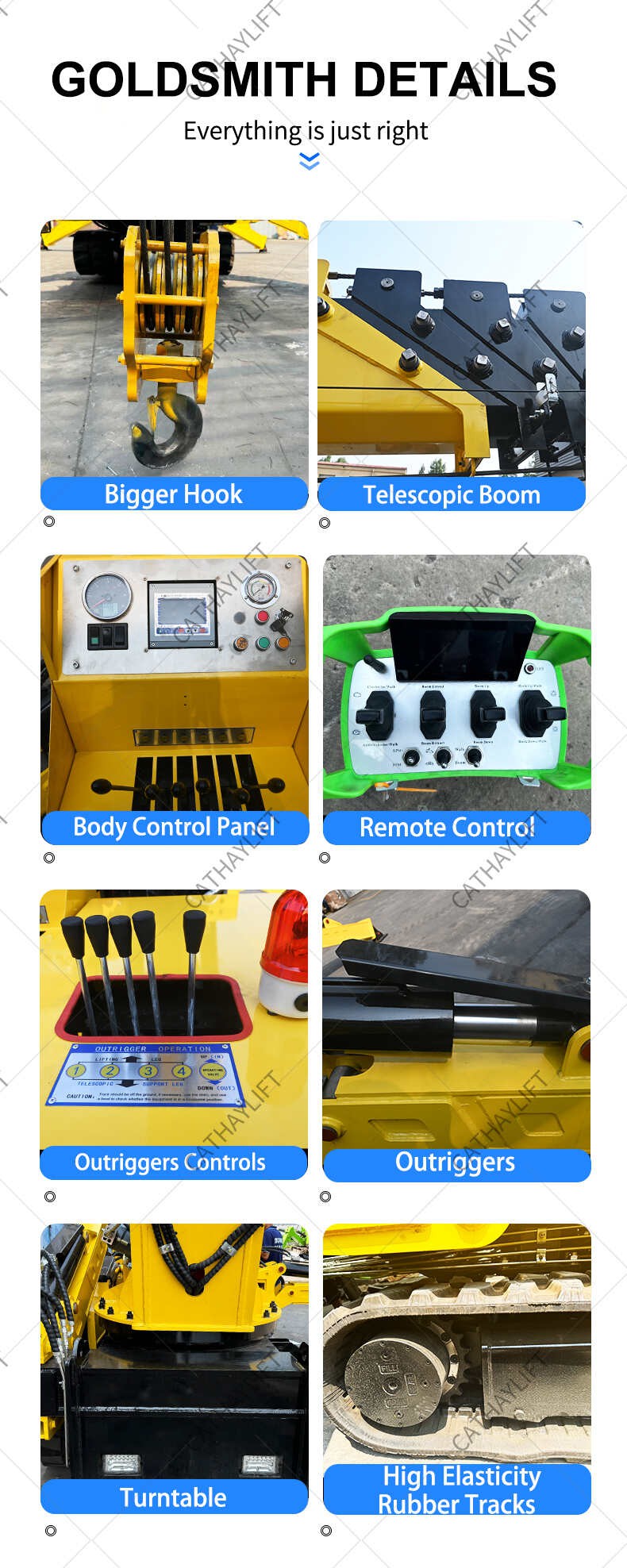

mini crawler crane 3

Unmatched Stability and Reach: Equipped with four fully hydraulic, automatically extending outriggers, the Tracked Spider Lift provides exceptional stability and extends its reach to cover wider spans. This robust design ensures secure operation even on uneven terrains, minimizing the risk of accidents and maximizing worker safety.
Precision Control and Smooth Operation: The Tracked Spider Lift incorporates a planetary reduction rotation mechanism, ensuring smooth, controlled movements and consistent lift speeds. This feature contributes to a stable working platform, eliminating jarring motions and safeguarding workers while performing delicate tasks.

Product Advantages:

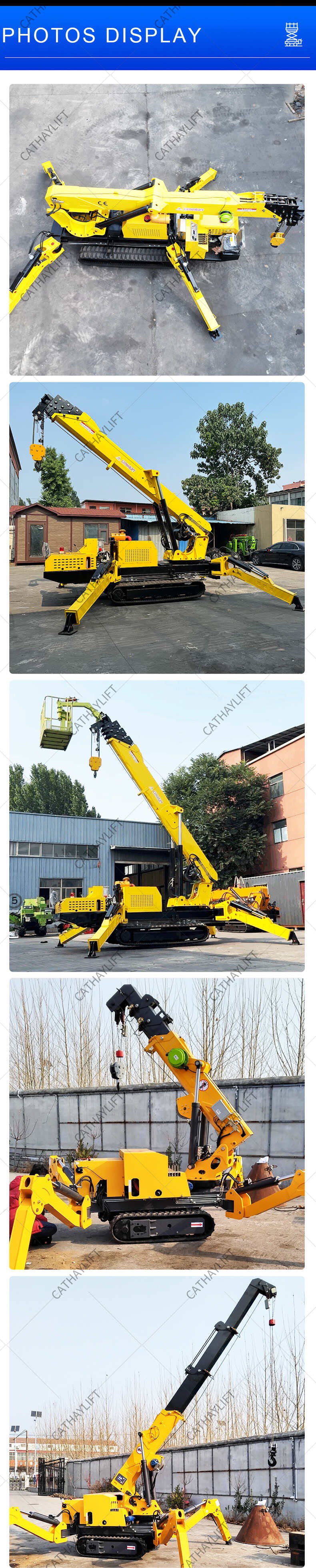

mini crawler crane 7

Compact Powerhouse: The Tracked Spider Lift combines a compact footprint with remarkable power, making it a true force to be reckoned with. Its small size allows it to operate in tight spaces and navigate narrow passages, while its impressive lifting capacity surpasses conventional cranes and hoists.
Safety at the Forefront: The Tracked Spider Lift prioritizes safety by incorporating advanced design features and meticulous engineering. Its high safety rating surpasses industry standards, ensuring a secure environment for workers at elevated heights.
Ideal for Diverse Applications: The Tracked Spider Lift's versatility shines through its adaptability to various applications. Its compact size and maneuverability make it perfect for indoor use, tight spaces, and narrow corridors, ideal for tasks like glass installation in buildings with limited access. Its robust construction and powerful lifting capacity, however, also make it suitable for outdoor projects like maintenance, construction, and infrastructure projects.
