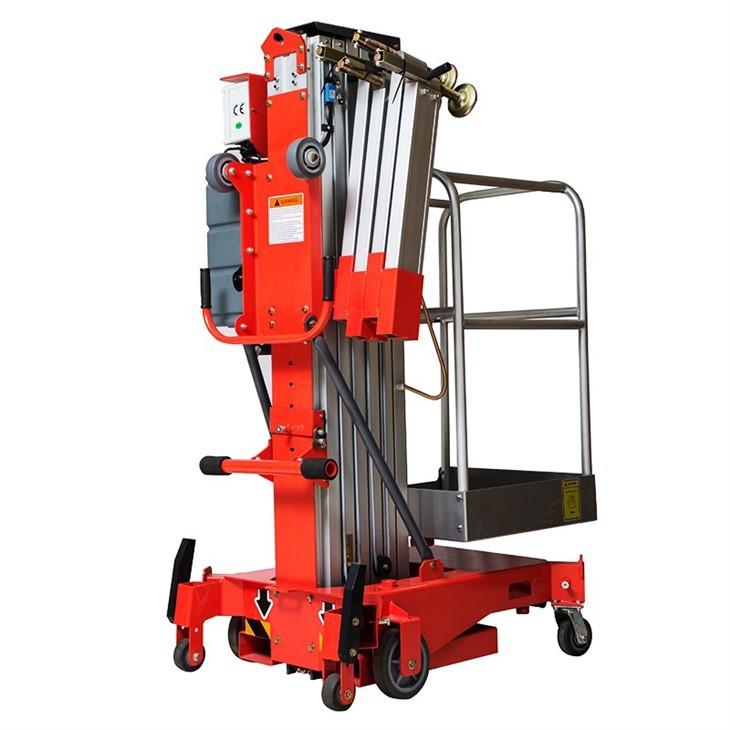

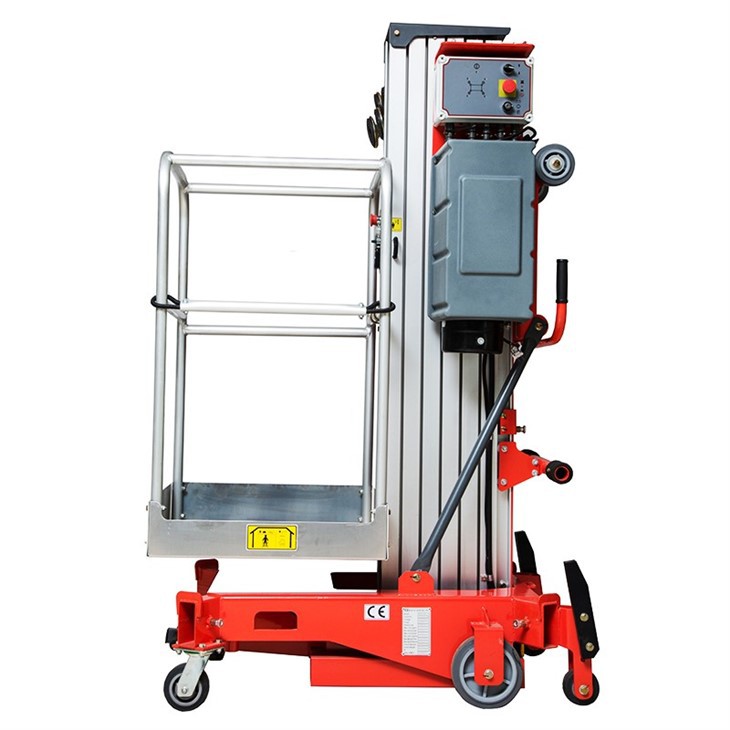

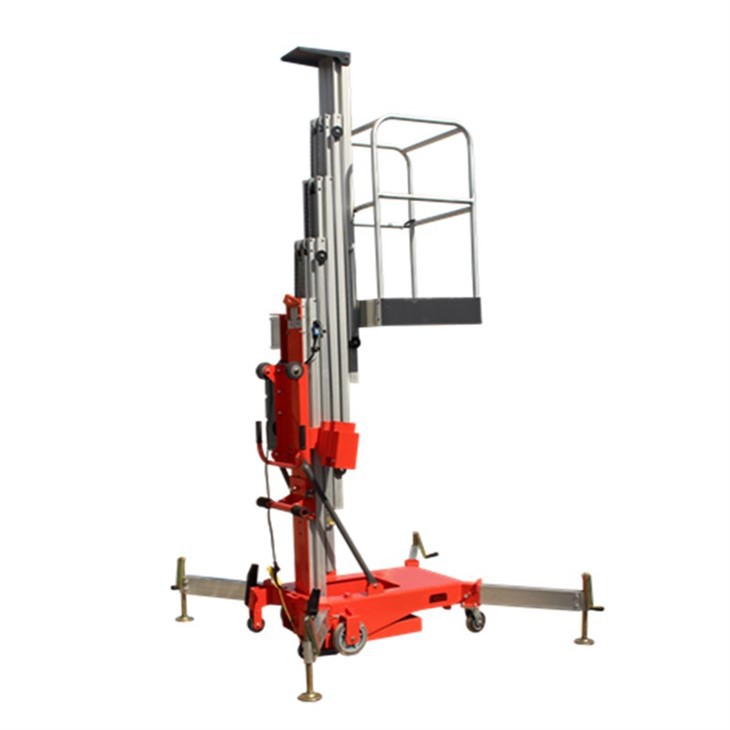

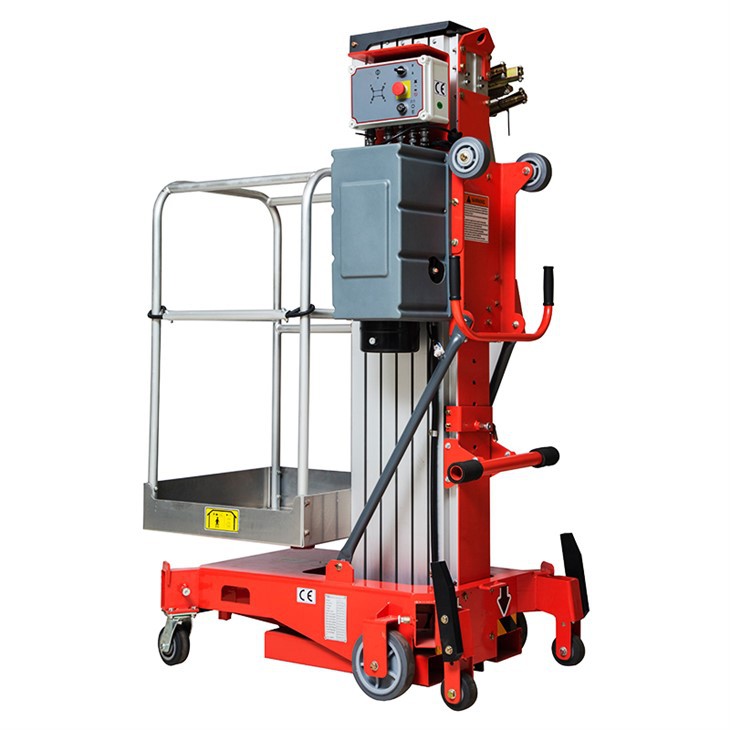

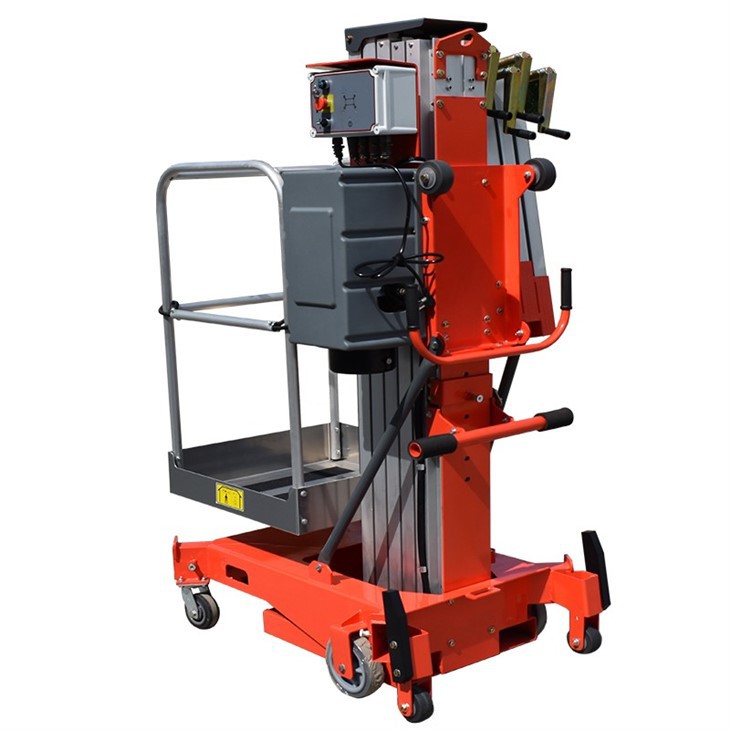

5~12m Aluminum Push Around Vertical Lift
The Aluminum Push Around Vertical Lift is a versatile and efficient solution for elevated tasks. This push-pull vertical mast lift features a lightweight and compact design, making it easy to transport, install, and operate. It boasts a lifting height range of 5 to 12 meters, accommodating various job site requirements. With a robust load capacity of 150 kg, it ensures safe and reliable performance for maintenance, installation, and inspection tasks. Ideal for indoor use, this lift enhances productivity and safety, offering a practical choice for professionals seeking a dependable and user-friendly aerial work platform.
Products Details
Advantages:
Height and Load Capacity: The CUP-H series aluminum push-around vertical lift offers platform heights ranging from 16.4ft to 39.3ft and load capacities between 264lbs and 330lbs, accommodating various applications.
Materials and Design: Constructed from high-strength, premium aluminum alloy, the lift is durable yet lightweight, allowing easy maneuverability in tight spaces and passage through standard doorways.
Stability and Reliability: Featuring the industry's strongest patented mast system, the lift ensures exceptional stability and safety at all heights. It includes heavy-duty lifting chains and built-in automatic level sensing for enhanced reliability.

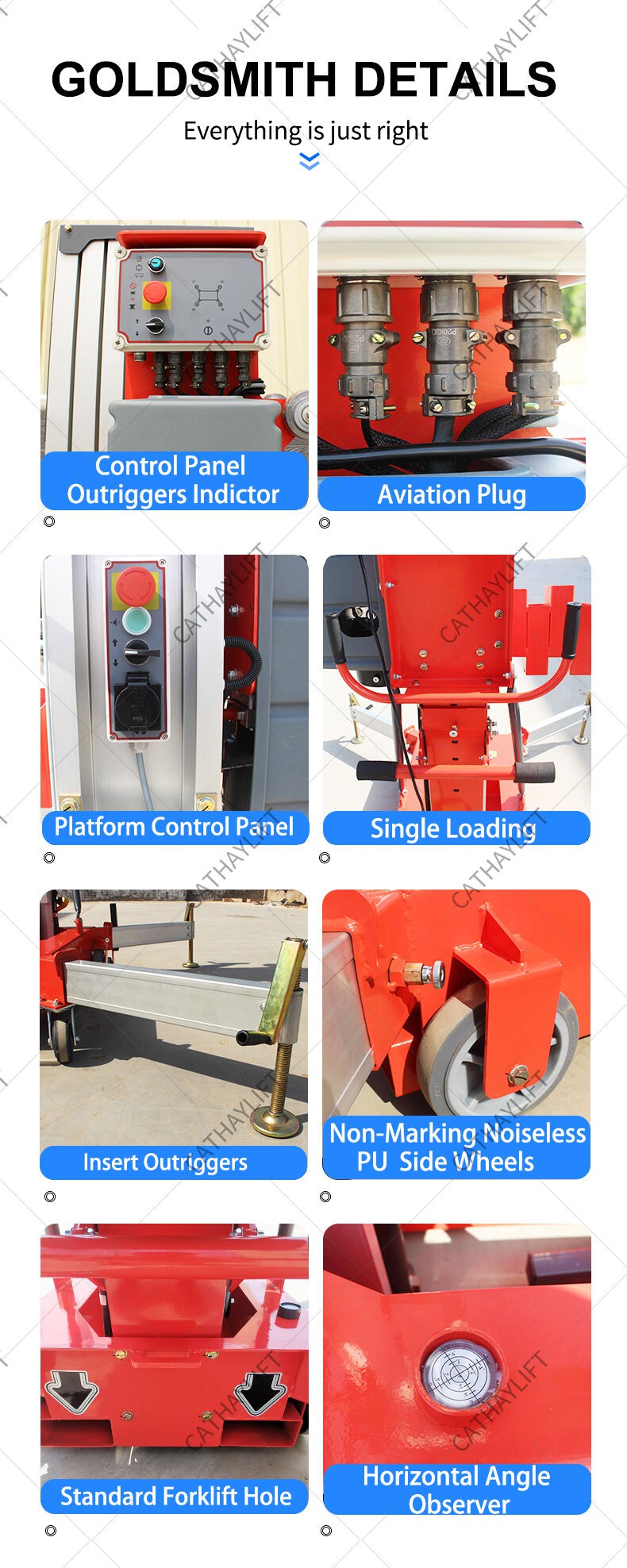

User-friendly Controls: The lift includes convenient controls such as a low battery indicator, locking key switch, dual activation up/down switch, outrigger setting confirmation light, and an assisted platform lowering feature for power outage situations.
Easy Transport: Designed for easy transport, the lift incorporates a unique rear mast pivot bar, lightweight structure, outrigger storage, forklift pockets, tie-down attachment points, and overhead crane attachment points.
Doorway Access and Maneuverability: With its exclusive six-point wheel and caster rocker base system, the lift can easily navigate through standard doorways, around corners, and over thresholds or debris. Additionally, the DC model features a power wheel assist for hydraulic forward and reverse drive, enhancing maneuverability.

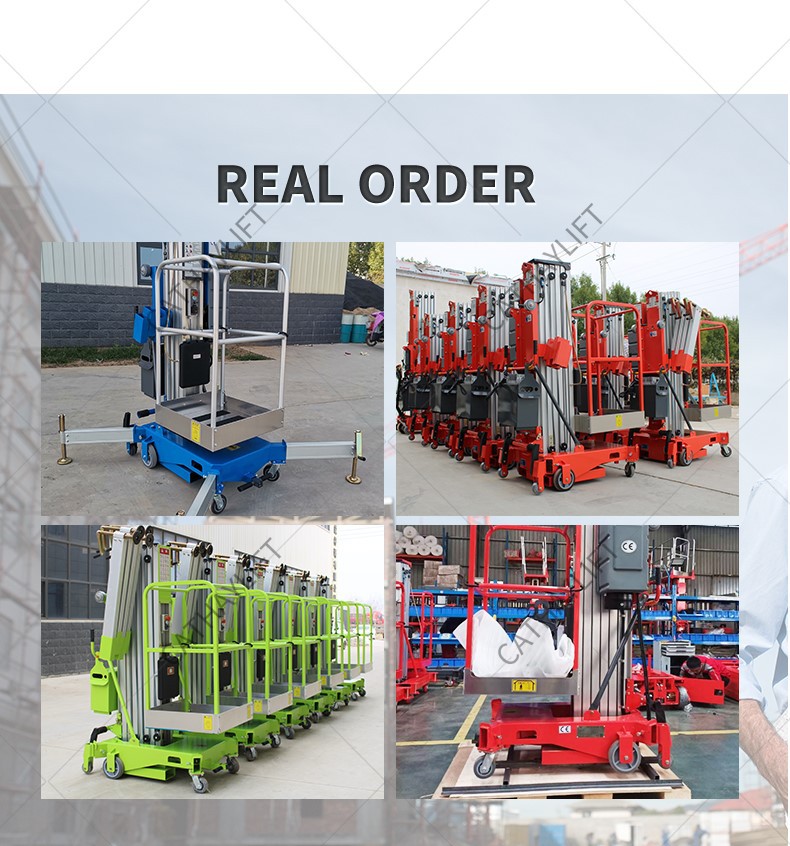

Real Order
|
Model No. |
CUP-5H |
CUP-6H |
CUP-8H |
CUP-9H |
CUP-10H |
CUP-12H |
|
|
Max.Platform Height |
5m |
6m |
8m |
9m |
10m |
12m |
|
|
Max Working Height |
6m |
8m |
10m |
11m |
12m |
14m |
|
|
Load Capacity |
150kg |
150kg |
150kg |
150kg |
136kg |
120kg |
|
|
Platform Size |
0.67*0.66m |
||||||
|
Occupants |
One person |
||||||
|
Outrigger Coverage |
1.7*1.7m |
1.7*1.7m |
1.6*1.6m |
1.7*1.7m |
1.9*1.7m |
2.3*1.9m |
|
|
Overall Size |
1.24*0.74*1.99m |
1.24*0.74*1.99m |
1.36*0.74*1.99m |
1.4*0.74*1.99m |
1.42*0.74*1.99m |
1.46*0.81*2.68m |
|
|
Net Weight |
300kg |
320kg |
345kg |
365kg |
385kg |
460kg |
|
|
Motor Power |
0.75kw |
||||||
|
Options |
DC |
12v |
|||||
|
DC Motor |
1.5kw |
||||||
|
Charger |
12v15A |
||||||
