Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric hydraulic aluminum lift platform in China. We warmly welcome you to buy discount electric hydraulic aluminum lift platform for sale here from our factory. Quality products and reasonable price are available.

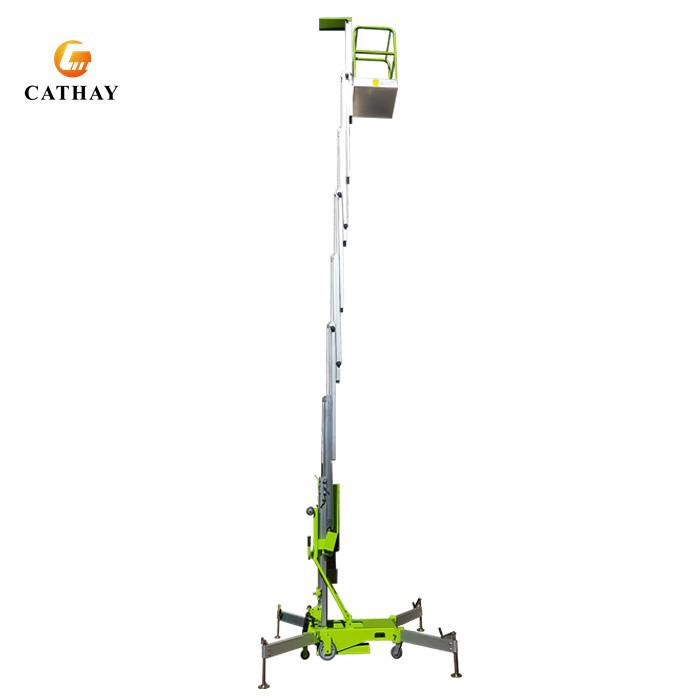

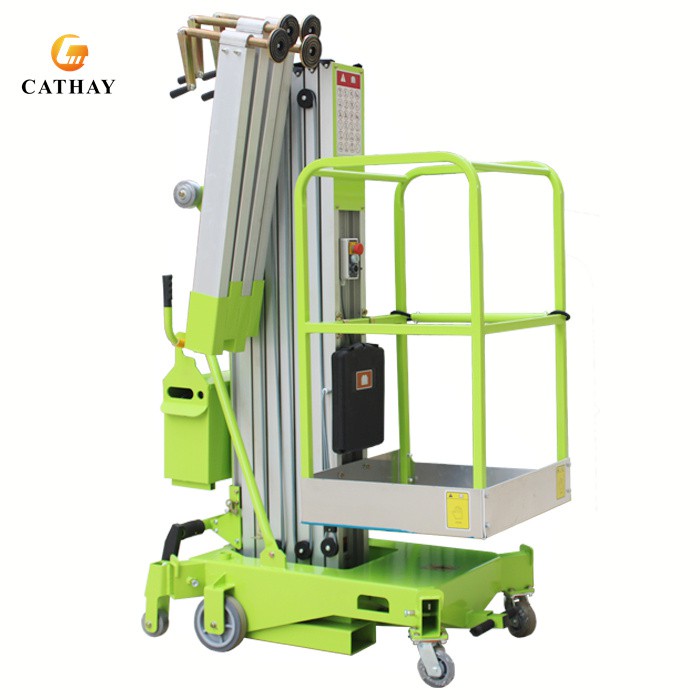

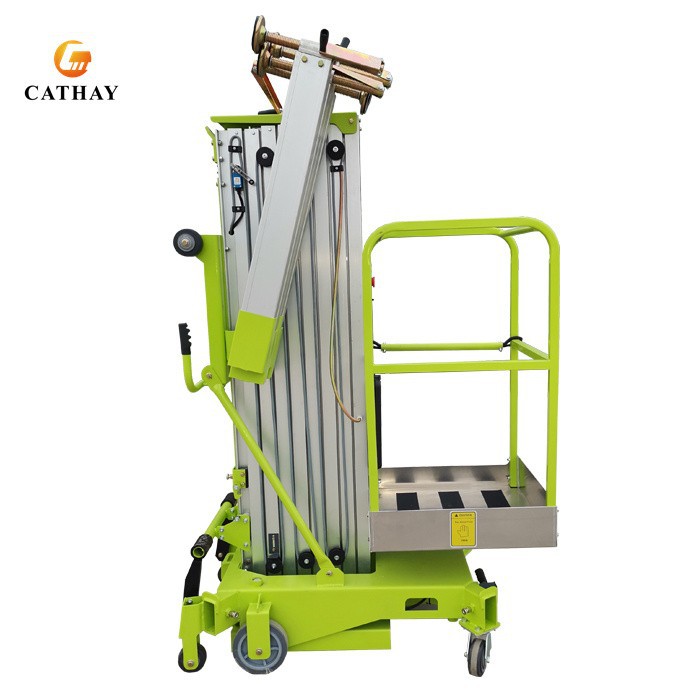

Electric Hydraulic Aluminum Lift Platform
Drawing inspiration from industry leaders like JLG, Genie, and Haulotte, our product embodies cutting-edge design. Featuring innovations such as the Deadman Switch for enhanced safety, pluggable legs, and a leg interlocking mechanism, it sets a new standard in operation. Further upgrades include dual auxiliary wheels on the rear, facilitating effortless movement on inclines, lifting rings for added convenience, and an anti-skid basket design for stability.
|
Model No. |
CUP-5H |
CUP-6H |
CUP-8H |
CUP-9H |
CUP-10H |
CUP-12H |
|
|
Max.Platform Height |
5m |
6m |
8m |
9m |
10m |
12m |
|
|
Max Working Height |
6m |
8m |
10m |
11m |
12m |
14m |
|
|
Load Capacity |
150kg |
150kg |
150kg |
150kg |
136kg |
120kg |
|
|
Platform Size |
0.67*0.66m |
||||||
|
Occupants |
One person |
||||||
|
Outrigger Coverage |
1.7*1.7m |
1.7*1.7m |
1.6*1.6m |
1.7*1.7m |
1.9*1.7m |
2.3*1.9m |
|
|
Overall Size |
1.24*0.74*1.99m |
1.24*0.74*1.99m |
1.36*0.74*1.99m |
1.4*0.74*1.99m |
1.42*0.74*1.99m |
1.46*0.81*2.68m |
|
|
Net Weight |
300kg |
320kg |
345kg |
365kg |
385kg |
460kg |
|
|
Motor Power |
0.75kw |
||||||
|
Options |
DC |
12v |
|||||
|
DC Motor |
1.5kw |
||||||
|
Charger |
12v15A |
||||||
Products Details
● Control and Durability:
Ground control features a leg indicator for stability. The durable aluminum alloy design ensures longevity.
● Convenience and Versatility:
A single-person loading device enhances ease of use. Standard forklift holes facilitate transportation.
● Mobility and Stability:
Equipped with four wheels and two backup wheels, it ensures smooth movement. The non-marking silent solid PU wheels provide stability without leaving traces.
● Safety and Compliance:
Includes cylinder holding and anti-explosion valves for safety assurance. Certified with CE, RoHS, TUV, and ISO9001 standards for quality and compliance.
Details Images

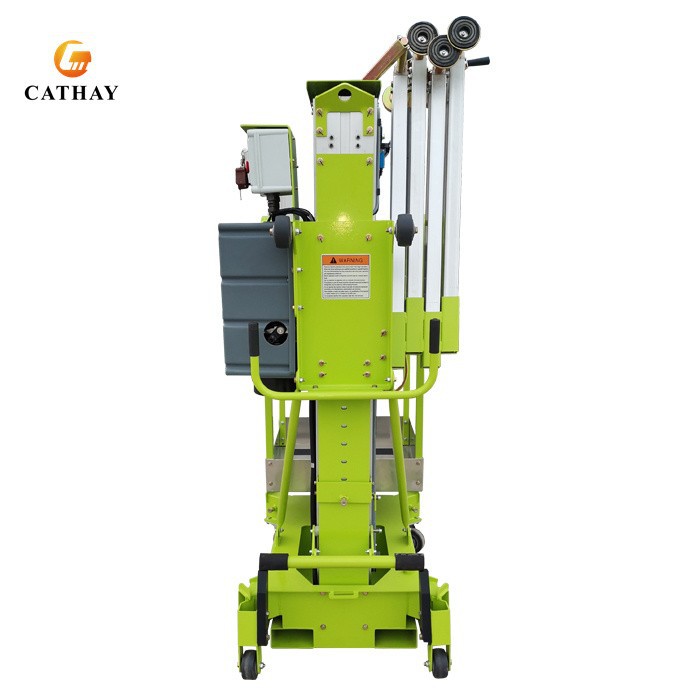

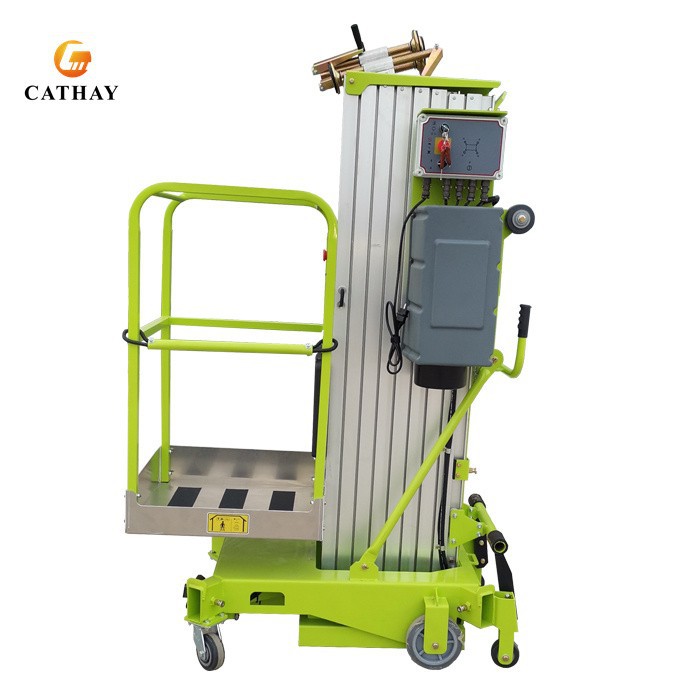

Battery indicator, Ground control system:
Opt for the added convenience of optional DC power. The ground control system offers flexibility, featuring a power switch activated by key-turning. Users can choose between initiating the ground control or table control system. An emergency stop is denoted by the red button, while the outrigger display light on the right ensures operational safety. With all four outriggers in a balanced state, indicated by the constant illumination of the indicator light, the product functions seamlessly.
Aviation Plug:
The aviation plug represents a cutting-edge electrical connector, employing state-of-the-art materials and manufacturing techniques. Crafted from high-strength aluminum alloy, its bayonet-type outer groove connection offers unparalleled advantages: compact size, lightweight construction, user-friendly operation, and effortless replacement of electronic components.
Aluminum alloy outriggers with the rubber protection pats:
To safeguard delicate surfaces like wooden floors, marble, or ceramic tiles from potential damage caused by outriggers, we've innovatively integrated rubber protection pads underneath. The outriggers feature an all-aluminum alloy plug-in design, significantly enhancing both the force-bearing capacity and overall stability of the equipment.
Emergency relive valve and cylinder with anti-exposion valve:
During emergencies, our valve facilitates swift platform descent to ground level for immediate response. Adhering to CE standards, our product undergoes rigorous tubing burst tests. According to these standards, in the event of tubing failure, the platform must remain momentarily stationary, awaiting rescue. However, numerous low-quality alternatives fail to halt promptly, posing a grave safety risk with gradual declines. With our cylinder's explosion-proof feature, we ensure utmost safety and stability in our products.
Application
Real Order:
