Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of compact scissor lift in China. We warmly welcome you to buy discount compact scissor lift for sale here from our factory. Quality products and reasonable price are available.

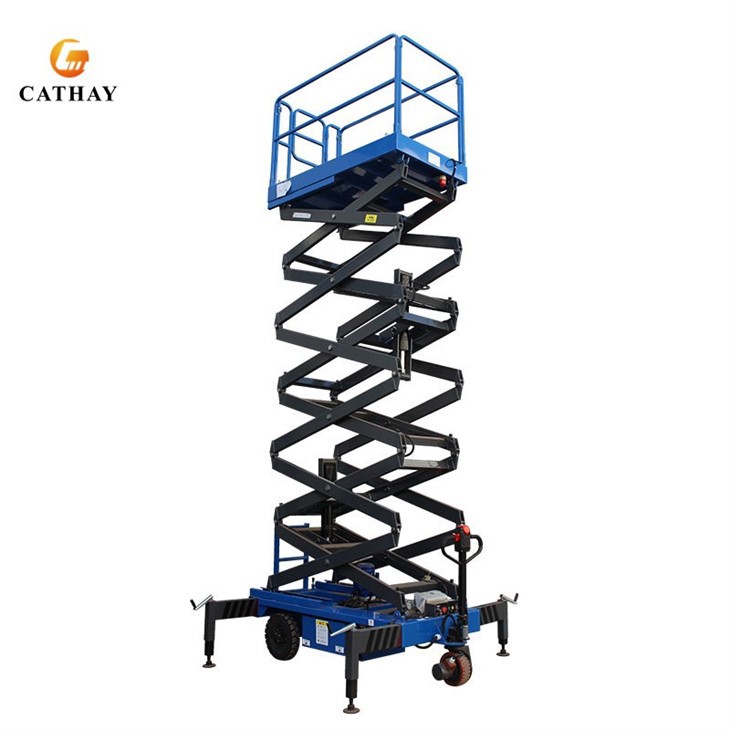

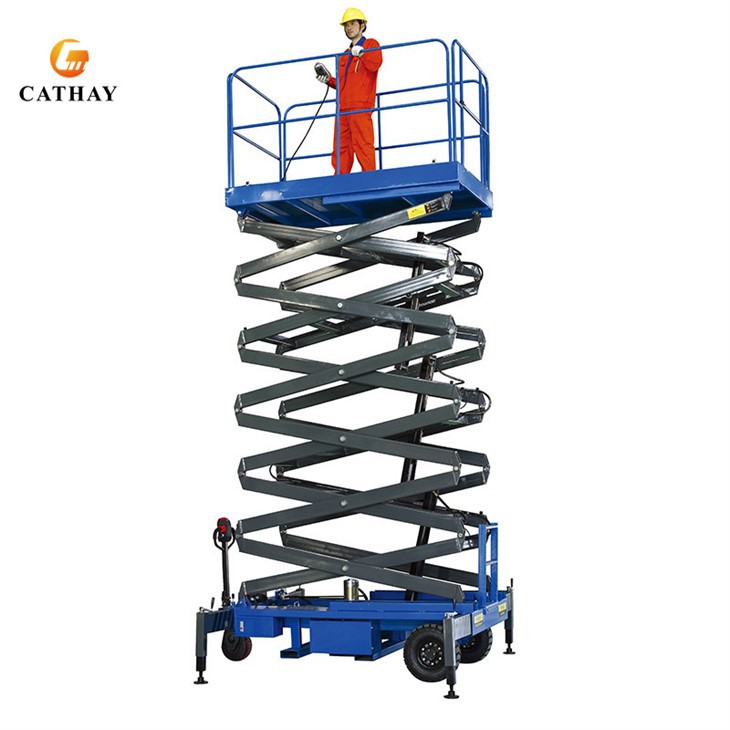

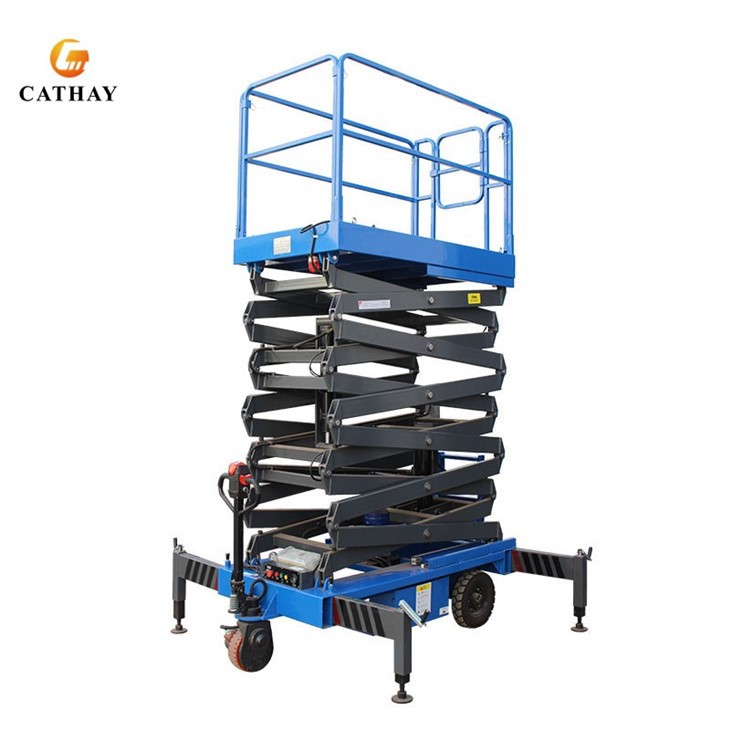

Compact Scissor Lift
CATHAYLIFT's Compact Scissor Lift is a testament to our unwavering commitment to innovation and quality. It is meticulously engineered with an array of high-quality components, including electrical appliances, walking systems, hydraulic systems, electric control systems, oil cylinders, hydraulic oil pipes, tires, countertops, rails, brackets, axle pins, tires, guardrails, rectangular tube support angles, control handles, chassis, and pump stations. This comprehensive selection of components guarantees exceptional performance, reliability, and durability, making our Compact Scissor Lift the ideal solution for any high-altitude work project.
|
Model No. |
Table size (mm) |
Loading capacity (kg) |
Platform height (m) |
Working height (m) |
Voltage (V) |
N.W. (kg) |
|
CL0506 |
2100*830 |
500 |
6 |
8 |
1 or 3phase |
880 |
|
CL0507 |
7 |
9 |
970 |
|||
|
CL0508 |
2100*930 |
8 |
10 |
1050 |
||
|
CL0509 |
9 |
11 |
1165 |
|||
|
CL0510 |
2100*1230 |
10 |
12 |
1360 |
||
|
CL0511 |
300 |
11 |
13 |
1400 |
||
|
CL0512 |
2550*1530 |
500 |
12 |
14 |
2260 |
|
|
CL0514 |
2812*1530 |
14 |
16 |
2400 |
||
|
CL0316 |
2812*1600 |
300 |
16 |
18 |
3500 |
|
|
CL0318 |
3070*1600 |
18 |
20 |
3900 |
||
|
CL1004 |
2100*1200 |
1000 |
4 |
6 |
3 phase |
1250 |
|
CL1006 |
6 |
8 |
1400 |
|||
|
CL1008 |
8 |
10 |
1585 |
|||
|
CL1010 |
10 |
12 |
1700 |
|||
|
CL1012 |
2550*1530 |
12 |
14 |
2560 |
||
|
CL1014 |
2812*1530 |
14 |
16 |
2765 |
||
|
CL1506 |
2100*1530 |
1500 |
6 |
8 |
1780 |
|
|
CL1508 |
8 |
10 |
2070 |
|||
|
CL1510 |
10 |
12 |
2250 |
|||
|
CL1512 |
2550*1530 |
12 |
14 |
2900 |
||
|
CL1514 |
2816*1600 |
14 |
16 |
3400 |
||
|
CL2006 |
2100*1530 |
2000 |
6 |
8 |
1780 |
|
|
CL2008 |
8 |
10 |
2070 |
|||
|
CL2010 |
10 |
12 |
2250 |
|||
|
CL2012 |
2550*1600 |
12 |
14 |
3200 |
||
|
CL2014 |
2816*1600 |
14 |
16 |
3900 |
Product Details:

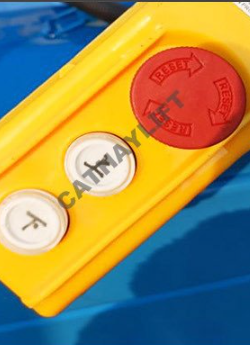

Dual Control Handler
(Operated both on the ground or the platform)

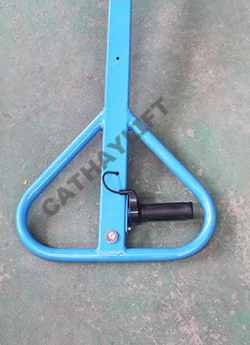

Towed Ring
(Electric driving control handler)

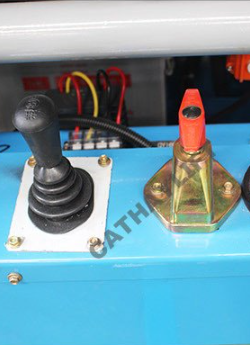

Control Panel (Forward/Backward),
Battery Indicator
Rubber Wheels
Scratch/Impact/Puncture-resistant
Working Principle:
- 1. The Power Source: The heart of the system lies in the vane pump, which generates hydraulic oil under pressure. This pressurized oil forms the driving force for the lifting mechanism.
- 2. Filtering for Precision: Only clean oil, free from contaminants, reaches the hydraulic cylinder, safeguarding the system's longevity and performance.
- 3. Precise Control: The explosion-proof electromagnetic reversing valve, throttle valve, hydraulic control one-way valve, and balance valve work in unison to precisely control the oil flow to the hydraulic cylinder. These valves are responsible for directing the oil flow, regulating hydraulic pressure, and ensuring smooth lifting operations.
- 4. Lifting with Power: The pressurized hydraulic oil enters the lower end of the hydraulic cylinder, pushing its piston upwards. This upward motion is what directly lifts the platform and the load, efficiently elevating the working area.
- 5. Controlled Return: As the piston moves upwards, the hydraulic oil at the upper end of the cylinder is directed back to the fuel tank through the explosion-proof electromagnetic reversing valve. This ensures continuous oil circulation and maintains the system's stability.
- 6. Pressure Management: The overflow valve plays a crucial role in regulating the system's maximum pressure. It ensures that the pressure never exceeds a safe limit, preventing potential damage to the system. The pressure gauge provides a visual indication of the system's pressure, allowing for vigilant monitoring and adjustments.
Real Order:
