Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of high rise scissor lift in China. We warmly welcome you to buy discount high rise scissor lift for sale here from our factory. Quality products and reasonable price are available.
High Rise Scissor Lift

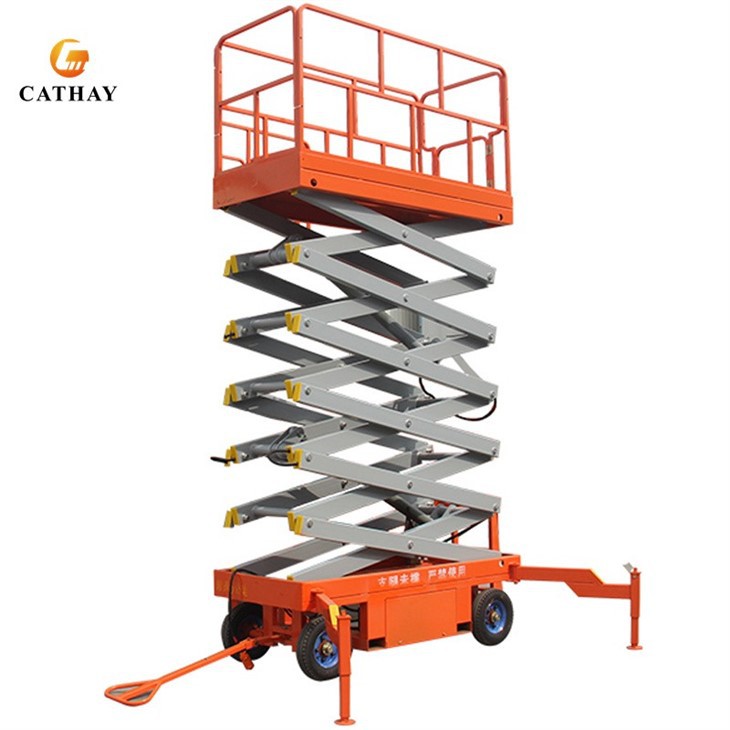

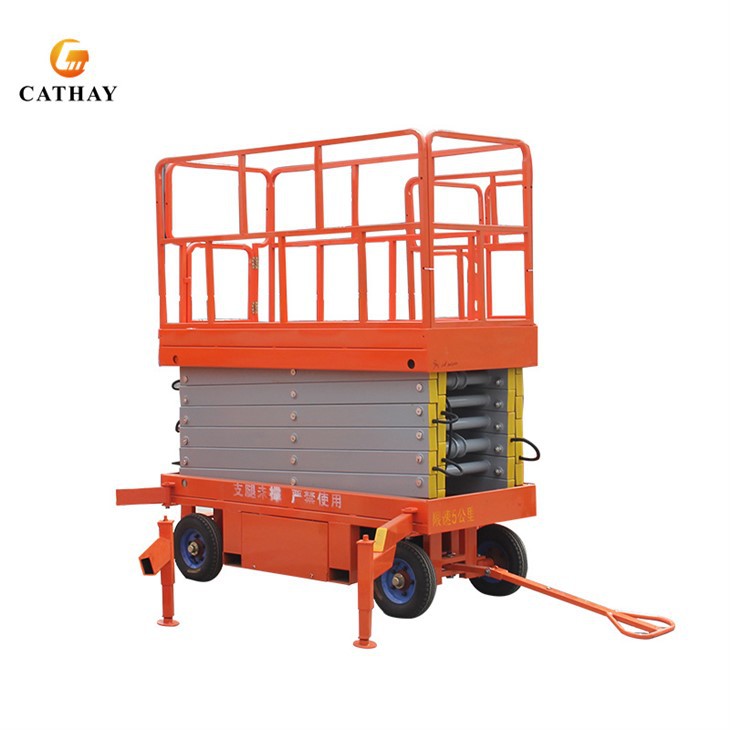

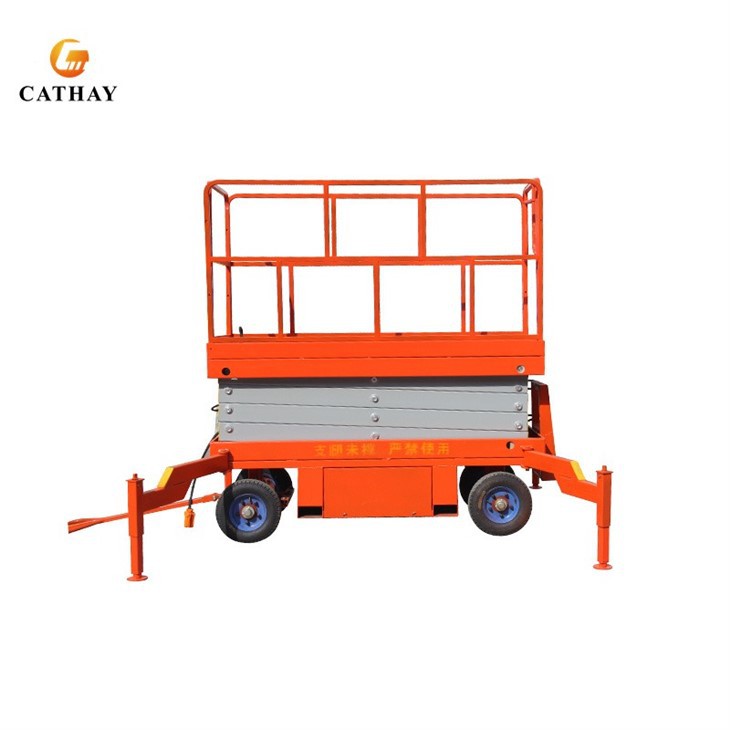

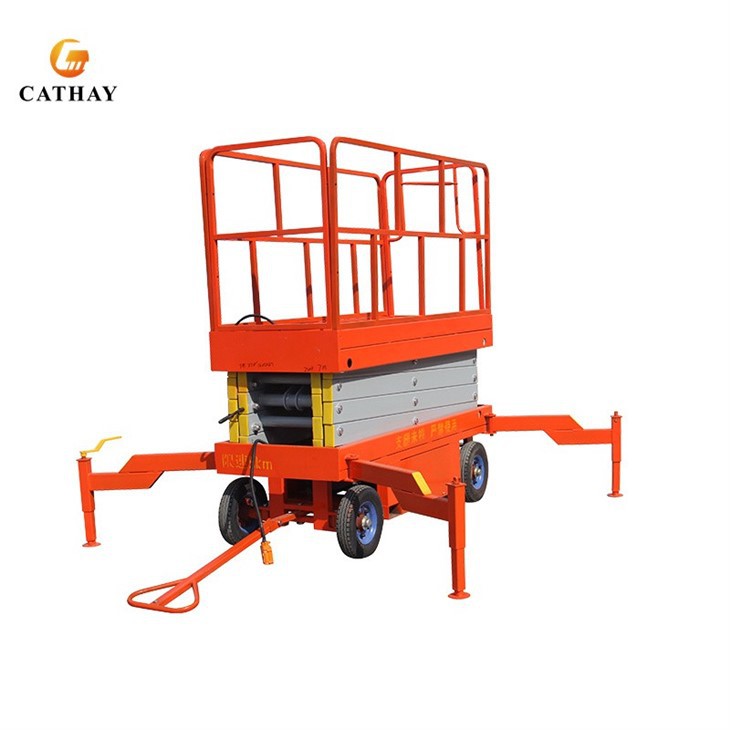

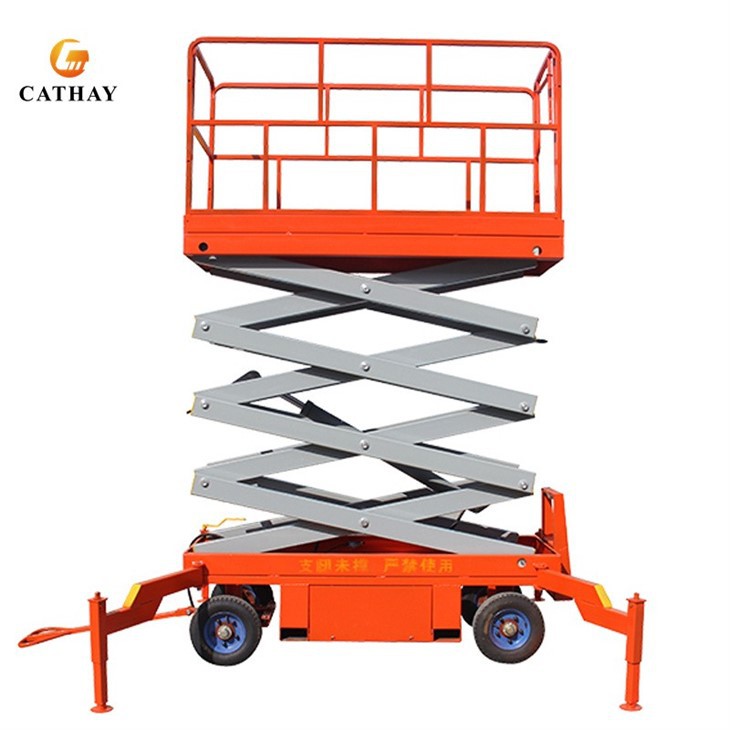

CATHAYLIFT's High Rise Scissor Lift features a convenient four-wheel mobility system, allowing for smooth and flexible movement across job sites. Additionally, CATHAYLIFT offers multiple power options, including electric, diesel, and hybrid models, ensuring adaptability to different working environments. Optional auxiliary moving devices further enhance maneuverability, making it easy to position the lift in tight or challenging spaces.
|
Model |
Table Size (mm) |
Loading Capacity |
Platform Height (m) |
Working Height (m) |
Retract Height (m) |
Voltage (V) |
|
CL0506 |
2100*830 |
500 |
6 |
8 |
1.2 |
1 or 3 phase |
|
CL0507 |
2100*830 |
7 |
9 |
1.28 |
||
|
CL0508 |
2100*930 |
8 |
10 |
1.38 |
||
|
CL0509 |
2100*930 |
9 |
11 |
1.5 |
||
|
CL0510 |
2100*1230 |
10 |
12 |
1.53 |
||
|
CL0511 |
2100*1230 |
300 |
11 |
13 |
1.65 |
|
|
CL0512 |
2550*1530 |
500 |
12 |
14 |
1.75 |
|
|
CL0514 |
2812*1530 |
14 |
16 |
1.81 |
||
|
CL0316 |
2812*1600 |
300 |
16 |
18 |
2.08 |
|
|
CL0318 |
3070*1600 |
18 |
20 |
2.08 |
||
|
CL1004 |
2100*1200 |
1000 |
4 |
6 |
1.18 |
3 phase |
|
CL1006 |
2100*1200 |
6 |
8 |
1.3 |
||
|
CL1008 |
2100*1200 |
8 |
10 |
1.42 |
||
|
CL1010 |
2100*1200 |
10 |
12 |
1.53 |
||
|
CL1012 |
2550*1530 |
12 |
14 |
1.75 |
||
|
CL1014 |
2812*1530 |
14 |
16 |
1.81 |
||
|
CL1506 |
2100*1530 |
1500 |
6 |
8 |
1.53 |
|
|
CL1508 |
2100*1530 |
8 |
10 |
1.69 |
||
|
CL1510 |
2100*1530 |
10 |
12 |
1.85 |
||
|
CL1512 |
2550*1530 |
12 |
14 |
1.85 |
||
|
CL1514 |
2816*1600 |
14 |
16 |
1.96 |
||
|
CL2006 |
2100*1530 |
2000 |
6 |
8 |
1.53 |
|
|
CL2008 |
2100*1530 |
8 |
10 |
1.69 |
||
|
CL2010 |
2100*1530 |
10 |
12 |
1.85 |
||
|
CL2012 |
2550*1600 |
12 |
14 |
1.954 |
||
|
CL2014 |
2816*1600 |
14 |
16 |
2.23 |
Product Details:
1. Key Components Involved in the Lifting Mechanism
- Hydraulic Pump Station – Generates hydraulic pressure to drive the lifting motion.
- Hydraulic Cylinder – Acts as the primary lifting mechanism, extending to raise the platform.
- Electro-Hydraulic Control System – Includes explosion-proof electromagnetic reversing valves, throttle valves, hydraulic control one-way valves, and balance valves to regulate oil flow.
- Hydraulic Oil Tank & Filters – Ensures clean, debris-free oil circulation for smooth operation.
- Pressure Relief Valve – Maintains system pressure within safe limits.
- Pressure Gauge – Monitors real-time hydraulic pressure for optimal performance.
- Electric Control Panel & Handle – Allows operators to control ascent, descent, and emergency stops.
2. Step-by-Step Lifting Process
Step 1: Power Activation
The electric motor (or diesel engine, depending on the model) powers the vane pump, pressurizing the hydraulic oil.
Step 2: Oil Flow & Pressure Build-Up
Hydraulic oil passes through the oil filter to remove contaminants before entering the electromagnetic reversing valve.
The pressurized oil then flows through the throttle valve (controlling speed) and hydraulic one-way valve (preventing backflow).
Step 3: Cylinder Extension & Lifting
The high-pressure oil enters the lower end of the hydraulic cylinder, forcing the piston upward.
As the piston extends, the scissor mechanism expands, elevating the work platform.
Step 4: Pressure Regulation & Safety Control
The overflow valve ensures pressure remains within rated limits, preventing system overload.
The balance valve stabilizes the descent, ensuring a controlled and jerk-free lowering motion.
Step 5: Descent Mechanism
When lowering, the electromagnetic reversing valve switches, allowing oil from the cylinder's upper end to return to the tank.
The throttle valve adjusts descent speed for smooth operation.
